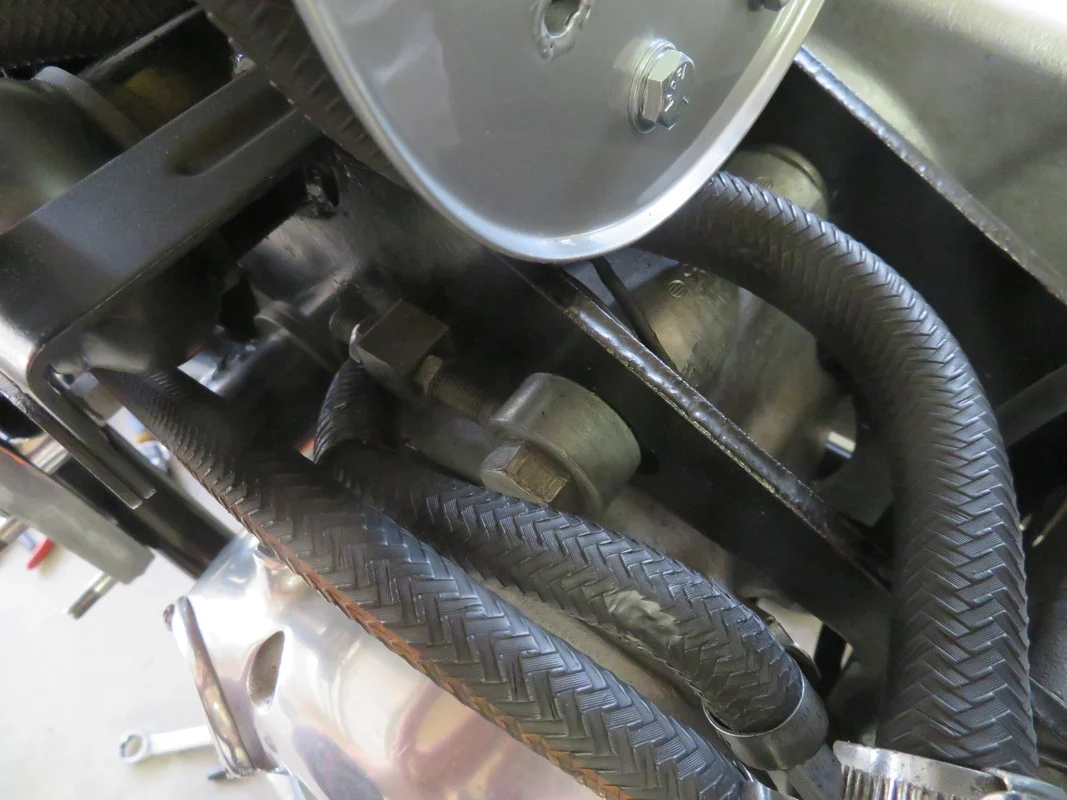

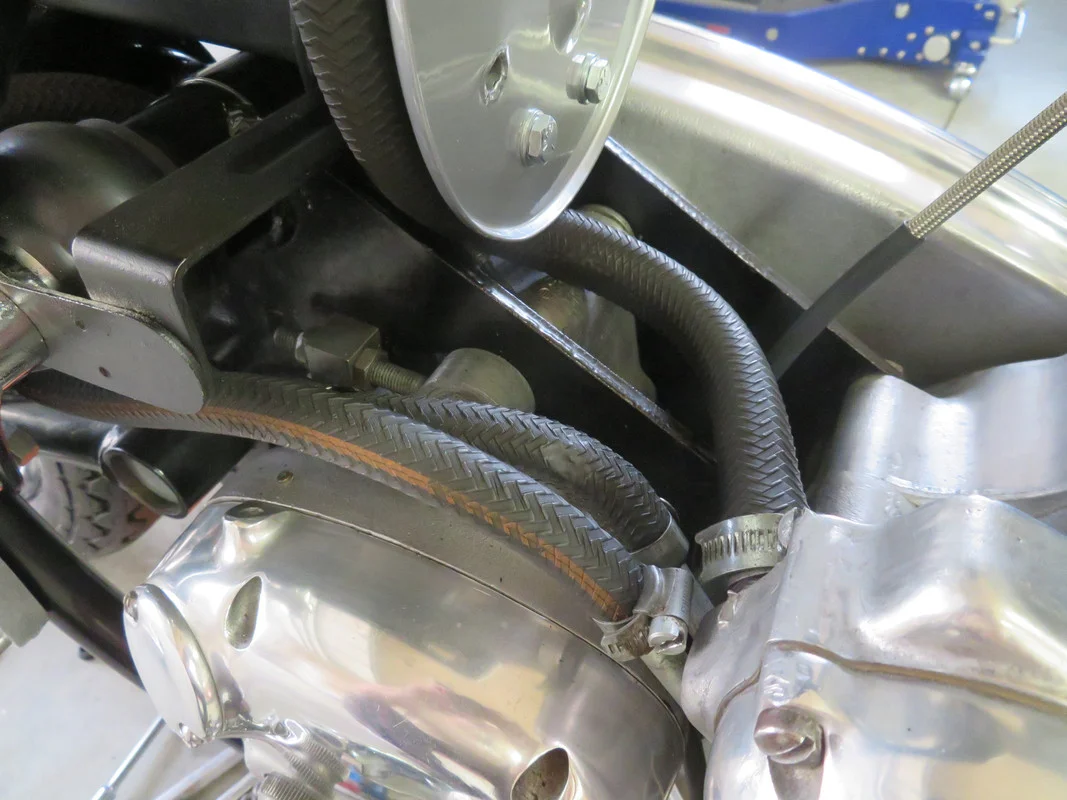

before I drop in the oil tank, can someone verify my hose routing. pretty sure it's the way it came apart. the oil hose clip mounts to the forward, lower, support bracket bolt, and as I recall there was only one hose through the clip. the parts book shows two hoses, but I don't have two hoses in the vicinity of the clip, so there's no way for two hoses.

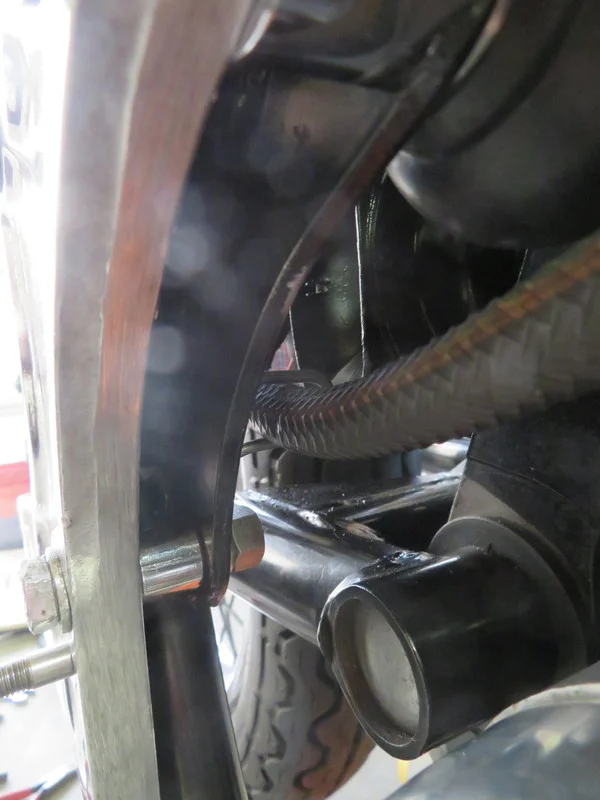

i'm finding that the 3/8-24 X 2.00 support plate bolts a bit too short - barely have one thread showing, if that - probably closer to flush. seems to me, 2.25 would be a whole lot better. i even had to eliminate the nut side washer to accommodate the hose clip. I had bag and tagged the hardware, so I seem to have an extra washer. one line that I have a concern is the return line - from the filter to the tank - seems a bit short, snug, and a tight fit - pic 3. anyone else have this short bolt problem or hose routing? pretty much assembled per the parts manual. thanks in advance....
i'm finding that the 3/8-24 X 2.00 support plate bolts a bit too short - barely have one thread showing, if that - probably closer to flush. seems to me, 2.25 would be a whole lot better. i even had to eliminate the nut side washer to accommodate the hose clip. I had bag and tagged the hardware, so I seem to have an extra washer. one line that I have a concern is the return line - from the filter to the tank - seems a bit short, snug, and a tight fit - pic 3. anyone else have this short bolt problem or hose routing? pretty much assembled per the parts manual. thanks in advance....
