Atlas seat question

Discussion in 'Other Norton Motorcycles' started by MikeG, Feb 14, 2020.

  1. MikeG

    MikeG

    Joined:
    May 31, 2012
    So I've got the rear fender all mounted, and I see where a duzse fastener is used as the rear retainer on the seat. What type if any grommets or washers are also used? Again, a picture would be greatly appreciated as none of the books I have show a clear shot and the parts book is less than helpful.
    Thanks

  2. bad_friday

    bad_friday

    Joined:
    Mar 23, 2012
    a picture:

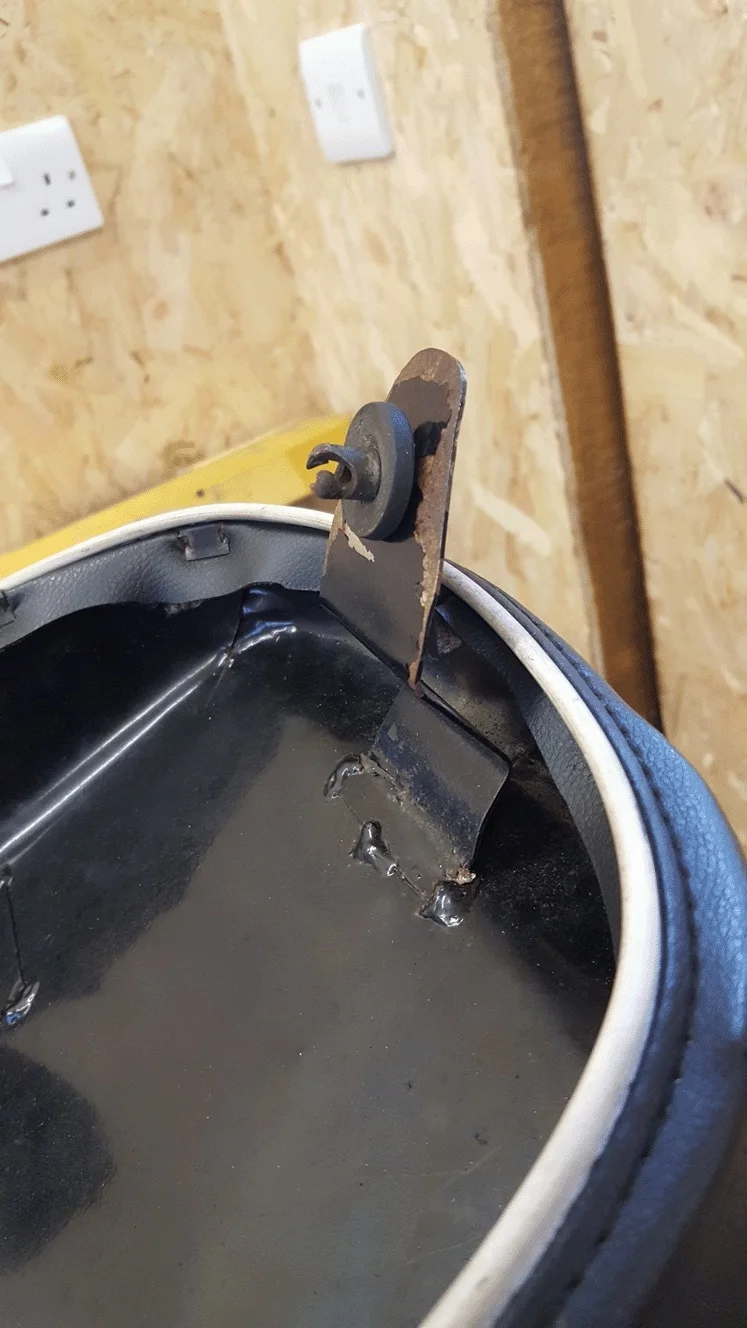

    [​IMG]

  3. MikeG

    MikeG

    Joined:
    May 31, 2012
    Thank you for the picture. Whats confusing me is the parts books lists the fastener, a grommet for fastener, and a rubber washer for fastener. I'm assuming the grommet goes on the hole in the fender then? The rubber washer is there as both a buffer between the seat and fender and also to keep the fastener with the seat bracket with the seat off?

  4. texasSlick

    texasSlick VIP MEMBER

    Joined:
    Jan 2, 2013
    I will post a picture tomorrow, 2/17/20. I am not with my bike now.

    I am the original owner, so I know my Dzus fastener is as original.

    Slick

    Last edited: Feb 17, 2020
  5. texasSlick

    texasSlick VIP MEMBER

    Joined:
    Jan 2, 2013

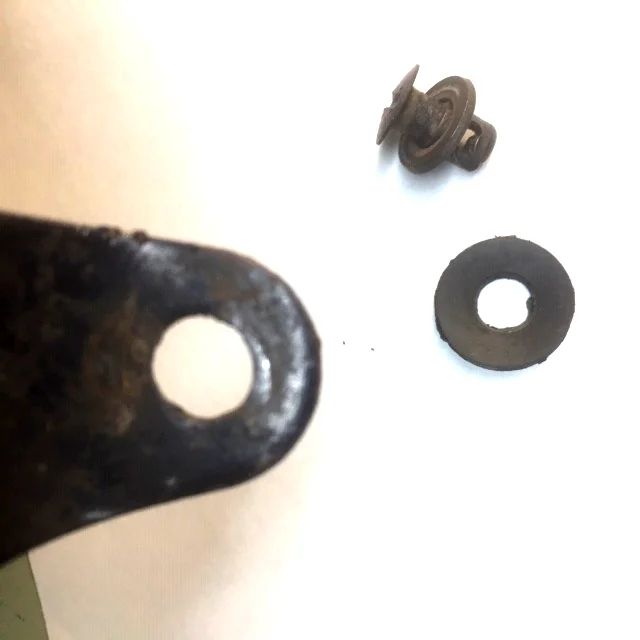

    Atlas seat_2.png

    Mine does not have a grommet. There is a steel washer that is under the head of the Dzus screw. On the underside of the seat bracket, there is an approx 0.090" thick neoprene washer that acts as a buffer to the fender, and also keeps the Dzus screw in place.

    Slick

  6. MikeG

    MikeG

    Joined:
    May 31, 2012
    Thanks Slick. So far this has been like putting a jigsaw puzzle together without the box top picture, some of the pieces missing and others thrown in that don't belong, but I'm getting there!

  7. Gilesy

    Gilesy VIP MEMBER

    Joined:
    Aug 27, 2017
    Slick, any chance you could post a picture of the bottom part attached to the fender. I have the Dzus screw but it seems very long, not sure how bottom part works. Thanks in advance.

  8. Beach

    Beach VIP MEMBER

    Joined:
    Aug 27, 2013
    20200218_090924.jpg 20200218_090841.jpg

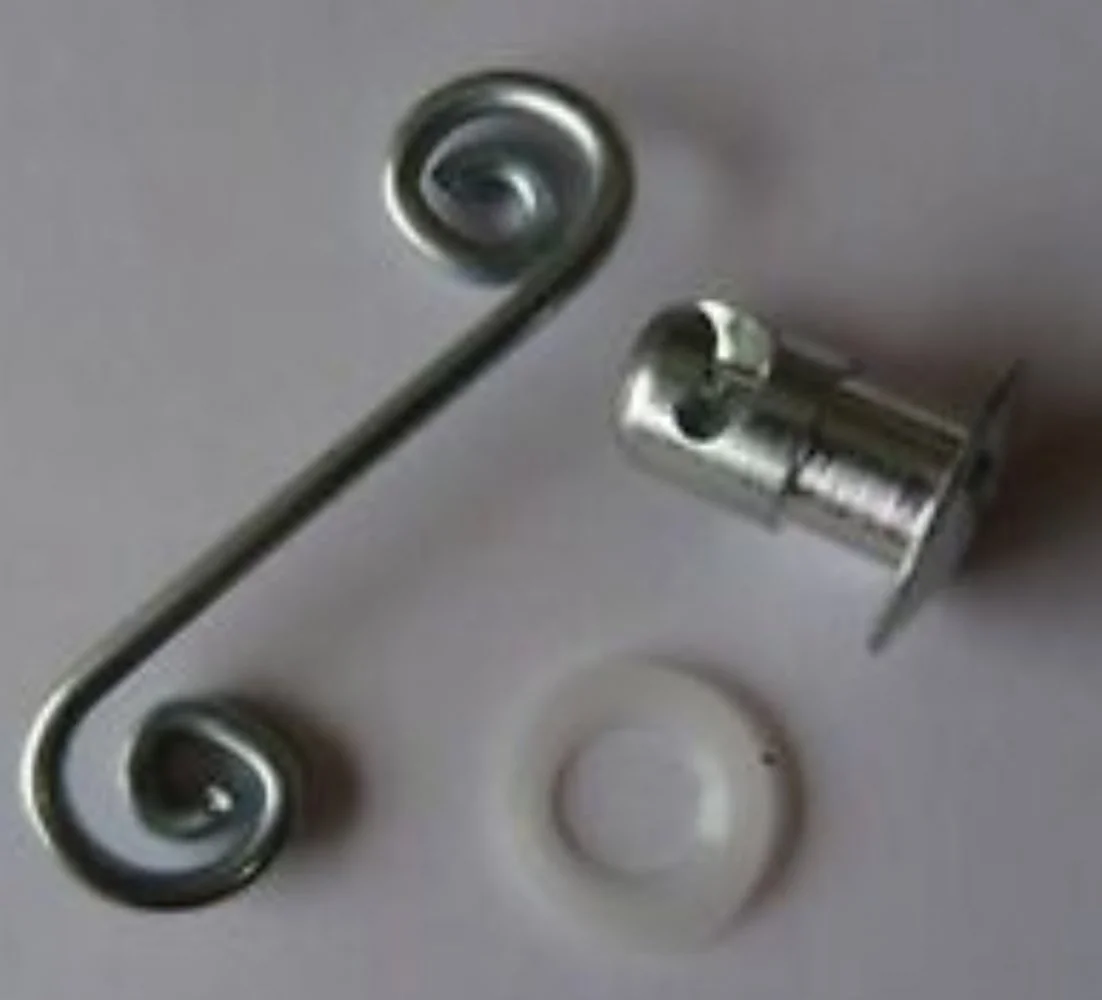

    Here is a couple of pics. Curly wire is riveted to holes in fender(underneath)
    Mine has a grommet. Will try to get a pic after while.

    Bernhard likes this.
  9. Bernhard

    Bernhard

    Joined:
    Apr 20, 2011
  10. texasSlick

    texasSlick VIP MEMBER

    Joined:
    Jan 2, 2013
    The wire is riveted flush to the underside of the fender, as in Beach's picture.

    The Dzus fastener has a coin slotted head 0.625" dia, and measures 0.837" overall, and 0.725" from the underside of the head to the end of the shaft. the steel washer measures 0.760" OD x 0.390" ID x 0.85" thick and is slightly convex. The neoprene washer is approx 1.025" OD x 0.3" ID x 0.090" thick.

    The hole in the seat bracket is 0.435" dia. The dia of the Dzus fastener where it passes thru the seat bracket hole is 0.312" leaving a gap of 0.123", possibly enough for a grommet.

    HTH,

    Slick

    Last edited: Feb 18, 2020
  11. Gilesy

    Gilesy VIP MEMBER

    Joined:
    Aug 27, 2017
    Just got home from work, I'll have a measure tomorrow. Thanks again.
