Atlas Engine Plates for Wideline?

Joined
Oct 17, 2014
Messages
28
Country flag
Hi.

I need to buy a set of Engine Plates to fit an Atlas engine into a Wideline - Are the engine plates for all dominator/Atlas's the same and will the also be the some for fitting into a WIdeline?

I'm looking at purchasing these - https://www.rgmnorton.co.uk/buy/engine-plate-set-steel-black-twins-into-slimline_2951.htm - and the corresponding bolt set. (if someone knows somewhere in Australia even better)

And before someone says it - I dont want to make my own set. . . . . .

Thanks All

Joined
Dec 23, 2010
Messages
666
Country flag

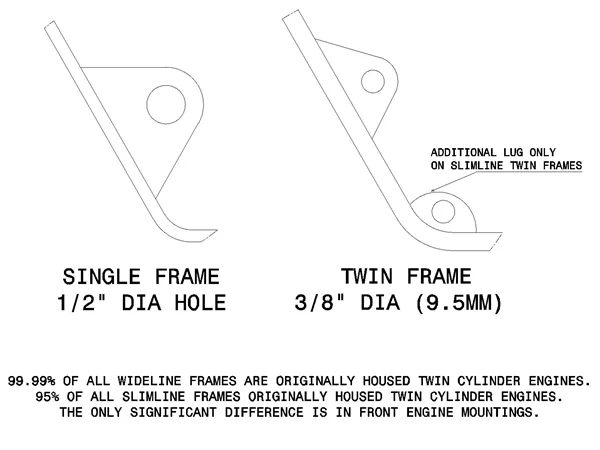

I think the engine plates are the same for all the featherbed twins. The only difference is in the front frame mounting points. Slimline has two sets & wideline one.

Martyn.

Joined
Oct 17, 2014
Messages
28
Country flag
Thanks for the link Fast Eddie

I'm not to fussed either way with Steel or Alloy, had thought Alloy was maybe more for racing applications, lightweight and generally on smoother circuits with lower total miles, steel possibly being more suitable for a road bike.

Why steel? Heavy man...!

Moreover, I was told by Dave Degans that steel engine plates increase vibration vs alloy.

Alloy ones available here:


Joined
Jul 11, 2010
Messages
3,524
Country flag
I use 5mm steel plates for my Commando motor in my Wideline I made a set of 6mm alloy plates later on but found they had more vibrations than the steel plates and really between the steel plates and alloy plates there is not that much difference in weight, yes the alloy ones are a bit lighter but down below don't make much difference, I made all my engine mounts, where I worked had a OXY profile cutter to cut them out but these days plasma cutters makes things a lot easier and 5mm plate is cheap to buy.

Ashley

Joined
Oct 17, 2014
Messages
28
Country flag
Cheers all, can anyone confirn Matchless's comment that the plates are the same for a wideline and slimline, but just using 1 front plate on the wideline


Fast Eddie

VIP MEMBER
Joined
Oct 4, 2013
Messages
12,350
Country flag
Cheers all, can anyone confirn Matchless's comment that the plates are the same for a wideline and slimline, but just using 1 front plate on the wideline
He didn‘t say ‘one front plate’ he said ‘one set of mounting points’ ie brackets welded to the frame that the plates bolt to.

If you want confirmation of fit, I’d suggest a quick email to RGM, they normally reply very promptly in my experience.

Joined
Apr 20, 2011
Messages
4,610
Country flag
I think the engine plates are the same for all the featherbed twins. The only difference is in the front frame mounting points. Slimline has two sets & wideline one. Martyn.
Except, Atlas engines are tilted backwards in the f/b frame.

Joined
Jan 18, 2020
Messages
145
Country flag
A note on alloy plates. Back in the sixties, alloy plates fitted straight away in a slimline. Then they were made from 1/4" plate. Plates I bought recently was 5/16" thick. Front ones don't fit in a slimline without machining. Also needed longer bolts.
It is quite possible that they could work on a wideline as the front lugs are different.

Joined
Apr 20, 2011
Messages
4,610
Country flag
A note on alloy plates. Back in the sixties, alloy plates fitted straight away in a slimline. Then they were made from 1/4" plate. Plates I bought recently was 5/16" thick. Front ones don't fit in a slimline without machining. Also needed longer bolts.
It is quite possible that they could work on a wideline as the front lugs are different.
1/4 alloy are not as strong as steel, and may crack. Back in the 1960s 5/16 Dural was the way to go.


Fast Eddie

VIP MEMBER
Joined
Oct 4, 2013
Messages
12,350
Country flag
1/4 alloy plate is perfectly fine and will last virtually indefinitely provided they are made out of decent stuff and well designed.

Unity Equipe “Converta” plates were perhaps the most ubiquitous in the UK for years, and they were shit. Not enough depth of material around the gearbox mounting slots and / or rear most mounting points. Hence, that’s where they crack.

They also need to fit well, and not be under any stress. If they’re under stress, and vibration, they’ll crack. If stronger plates are used, your frame or crank cases will crack instead.

Joined
Nov 4, 2007
Messages
943
Country flag
Hi Nigel, good to know .......as I will purchase some to build up a Cdo engine into a slimline , I am looking after TGA (same as Molnar ?) any thoughts ......and no I will not build them myself !
and to hijack a bit what are your thoughts , vertical or tilted ..........as I have a spare old Maney 2/1 exhaust , a tilted seems the way to go but ??

Joined
Feb 10, 2009
Messages
2,027
Country flag
To say Converta plates are “shit” is too categorical. If you specifically mean Converta plates for an Atlas with an Atlas engine, I have no experience, but:

I can only estimate the road miles on my Converta Triton plates from Unity Equipe at something like 80,000 on a pretty vibratory Triton. The frame has cracked in two different places that time. Are Norton frames shit?
