Amal MK2 carbs

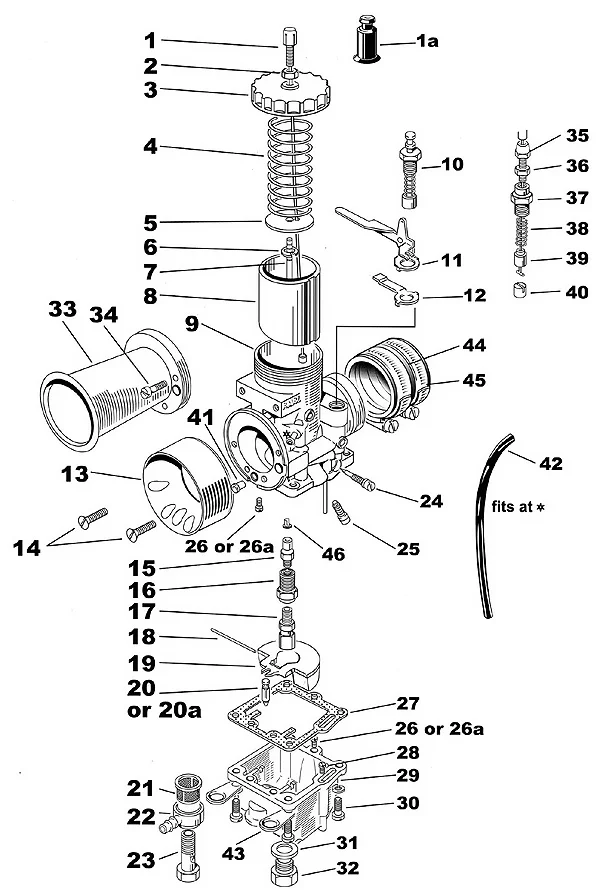

Can anyone tell me if jets marked 26-26a shown here should be screwed down into the float chamber
Or up into the carb body?
As when I stripped some of my spare mk2s I found a pilot jet screwed into the float chamber on one pair of carbs with a blanking screw in the carb body
But two other mk2s had pilot screwed into the carb body and a blanking screw in the float chamber
Yet the diagram above shows a jet in the carb body and in the float chamber
I'm assuming one should be a blank
Maybe it doesn't matter which way round they are fitted ??

baz said:

View attachment 111191
Can anyone tell me if jets marked 26-26a shown here should be screwed down into the float chamber
Or up into the carb body?
As when I stripped some of my spare mk2s I found a pilot jet screwed into the float chamber on one pair of carbs with a blanking screw in the carb body
But two other mk2s had pilot screwed into the carb body and a blanking screw in the float chamber
Yet the diagram above shows a jet in the carb body and in the float chamber
I'm assuming one should be a blank
Maybe it doesn't matter which way round they are fitted ??

Click to expand...

After searching the web it seems the pilot jet can be fitted in the carb body or the float chamber
But generally its fitted to the carb body on two strokes unless the carb is tilted forwards more than 15°

I have only ever seen / had them screwed into the float chamber baz.

Fast Eddie said:

I have only ever seen / had them screwed into the float chamber baz.

Click to expand...

I was surprised to see them screwed into the carb body
I never knew it was an option!
I'm considering fitting 30mm mk2s to my rocket 3

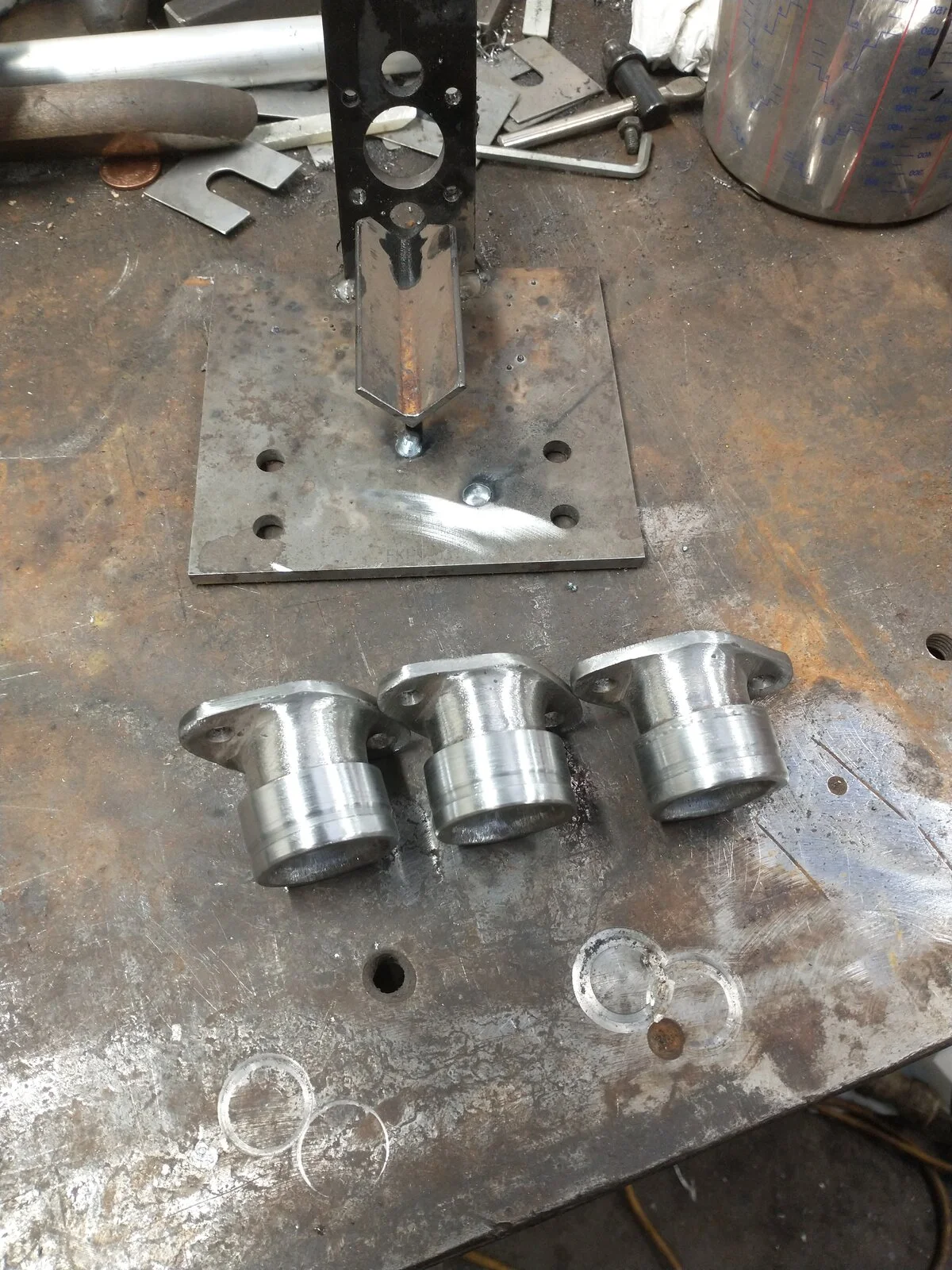

I've made some manifolds
I thought I'd strip the carbs to check all three are the same

I have MK2s fitted to the Atlas, & with the pilots in the float chambers it wouldn't idle properly, but once I swopped them to the carb body it was fine.

Matchless said:

I have MK2s fitted to the Atlas, & with the pilots in the float chambers it wouldn't idle properly, but once I swopped them to the carb body it was fine.

Click to expand...

Are you running them level or tilted? What size pilots do you use?

baz said:

Are you running them level or tilted? What size pilots do you use?

Click to expand...

Running tilted as per Atlas spec. Around 15 deg. 25 pilots.
