'69 Brake Drum axle movement

Status
Not open for further replies.
dirtymartini said:
I guess I need help on how to embed a video also!
Click to expand...

Embedding Photobucket videos doesn't seem to work here, unfortunately (Go on, somebody prove me wrong!) .

L.A.B. said:
dirtymartini said:
I guess I need help on how to embed a video also!
Click to expand...

Embedding Photobucket videos doesn't seem to work here, unfortunately (Go on, somebody prove me wrong!) .
Click to expand...


Did the link work for you? Were you able to see the movement?

That's normal. When you tighten things up, tighten that stub on the swing arm first, the drum will still be loose and wobbly. When you install the 3 long nuts into the drum from the hub things tighten up, then tighten the right side axle. I keep it at the spec which I think is about 80 ft/lb but check. The newer ones have the bearing in the drum, so it's a bit different, they also have the cush drive.

I embeded one of my videos from photobucket a long time ago. Lets see if it still works.

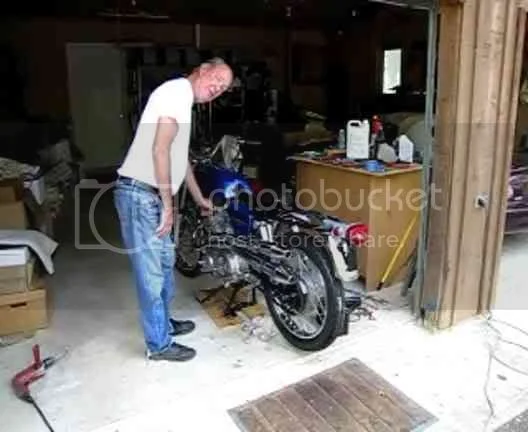

'69 Brake Drum axle movement


Dave
69S

DogT said:
I embeded one of my videos from photobucket a long time ago. Lets see if it still works.
Click to expand...

Yes, but can you get it to play directly in the post without going to the Photobucket page? :wink:

No, so I guess it's not truly embedded, just linked. Swooshdave does it, but I don't know what he's using.

Dave

I thought it was okay but wanted confirmation. Someone changed the wheel ass'y to a cush drive at some point in it's life.

Status
Not open for further replies.
