1967 Atlas Kickstarter

Hi all,

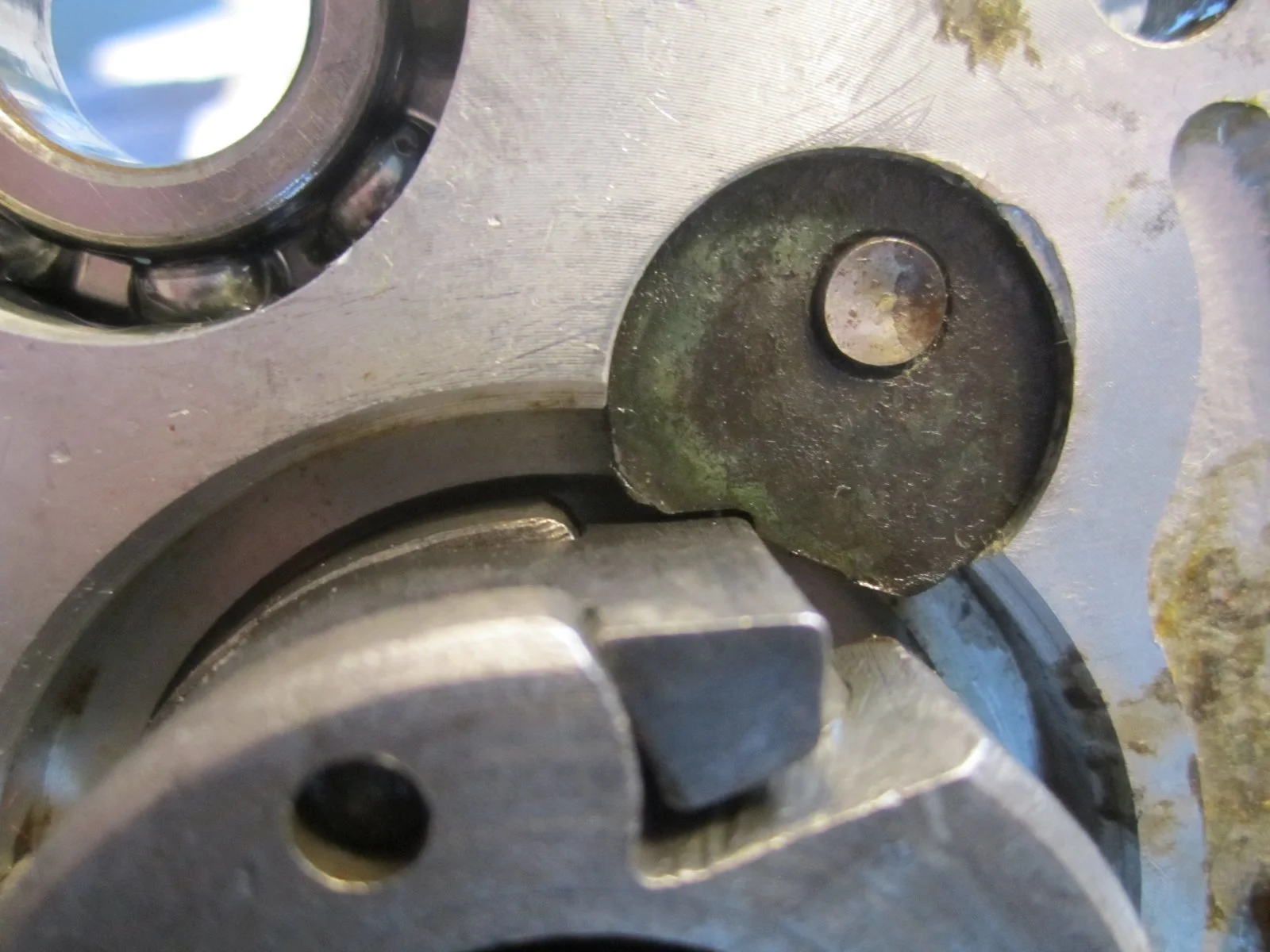

Just finished rebuilding my " NA" AMC gearbox with new bearings and o rings and have re-assembled all of the gears and camplate. Before installing the inner cover I noticed that the kickstarted would not rotate counterclockwise. I have included a photo of the situation. The problem seems to revolve around the pawl and it's relationship to its stop. If I depress the spring loaded pawl, then the shaft does move but then the outside diameter of the actual kickstart body runs into the stop. What am I missing? Thanks

Is that a notch in the stop or a shadow? If a notch in the stop, that aint right. It might function that way once the kickstart is on the layshaft, but I've no experience with that stop having a notch in it. The stop should be flat across the bottom. If it is a shadow on the stop, your kickstart gizmo is not in the circular recess in the case far enough.

Even though I've had a Norton for over 50 years I'm not an expert with the AMC gearbox. Lot of members on this site are though. You'll get some useful help eventually.

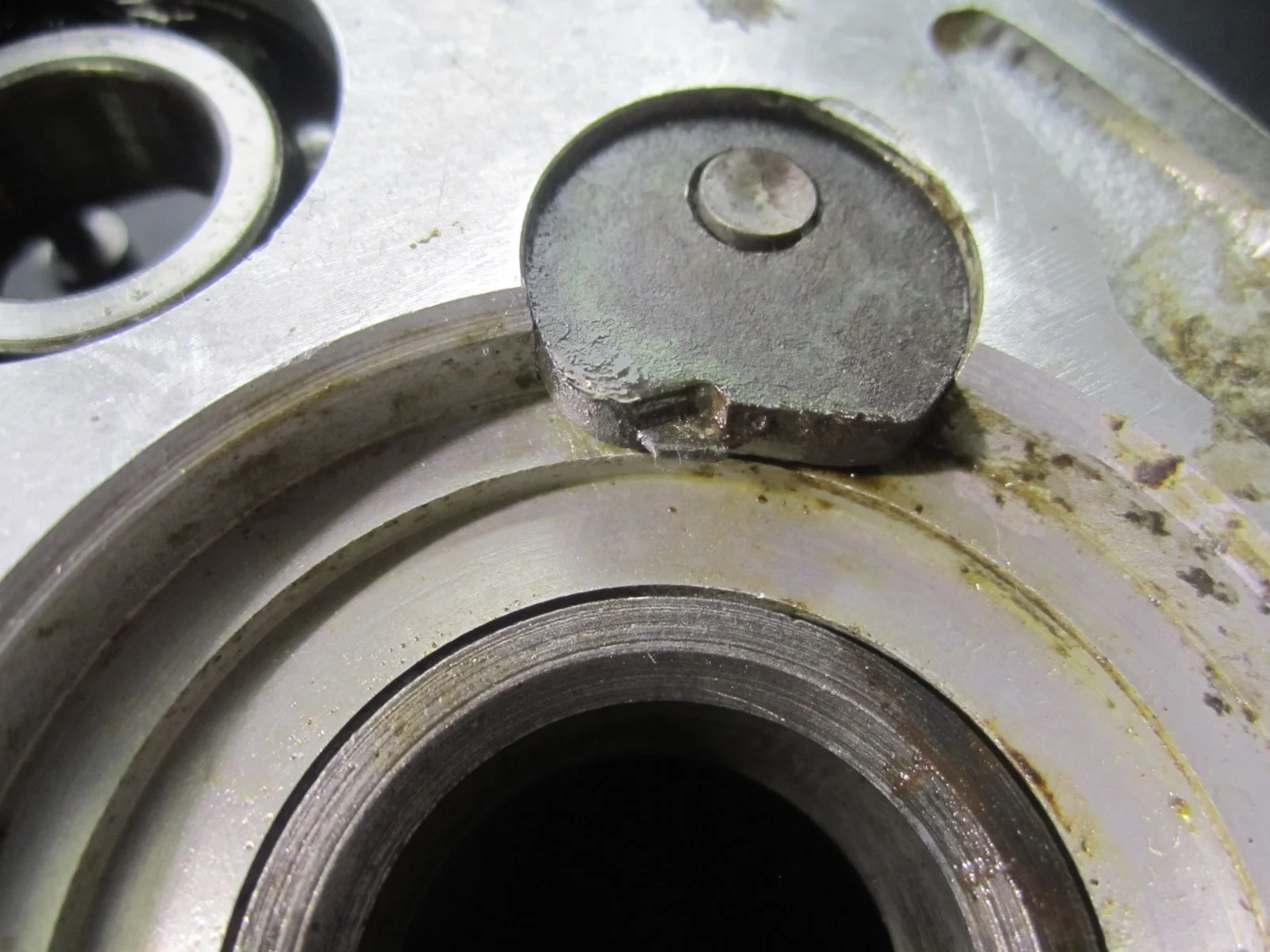

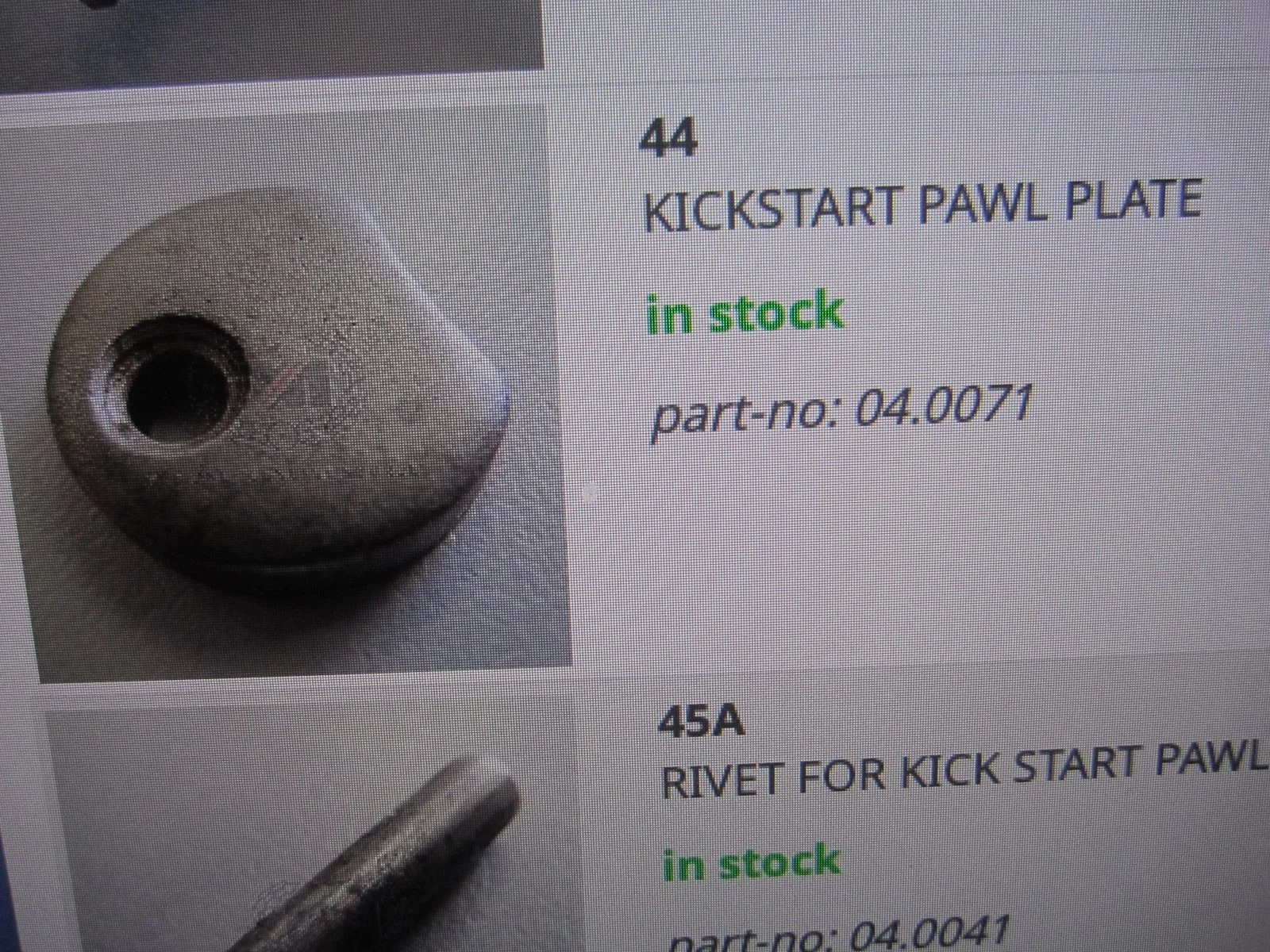

Think I may have found the problem. My part # 04-0071 kickstart pawl plate seems to be deformed when compared to the Andover Norton Past. Anybody know what the purpose of this plate is?

jms said:

Anybody know what the purpose of this plate is?

Click to expand...

The plate holds the pawl out of engagement when the kickstart isn't in use. It should not have that notch.

Thanks . Not sure what happened to it but yes it’s obviously not right. I was wondering if I could simply take a Dremel and re-contour the stop but then after what L.A.B said its purpose is, taking “meat” off the existing may not allow the pawl to disengage
