Dances with Shrapnel

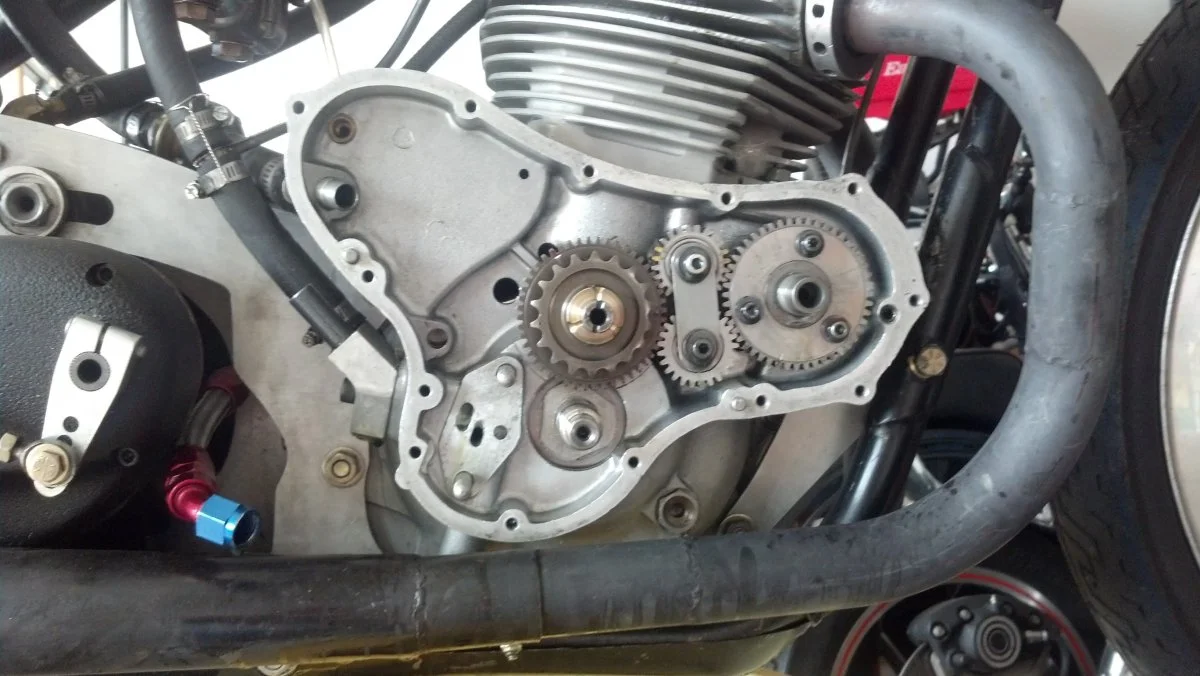

500 USS gear cam drive - crank timing pinion not shown

This shows the intermediate, two idler and cam gears that replaced the standard Norton Commando chain drive which was inadequate for this 180 degree firing order Norton.
Click to expand...
  • Like
  • Thumbs Up
Reactions: Fast Eddie, KiwiShane and Jerry Doe
