V-Twins in Featherbeds

Joined
May 2, 2014
Messages
63
Country flag

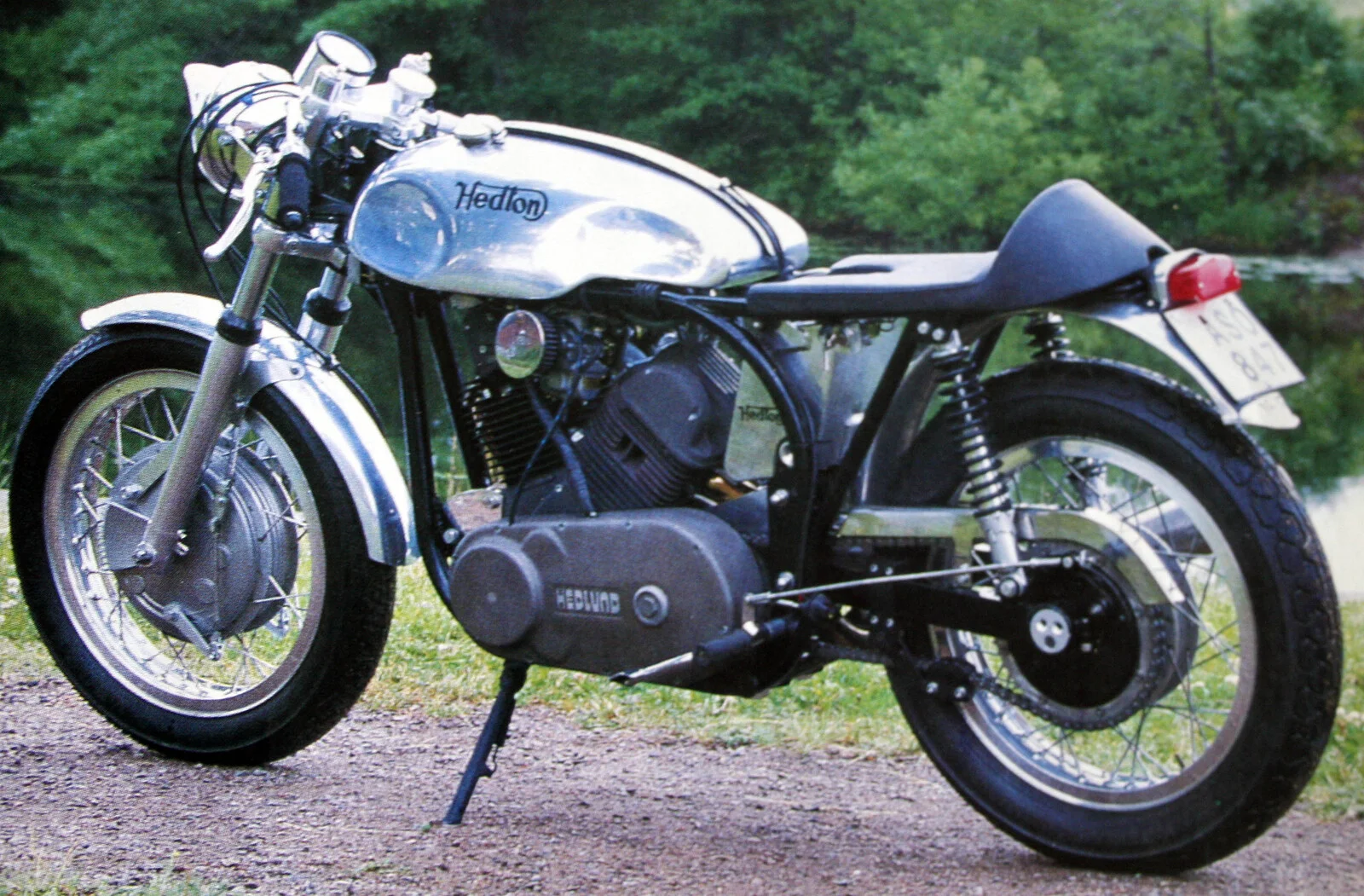

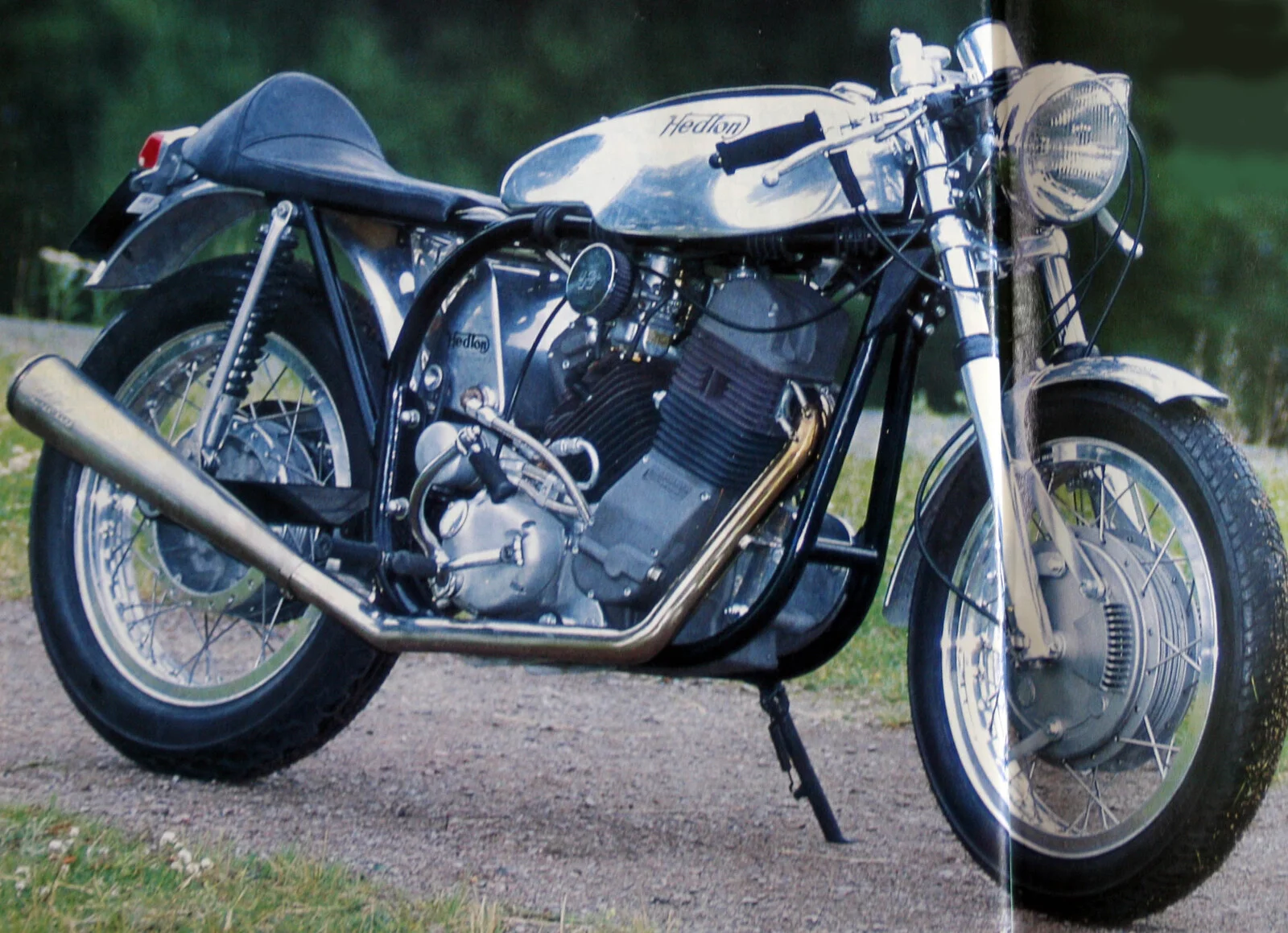

I think to slot a Hedlund v-twin engine in there is a good use of an old Featherbed. I like this one which was featured in the Swedish magazine "MCM" in the late '90s.



The frame is a 1953 wideline which was taken out 20mm to accomodate the Hedlund. Forks and shocks are Marzocchi, rims are Akront, frontbrake is a Grimeca, rear is a Commando. Gearbox from Quaife.







The production of the 1000cc Hedlund started in 1978, built by Swede Nisse Hedlund primarily for sidecar racing. 50 engines were built.

Joined
Apr 20, 2011
Messages
4,510
Country flag
I also think a Wideline be better for a Evo motor to fit in the frame compared to a Slimline. Ashley

Save yourself the agro of using an original frame, one of the frame makers advertise making frames for the H/D engine.

Joined
Jun 30, 2012
Messages
9,660
Country flag

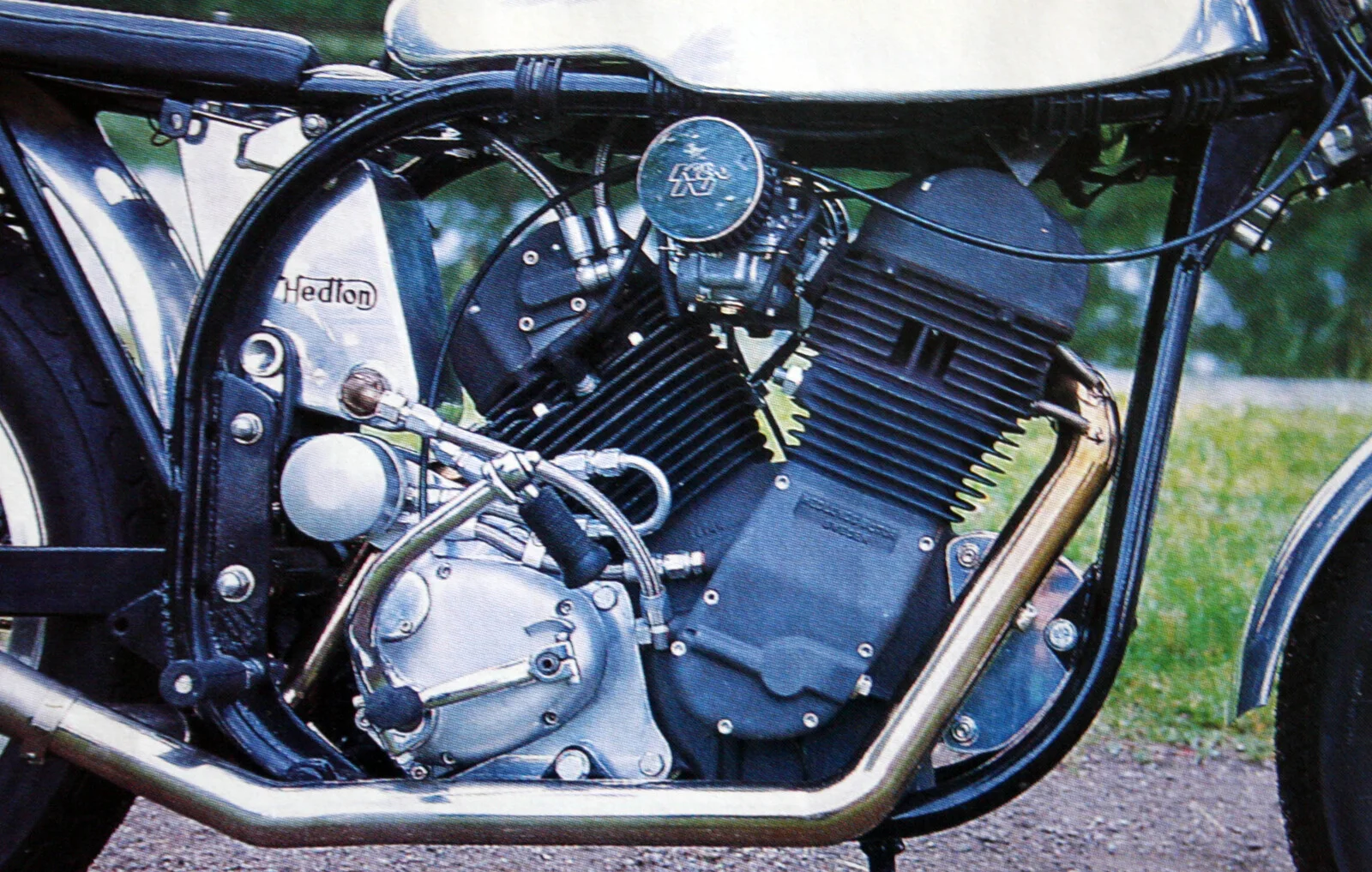

The front cylinder head and exhaust pipe on the bike in the photo, stop the motor from being two inches further forward because of the frame tubes. A Mk3 Seeley frame might be better handling than a featherbed, with that motor. Whichever frame is used, two front heads would be good. A single carb on a Harley motor in either frame would be like a racing car with a log manifold.

Joined
May 2, 2014
Messages
63
Country flag

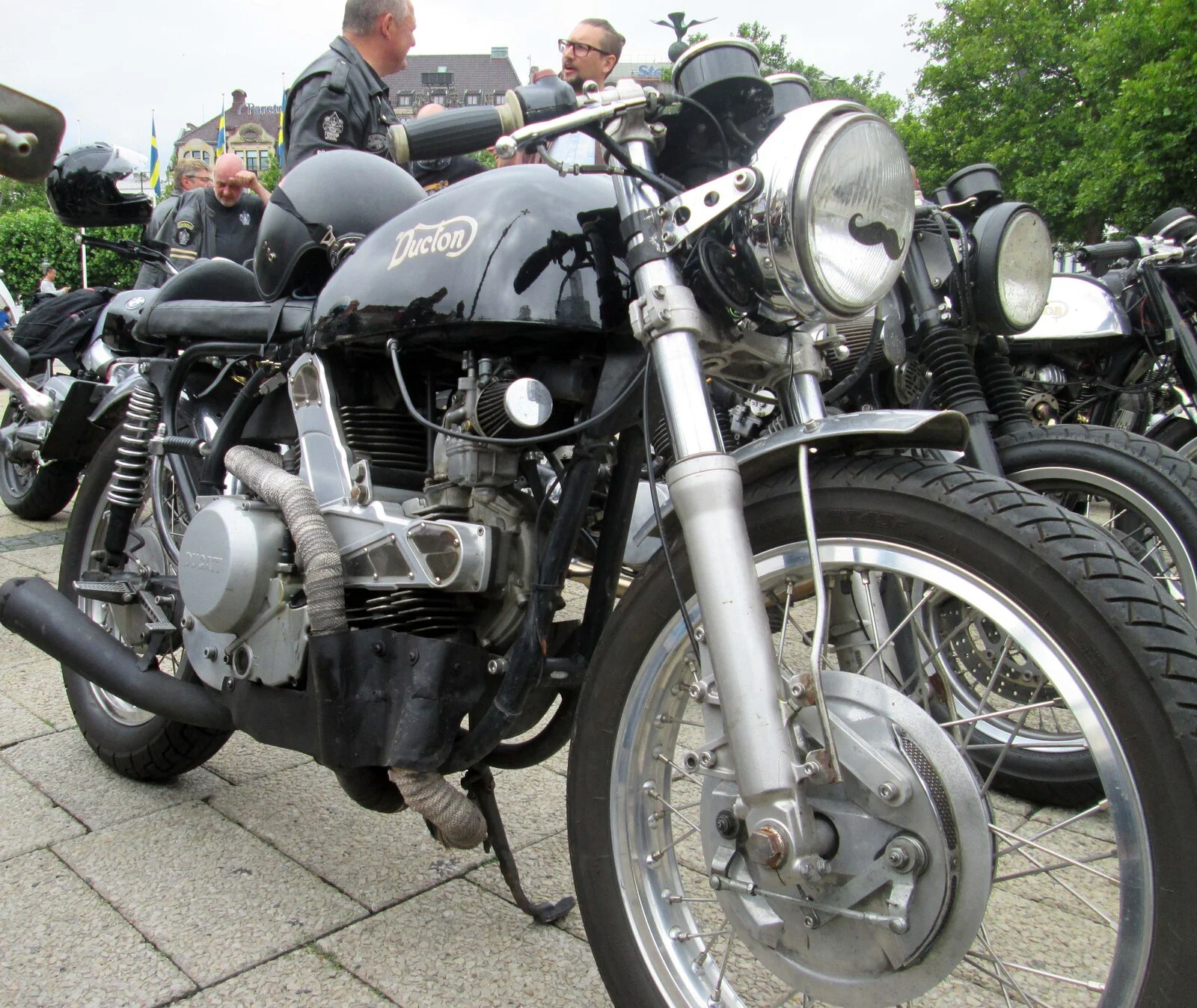

I spotted this Danish Ducton (or Norcati) at the Rockers vs Mods in Malmö, Sweden in 2016. Ducati Monster engine, I believe.



Fast Eddie

VIP MEMBER
Joined
Oct 4, 2013
Messages
12,138
Country flag
So...

Has he improved an old Norton...

Or ruined a perfectly good Ducati...?!?

Joined
Jun 30, 2012
Messages
9,660
Country flag
It depends on where the weight distribution ends up. A featherbed frame bike which is light in the front, can destroy the riders' confidence. The bike can feel very vague in the middle of corners. With a Manx motor, the weight is well forward an down low in the featherbed frame - so the handling is always positive and the bike tightens it's line slightly when coming out of corners.


Fast Eddie

VIP MEMBER
Joined
Oct 4, 2013
Messages
12,138
Country flag
Indeed Al, and with that horizontal front cylinder, it’s difficult to see how he cudda got the mass of the engine far enough forward to get remotely close to any stock Norton set up...

Joined
Jun 30, 2012
Messages
9,660
Country flag
With the featherbed frame, when fitting any motor other than a big single, you always have the problem of something hitting the front frame tubes when you try to get the motor far enough forward and down. 'Fitting the best motor in the best frame gives you the best bike' is great in theory, but in practice it is often not so easy. The Mk3 Seeley frame is very good in this respect - the open front usually allows the motor to be where it needs to be to get decent handling. I like featherbed frames - the best Period 3 historic bike, is the two-valve JAWA engine in a featherbed - cheap and effective.

Joined
Aug 23, 2019
Messages
4
Country flag
Over the years I brought a brand new 91 1200 Sportster , but only had it for 3 years, I liked the power of the 1200 but a HD was just not my bike, but the last year or so I have been thinking about what it would be like to put a 1200 Evo motor in a Featherbed, be a lot lighter than a cast iron motor, I have a spare Slimline Featherbed all I need is to find a cheap 1200 Evo motor :roll:

Ashley
Ironhead engine is 21 lbs lighter that the Evo. FYI

Joined
Jul 11, 2010
Messages
3,490
Country flag
Ironhead engine is 21 lbs lighter that the Evo. FYI
Not sure how a heavy iron head sportster engine can be lighter than a alloy sportster engine, iron is way heavier than alloy, as well I am doing up a 79 Super Glide and I can tell you that motor is heavier than my mate's Evo motor when I helped him put it in.

Ashley

Joined
Aug 23, 2019
Messages
4
Country flag
Not sure how a heavy iron head sportster engine can be lighter than a alloy sportster engine, iron is way heavier than alloy, as well I am doing up a 79 Super Glide and I can tell you that motor is heavier than my mate's Evo motor when I helped him put it in.

Ashley
Its not common sense
But I found out why
The transmission and flywheel and rod kit is very heavy on an ally sporty. It was a hot debate in the XL forum. I weighed both. All the versions of iron motor were lighter. Partly why an evo bike is overall heavier too. My 70 XLH is 448 dry on my scale. My 03 is 503 dry. Buddies 04 1200 is 538 dry..another example of factory specs being off the mark.

Joined
Nov 29, 2013
Messages
443
Country flag
A pal of mine has built a Norcati with an 860 GTS motor. It looks very ungainly but apparently rides ok. Cannot see how it improves on the Ducati frame. Pointless.

Joined
May 11, 2010
Messages
2,302
Country flag
Yes but. If you build a custom bike one of the reasons is to have a bike nobody else has. It is just for the fun of doing it.


Fast Eddie

VIP MEMBER
Joined
Oct 4, 2013
Messages
12,138
Country flag
Yes but. If you build a custom bike one of the reasons is to have a bike nobody else has. It is just for the fun of doing it.
That’s all true if building a pure ‘custom’ ie no functional intent behind it. Just art for arts sake.

If wanting to claim it’s a ‘special’ there has to be some kind of reason / excuse behind the engineering.

But generally speaking, any ‘special’ that uses a modern sporty bike engine inserted into an old chassis as a way of ‘tuning’ the old bike is a fail, cos almost always the real result will simply be a de-tuning of the modern donor bikes handling and braking potential !

Joined
Jun 30, 2012
Messages
9,660
Country flag
I think the Hedlon looks marvellous, and so do the Norvins. There are a couple of Norvins racing in historic classes in Australia, one has a well-known Superbike rider as it's pilot. A good guy on a Manx will beat any of them. Function beats beauty any day.
I was talking to a guy who works on one of the Norvins. He boasted that it has 50% weight distribution - obviously thought that was good. The problem is that when any of us get on a race bike, we tend to ride around it's handling defects. Will-power can help you go faster. But a good bike makes a good rider.
If I was serious about historic racing, I would buy a Ken McIntosh Manx from New Zealand - one with 19 inch wheels and original geometry, but also the Molnar motor. That is what he had Cameron Donald riding at Phillip Island.
