Use this method to lock primary when tightening the rotor sleeve nut to 70ft/lb or just asking for trouble?

Status
Not open for further replies.
Jdub

Jdub

VIP MEMBER
Joined
Dec 1, 2018
Messages
355
Country flag

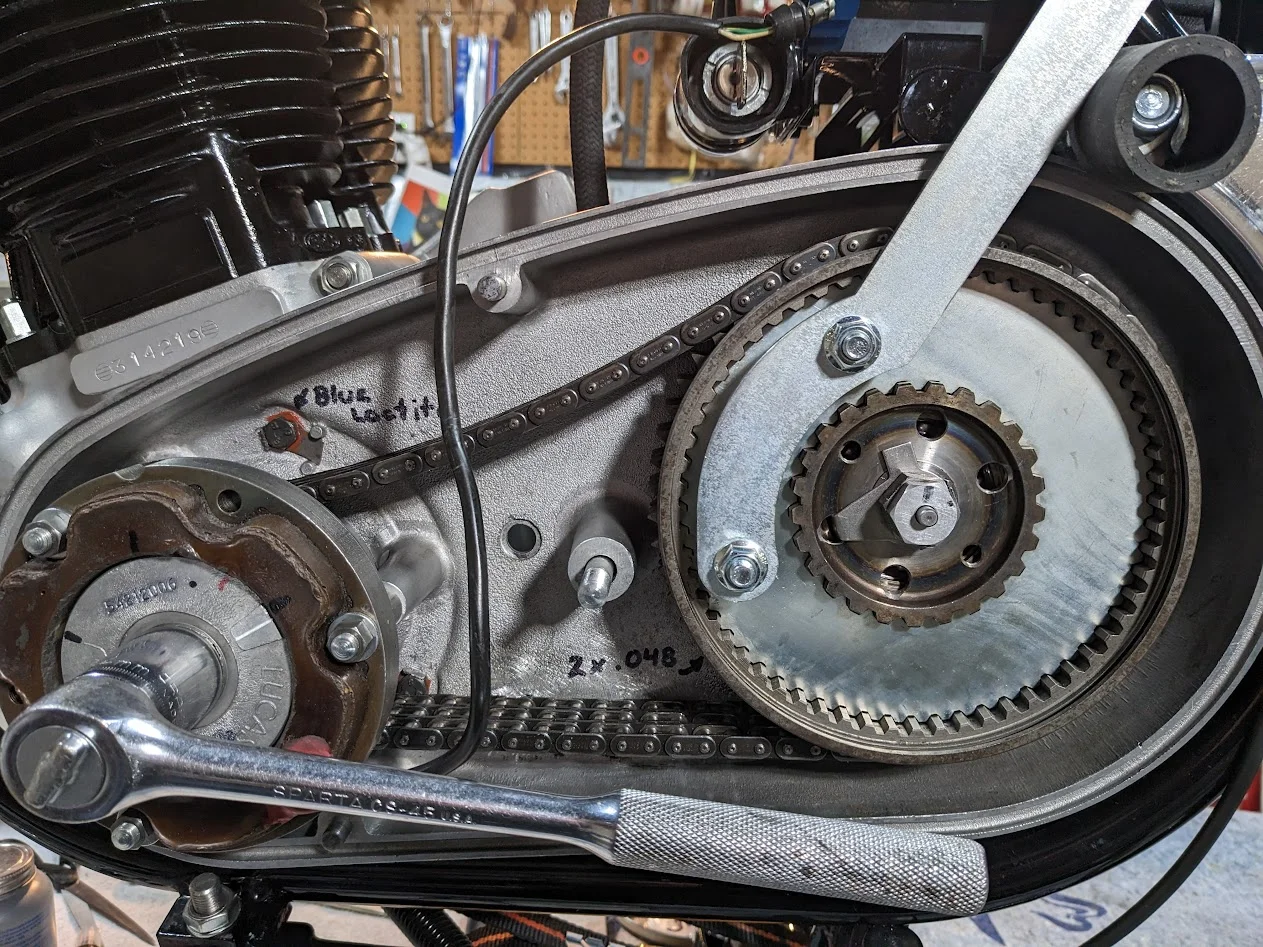

With the clutch basket locking tool I can rest the end against the 1/2 " nut with rubber protection. Will this handle the task?

I could instead install the footrest and swap the footrest to the inside for the same purpose IF I can get the tool arm far enough out to purchase firmly on the footrest spindle.
Use this method to lock primary when tightening the rotor sleeve nut to 70ft/lb or just asking for trouble?

Last edited:
Jdub said:
With the clutch basket locking tool I can rest the end against the 1/2 " nut with rubber protection. Will this handle the task?

I could instead install the footrest and swap the footrest to the inside for the same purpose IF I can get the tool arm far enough out to purchase firmly on the footrest spindle.

View attachment 104652View attachment 104652
Click to expand...
I reckon it'll handle the task
Also personally I'd throw that clutch center tab washer away and just use loctite

That looks like a pretty robust handle, so it should be OK. The handle on mine isn't at all robust, so bent out of the way the first time I tried something like that with it. Now I have to put the bike in 4th gear, fit the footrest and brake pedal, then press down on the brake pedal as hard as I'm pressing on the torque wrench. That all works, the clutch locking tool behaves like a locked up clutch so it connects the engine to the rear wheel.

L.A.B. said:
andover-norton.co.uk

Motorcycle parts and spares for Norton motorbikes - Andover Norton Spare Parts - Andover Norton Motorcycles Parts - Original Andover Norton Parts

Motorcycle parts and spares for Andover Norton motorbikes: Andover Norton manufactures and supplies all Factory Spare Parts for Norton motorcycles built before 2002.
andover-norton.co.uk

Use this method to lock primary when tightening the rotor sleeve nut to 70ft/lb or just asking for trouble?
Click to expand...
Yes - but not shown there (and slightly off-topic)...
I would never try to loosen or tighten the nut on the camshaft without a tool to support the intermedivte shaft.
Cheers

Last edited:
Jdub said:
With the clutch basket locking tool I can rest the end against the 1/2 " nut with rubber protection. Will this handle the task?

I could instead install the footrest and swap the footrest to the inside for the same purpose IF I can get the tool arm far enough out to purchase firmly on the footrest spindle.
View attachment 104653
Click to expand...
That's how I do it. Tightening one side, loosening the other.

Thanks to all and LAB I never would have found that image - thank you!

To answer, I did blue Loctite on the clutch center nut. The tabbed washer did make me pull more material from the nut and the oil seal surfaces to get it mounted without touching one another.

Jdub said:
Thanks to all and LAB I never would have found that image - thank you!

To answer, I did blue Loctite on the clutch center nut. The tabbed washer did make me pull more material from the nut and the oil seal surfaces to get it mounted without touching one another.
Click to expand...

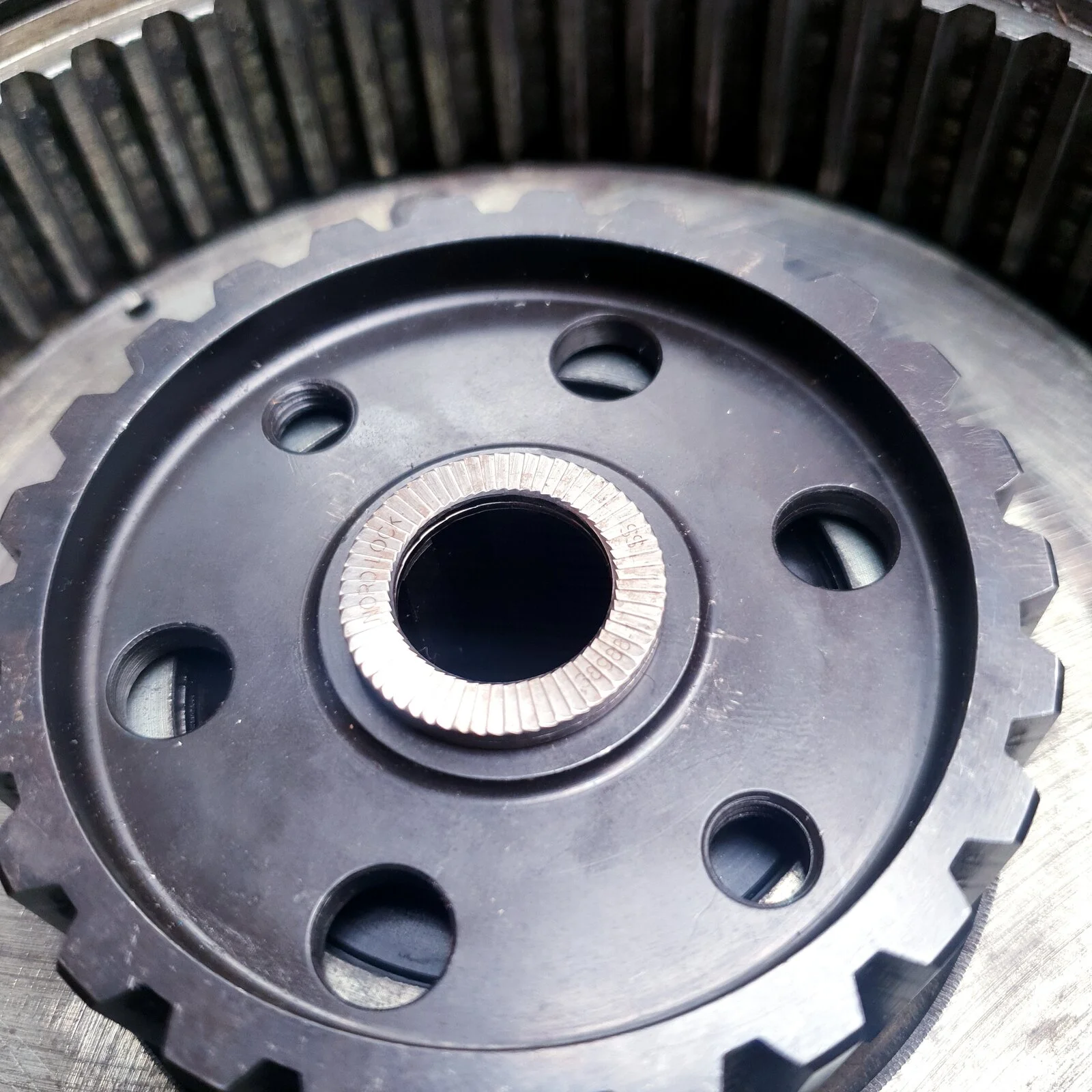

Nord-Lock washers work great if your doubtful of the locktite...its what I've used...the tab washer is crap
www.nord-lock.com

Technical Guide for Nord-Lock Washers

Useful joint guide on installing Nord-Lock washers - tapped holes, counterbores, through holes, stud bolts and more.
www.nord-lock.com www.nord-lock.com

Interesting that cNw offers a pair of Belleview Washers in lieu of the OEM tab washer in their
electric starter kit. At least they did on my kit, one of the first out of the Shute. Torque down
till both are flat.

Jdub said:
Thanks to all and LAB I never would have found that image - thank you!

To answer, I did blue Loctite on the clutch center nut. The tabbed washer did make me pull more material from the nut and the oil seal surfaces to get it mounted without touching one another.
Click to expand...
I used a half inch deep drive socket I had instead of the tool in #2

lazyeye6 said:
Interesting that cNw offers a pair of Belleview Washers in lieu of the OEM tab washer in their
electric starter kit. At least they did on my kit, one of the first out of the Shute. Torque down
till both are flat.
Click to expand...
Same as mine last year. Belleville

Belleville Washers are a lot better solution compaired to the stock tab washer ...but if you have fasteners that have to deal with vibration etc....Nord-Lock washers in those type applications are far better... imo

KiwiShane said:
Belleville Washers are a lot better solution compaired to the stock tab washer ...but if you have fasteners that have to deal with vibration etc....Nord-Lock washers in those type applications are far better... imo
Click to expand...
I tried a Belleville washer alone and the nut eventually loosened up on me while riding...A Belleville washer PLUS blue threadlocker has worked well since then. Will read up on Nord-Lock.

Jdub said:
Thanks to all and LAB I never would have found that image - thank you!

To answer, I did blue Loctite on the clutch center nut. The tabbed washer did make me pull more material from the nut and the oil seal surfaces to get it mounted without touching one another.
Click to expand...
The problem with the tab washer is that since it is soft (and it has to be so that you can bend the ears) it thins under pressure and over time and the nut becomes loose.

bluto said:
I tried a Belleville washer alone and the nut eventually loosened up on me while riding...A Belleville washer PLUS blue threadlocker has worked well since then. Will read up on Nord-Lock.
Click to expand...
They can be a little pricey but they won't let you down...a mate of mine uses them on CNC turret punch machines etc


Attachments

  • Use this method to lock primary when tightening the rotor sleeve nut to 70ft/lb or just asking for trouble?
    235.5 KB · Views: 218
KiwiShane said:
They can be a little pricey but they won't let you down...a mate of mine uses them on CNC turret punch machines etc
Click to expand...
Good to know, and FWIW Shimano bicycle freehubs use a similar toothed locking system and they are dead reliable in my experience. The Belleville washers are not so cheap in the US either and I had to buy 10 minimum, I sold the surplus off to people here at cost a few years ago.

bluto said:
I tried a Belleville washer alone and the nut eventually loosened up on me while riding...A Belleville washer PLUS blue threadlocker has worked well since then. Will read up on Nord-Lock.
Click to expand...
Bellevilles are not designed to lock the nut (maybe even makes it easier to undo, due to the hardened, conical surface)
They are solely designed to provide a designed amount of bolt/stud pre-load.

Jdub said:
With the clutch basket locking tool I can rest the end against the 1/2 " nut with rubber protection. Will this handle the task?

I could instead install the footrest and swap the footrest to the inside for the same purpose IF I can get the tool arm far enough out to purchase firmly on the footrest spindle.
View attachment 104653
Click to expand...
Used something similar to this method a couple of weeks ago. no problem.

Belleville washers are typically used in conditions of high current loading or cycling....They are used to absorb vibration and can maintain preload in bolted joints, indicating correct preload based on the gap between adjacent washers etc....

I just put it in gear and put a bar across one of the spokes near the rim, and let the chain drive it up against the swing arm as Iighten the nut. The diameter of the rear wheel minimises the load. The ratio of wheel to pole nut diameter, is pretty big.
