Hello everyone,

I'm currently building a Featherbed race bike and plan to install a TTI gearbox and Steve Maney's belt drive kit.

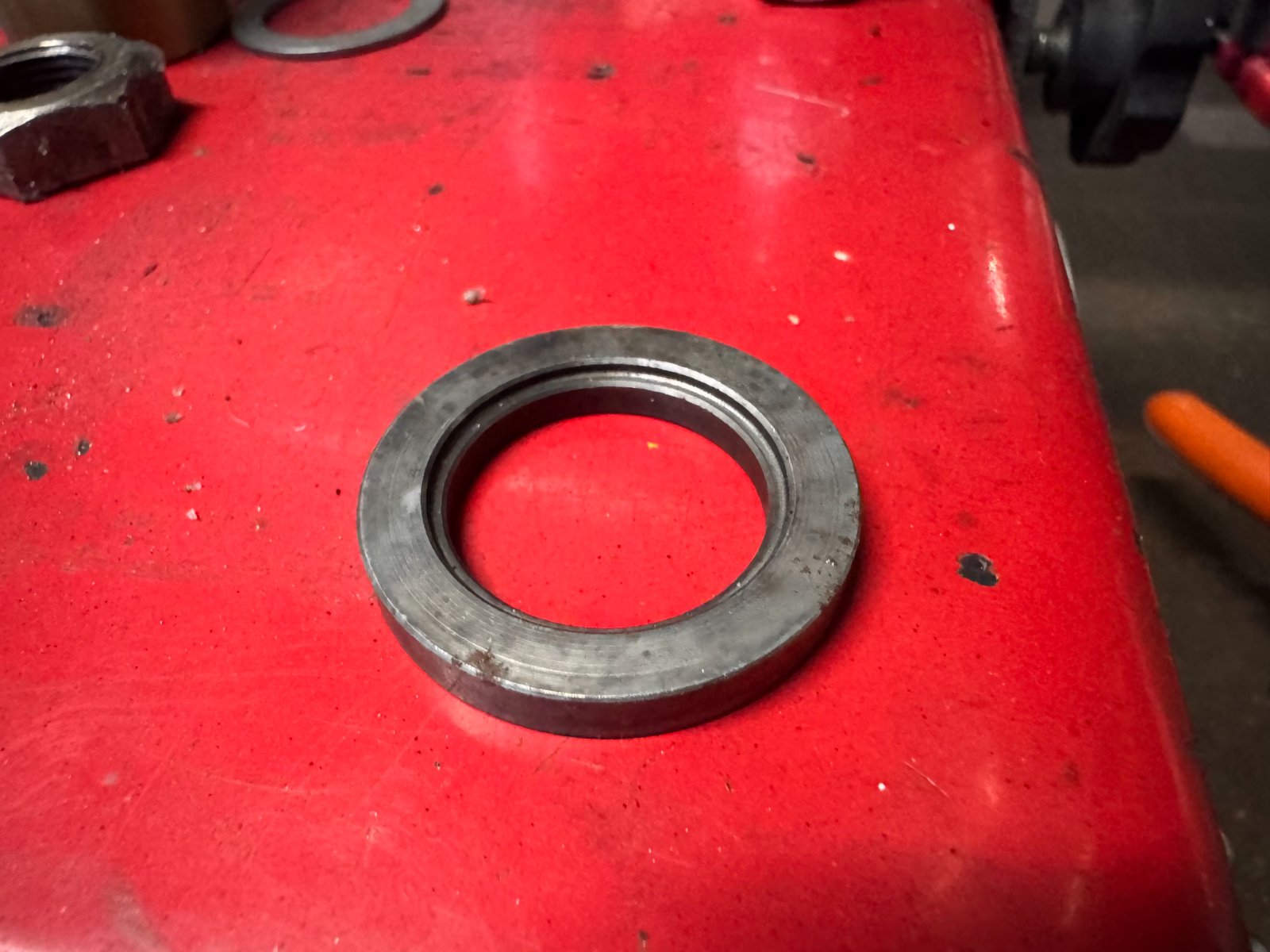

My question is: would it be problematic not to install the SPACER - CLUTCH LOCATION (part-no: 06.0747) on the back of the clutch basket?

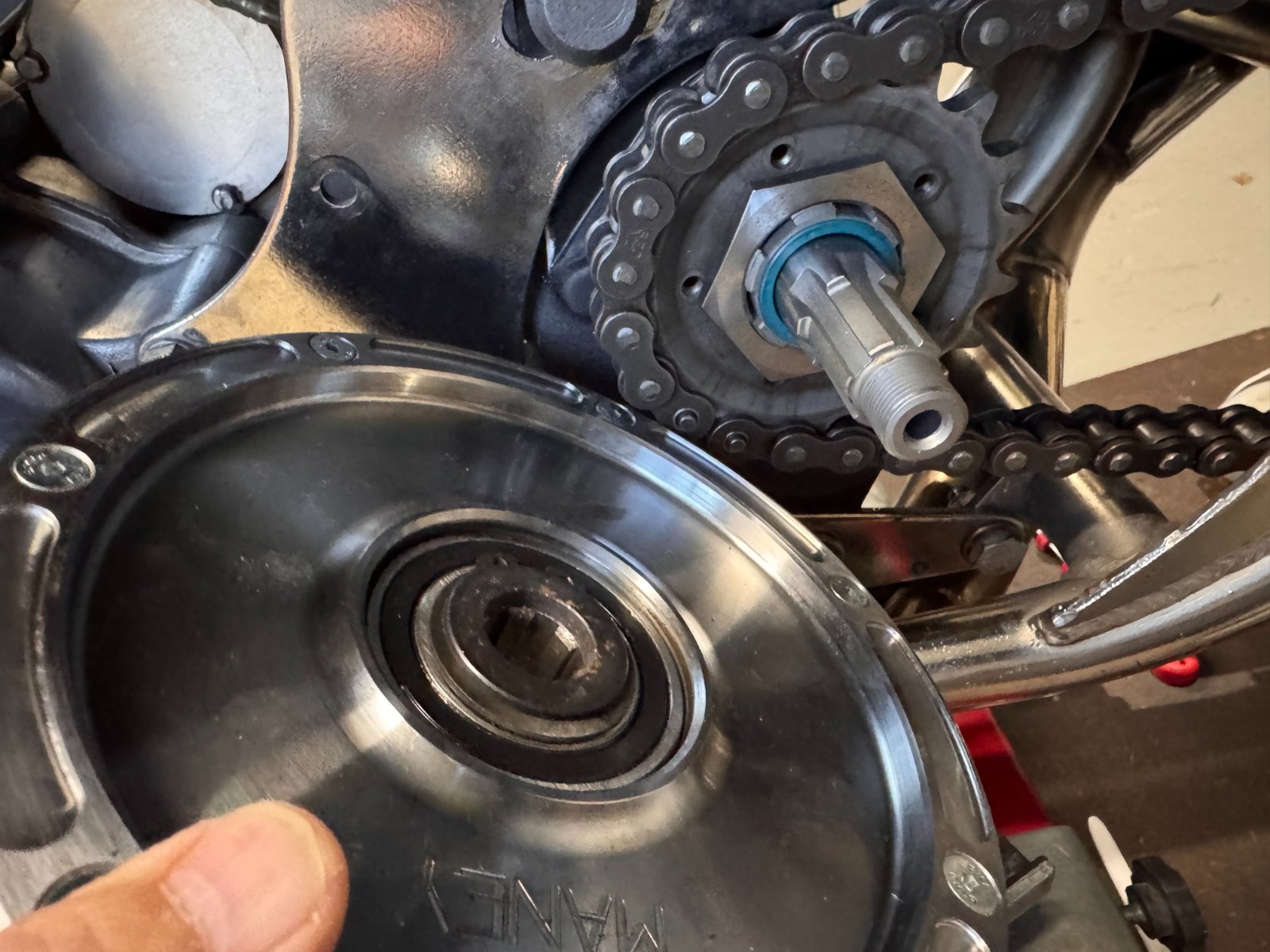

When trying to align the belt, installing the spacer would push the basket significantly outward. Unfortunately, the gearbox itself doesn't have any clearance to move it left or right.


Attachments

  • The Necessity of the SPACER - CLUTCH LOCATION
    IMG_6642 2.jpg
    212.2 KB · Views: 26
  • The Necessity of the SPACER - CLUTCH LOCATION
    IMG_6641 2.jpg
    268.1 KB · Views: 21
Hal said:
Hello everyone,

I'm currently building a Featherbed race bike and plan to install a TTI gearbox and Steve Maney's belt drive kit.

My question is: would it be problematic not to install the SPACER - CLUTCH LOCATION (part-no: 06.0747) on the back of the clutch basket?
When trying to align the belt, installing the spacer would push the basket significantly outward. Unfortunately, the gearbox itself doesn't have any clearance to move it left or right.
Click to expand...


Mick Hemmings did a centre for Commando clutches on a non commando mainshaft with a hardened washer on the outer end, so it bolted up like a Manx/Dommi clutch

I'm pretty sure I still have one that I never used, although RGM also have some if you can get through to them

www.rgmnorton.co.uk

COMMANDO CLUTCH CENTRE FOR PRE COMMANDO MAINSHAFT, ALLOY

www.rgmnorton.co.uk

That way, you don't need the spacer behind the clutch
