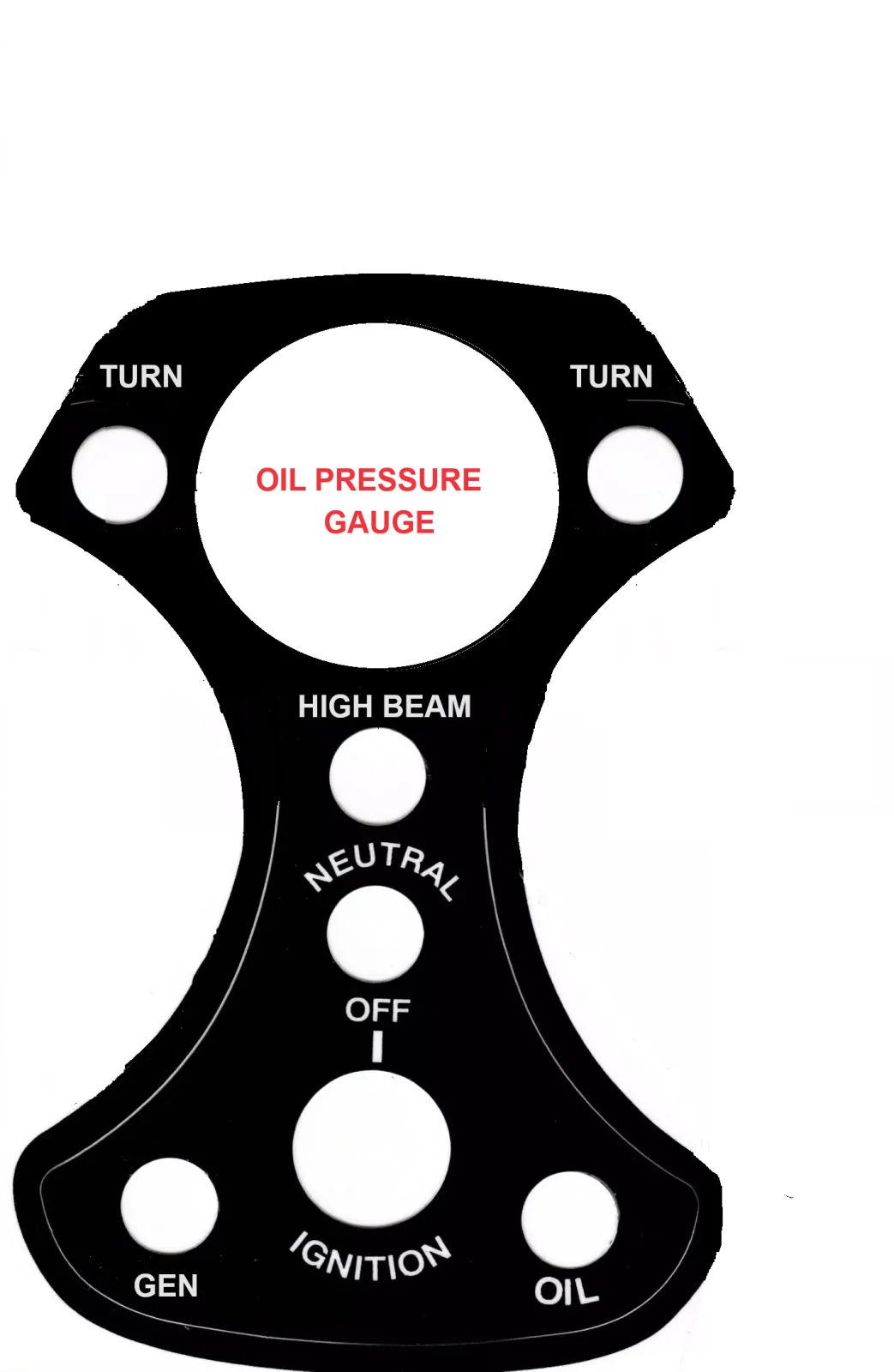

Hi. I made a quick sketch of a revised T160 & late T140 dash console, to make room for an integrated oil pressure gauge (digital of course), additional warning lights, and L/R turn signal indicators,
bringing dash up to millenium standard. What do you think?
This would be a milled inverted housing with no sheet metal lid on top, unlike the original console.

- Knut T160 dash console (design study)

mdt-son said:
Hi. I made a quick sketch of a revised T160 & late T140 dash console, to make room for an integrated oil pressure gauge (digital of course), additional warning lights, and L/R turn signal indicators,
bringing dash up to millenium standard. What do you think?
This would be a milled inverted housing with no sheet metal lid on top, unlike the original console.

- KnutView attachment 114511
Click to expand...

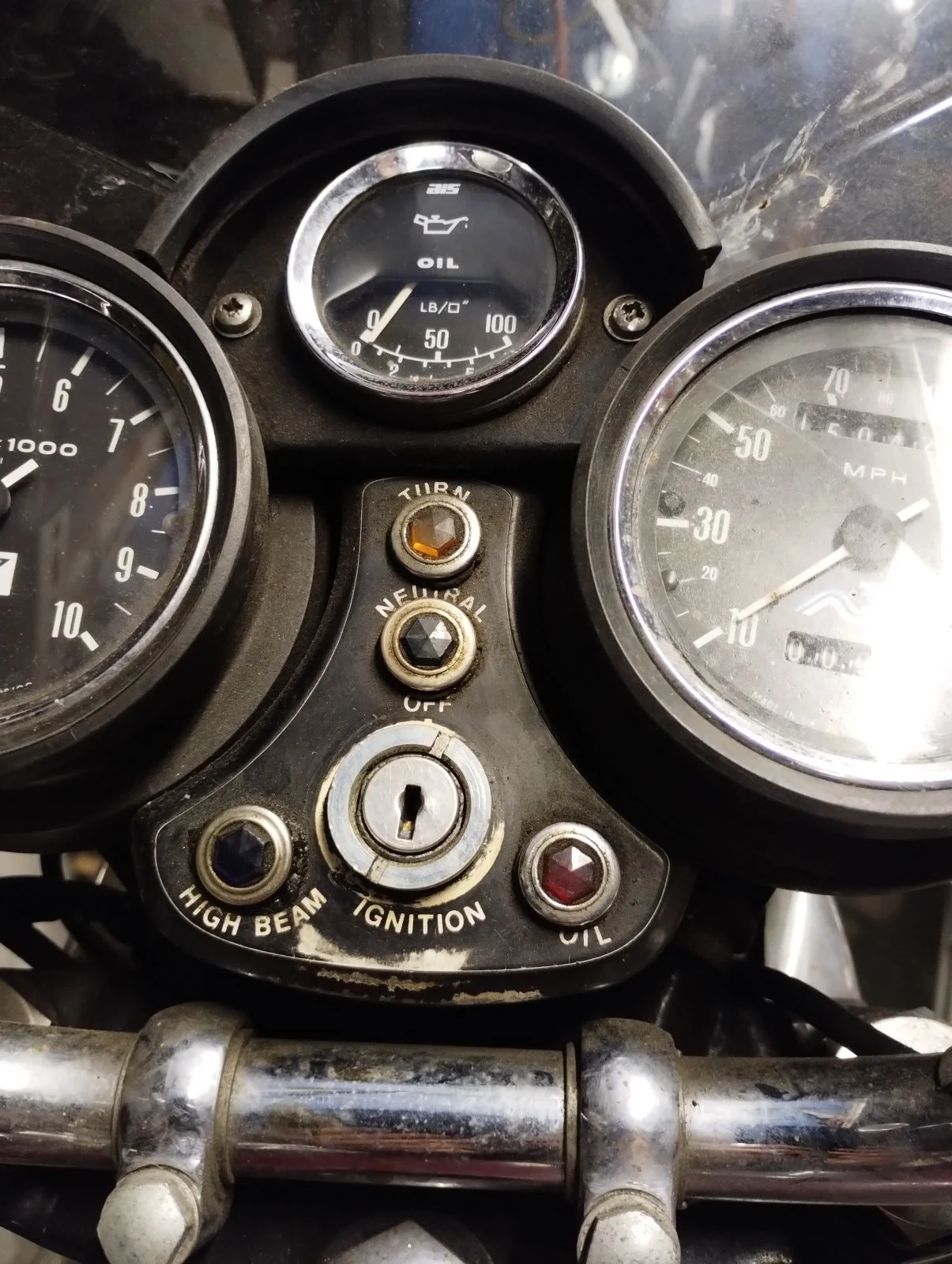

This is my lp Williams set up it works extremely well with the indent of the puig screen exactly in the right place


Attachments

  • T160 dash console (design study)
    317.8 KB · Views: 32
mdt-son said:
Hi. I made a quick sketch of a revised T160 & late T140 dash console, to make room for an integrated oil pressure gauge (digital of course), additional warning lights, and L/R turn signal indicators,
bringing dash up to millenium standard. What do you think?
This would be a milled inverted housing with no sheet metal lid on top, unlike the original console.

- Knut
Click to expand...
Perhaps do a 3D print mockup first to check the fit. I want to do something similar with my Norton to carry a AFR gauge as well.
