speedo spacer MK3

S

seattle##gs

VIP MEMBER

Joined

Oct 28, 2014

Messages

2,146

• Mar 23, 2018

• #1

anybody know the thickness of the spacer that is between the speedo drive and bearing in a MK3? I have the OD and the ID.



L.A.B.

Moderator

VIP MEMBER

Joined

Nov 20, 2004

Messages

21,090

• Mar 23, 2018

• #2

Mk3 Rear Wheel Reassembly - Need some Guidence

rick in seattle said:

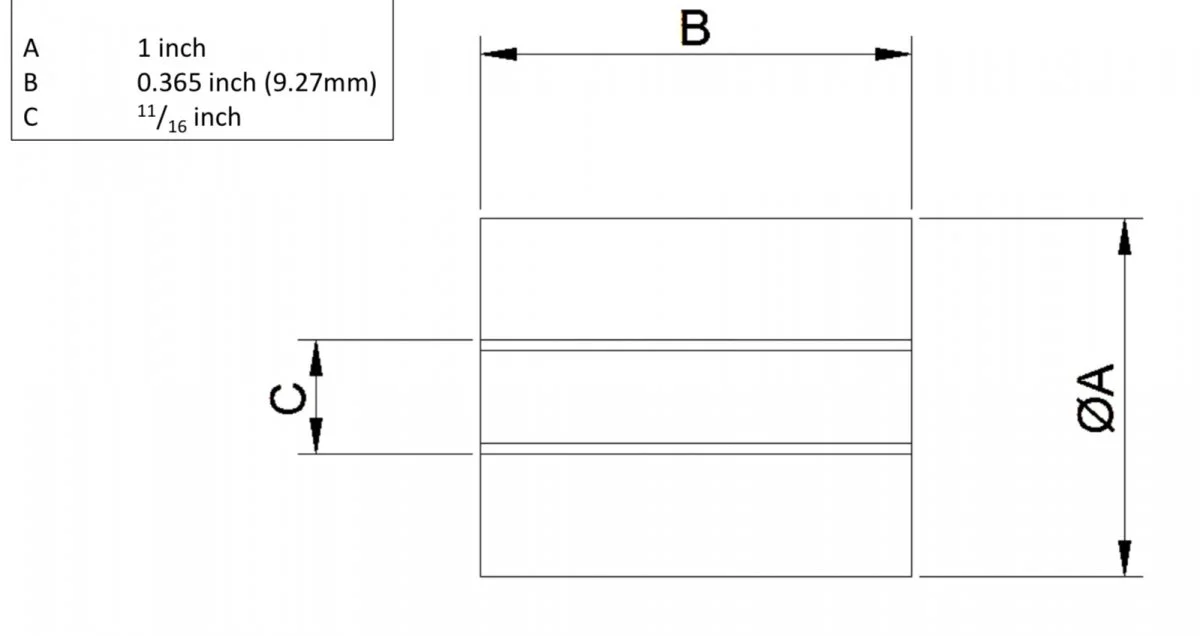

2. The sprocket bearing spacer 06-5547 (.79 ID, 1.00 OD, .37 H)

Click to expand...



S

seattle##gs

VIP MEMBER

Joined

Oct 28, 2014

Messages

2,146

• Mar 23, 2018

• #3

Thanks. I will make one this eve.



L.A.B.

Moderator

VIP MEMBER

Joined

Nov 20, 2004

Messages

21,090

• Mar 23, 2018

• #4

Mine might be odd, as it needs an extra shim/thin washer to prevent the drive gearbox rubbing on the sprocket.
