S-Type Handlebar Specs

Yorkie

VIP MEMBER

Joined

Jun 14, 2017

Messages

216

• Dec 20, 2022

• #1

Does anyone have the specs for S-Type bars? I am looking for width, rise, pullback, center, etc.
Thanks,
Kevin



gortnipper

Joined

Nov 11, 2013

Messages

5,396

• Dec 20, 2022

• #2

Handlebar question s type

Ok so making great progress on my original survivor s type 750 commando. So what were the original bars supposed to be? I realized the other day mine are incorrect. I have the supplement for stype part number and is says 06-1046 The andover norton site lists 06.0784 home market What do the...

www.accessnorton.com

I have seen a couple for 06-1046 Semi-Western depending on vendor.

Width: 35"
Height: 5 3/4"
Pullback: 7"

Center (straight part) 4 ¾ “
Rise 4 ¾” (center of bend to center of bend)
Grip tube length 9 ½”
Pull back 7”
Total length 32”



ILLF8ED

Joined

Dec 30, 2003

Messages

3,689

• Dec 20, 2022

• #3

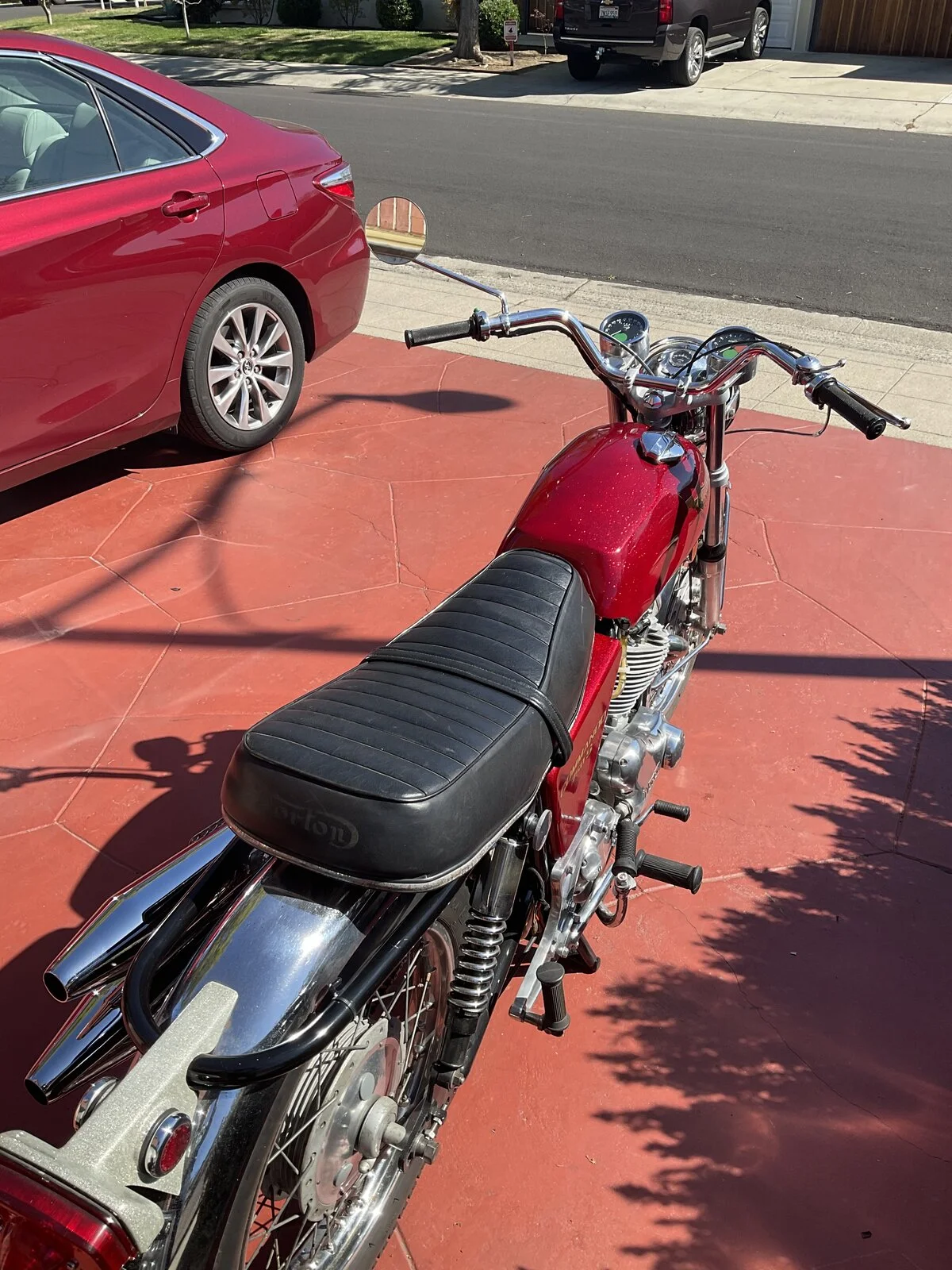

The S type handlebars have a bit more pullback than the western bars. I sold this one to Oregon a couple of years back. I don’t seem to be able hang on to any Commando accept my ‘72 roadster.



gortnipper

Joined

Nov 11, 2013

Messages

5,396

• Dec 20, 2022

• #4

ILLF8ED said:

The S type handlebars have a bit more pullback than the western bars. I sold this one to Oregon a couple of years back. I don’t seem to be able hang on to any Commando accept my ‘72 roadster.
View attachment 102209

Click to expand...

Were they original bars?

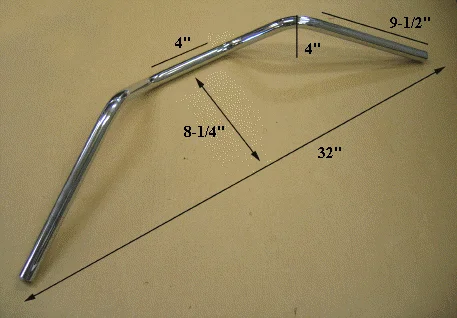

If that is the case, then the 8.25" pullback on the bottom one from CBS might be closer.



Yorkie

VIP MEMBER

Joined

Jun 14, 2017

Messages

216

• Dec 21, 2022

• #5

Thanks gents.
