Rocker arms - sorry guys something to worry about

Clive said:
No Nigel I don't want Thiel's big bore kit upgrade and an SCS ECU replacement to set it up so just stop going on about it ok?
Click to expand...
I never said a word.

Just like I never mentioned speaking to Ollie about a Powercommander and FCR carbs…

Clive, do you think it's purely down to the fact that the bush moved that has caused this, or if not, what is the solution?

Clive said:

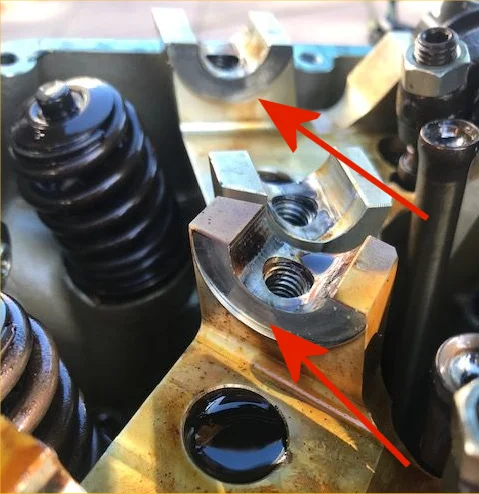

What you can see on the 'posts is indeed wear. This is what I'm trying to impress on owners - a rocker swap is easy - can be done in an hour or two with no specialised tools. Once something else gets damaged then its a whole new ball of fish. It does look a bit worse because the edge is raised. Tried to mike it up which is tricky but looks like it could be ten to twenty thou and it is not parallel with the post because of the canted rocker so what it really needs is taking out, milling and shimming which I will do.

With valve stem I'm really torn - the surface of the valve stem top almost looks as though some case hardened surface has come off but is it case hardened or could i polish it down a bit? Votes?

Anyone give me an idea of how long they would expect to take the engine out to lift the head?
Click to expand...
You can take the head and barrel out in the frame.

Two rockers with similar issues? I think you might have/had an oil issue that led to the skidding. We have found numerous issues like this on low oil pressure 961's. I would check the tappets, cams and pushrods as well

If your valvetrain was that loose the noise should have been bad

How did that damage occur yet no damage to the shim/thrust washers?
No damage or wear on the shaft?

You don't need to replace the valve, you can use lash caps

below is a photo showing the clearance to remove the top end

Rocker arms - sorry guys something to worry about

Sorry, missed my name being mentioned. Shame this forum doesn't hyperlink name mentions, like Facebook. But yeah, they strip really well in frame.....its almost as though they knew they'd be in bits alot, so made it easier for the mechanic 👀 🤣

Stu Bodycote said:
Sorry, missed my name being mentioned. Shame this forum doesn't hyperlink name mentions, like Facebook. But yeah, they strip really well in frame.....its almost as though they knew they'd be in bits alot, so made it easier for the mechanic 👀 🤣
Click to expand...
@Stu Bodycote & @cliffa If you use the @ symbol before the user id, I think it will alert. So, a test.

Stu Bodycote said:
New Norton were looking into this, as they approached Theil, wanting to buy a number of his kits....I assume to copy and paste. Eitherway, Theil (Thiel...I can never remember) is certainly the way to go.
Click to expand...
Clive said:
It is known that the rocker arm bearings can fail - bind up on the shaft - so it really is something you need to check otherwise the consequential damage can be a lot more expensive.

My 2017 Euro4 CR at 13500miles is one of the latest and best incarnations of the model and I seem to have been lucky with no major issues so I suppose I assumed that my rocker arms were probably ok. First symptom was a rattly noise which was new. I checked the timing chain tensioner and it was ok so I decided to pop the rocker cover and check the rocker adjustment like we need to do every 2 years.

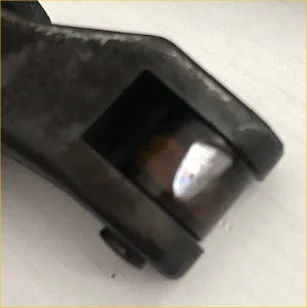

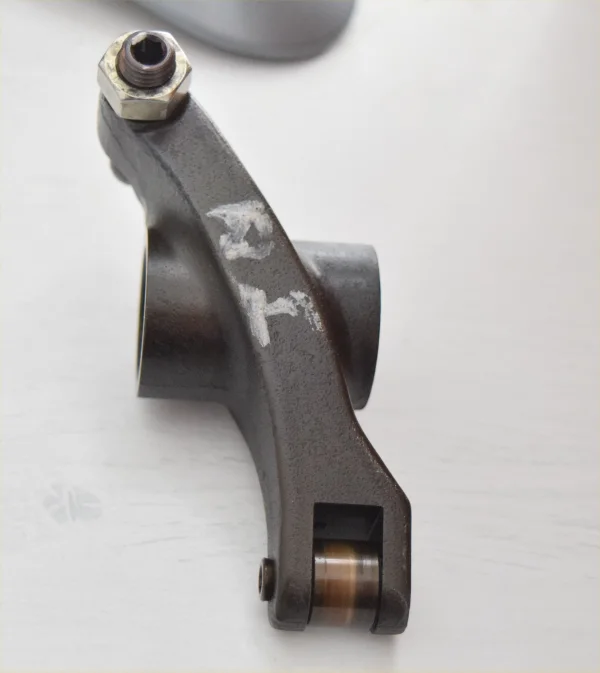

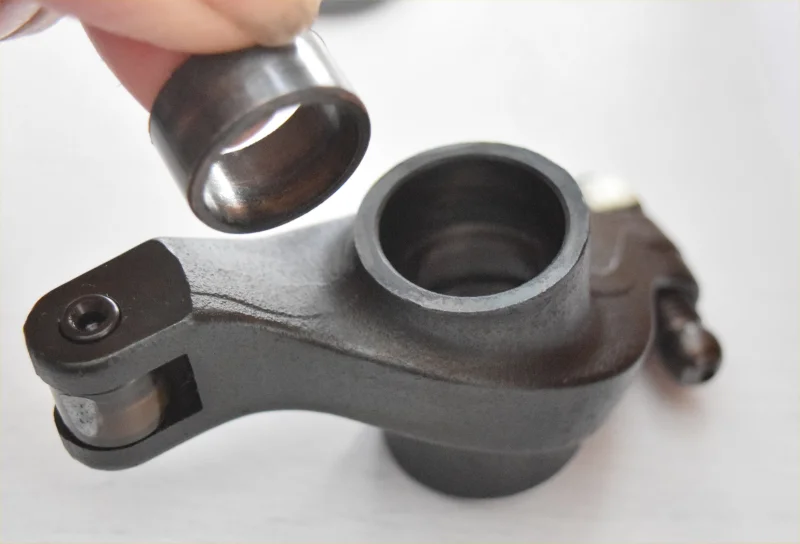

I used the excellent CNW guide and it is fiddly but not difficult to do. On exposing the rocker arms I discovered that one of the inlet rockers was wobbling on the shaft. for those who have not looked at the setup the push rods come up through the head with an oil feed hole through the middle which feeds up through a hole in the rocker adjuster screw ball end which then feeds through a hole in the rocker into the centre on the bearings. The bearings are 2 plain bearings around 20mm outside 16mm inside and 10mm wide. they are pushed into either end of the rocker. The angle of push is a quite offset so the loading is not direct. The bearings at the one end had drifted into the rocker up against the bearing at the other end. This then blanks off the oil feed. The bearings had not seized onto the shaft my thought is that the irregular pressures and poor bearing fit had caused it to deform.

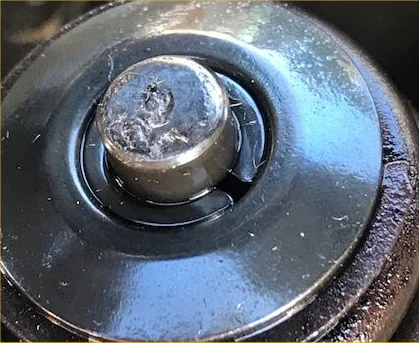

The canted rocker then started wearing the side of the mounting post, the roller, and damaged the end of the valve stem.

So really this should require new rockers, mounting block, valve. Big job. Expensive job. Hence this thread to recommend that you make sure this doesn't happen to you.

New new Norton don't have any rockers on the shelf and won't tell me if they have been updated. Thanks guys your support of the Norton owning community who helped you get the problems of the 961 sorted is just great. Don't blame Scott he's a great guy but hamstrung by the company's policy and will let me know price as soon as rockers are available. Just remember that when bikers see a 961 on the back of a recovery truck or hear that a friend of a friend's 961 is bust they can't tell if it's a TVS or G*rner....

Thiel motorsport in Germany do a refurb service and have a fantastic reputation for their engineering. I am waiting to see if they have spare rockers and can refurb.

View attachment 100723View attachment 100725View attachment 100726View attachment 100727View attachment 100724
Click to expand...
Last year decided to check tappets on inspection the rockers were stiff on the shafts so stripped the rockers out, a couple of bushes were loose in the rockers and showing signs of blueing and dry.
Got in touch with Theil, and they sent me 8 bushes and 4 new shafts which are a better quality. Pressed the new bushes in and got a local engineering company to hone the bushes to the new shafts. If the bushes move this cuts the oil supply to the rocker shafts and bushes.
I intend to check again to see if everything is ok, I will report back soon.
Dodgy Den.

cliffa said:
Clive, do you think it's purely down to the fact that the bush moved that has caused this, or if not, what is the solution?
Click to expand...
Took the remaining exhaust rockers out and they have the bearings rotating and loose. Nothing seized so not sure about oil pressure suggestion just think that offset pushrod action encourages them to move around plus poor original fit? Of course as soon as the bearing drifts in it blocks the oil feed. Don’t have experience of bike engine design to know if this is a common layout?

DODGY DEN said:
Last year decided to check tappets on inspection the rockers were stiff on the shafts so stripped the rockers out, a couple of bushes were loose in the rockers and showing signs of blueing and dry.
Click to expand...
What mileage please?

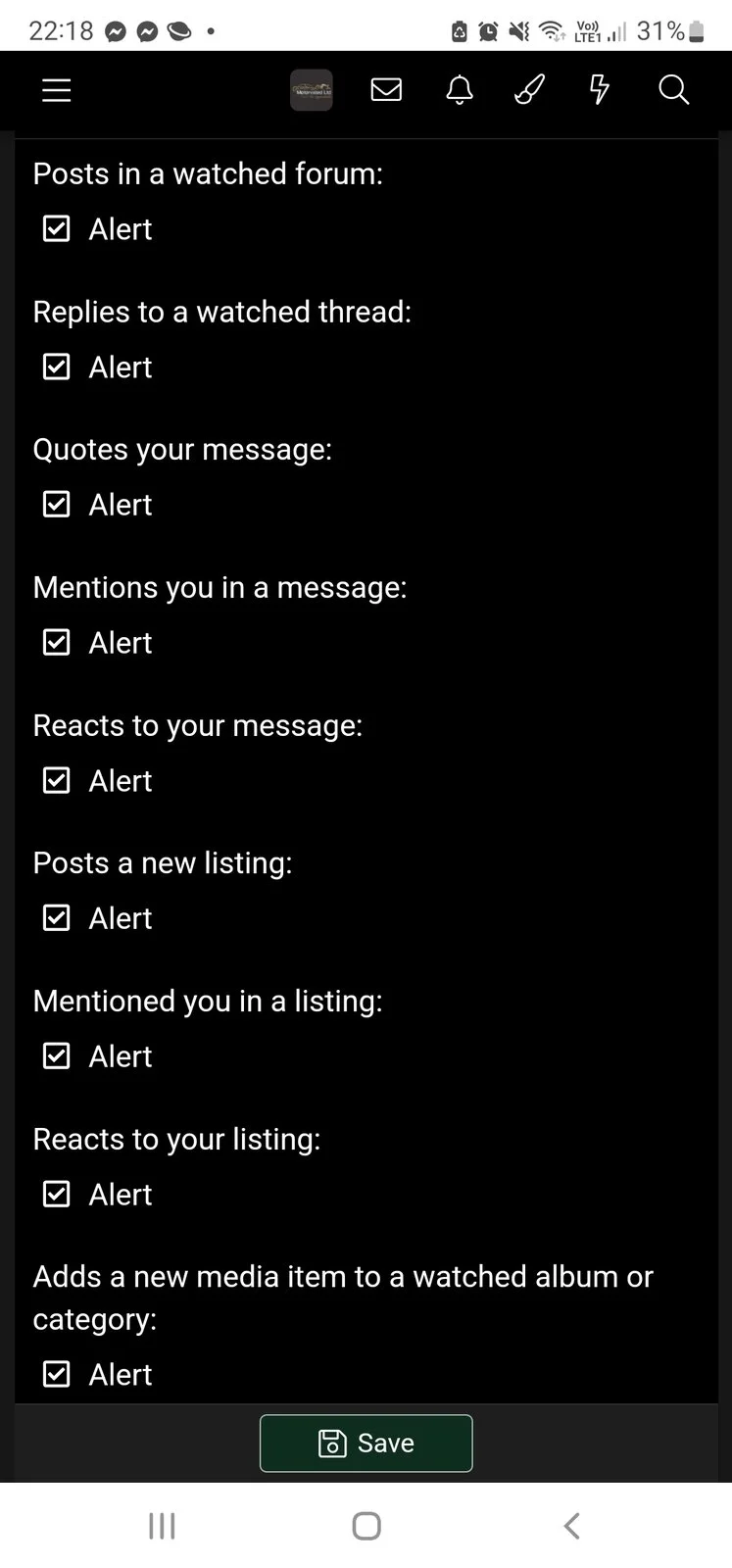

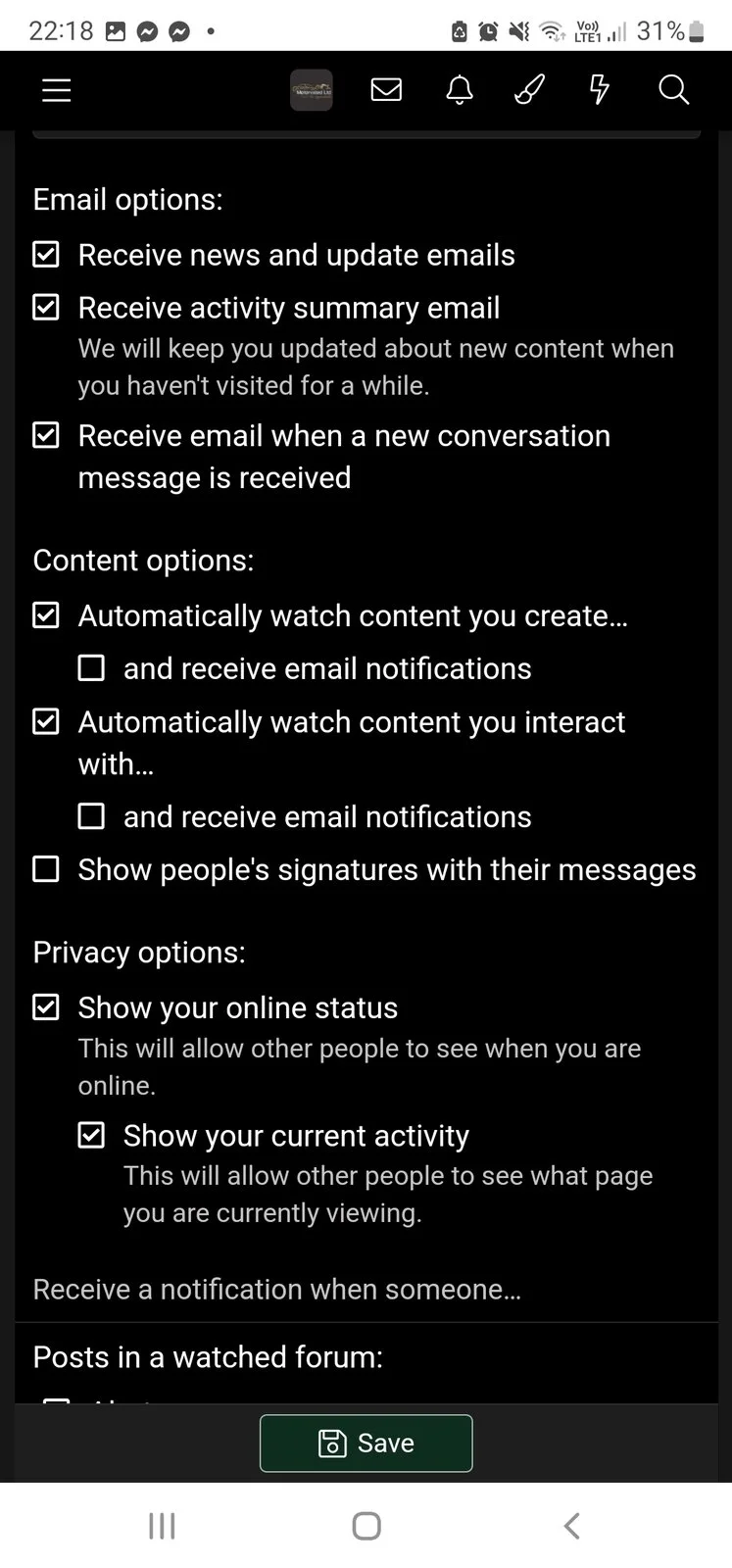

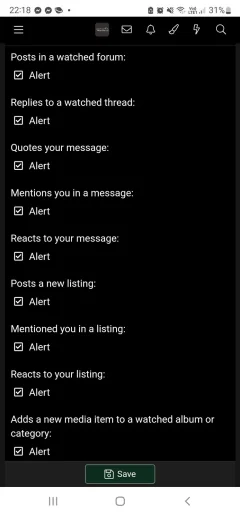

Probably statement of b. Obvious but your profile preferences are definitely set up to notify......

Yep.


Attachments

  • Rocker arms - sorry guys something to worry about
    Screenshot_20221020-221806_Samsung Internet.jpg
    85.7 KB · Views: 102
  • Rocker arms - sorry guys something to worry about
    Screenshot_20221020-221822_Samsung Internet.jpg
    145 KB · Views: 87
Clive said:
Took the remaining exhaust rockers out and they have the bearings rotating and loose. Nothing seized so not sure about oil pressure suggestion just think that offset pushrod action encourages them to move around plus poor original fit? Of course as soon as the bearing drifts in it blocks the oil feed. Don’t have experience of bike engine design to know if this is a common layout?
Click to expand...
I've offered my advise based upon our experience with them so use it as you see fit. The oil pressure controls the pushrod engagement. Hydraulic tappets need oil to hold the pushrod correctly. Low or no pressure push rod is loose and with the offset rocker can cause problems. You will see chatter marks on the rollers if you use a high power Loupe. We have had multiple bikes in with similar issues but you will need to deal with the rocker holder damage.

City Garage said:
I've offered my advise based upon our experience with them so use it as you see fit. The oil pressure controls the pushrod engagement. Hydraulic tappets need oil to hold the pushrod correctly. Low or no pressure push rod is loose and with the offset rocker can cause problems. You will see chatter marks on the rollers if you use a high power Loupe. We have had multiple bikes in with similar issues but you will need to deal with the rocker holder damage.
Click to expand...
Thanks for this clear explanation it is always valuable to have the experience of seeing a trend on several bikes. I always work by the adage that if I have the problem there will several others suffering the same issue. I will mill and reshim the holders. At what sort of mileage did you see these problems and what resolution to improve oil pressure? Lash caps for the valve stems are something new to me?

Its kinda fortunate that you came across this wear, as you were originally checking something that didnt need checking ie the rocker adjusters, as these are only roughly set to put the hydraulic lifter in a midway position on its stroke, and shouldn't need touching again, unless you were to replace a component pertaining to it.
I wonder what temperature the engine oil is at by the time its made it to the top end. Its barely over 1.5ltr total capacity, and is semi synthetic, so not as stable as fully synthetic where things get too hot in there. Maybe another reason why Norton has switched oil cooler designs?
I'd probably also pull the oil pump out, and check the relief valve is smooth to operate. And yeah checking the oil pressure would be a wise move, on the road if possible.

Clive said:
Thanks for this clear explanation it is always valuable to have the experience of seeing a trend on several bikes. I always work by the adage that if I have the problem there will several others suffering the same issue. I will mill and reshim the holders. At what sort of mileage did you see these problems and what resolution to improve oil pressure? Lash caps for the valve stems are something new to me?
Click to expand...
I think the highest mileage bike I have seen was about 8000miles and it was a total oil pump failure that caused top end and tappet issues. Google valve lash caps and you see what they are.

Oil pressure can be improved by removing the inline filter, checking the oil pump for smooth operation, checking the intake line for kinks or any out of round condition. We had one bike that had slag in the oil tank outlet(oil pump inlet hose side) that kept oil from fully running to pump causing erratic readings. I really implore anyone read this to make a guage to check you oil pressure. The dummy light doesn't come on until the pressure is really low and even then it might not come on as we have found out.
