Removing the mirror glass from a mirror?
- Thread starter jimbo
- Start date
- Status
brokeneagle
VIP MEMBER
- Joined
- Oct 30, 2014
- Messages
- 140
I've removed the mirror and replaced the same mirror as that is the only way to tighten the pitch yaw adjustment. This was an aftermarket copy where the D shaped bolt hole rounded off and just spun. If you need to replace the glass, I don't know where or how to get one cut to shape.
jimbo
VIP MEMBER
- Joined
- Sep 25, 2004
- Messages
- 1,992
I think I can find someone to cut some mirror glass, just wondering how to extract the old without wrecking the body.
concours
VIP MEMBER
- Joined
- Dec 29, 2011
- Messages
- 9,717
Pry the glass AND plastic border from the metal cup. Knife blade on the bottom (out of sight)
- Joined
- Feb 7, 2010
- Messages
- 4,195

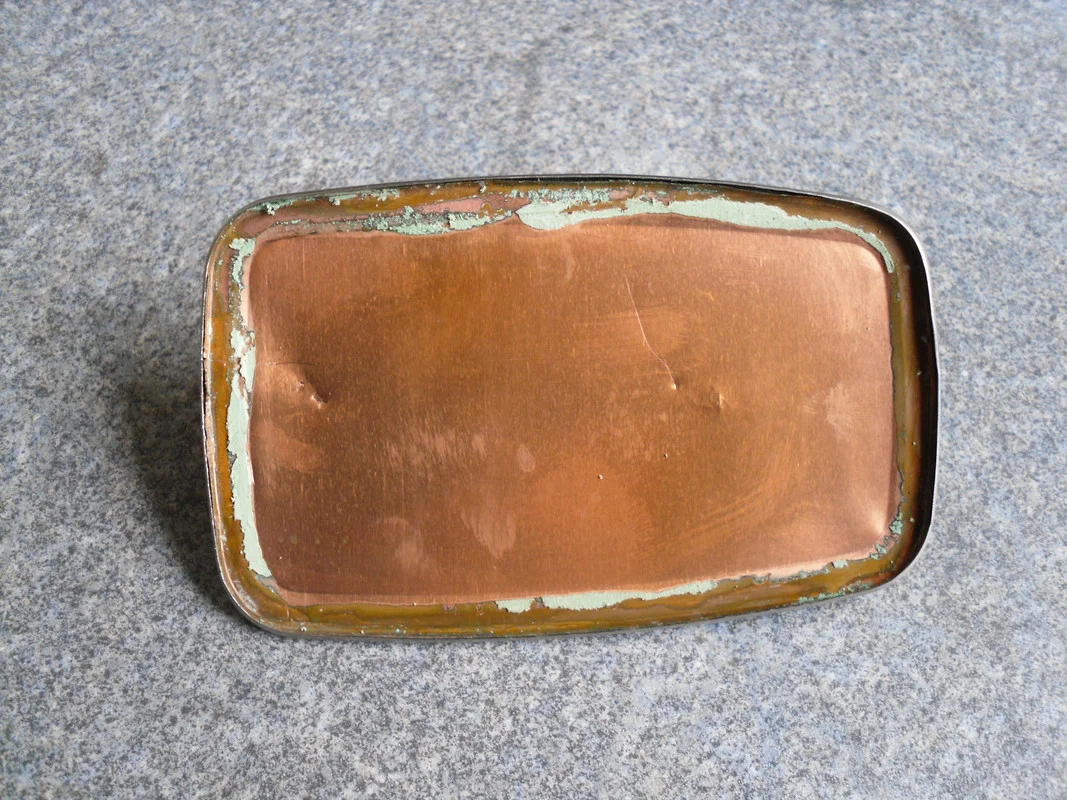

Just took 3 apart, but not without breaking glass. One was already broken and the other two were useless as mirrors. I got one out in 3 big chunks to use as a pattern. The backside of the mirrors had a sheet of copper which wrapped around the edges of the glass and make it more fiddly than it would be to pry the glass out. I saved the 3 copper sheets but need to get some glasses made. Shells appear to be stainless.
PS no rubber edge gasket in the three I have.
PSS copper was stuck around the edge of the back with a bead of some sort of glue. Glass comes out first, then the copper can be peeled out.
PS no rubber edge gasket in the three I have.
PSS copper was stuck around the edge of the back with a bead of some sort of glue. Glass comes out first, then the copper can be peeled out.
- Joined
- Feb 7, 2010
- Messages
- 4,195
I used a tiny flatblade screwdriver and a utility knife blade. If you find someone who can cut the mirror glasses, I'm in for 3. Multiples should cut the cost slightly.
jimbo
VIP MEMBER
- Joined
- Sep 25, 2004
- Messages
- 1,992
yea, after a long day of "worship" I lay down on my bed of pointy rivets and fall asleep counting themYou have to admire a man who worships at the Altar of Originality.
jimbo
VIP MEMBER
- Joined
- Sep 25, 2004
- Messages
- 1,992

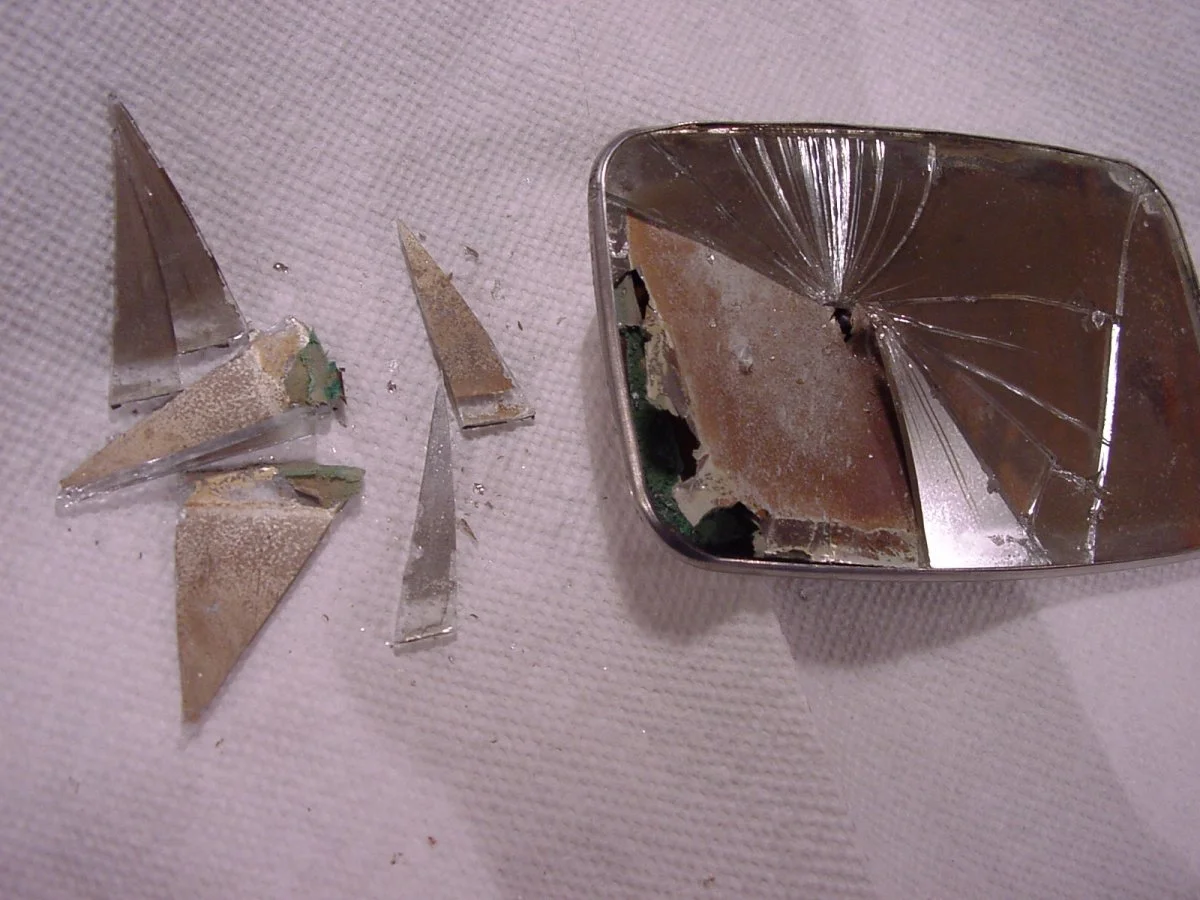

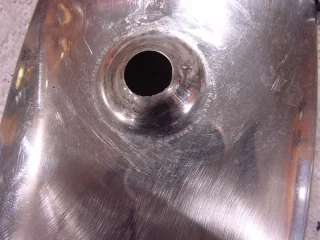

Took one apart last night, the body is made of ss sheet stamped into shape. A copper sheet is placed around the glass to keep the ss from cracking the glass when the ss body edge is crimped over( guessing about the copper) There was some adhesive or sealing putty in between the glass and copper also. Broke the glass trying to get it out. It seems a person would have to uncrimp the edge, then recrimp it during reassembly , which would involve fabricating some tooling, I suppose.
Attachments
- Joined
- Nov 20, 2004
- Messages
- 20,687

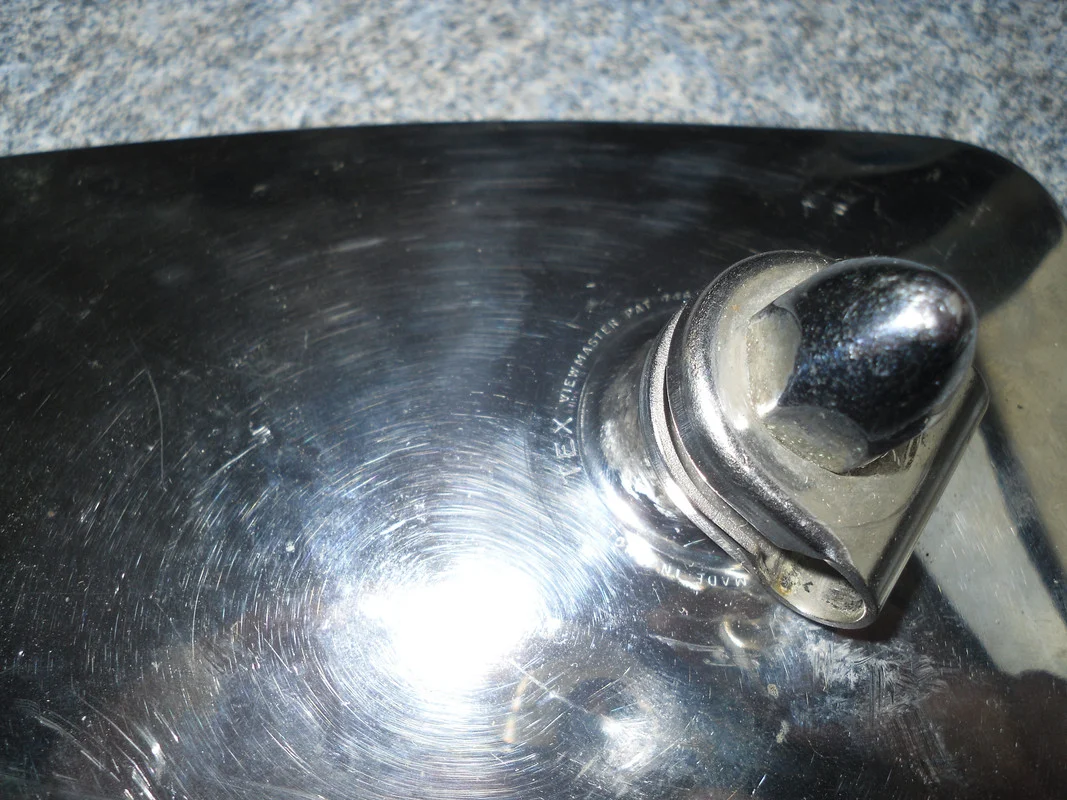

Replacement 'Viewmaster' mirror glasses are available (either flat or convex) from the original manufacturer (TEX Automotive).
texautomotive.com
texautomotive.com

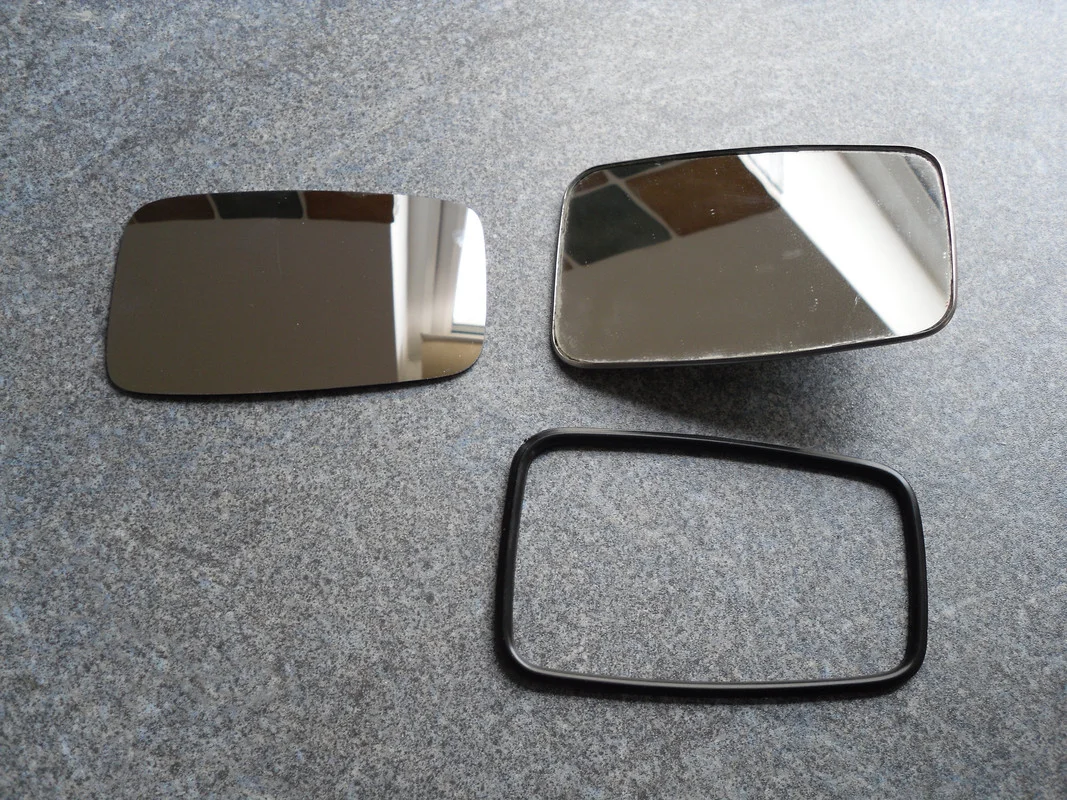

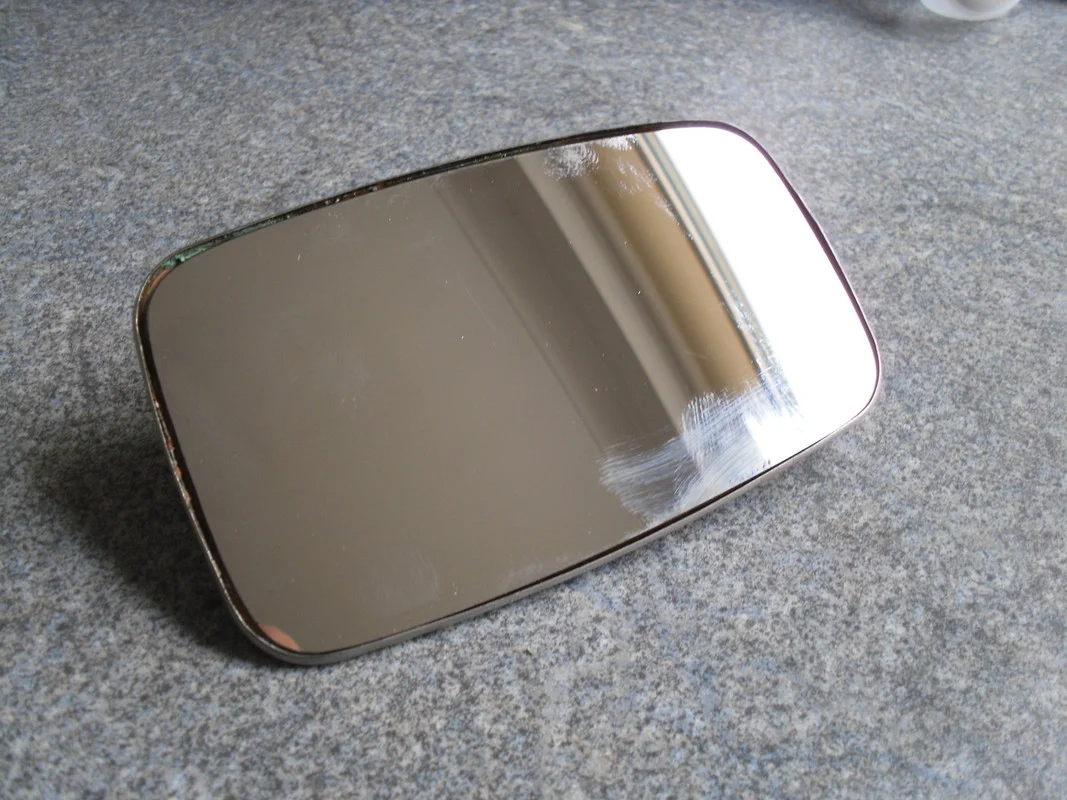

New mirror glass resting on top of the old:
Tex Car Mirrors original accessories - Tex Automotive
Tex Classic Car wing and door mirrors were supplied most British cars incorporating spring back design and are suitable for any vehicle
texautomotive.com
Replacement Glass Convex Anti-Dazzle - Tex Automotive
Anti-dazzle glassSuitable for all B1 & B3 Mirror Heads and all other similar mirrors 140 x 89mm
texautomotive.com

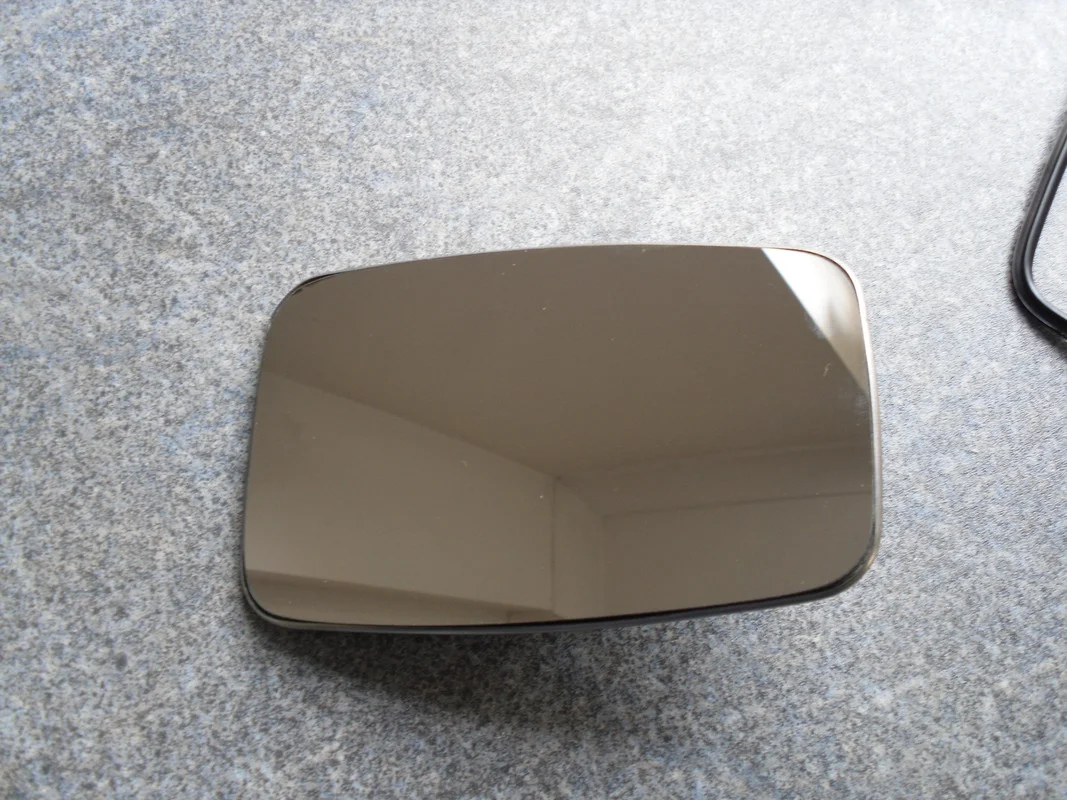

New mirror glass resting on top of the old:
- Joined
- Feb 7, 2010
- Messages
- 4,195
I think that without the adhesive, the old glass might have come out intact. Two qs? I noticed the replacement glass comes with a rubber gasket. Is it the same glass as the one wrapped in copper? And are there any US distributors or do I need to order from the UK supplier?
Hopefully new glass would pop into the frame with some careful persuasion.
Hopefully new glass would pop into the frame with some careful persuasion.
- Joined
- Nov 20, 2004
- Messages
- 20,687
The"rubber gasket" is actually a plastic trim and not intended for these 'older' mirrors.
I bought the convex version (M97702Q) as I don't particularly like flat glass rear view mirrors so it has a slight curvature but will still fit by the looks of it.
I couldn't find any on the Internet. Edit: I just found this: https://www.gbcarparts.com/proddetail.asp?prod=MI-RG001-LR
It looks almost exactly the same shape as the original glass and would almost drop in without too much persuasion without the copper backing but I have yet to try one.
