OK, this is really a stupid question - front spacer, inside or outside of disc

Status
Not open for further replies.
joe czech

joe czech

Joined
Feb 21, 2019
Messages
1,067
Country flag

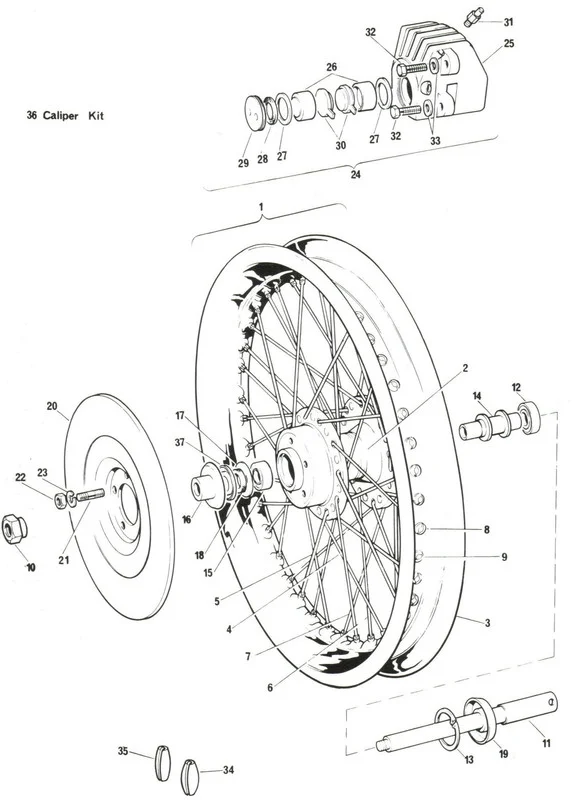

(BTW, this is a Mk3 illustration - same as my august build Mk2) this is one of those WTF -- is the illustration wrong? it shows the spacer (part number 16) on the inside of the disc. is that correct? i'm drawing a blank here - seems to me, when I took things apart, it was on the outside. guess I forgot to engage my brain on this one. almost positive, that my rotor was flush against the hub, and the spacer on the outside, but now i'm thinking that would defeat the purpose of the spacer/dust cover. ??? besides, it doesn't look like it can be assembled as shown. an I missing something?

OK, this is really a stupid question - front spacer, inside or outside of disc

joe czech said:
(BTW, this is a Mk3 illustration - same as my august build Mk2) this is one of those WTF -- is the illustration wrong? it shows the spacer (part number 16) on the inside of the disc. is that correct? i'm drawing a blank here - seems to me, when I took things apart, it was on the outside. guess I forgot to engage my brain on this one. almost positive, that my rotor was flush against the hub, and the spacer on the outside, but now i'm thinking that would defeat the purpose of the spacer/dust cover. ??? besides, it doesn't look like it can be assembled as shown. an I missing something?
Click to expand...

Parts diagrams can't always be relied upon to illustrate the correct order of assembly.

In this instance, as others have said, the disc has to be fitted before the spacer.

OK, this is really a stupid question - front spacer, inside or outside of disc


OK, this is really a stupid question - front spacer, inside or outside of disc

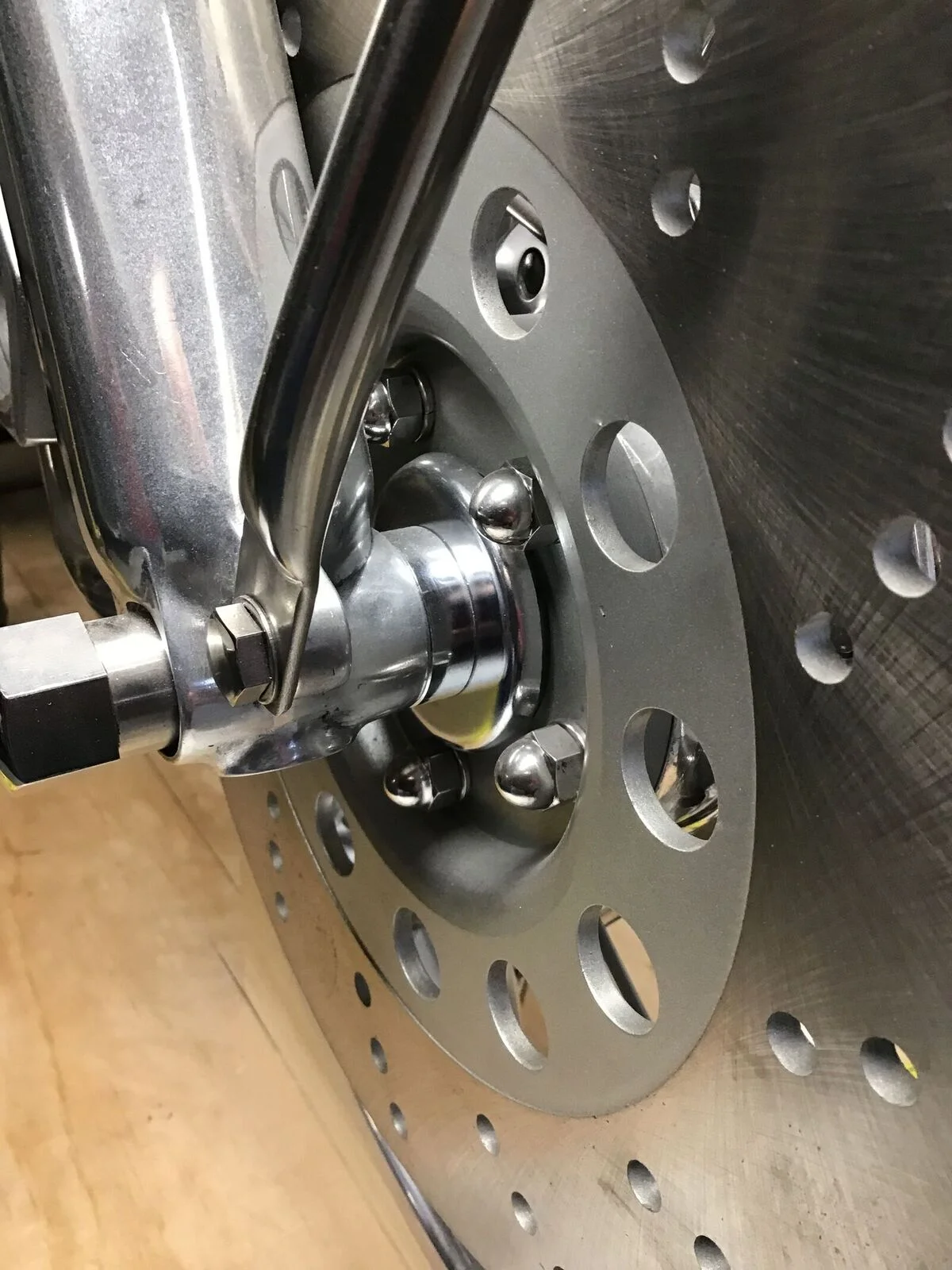

done! check off another line item. started breaking down the caliper - not a pretty sight....

OK, this is really a stupid question - front spacer, inside or outside of disc

Last edited:
joe czech said:
where did you get your training? Pittsburgh Institute of Aeronautics, here. my neighbor graduated from Embry Riddle. :cool:
Click to expand...
ISU (Pocatello, Idaho). Back in '78. I like to be able to pay my bills, so I followed a different career path...

Nater_Potater said:
ISU (Pocatello, Idaho). Back in '78. I like to be able to pay my bills, so I followed a different career path...
Click to expand...
same here - after 7 years as a (J-79) engine mechanic, when back to the University of Dayton for an engineering degree. ended up designing aircraft maintenance trainers and flight simulators. neighbor retired as an FAA flight safety inspector. ;)
