While sorting out bent fork tubes on my 2014 961 Commando here,

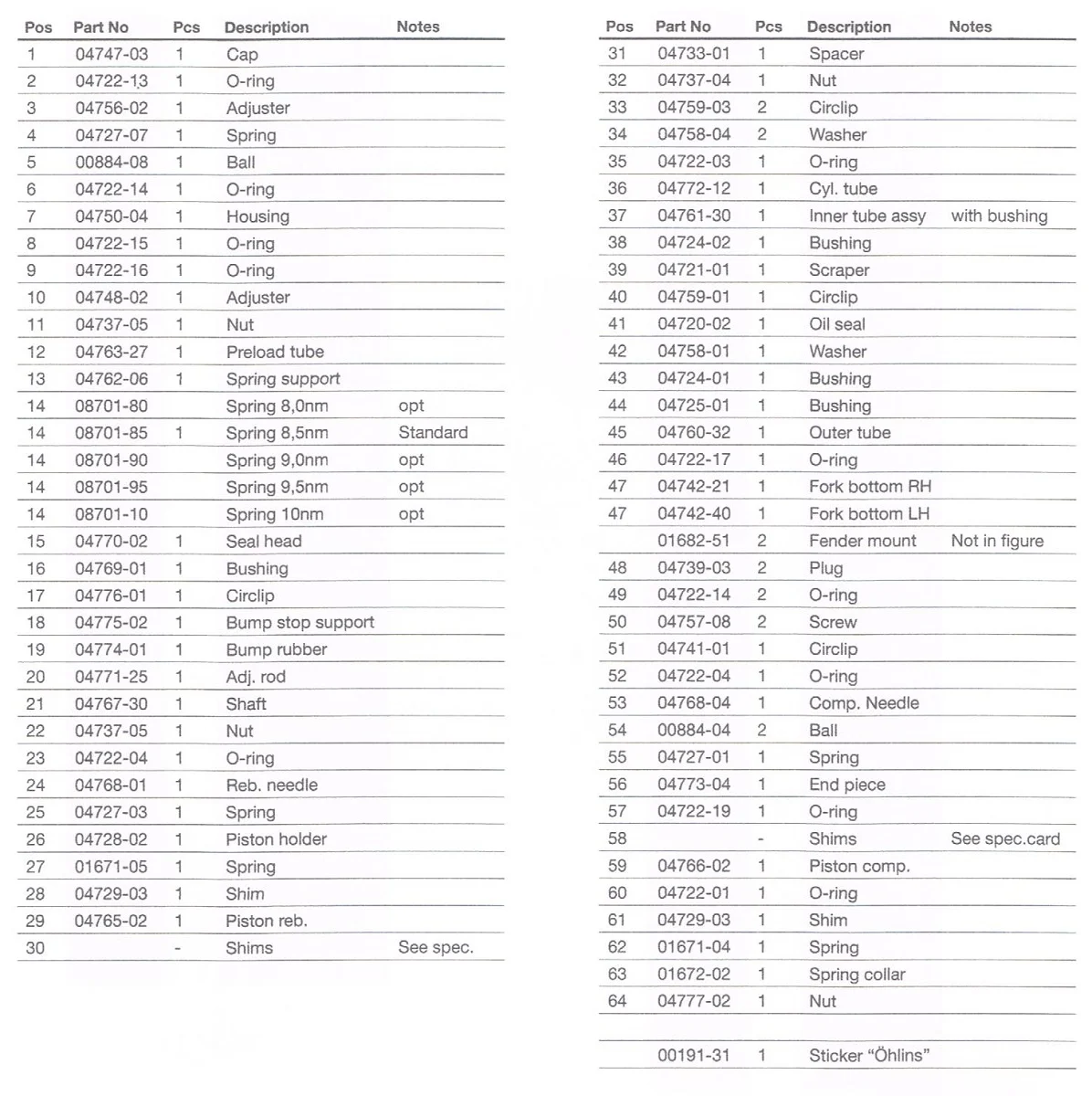

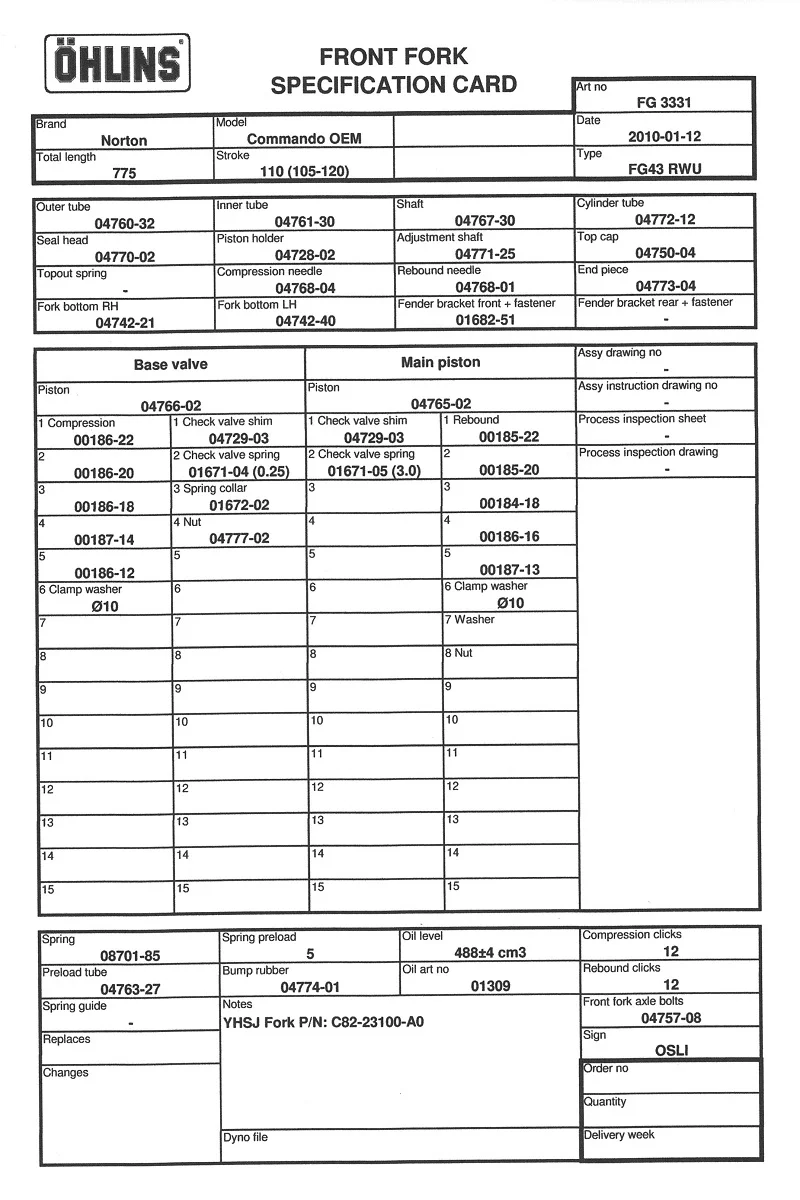

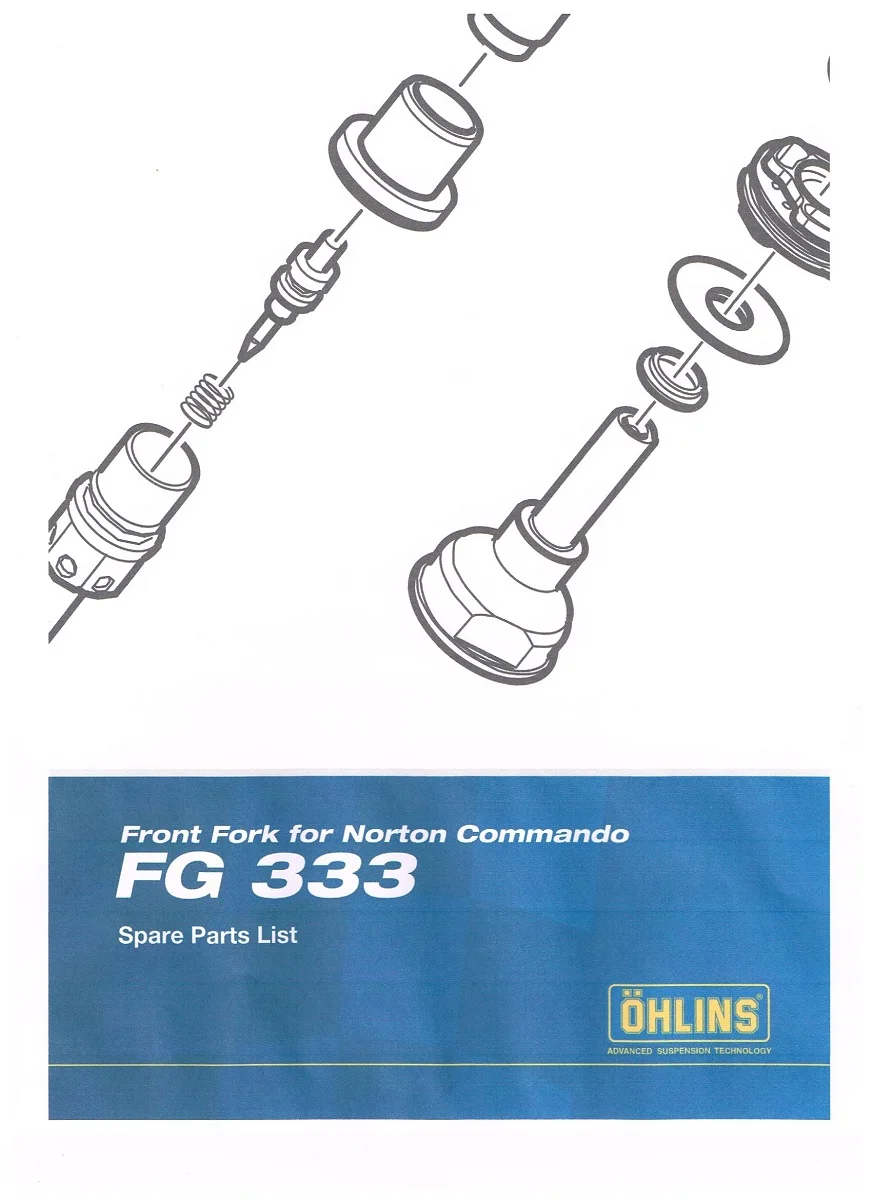

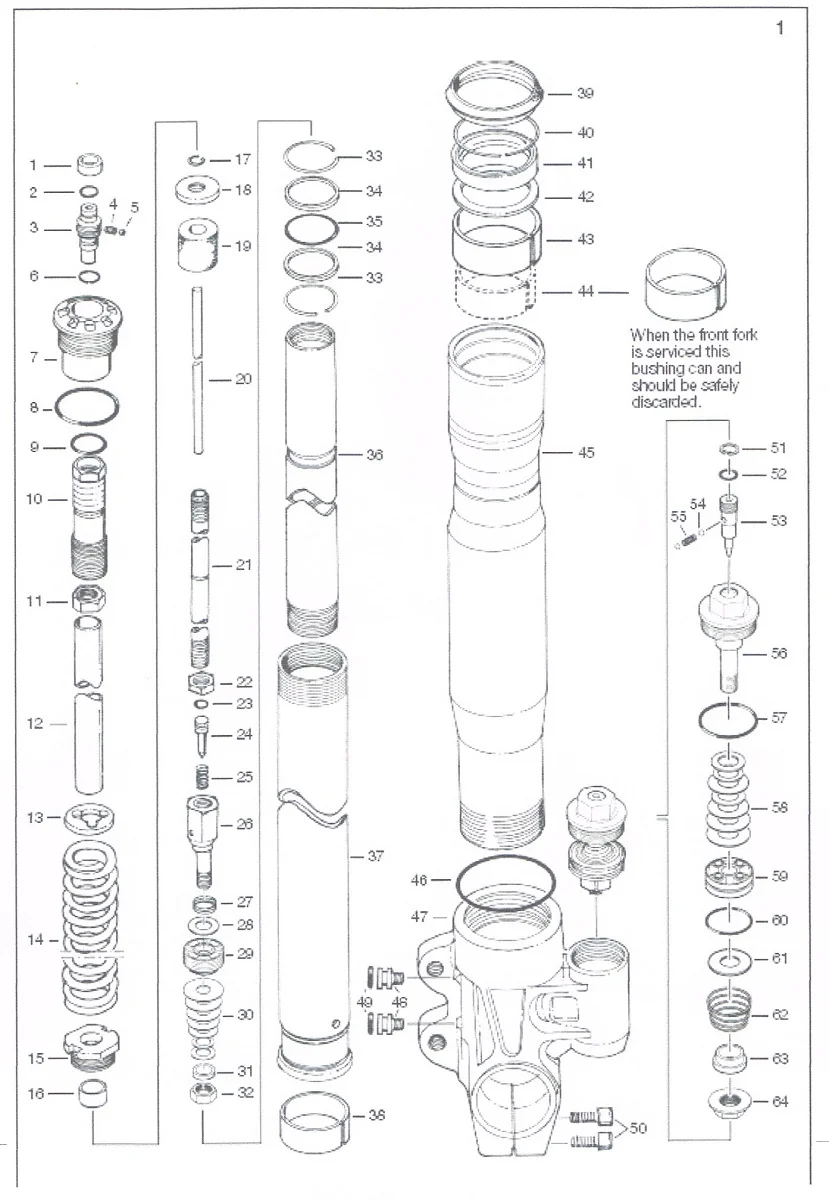

I acquired the parts list and spec sheet for the traditional/conventional/RWU Ohlins forks. Richard-7 posted them for the USD forks, but I haven't seen them here for the RWU forks, so I'm posting them below:

Norton Traditional Ohlins Fork Specs


Norton Traditional Ohlins Fork Specs


Norton Traditional Ohlins Fork Specs


Norton Traditional Ohlins Fork Specs


Ken
