new guy with a few questions

zefer

VIP MEMBER
Joined
Mar 18, 2013
Messages
157
Country flag
sorry I do not think they are available any longer...try Doug's Nortons


Tornado

VIP MEMBER
Joined
Dec 5, 2017
Messages
1,997
Country flag
Classic Bike Racks -

https://www.classicbikeracks.co.uk/product-category/norton/

It always bothered me that Norton had an Interstate touring model but they never offered any luggage racks or panniers for it.

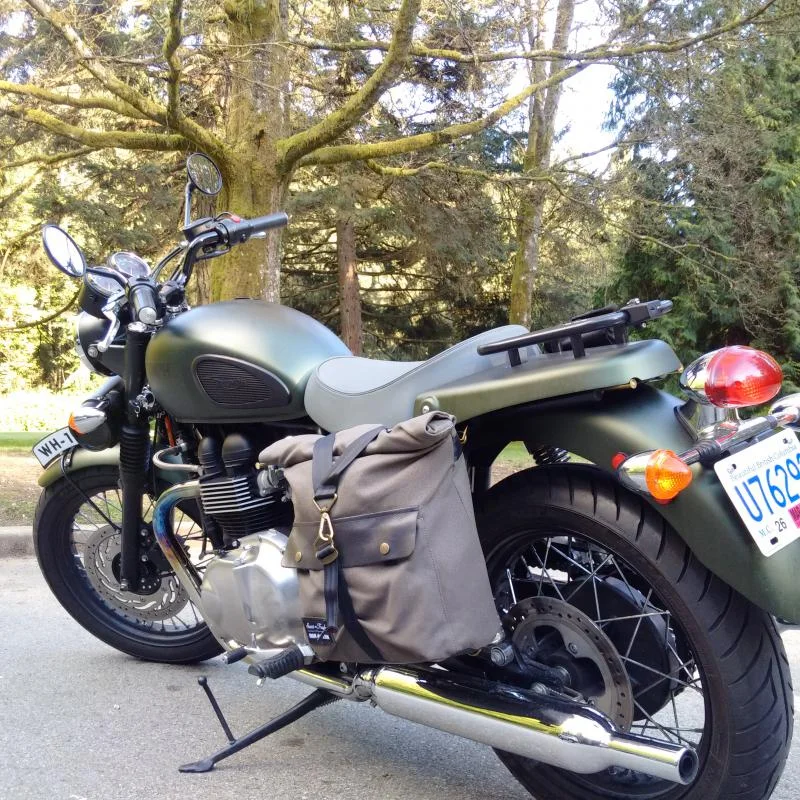

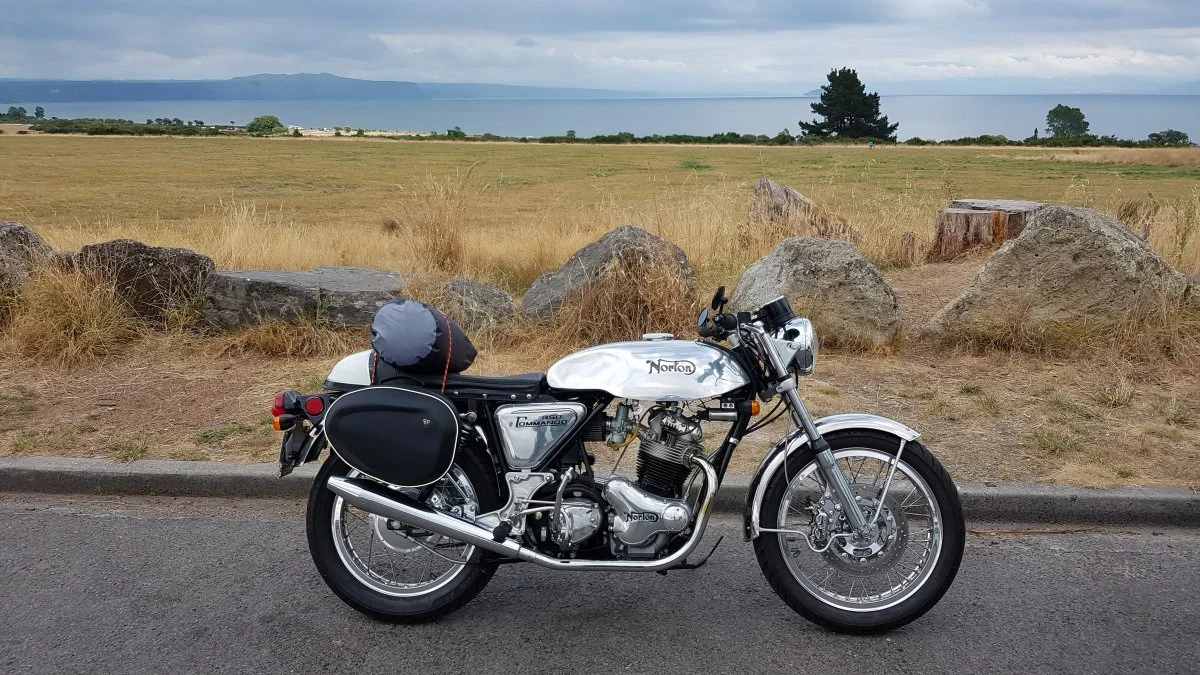

The roadster model rack doesn't seem to attach to anything other than the hoop, so I guess that might be an issue for heavier loads. Still a nice setup with integrated gra b rail. I guess one could Fab up a support bar from zplate or shock tower if concerned. I run a Terrain Pannier soft bag from Iron & Resin on my modern bonneville. It attaches to frame rails via nylon web straps and quick release metal D rings. Have not tried fitting to the norton but might one day.


Last edited:
Joined
Sep 4, 2019
Messages
12
Country flag
Classic Bike Racks -

https://www.classicbikeracks.co.uk/product-category/norton/

It always bothered me that Norton had an Interstate touring model but they never offered any luggage racks or panniers for it.

And it’s too bad ‘cause there’d be some approach to follow--maybe even a beefier loop left behind. I guess they just left it to the aftermarket.

I understand your rack attaches to welds under the seat but is it hung entirely off that, or does it also rest on the loop? toward the back. I can’t tell from your photo.


maylar

VIP MEMBER
Joined
May 13, 2007
Messages
2,619
Country flag
And it’s too bad ‘cause there’d be some approach to follow--maybe even a beefier loop left behind. I guess they just left it to the aftermarket.

I understand your rack attaches to welds under the seat but is it hung entirely off that, or does it also rest on the loop? toward the back. I can’t tell from your photo.
It touches the rear loop but gently with a rubber bumper. Attachment is via four 5/16" bolts. I'll try to get a photo of that.

Joined
Sep 4, 2019
Messages
12
Country flag
It touches the rear loop but gently with a rubber bumper. Attachment is via four 5/16" bolts. I'll try to get a photo of that.

Please do/ thanks.
(and... I went to high school in East Hartford...)
(Not a bad place, but I don't mind being 3000 miles away from it.)


Eljahara

VIP MEMBER
Joined
Jul 8, 2018
Messages
1,045
Country flag
Please do/ thanks.
(and... I went to high school in East Hartford...)
(Not a bad place, but I don't mind being 3000 miles away from it.)
Hi John
Depends what you are looking to carry, if it is just something that would fit a rack, a number of guys on the Triumph Forum are using Nelson Rigg “motorcycle trunks” - unlike the Kriega etc. It stays on the seat like a small top box
Anyway, no engineering needed, just straps to the seat in the pillion space,
https://www.nelsonrigg.com/motorcycle-luggage/new-tail-bags/commuter_lite-detail
Have a look, discount if it is not what you need/want
John


napanorton

VIP MEMBER
Joined
Apr 19, 2009
Messages
161
Country flag

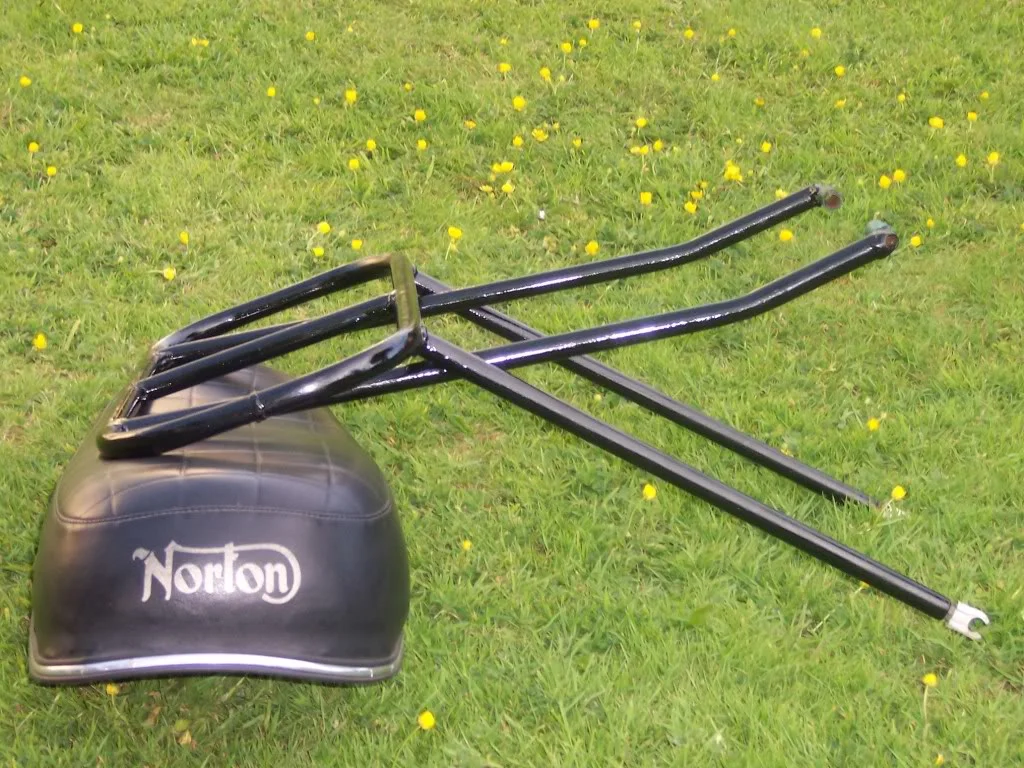

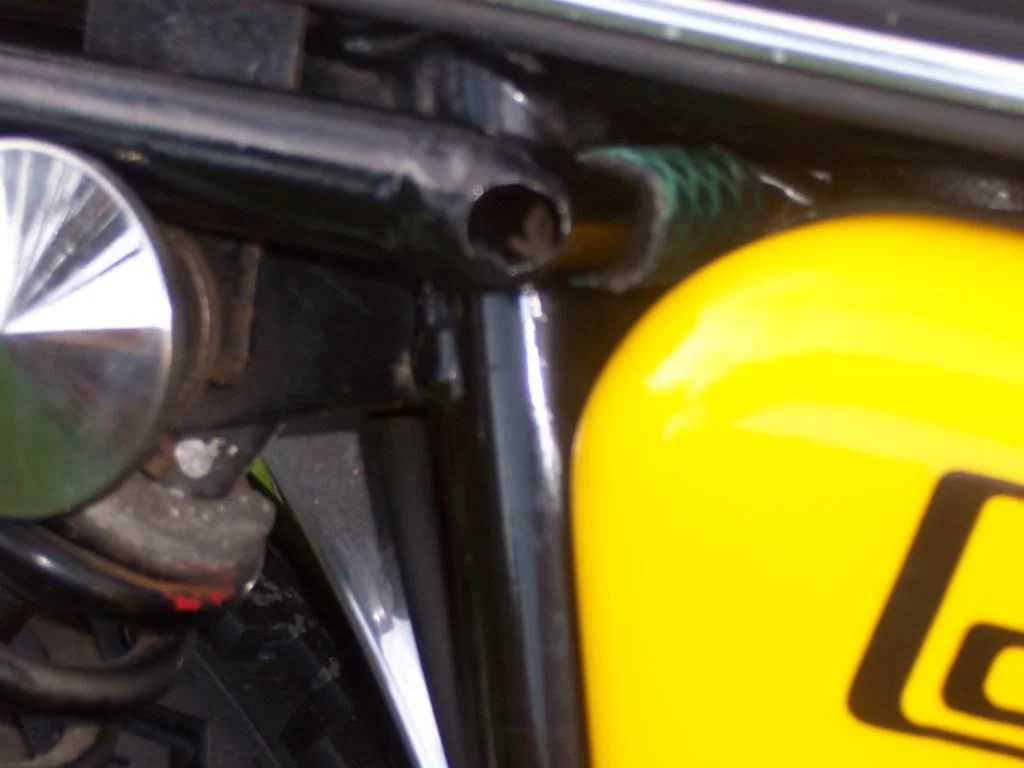

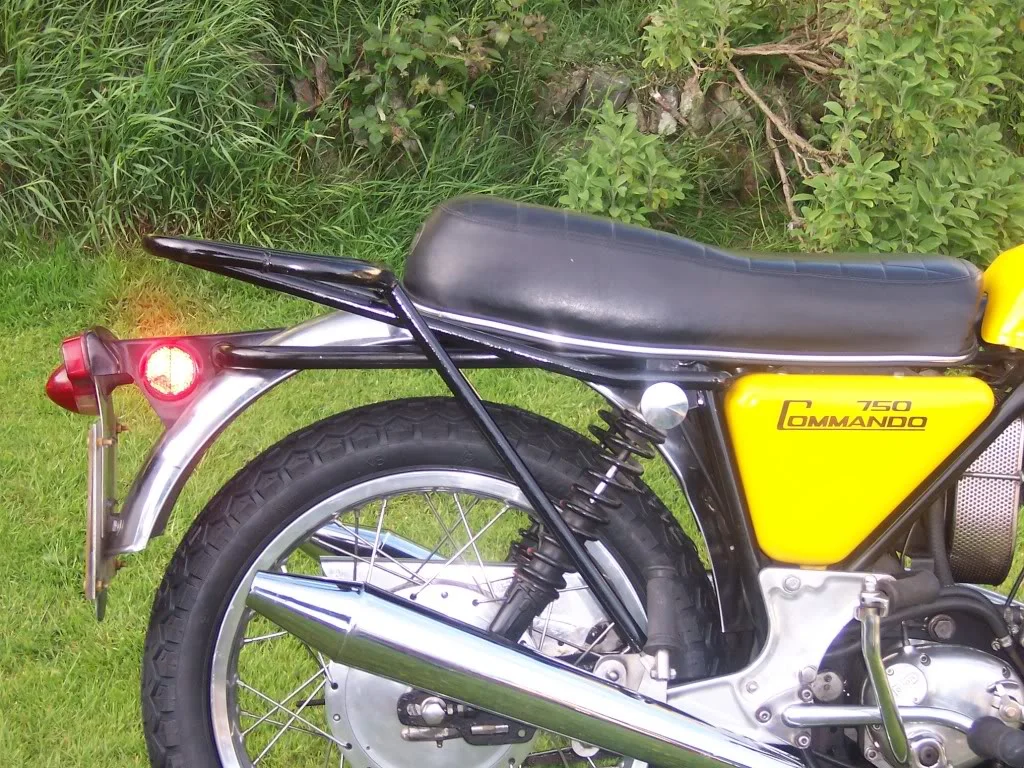

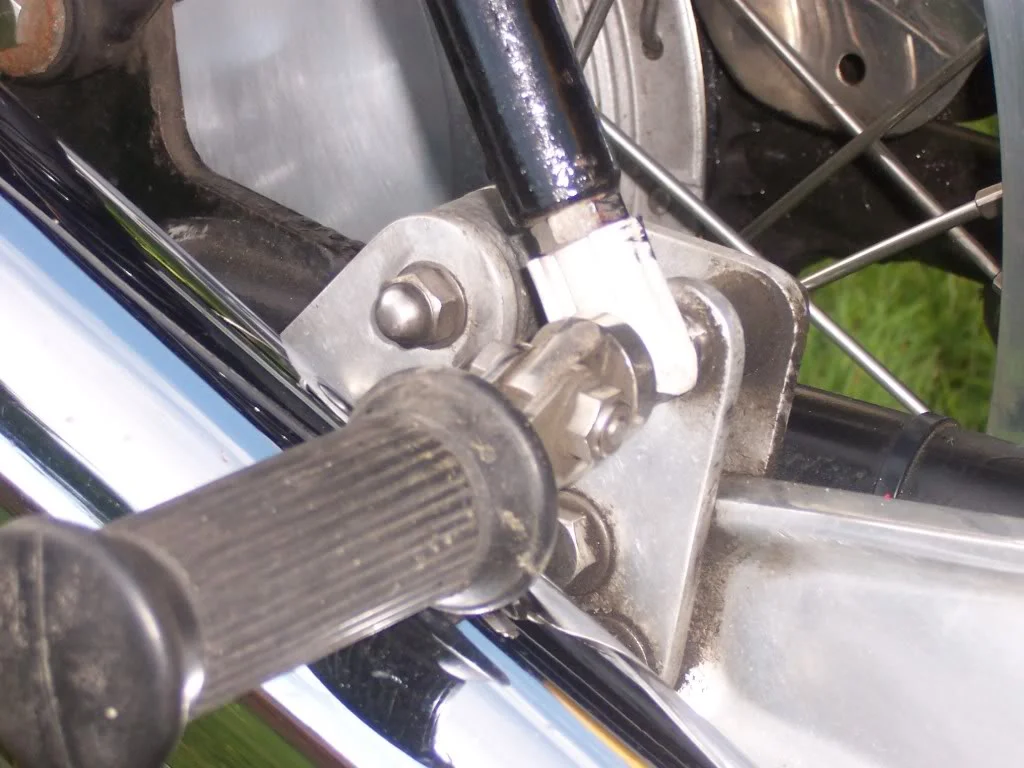

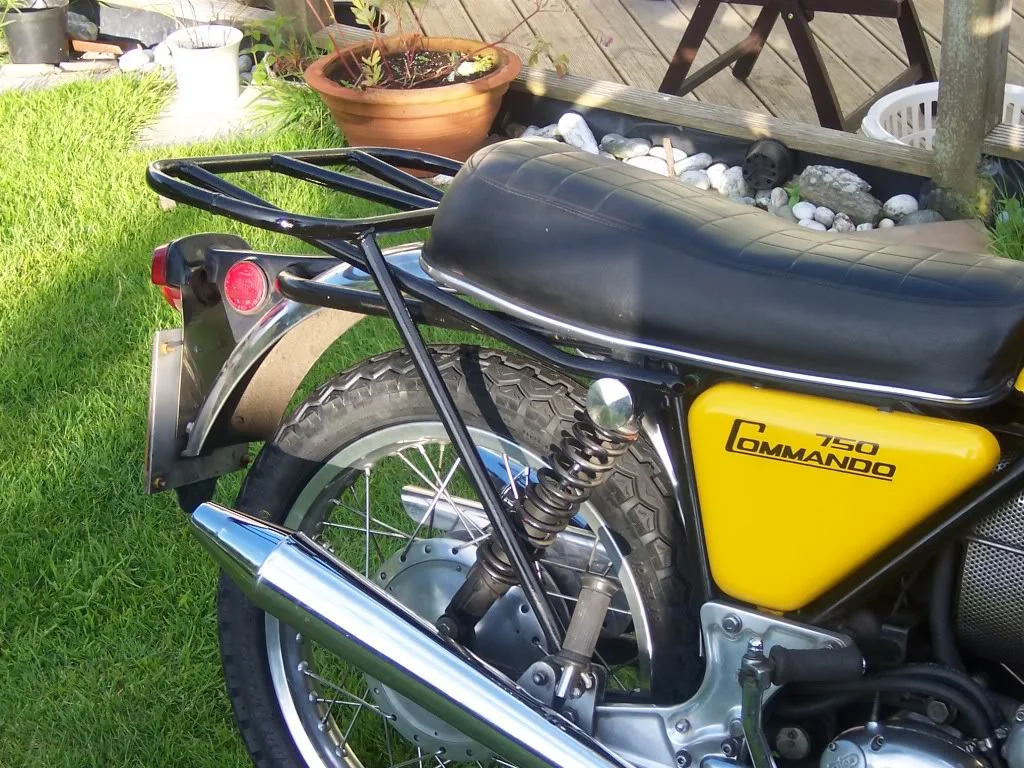

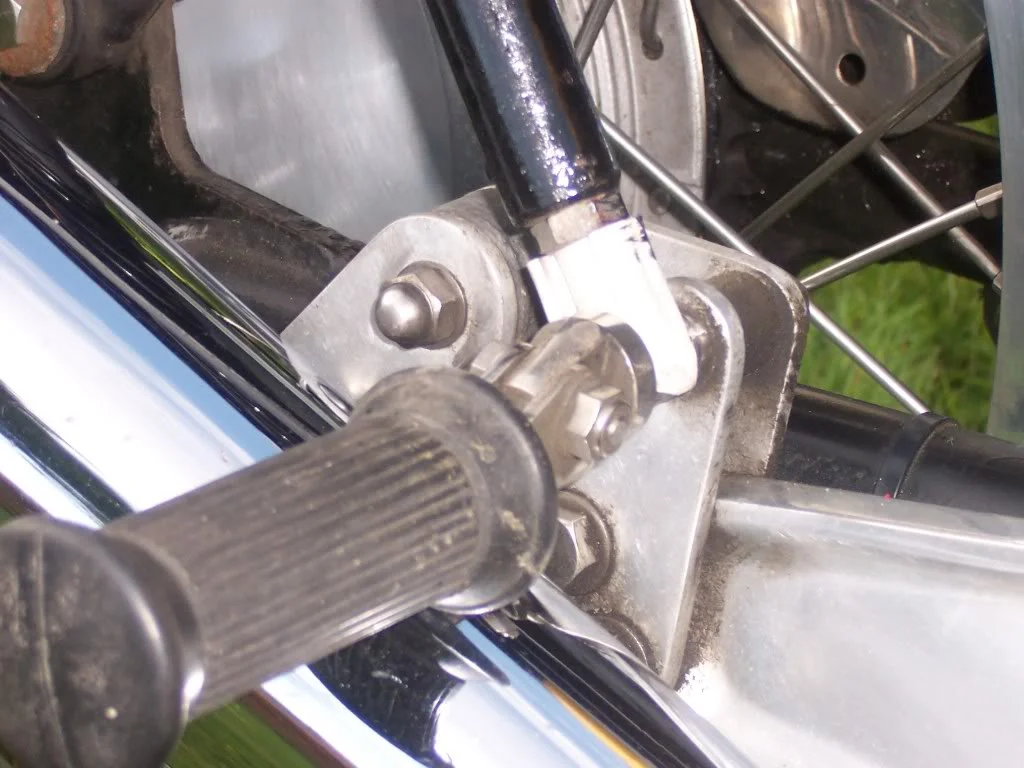

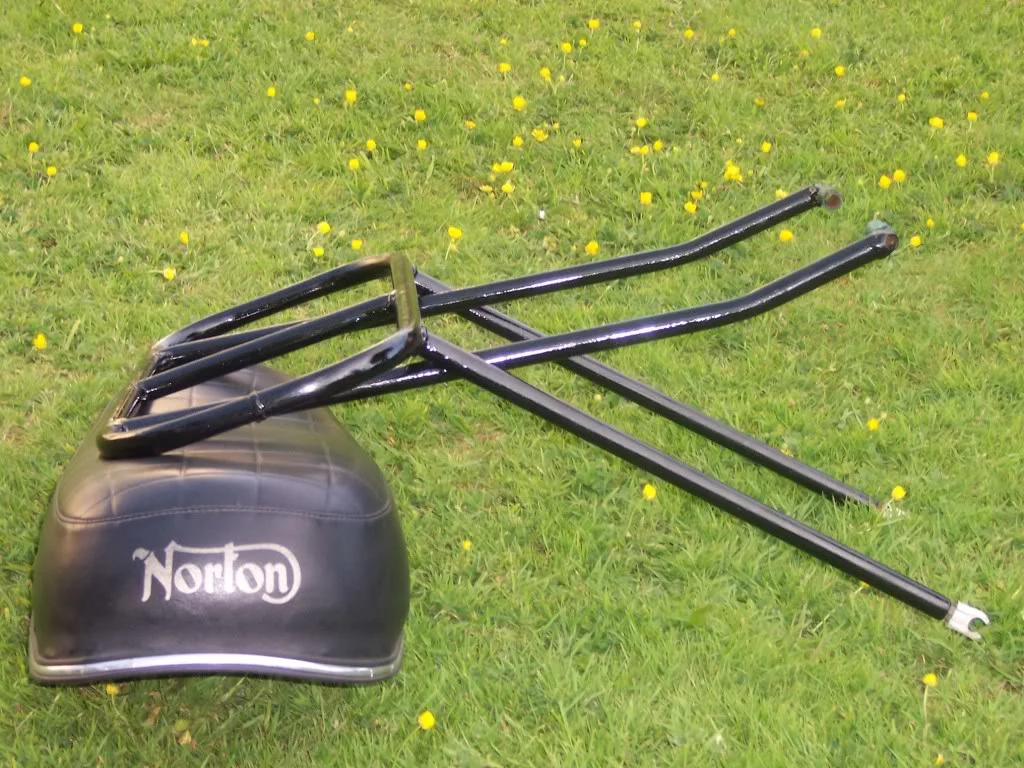

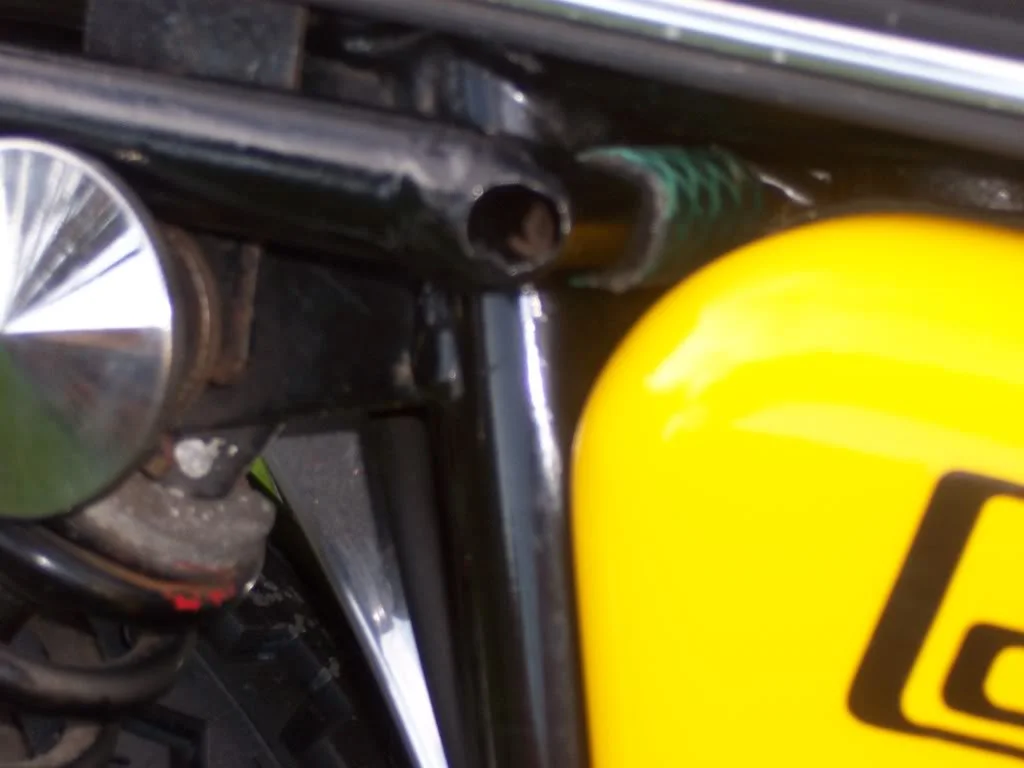

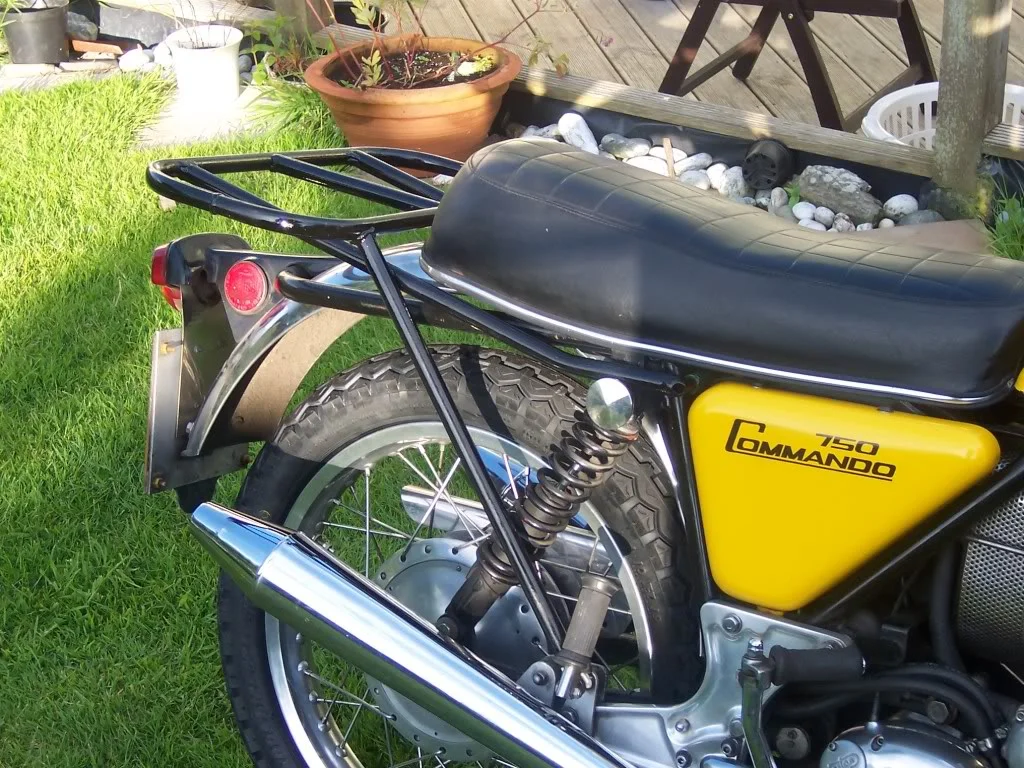

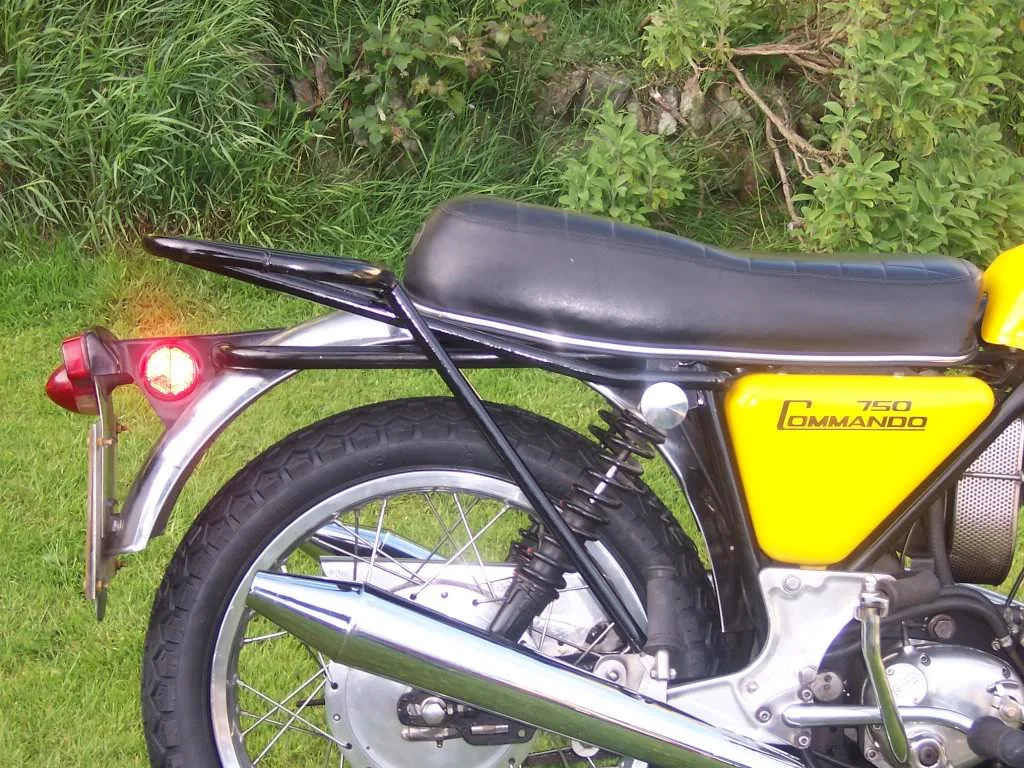

I always liked this design. I think I found these pics somewhere on this site, but really can't remember. Super simple, doesn't hurt the rear loop, easy on and off. Really very elegant. I guess you do loose the grab bar...

-- D




Attachments

Joined
Sep 4, 2019
Messages
12
Country flag
Last edited:
Joined
Sep 4, 2019
Messages
12
Country flag
Thanks to everyone for the ideas and photos, etc. All of it was helpful.

So, here’s where I landed on this...

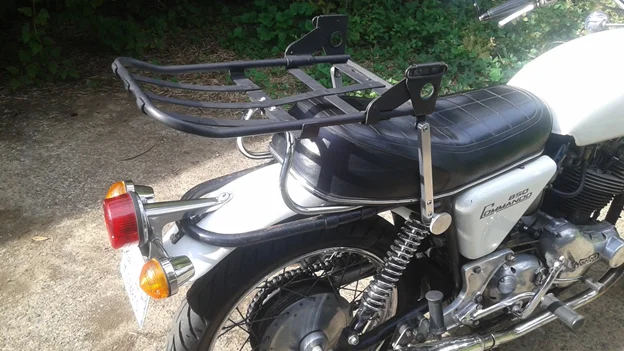

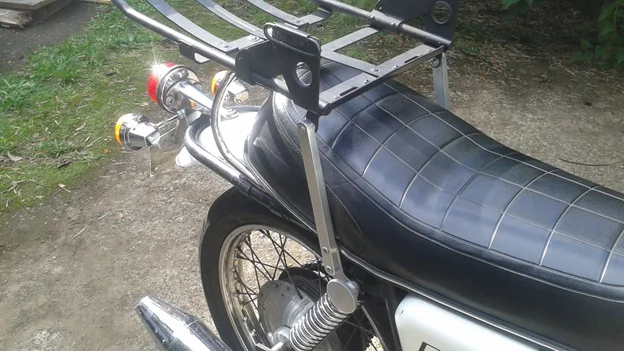

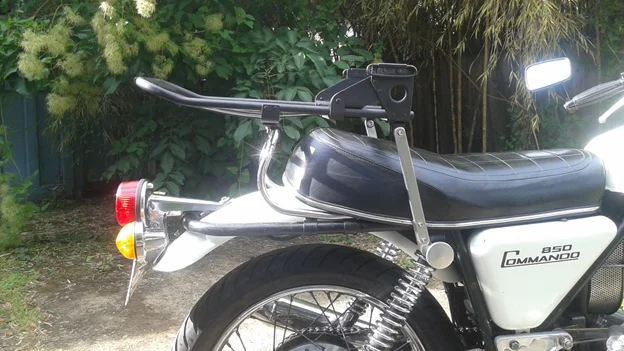

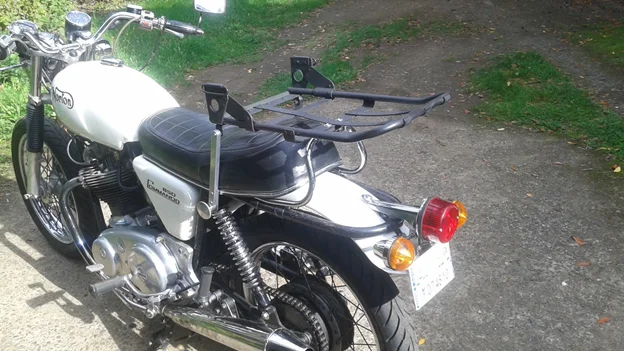

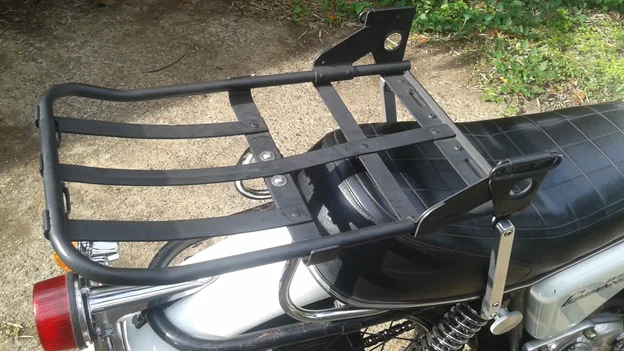

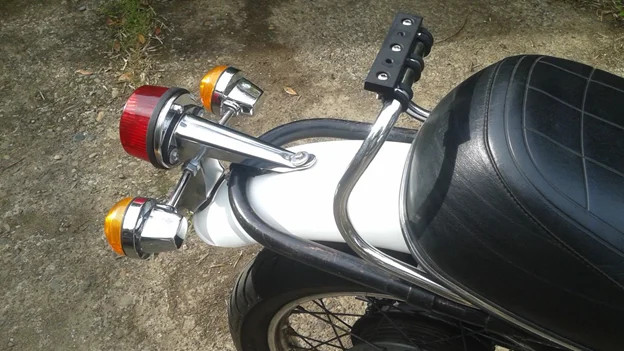

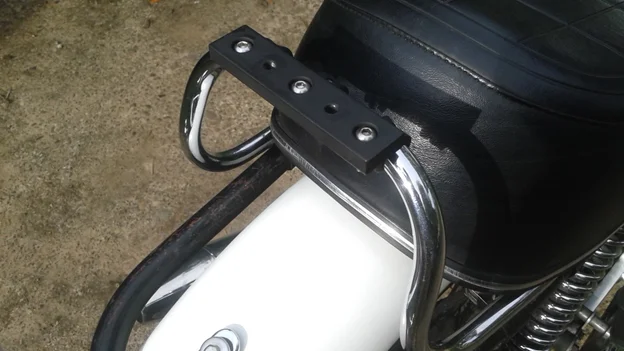

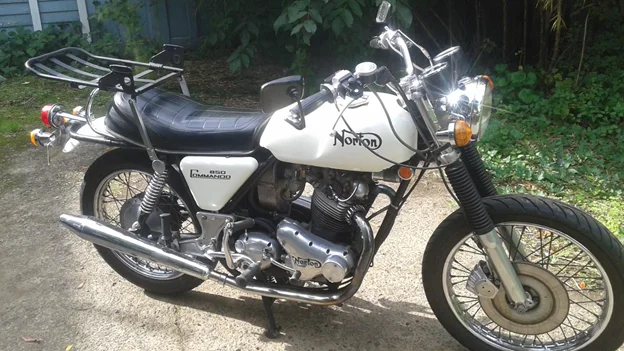

The short of it is I fashioned the struts from an aluminum bar (cut/ drilled/ filed radiuses) then, using steel, made the tabs that bridge to the shock bolts (which I swapped for slightly longer ones). Then I made the "platform" for the grab rail for the rack to bolt up. The rack is a modified aluminum GI ALICE frame. I riveted a steel bar up front to bolt the struts to (and additional aluminum bars in the racks nest.)

It’s strong.

Between its leading edge and where it hits the grabrail I think it would take 40pds traveling, no problem.

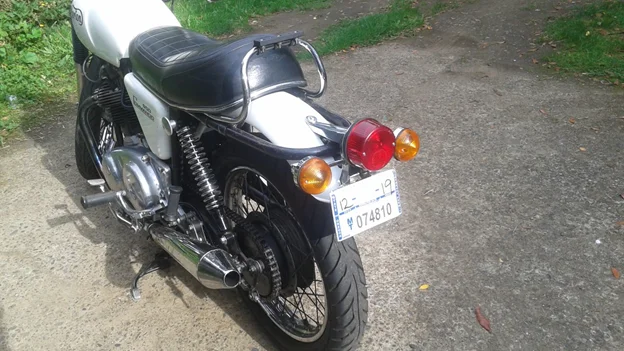

(I did the fender/ taillight work last month. A mash up of parts. BSA/ Yamaha R5/ OEM blinkers and a Japanese lens of unknown origin. I’m not sold on the white yet. I may repaint it black.)
