MK III Color Wiring Diagrams

Saber13 · Dec 20, 2013

All,
I have color version of the MKIII diagrams for no charge. Can provide in Adobe, Visio, or MS Word. I can also break out any circuit by itself, just PM me.

Chuck

RoadScholar · Dec 20, 2013

If this is from Color Diagrams, it may be copyrighted, if not please send me one.

Bill.

Saber13 · Dec 20, 2013

It is from a bad copy in my Norton Manual.
What format do you want it in?

Chuck

Jerry Doe · Dec 23, 2013

Chuck- Thanks for your work on the wiring diagrams. I have added them here:
http://jerrydoe.com/norton-commando-mk3-wiring/

solarmoose · Dec 23, 2013

Great drawings. It will be useful to have these electronically!
Thanks for the work.

stephm42 · Jun 8, 2019

Saber13 said:
All,
I have color version of the MKIII diagrams for no charge. Can provide in Adobe, Visio, or MS Word. I can also break out any circuit by itself, just PM me.

Chuck

Hello Chuck, Can you send the full version in Visio? I am rewiring my 75 Norton with LED lights, negative ground, Boyer ignition, and Smiths electronic speedo/tach.
I am keeping the same british wiring codes.
Thank you in Advance,
Stephanie Moran

L.A.B. · Jun 9, 2019

Jerry Doe said:
Chuck- Thanks for your work on the wiring diagrams. I have added them here:
http://jerrydoe.com/norton-commando-mk3-wiring/

Is one (or more) missing as the headlamp (T1-T4) and direction indicator wiring isn't shown?

p400 · Jun 9, 2019

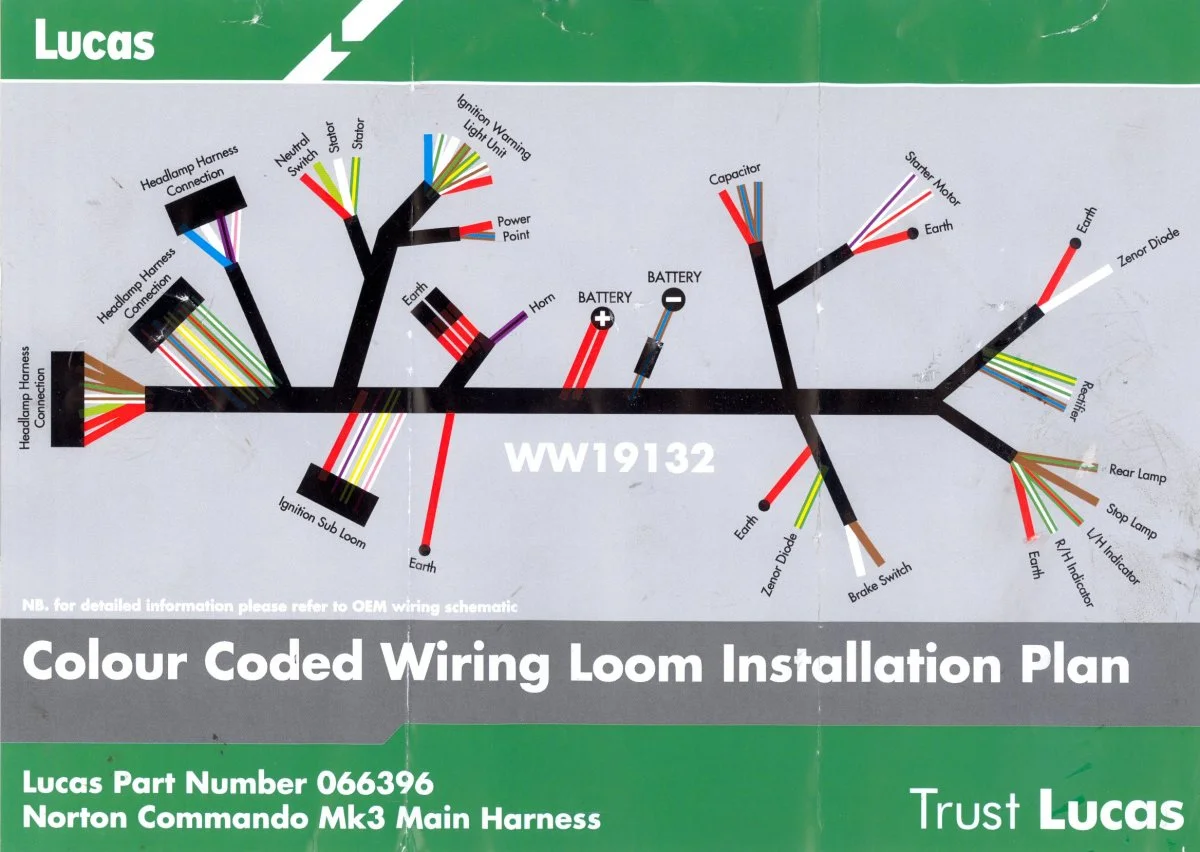

Mk3 main harness wiring

Saber13 · Jun 9, 2019

Stephanie, PM me with a private email. Visio files are too big to g0 through the forum.

Chuck

stephm42 · Jun 10, 2019

Saber13 said:
Stephanie, PM me with a private email. Visio files are too big to g0 through the forum.

Chuck

steph.moran42@gmail.com
Thanks,
Stephanie
