Does anyone have an original headlamp shell with a 35mm diameter grommet hole in it? we have looked at all ours here and can't find one. We have been told that the 35mm hole is correct and was the size used on the original headlamp shells, can anyone confirm?
Lucas headlamp shells
- Thread starter Madnorton
- Start date
- Joined
- Dec 8, 2011
- Messages
- 424
On the early headlamp shells that were equipped with an ammeter, the grommet hole size that I measure is about 36mm in diameter. On the later Commando's without the ammeter hole but with the 3 indicator lamps, I measure the grommet hole to be 40mm in diameter. These hole diameters that I measure are from original Lucas headlamp shells. I hope this helps,
Peter Firkins
Peter Firkins
- Joined
- Oct 28, 2009
- Messages
- 1,456
The parts manual for 1968-70 isn't that helpful on this point, although it gives you a part number for the grommet and shell. The Andover site is more helpful showing you an illustration and part number:
The 1968-70 grommet part number is 06-8042
Looks like Andover supplies the same grommet for the later years of headlamps as well.
Andover Norton Parts Drawings - Andover Norton Factory Parts - Commando Parts
Andover Norton Parts are the only Norton spare parts in the market manufactured to original drawings, within the factory-approved tolerances, from the correct materials, and with the correct finish.
andover-norton.co.uk
Looks like Andover supplies the same grommet for the later years of headlamps as well.
- Joined
- Nov 20, 2004
- Messages
- 21,073
That's a later type headlamp assembly as the original headlamp had an ammeter, toggle switch and one warning light (red for high beam).

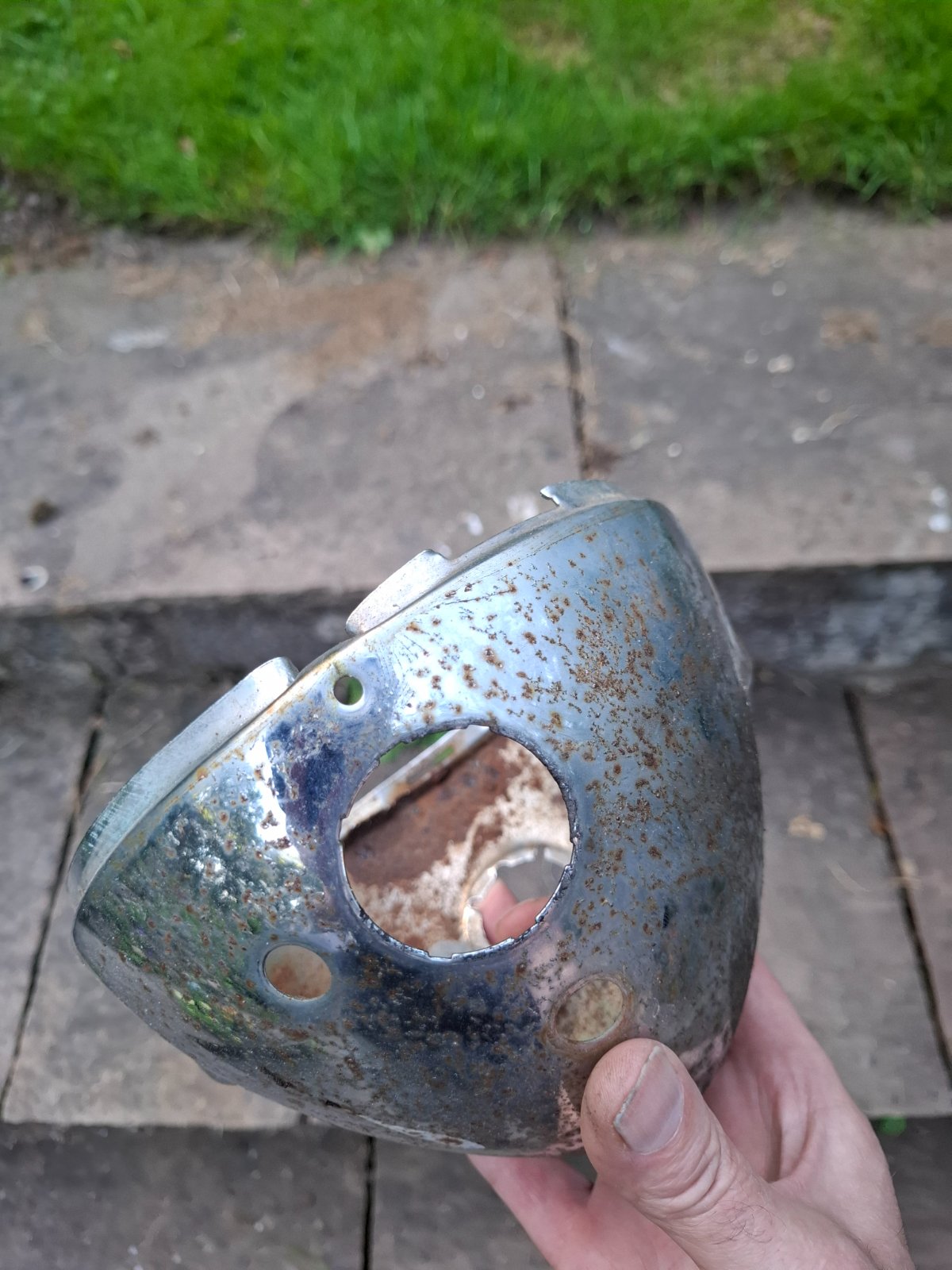

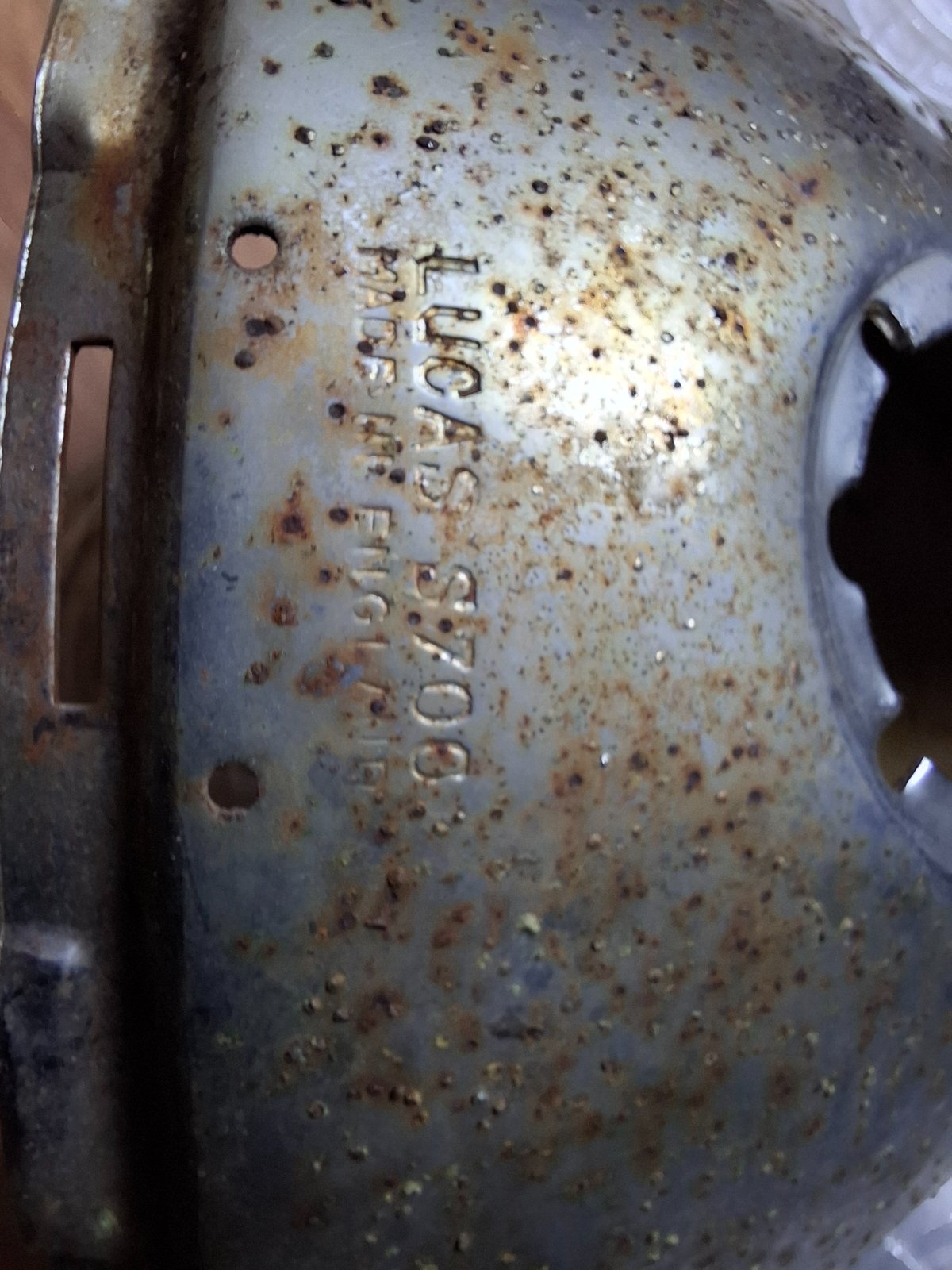

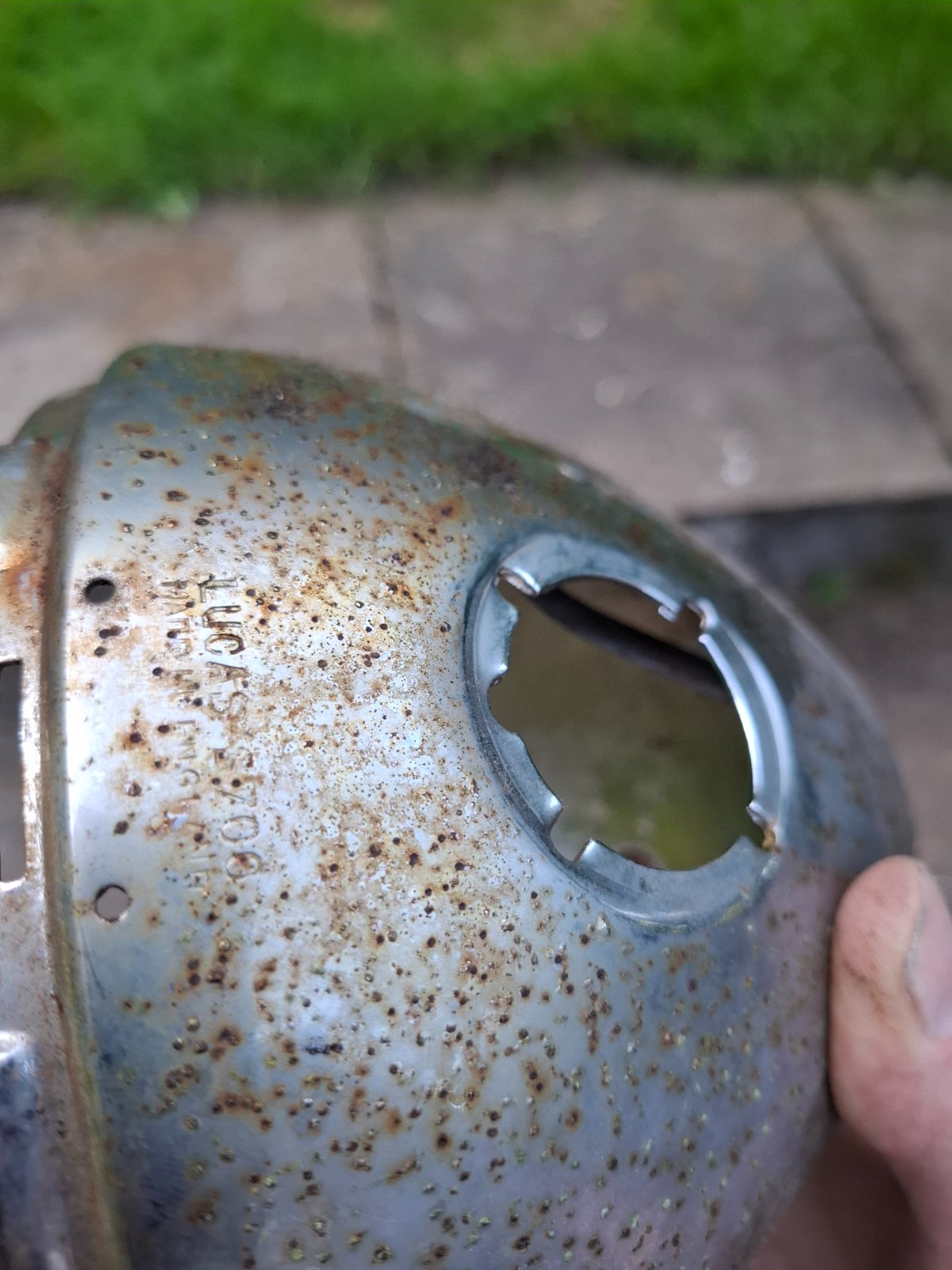

Of the two old h/lamp shells ive got both have 36mm grommet holes, ammeters and one indicator lamp and switch hole and the other two indicator lamp holes. Both stamped Lucas S 700P
