Lucas 35351 switch - info needed

Status
Not open for further replies.
Flatspot

Flatspot

VIP MEMBER
Joined
Jan 30, 2020
Messages
1,279
Country flag
My new 35351 from Wassell has no numbers around the periphery like my original 39784, can anyone shed any light on which terminals to use?

Are you absolutely sure there are no numbers?

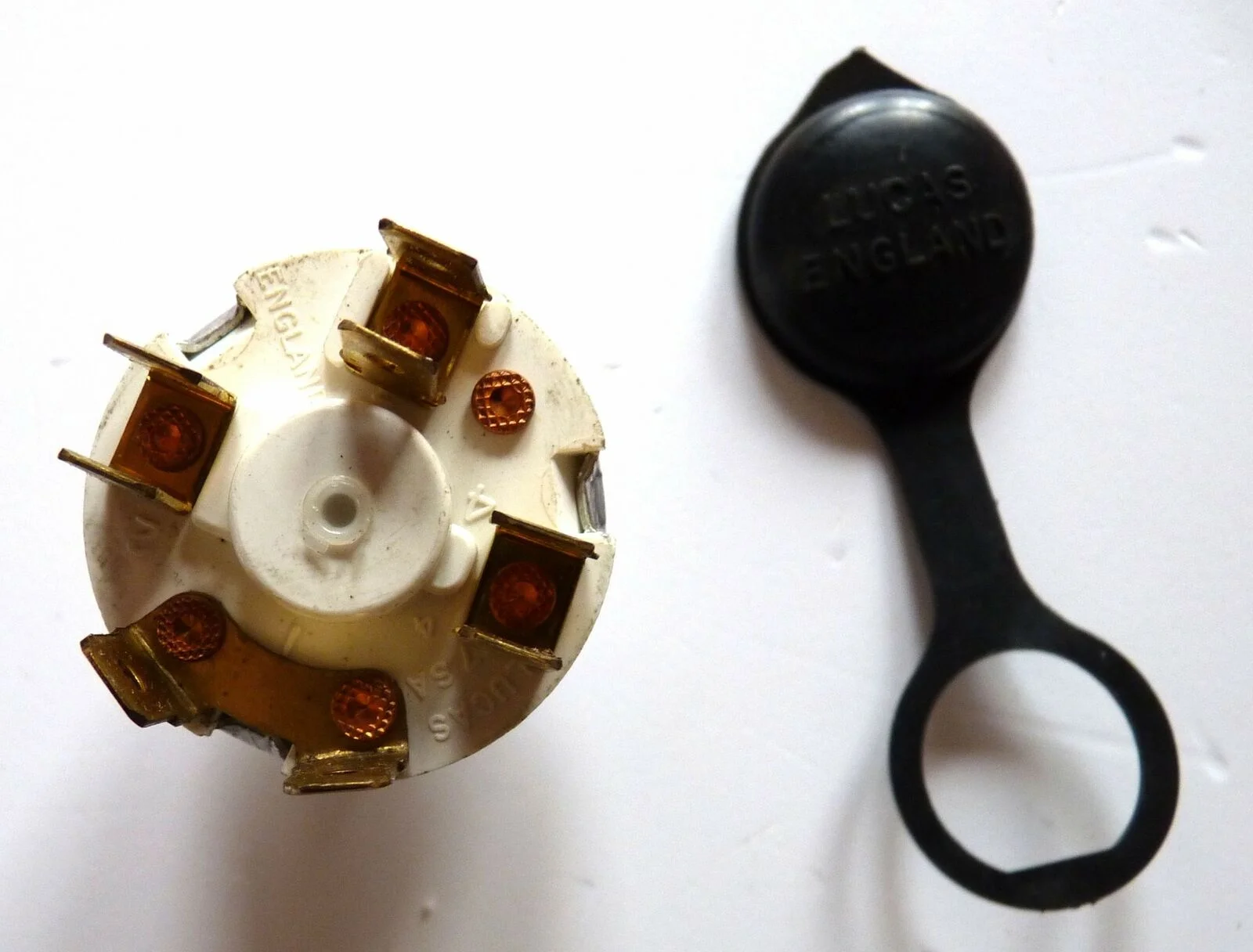

This 'Lucas' one has numbers:
www.ebay.co.uk

Lucas 3 Position Ignition and Light Switch - 35351 - 47SA | eBay

Find many great new & used options and get the best deals for Lucas 3 Position Ignition and Light Switch - 35351 - 47SA at the best online prices at eBay! Free delivery for many products!
www.ebay.co.uk

Lucas 35351 switch - info needed

Yep, absolutely, nothing at all, the surfaces are all perfectly smooth. However- your picture allows me to consider the layout, mine has the same configuration of terminals, and so I’ll try that and see what happens. Many thanks.

Well that took me no time at all. Quickly out into the garage and wired it up using your layout and it all works. Sort of. The detent between ignition on and ignition plus lights is very tiny, barely noticeable. And I can’t remove the key when it’s on ‘parking’ mode.

Time to take the original to bits and see if it can be improved

Landspeedracer said:
Well that took me no time at all. Quickly out into the garage and wired it up using your layout and it all works. Sort of. The detent between ignition on and ignition plus lights is very tiny, barely noticeable. And I can’t remove the key when it’s on ‘parking’ mode.
Click to expand...

The 35351 isn't exactly the same switch internally as the original Lucas.

What should be 'Parking lights' is AUX and '4' should be headlamp, not Parking lights, etc.
Lucas 35351 switch - info needed

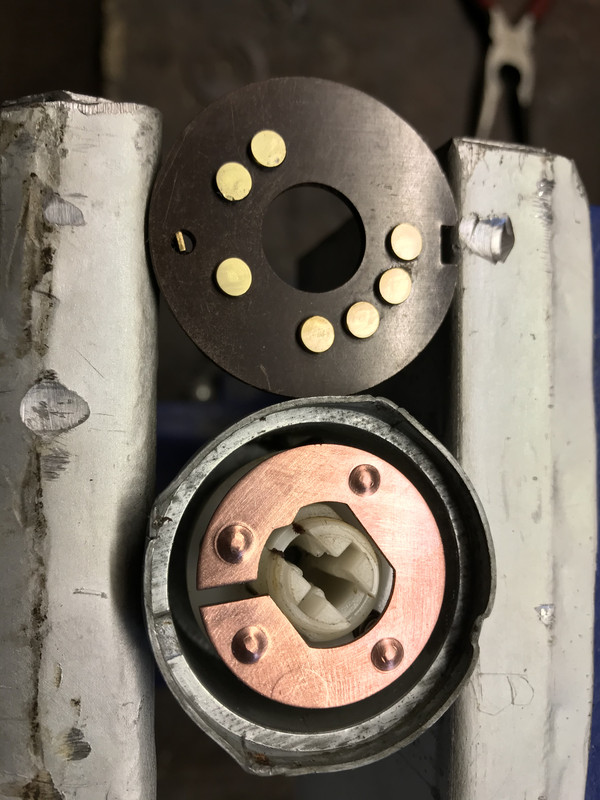

Thanks for the above, I have previously seen the nocnsw switch mod, but for now I decided to quickly open my old one. The pictures tell it all, it came apart very easily, no headaches. The contacts clearly show plenty of copper mildew that I cleaned off and brightened up using 2000 grit wetted with electrical cleaner. Reassembly was also a breeze. I checked it over and then reinstalled it in the bike. It works.

postimg.cc

Album — Postimages

postimg.cc postimg.cc

the 35351 switch is for late model Triumph T140 Norton Commando uses 30552 switch which lab correctly states has different positions

packaging also clearly shows date of manufacture 26/05 so it will be a NOS LAP counterfeit

Frankie17 said:
the 35351 switch is for late model Triumph T140 Norton Commando uses 30552 switch which lab correctly states has different positions
Click to expand...

The '72-'74 (four terminal) switch was 39784. The 850 Mk.3 switch was 30552, however, the different numbers I believe was only due to the difference in bezel 'nut'.

According to the late T140 parts books, the switch was Lucas part 54531899 which I think is more likely to be 30552 and not 35351.
A parking lights position where the key cannot be removed as Landspeedracer said, means 35351 is unlikely to have been the correct original switch.

Switches > Key Switches - Lucas 30552 Key Switch - Auto Electric Supplies Website

Lucas 4 position key switch (LU30552). Has 4 positions: Park Off Ignition Ignition &...
www.autoelectricsupplies.co.uk www.autoelectricsupplies.co.uk
thebonnevilleshop.com

Genuine Lucas Triumph Norton 4 Position Ignition Switch PN# 39784 30552 99-7055

GENUINE LUCAS BRAND 4 POSITION IGNITION SWITCH AS USED ON TRIUMPH 650, 750 OIL IN FRAME BONNEVILE AND TIGER, BSA LIGHTNING, THUNDERBOLT, ROCKET III MODELS
thebonnevilleshop.com thebonnevilleshop.com
