Large size Whitworth/British Standard wrench sizes needed for Commando?

APRRSV

VIP MEMBER
Joined
Jun 26, 2016
Messages
380
Country flag
Hi All,
Do any of you have an encyclopedic memory of the Whitworth/BS or other English system wrench sizes needed for a Commando? and where they are used? I am only interested in any sizes larger than 9/16 W/5/8 BS.

Thanks,
Ed

Last edited:
Joined
Dec 13, 2010
Messages
411
Country flag
Hi All,
Do any of you have an encyclopedic memory of the Whitworth/BS or other English system wrench sizes needed for a Commando? and where they are used? I am only interested in any sizes larger than 9/16 W/5/8 BS.

Thanks,
Ed
The fork tube top bolts are- 3/4W.
Final drive sprocket nut - 7/8W (close to 1.5 inch)


L.A.B.

Moderator
VIP MEMBER
Joined
Nov 20, 2004
Messages
15,811
Country flag
The fork tube top bolts are- 3/4W.
My original cap bolts are 1-5/16 (1.313") AF.

3/4W (1.300") socket is too small.




drp

Joined
Feb 11, 2011
Messages
147
Country flag
I just took mine off last night. I used a 3/4 whitworth socket (a 1-5/16 will also work but it's a little looser) and got nut below with a thin 9/16 tappet open wrench from my "old flathead ford V-8 tool box".

Other than the ones previously mentioned the other "large" sockets/wrenches required are for the large sump drain plug (I've used an 1-1/2 box wrench but it's a little sloppy) and the axle nuts where I use a 15/16 box wrench

Joined
Dec 13, 2010
Messages
411
Country flag
My original cap bolts are 1-5/16 (1.313") AF.

3/4W (1.300") socket is too small.

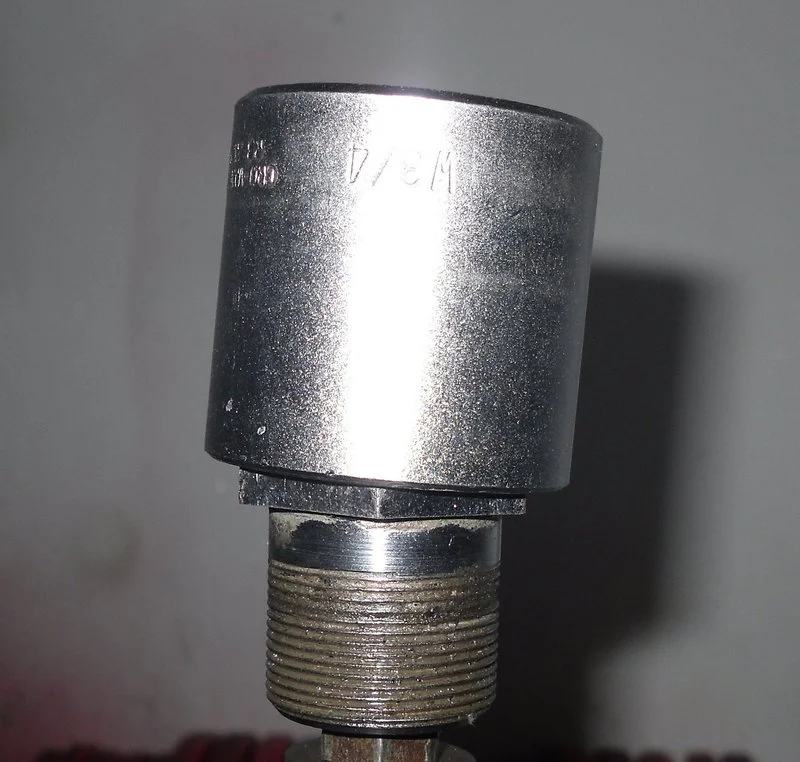

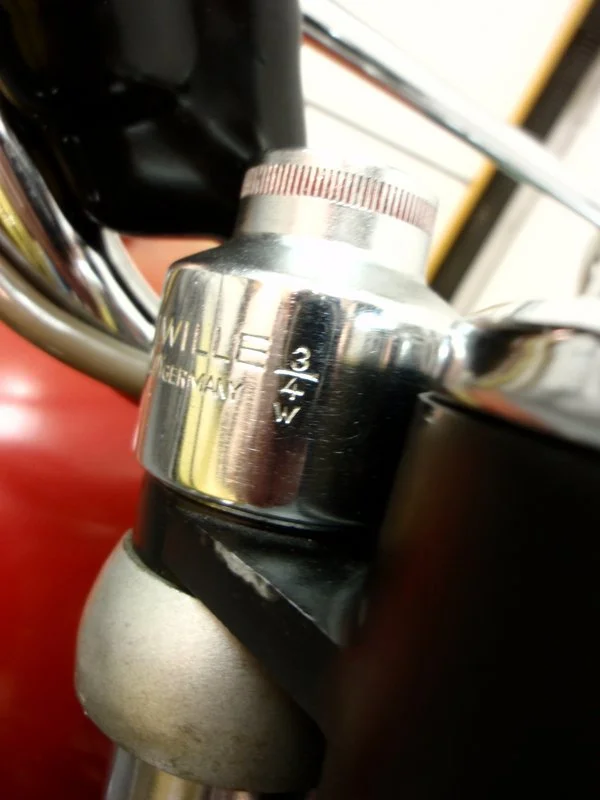

Since a pic tells more than a thousand words..
15/16 does fit , but is a bit sloppy,
I am certain that mine are original, so Norton must have used different material.


APRRSV

VIP MEMBER
Joined
Jun 26, 2016
Messages
380
Country flag
Thank you Peter, L.A.B. and drp. I placed an order for a 3/4 W socket and a 7/8 W combo wrench from BF. I'll see how the 3/4 W works for my fork top nuts.

Ed

Joined
May 11, 2020
Messages
33
Country flag
at the risk of heresy; a 33mm socket is a very nice fit for the fork top nuts.


APRRSV

VIP MEMBER
Joined
Jun 26, 2016
Messages
380
Country flag
Thank you Concours, Dave and Dave,
The slimline wrench from MSC looks very interesting. I do have a 1 5/16 socket if needed. The 33 mm socket I don't have.
I will see what I need. The slim line wrench looks good for checking tightness without removing handlebars. Seems to me I have one somewhere. I'll search.

Ed
