Ignition Switch

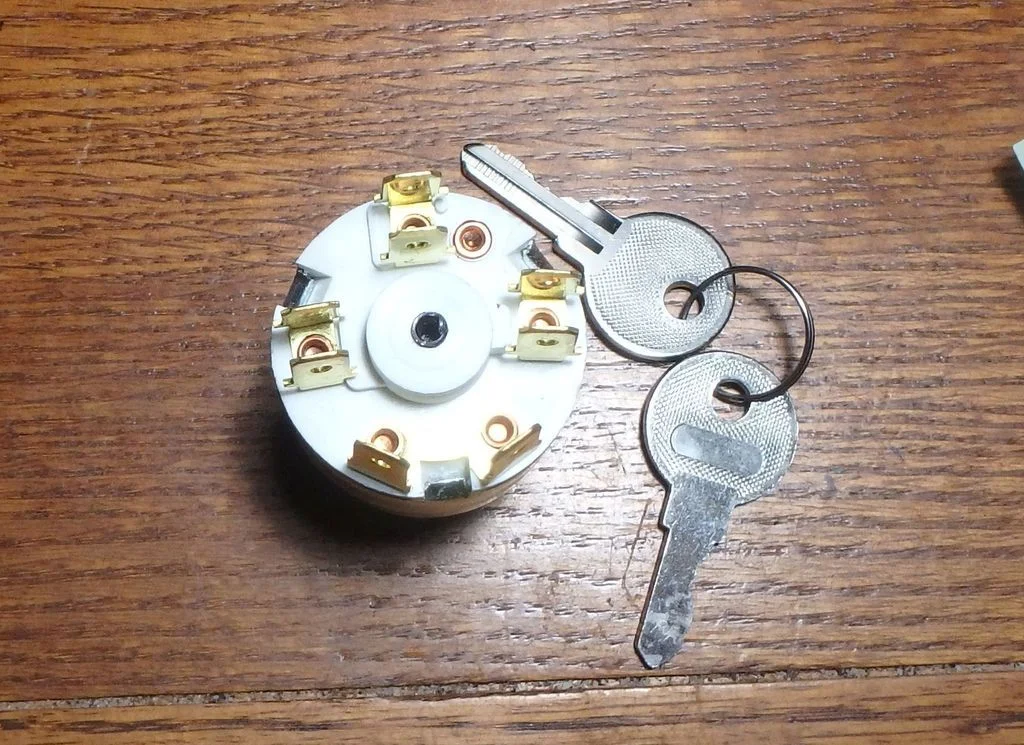

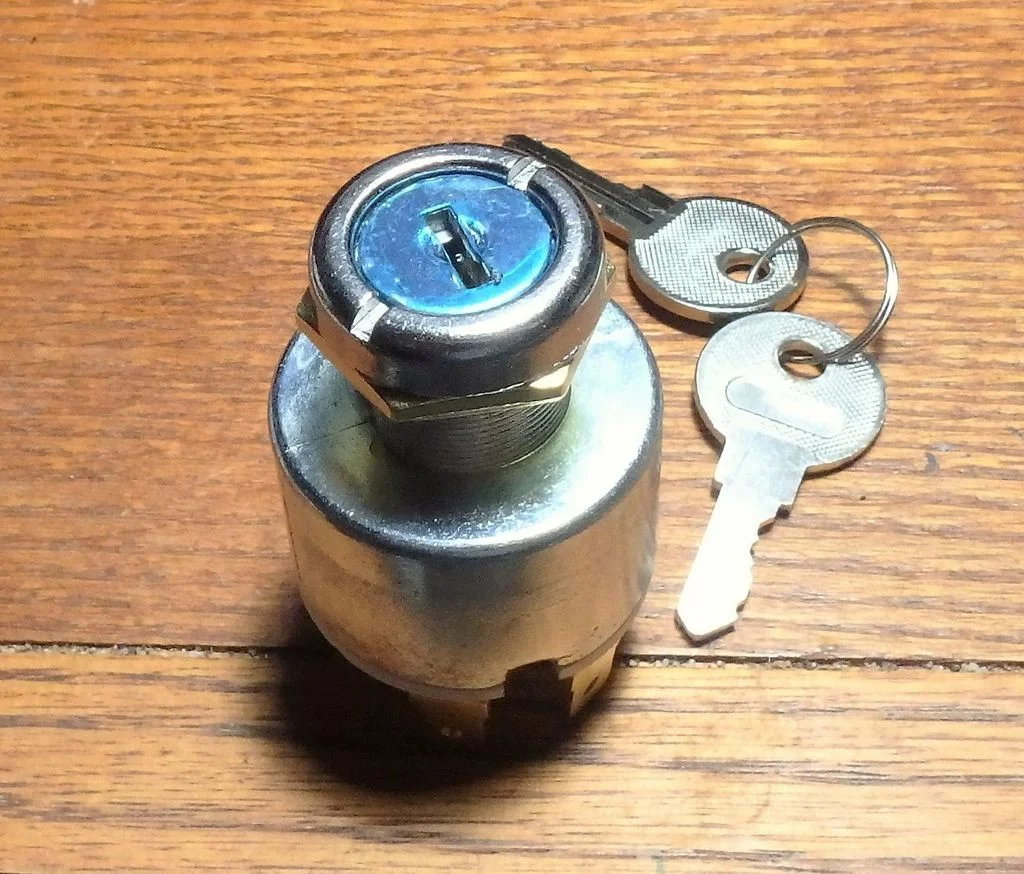

Didn't have keys so I just ordered a whole new switch off ebay. There are no markings, not even for battery. I can probably figure it out but life would be so much easier if I at the very least knew which one was battery. Thanks

Wolfman said:

There are no markings, not even for battery. I can probably figure it out but life would be so much easier if I at the very least knew which one was battery.

Click to expand...

Assuming the key positions are the same as the original switch then it should be easy enough to work out.



Turn the key to 'Parking with lights' and using a multimeter (set to Ohms) or a battery and bulb, identify which pair of terminals have continuity across the switch.

One will be terminal '1' the other will be '3' but to identify which is which, turn the key to 'Ignition only' and check again, one terminal will be the same as the previous check and that identifies it as terminal 1, the other one will be different at this switch position and that will be terminal 2.

That also identifies the other 'Parking with lights' terminal as 3 and the remaining terminal as 4.

1 - NU (brown/blue)
2 - W (white)
3 - NG (brown/green)
4 - UY (blue/yellow)

Also on the original switch the key can be removed when in the 'parking with lights' and 'off' positions.

An ohmmeter can tell you which circuit is active in which key position.
