I am an addict. There, I said it. H2

concours · Jan 7, 2023

baz said:
What caused this?

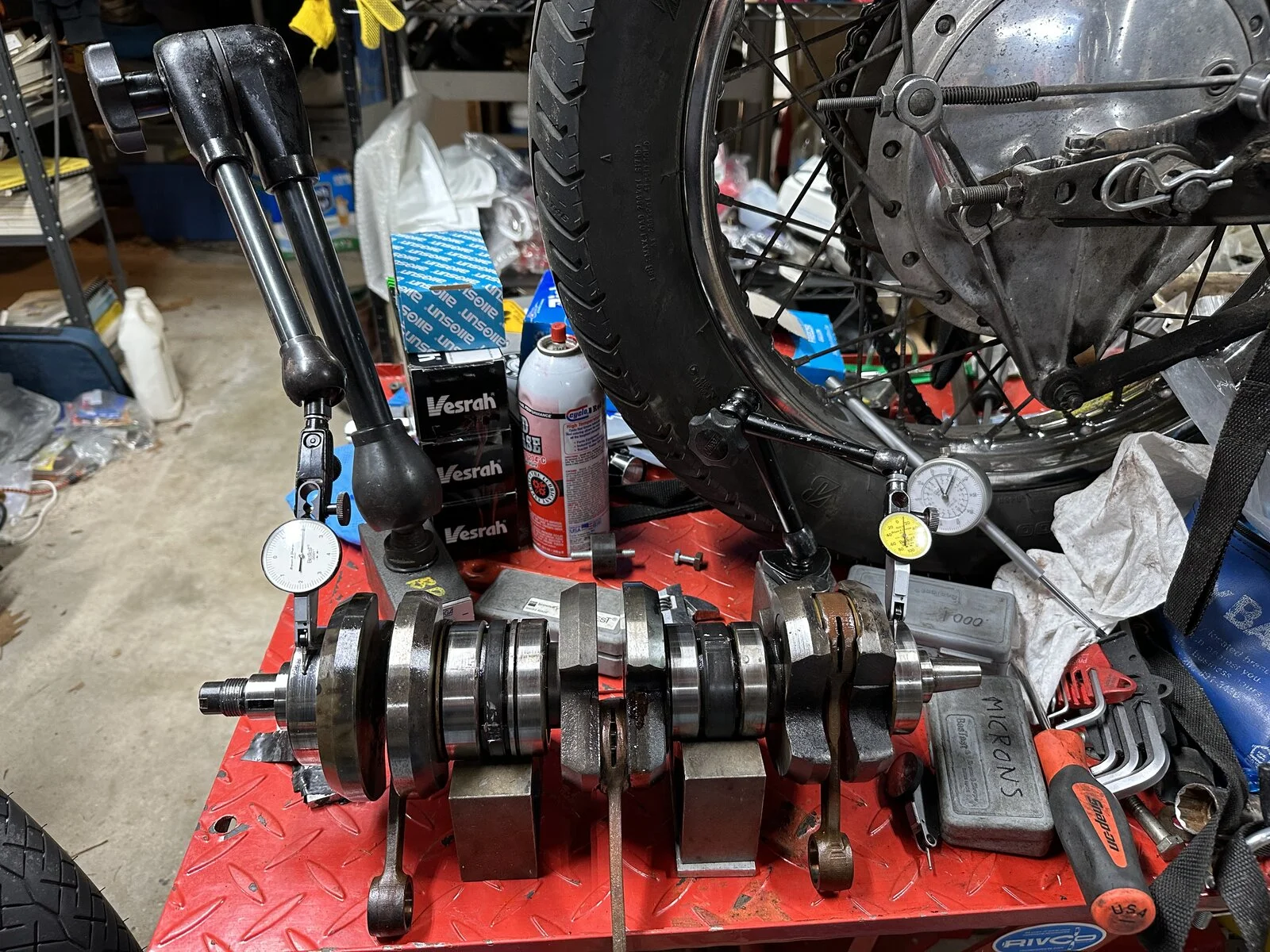

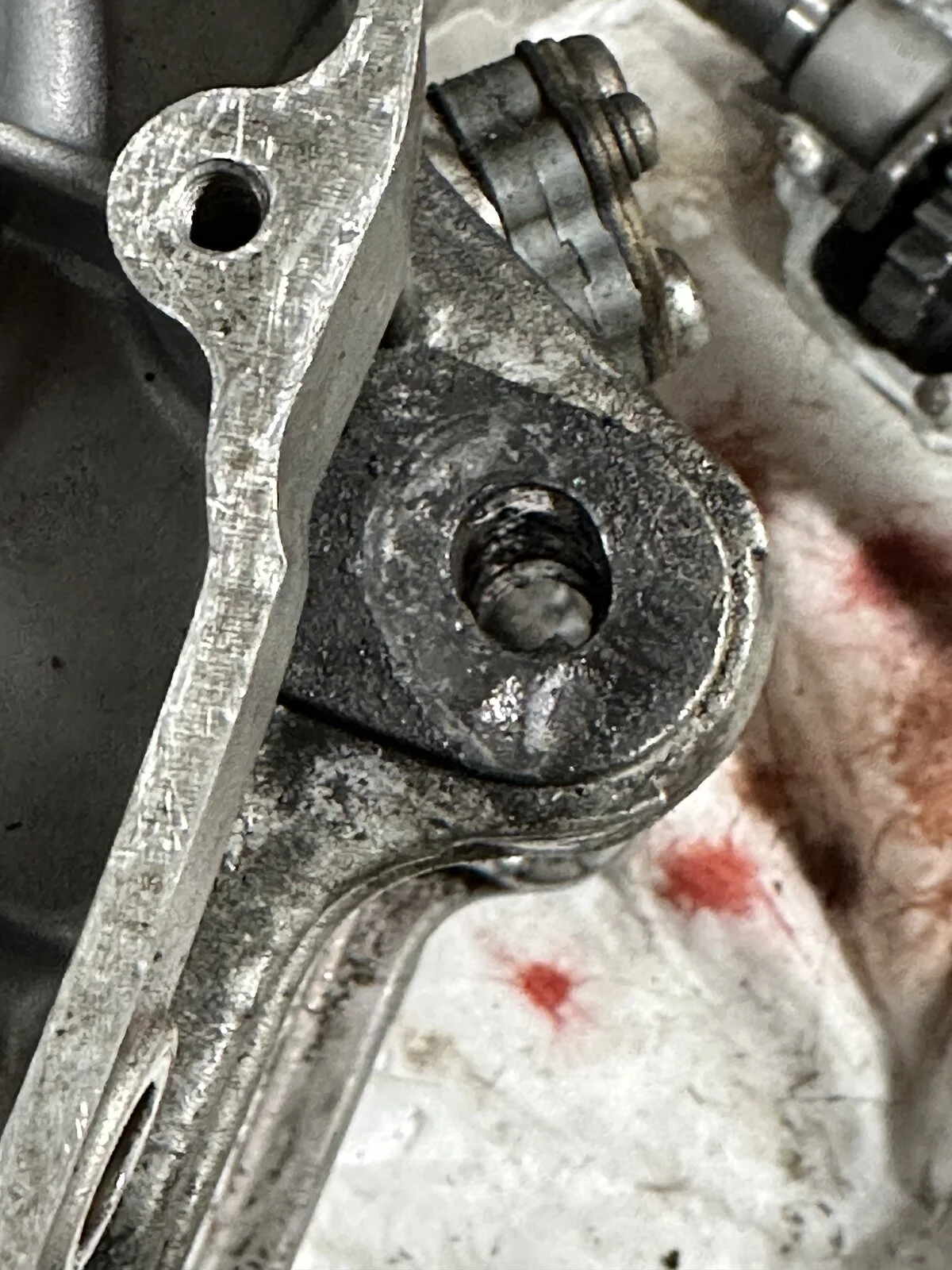

Pretty sure, the crank is tweeked out of phase (shakes like a whore in church) probably from a seizure event in the past. Then, the engine mounting bolts were loose/elongated holes.
There is also evidence of the bearing having spun in the cases.
She's had some hot suppers.

concours · Jan 7, 2023

bill said:

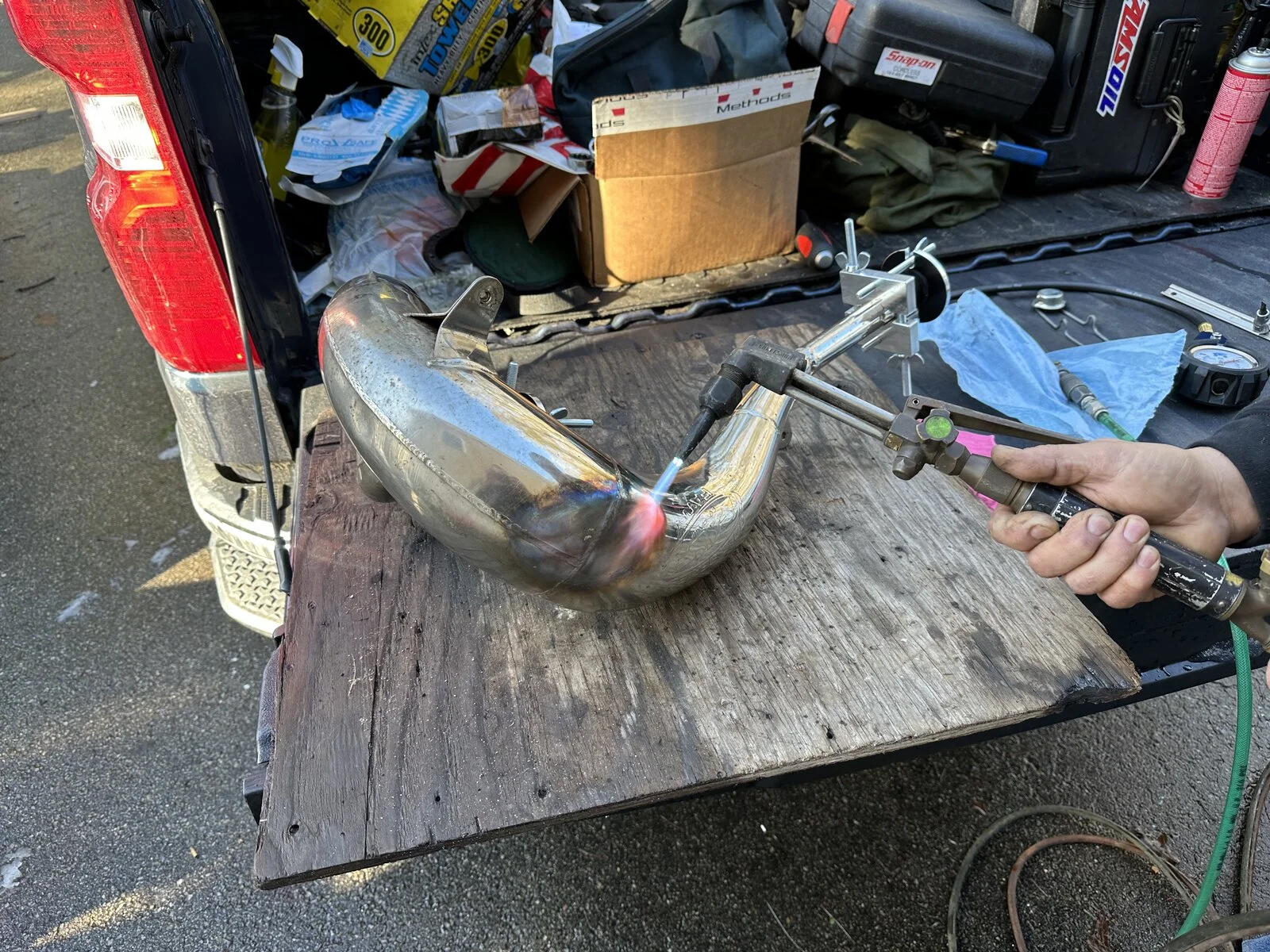

nice glue gun you got there

Little putt-putt for portable use.

Damned "Ding-pop" gonna be ready for Shady Valley in May....

🤣

concours · Jan 10, 2023

baz said:
I seem to remember my mates one ripping second gear apart ?
But he was drag racing it in a street class , it was denco tuned

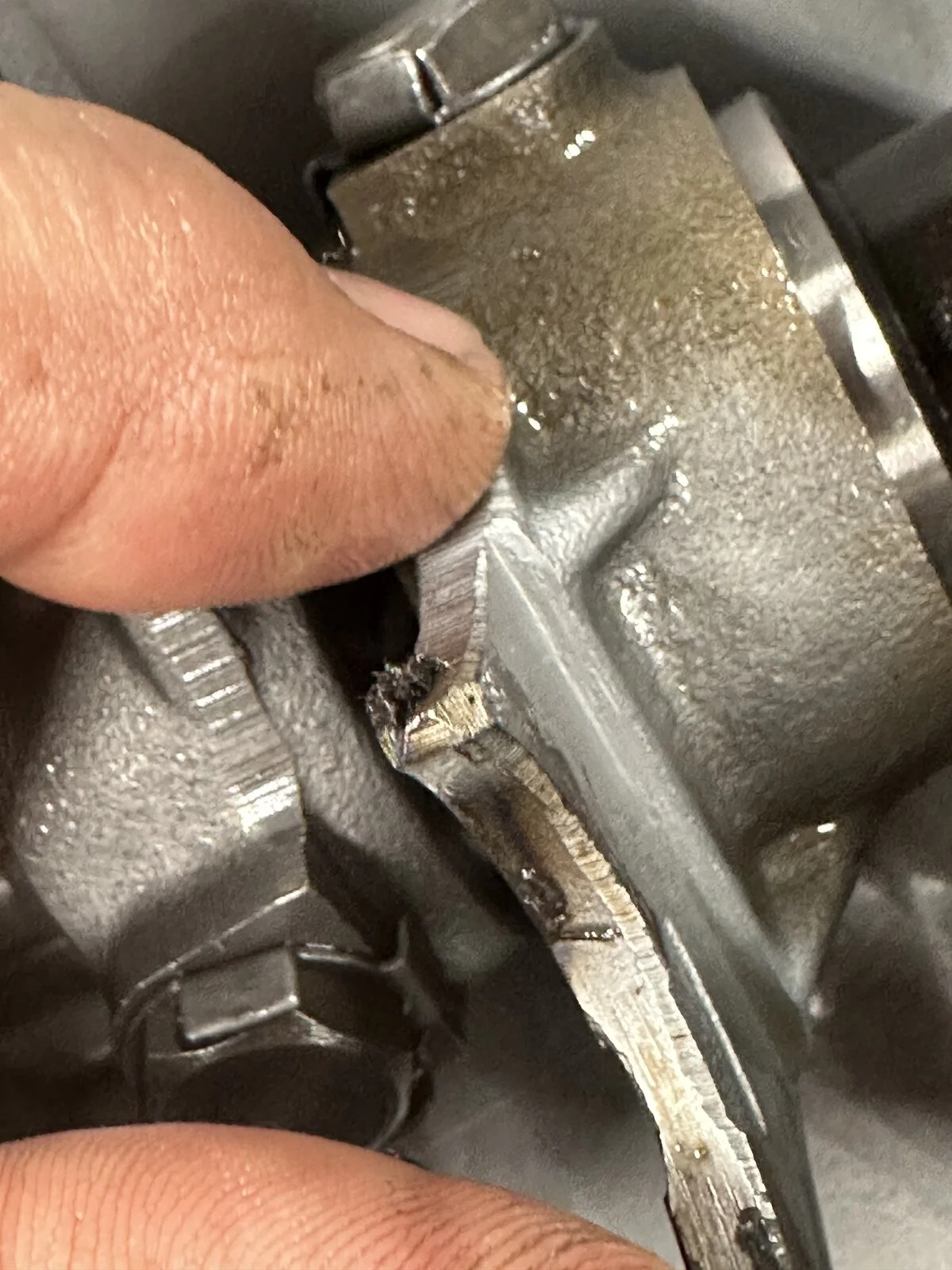

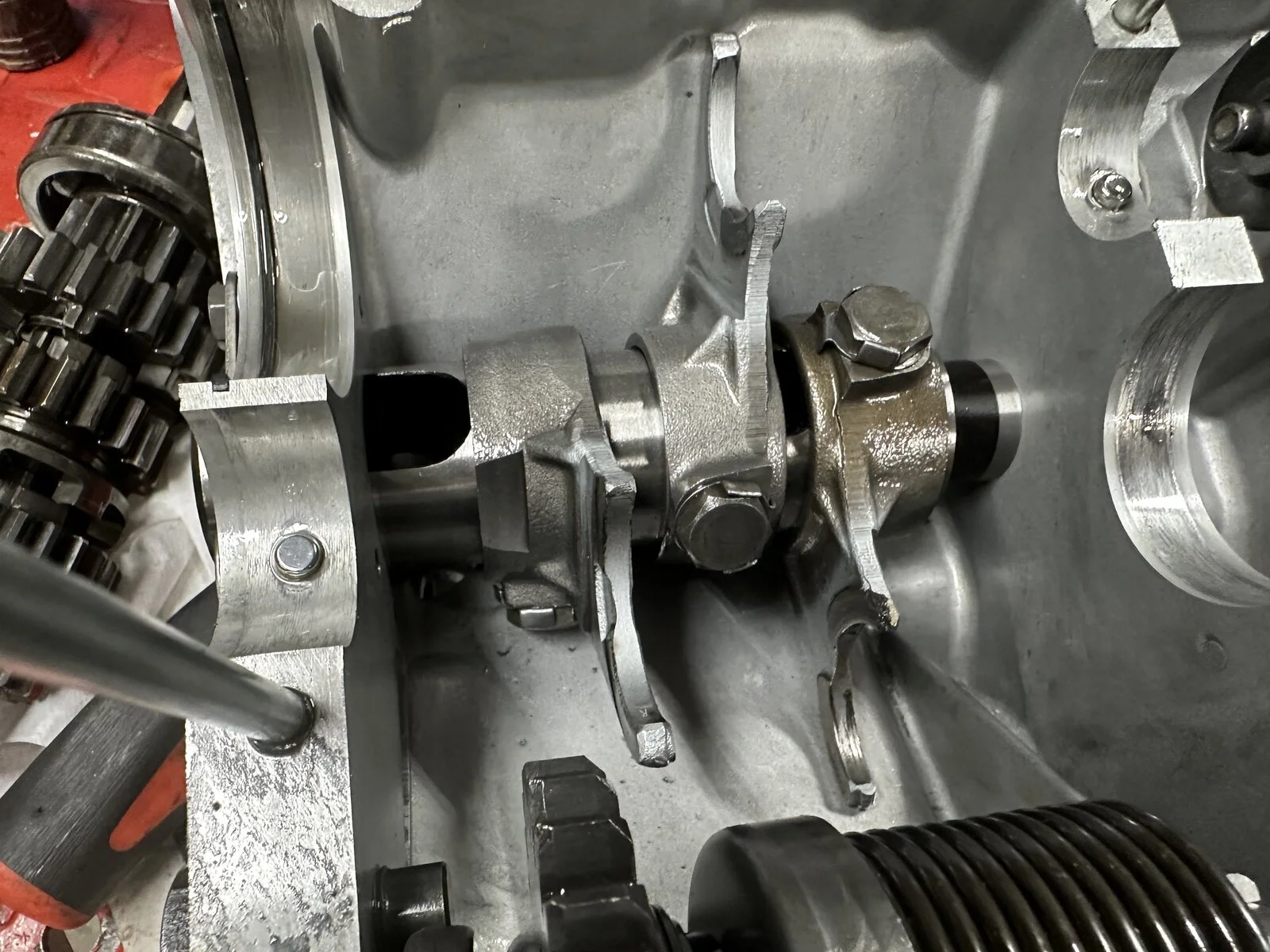

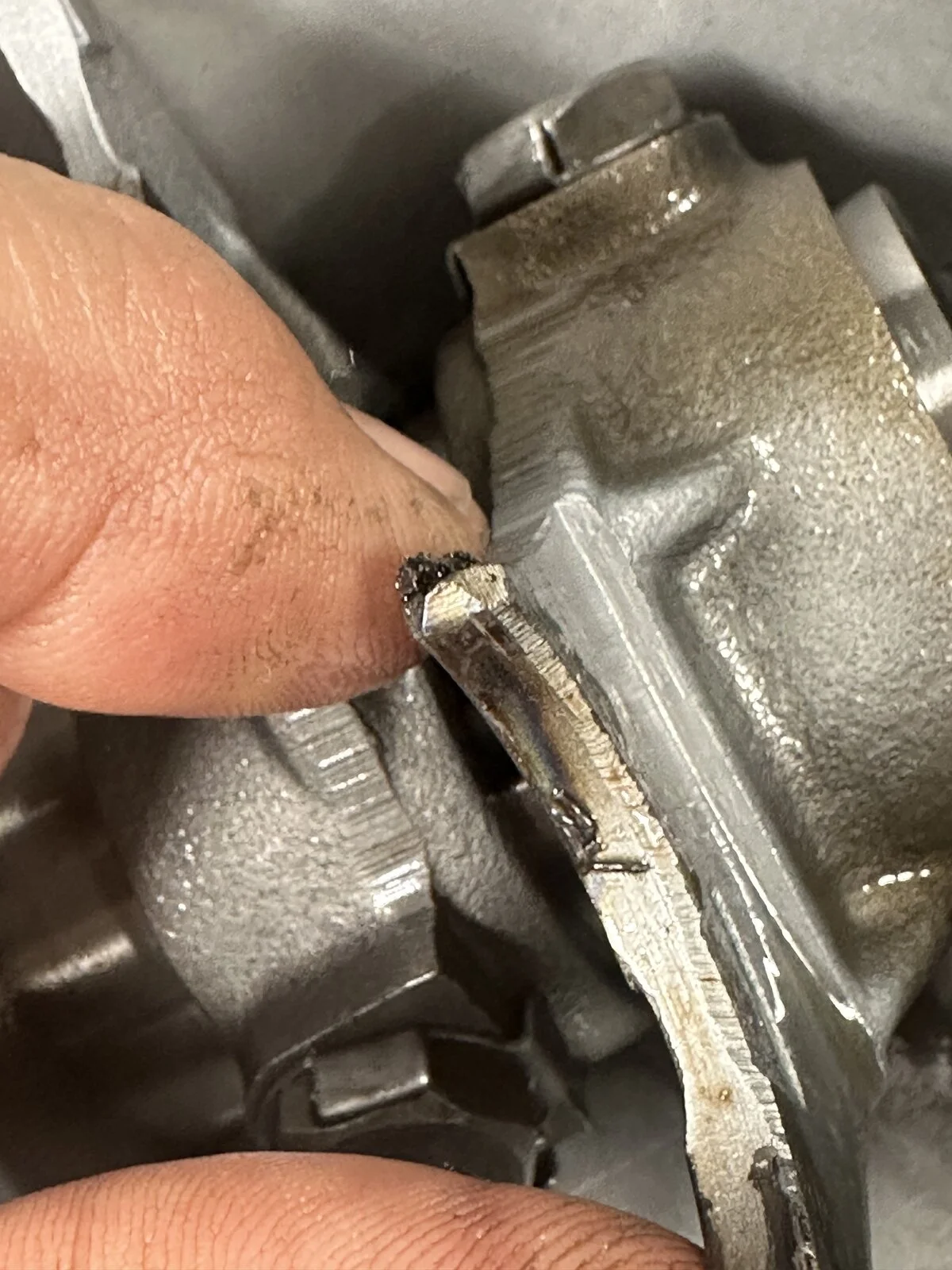

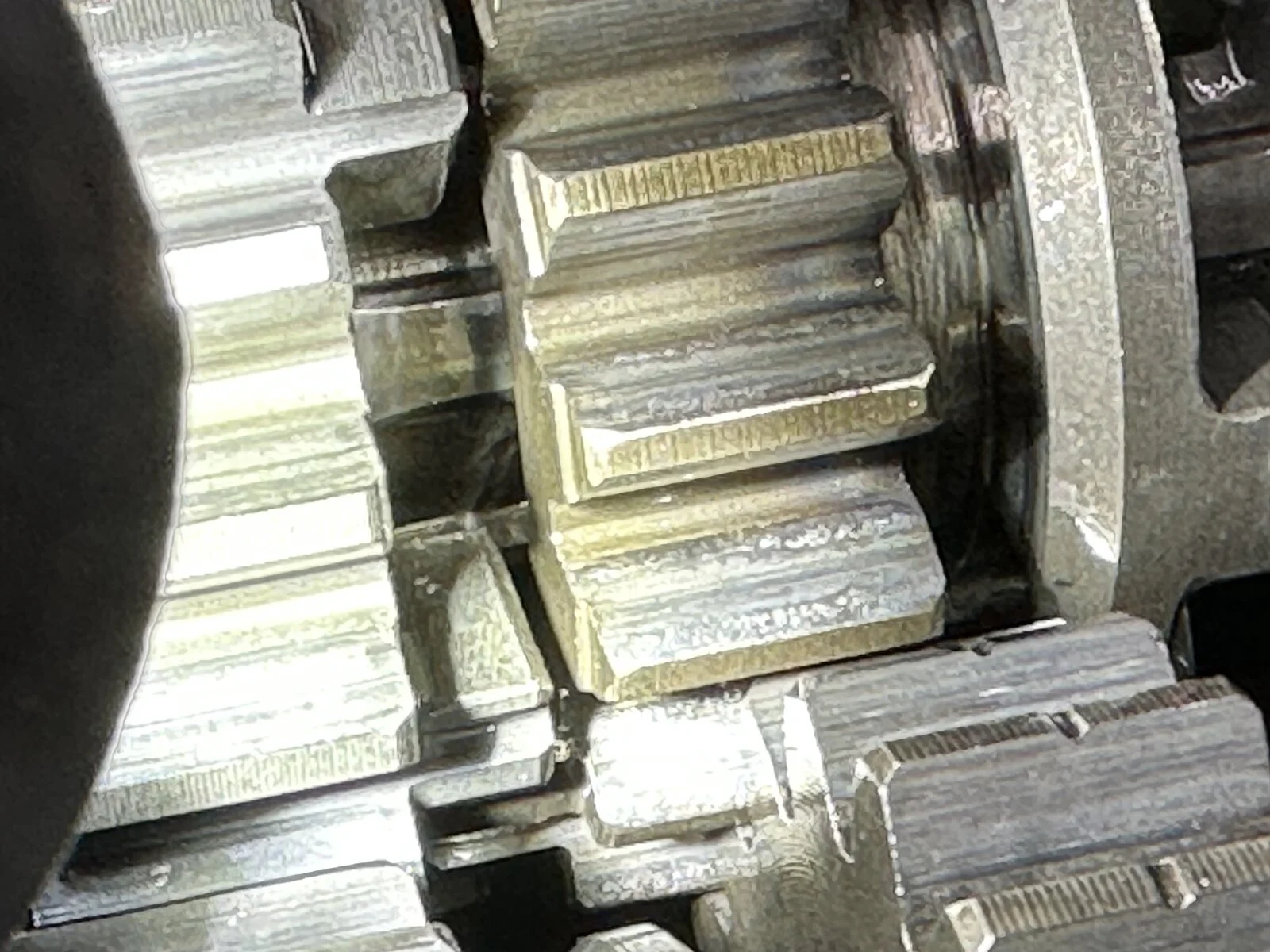

It pops out of fourth on a LOOOONG WOT pull

concours · Jan 10, 2023

The two forums I've managed to find are very lacking in solid technical information, lots of bling only.
(Makes me thankful all over again about the shared knowledge here! 🍻 )
Any suggestions?

concours · Jan 10, 2023

concours · Jan 10, 2023

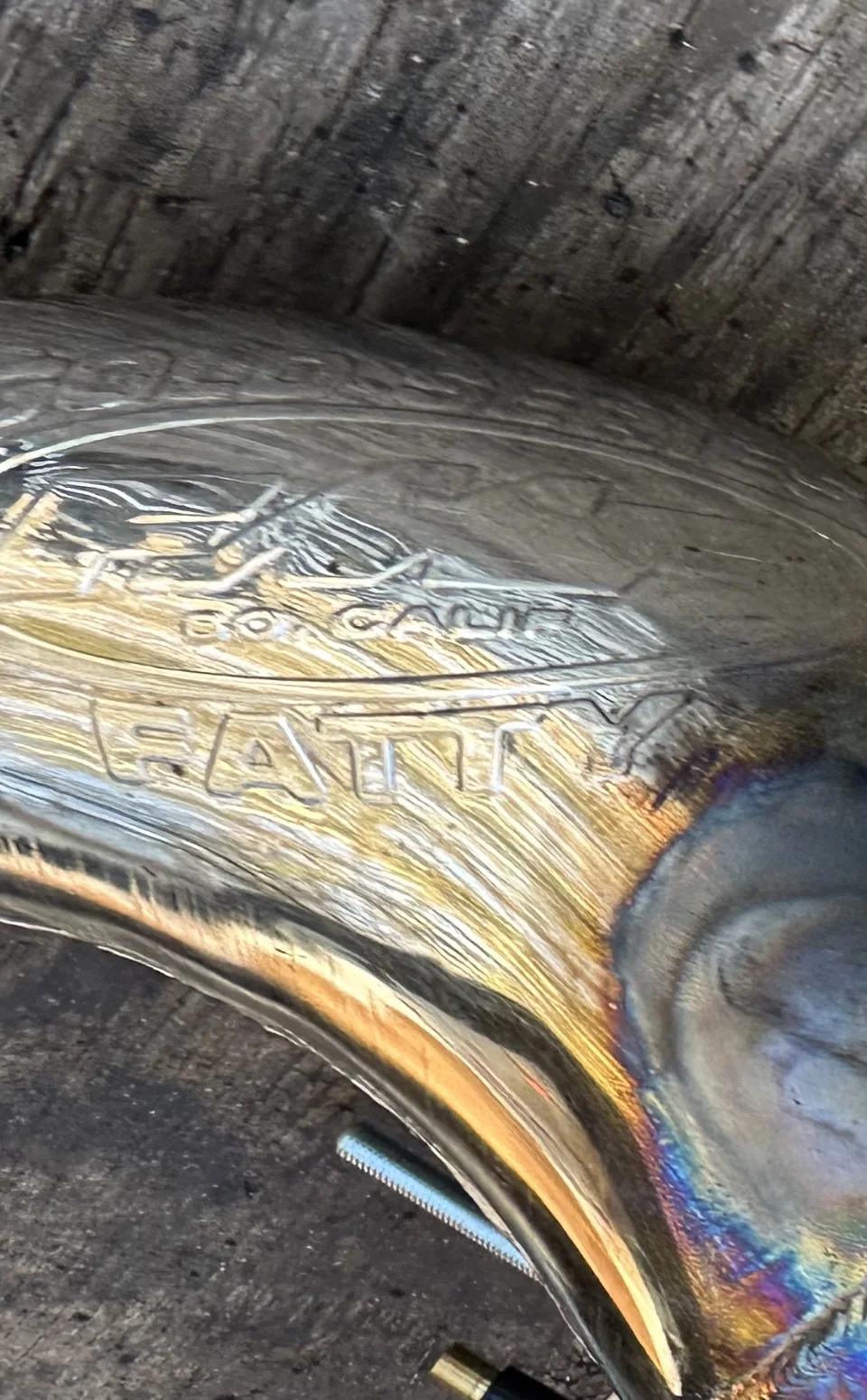

Smoked a fatty along the way Saturday...

(The PIPE, I can't use weed, puts me on the moon!😎🤣)

KiwiShane · Jan 10, 2023

concours said:
The two forums I've managed to find are very lacking in solid technical information, lots of bling only.
(Makes me thankful all over again about the shared knowledge here! 🍻 )
Any suggestions?

Gear elignment shim job ?

Yorkie · Jan 10, 2023

KiwiShane said:
Gear elignment shim job ?

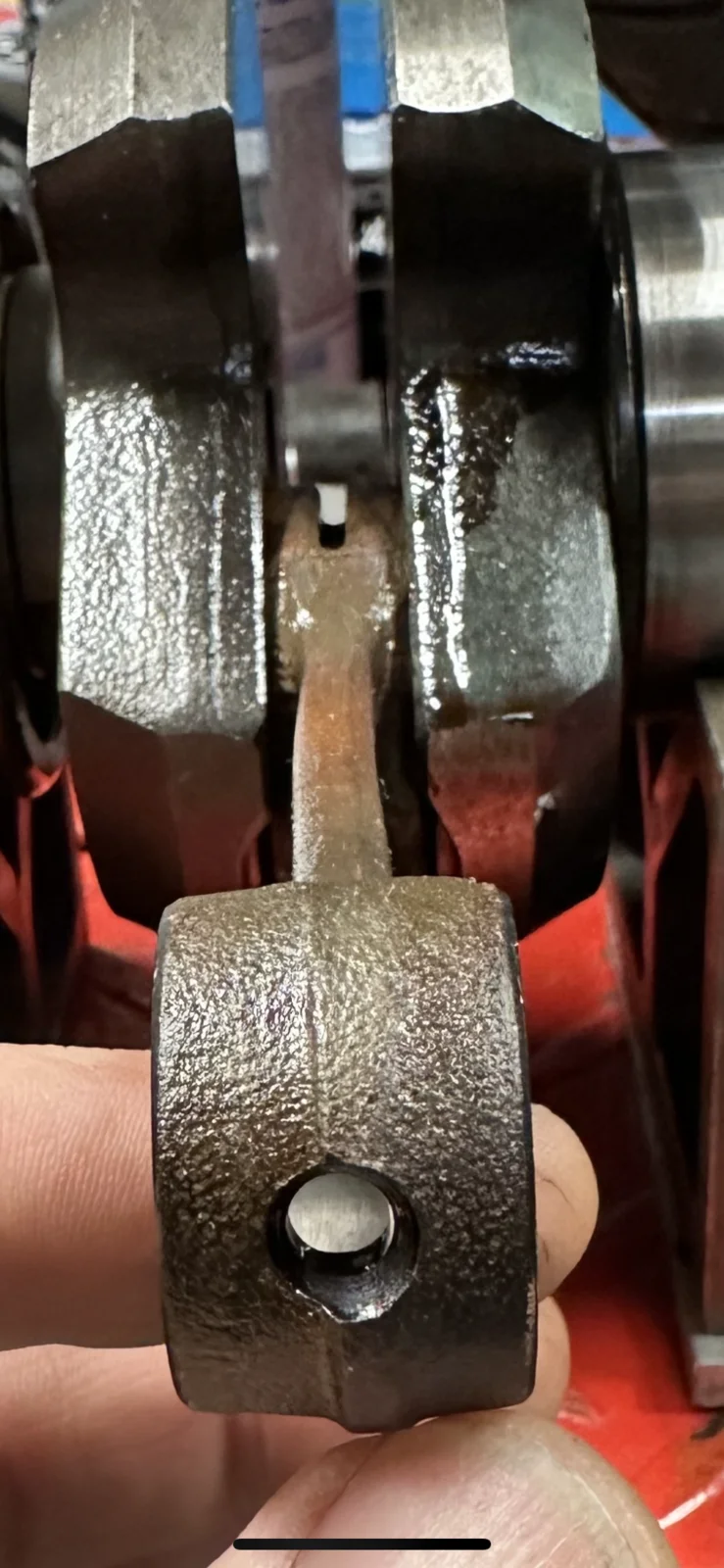

Have you tried this one https://kawi2strokes.com/forum/viewforum.php?f=1. I found some useful stuff on shimming the gear sets on my ‘72 H2. The bent rod is probably a victim of a hydraulic lock as the petcocks and oil line Check valves can fail on these things.

KiwiShane · Jan 10, 2023

N

Yorkie said:
Have you tried this one https://kawi2strokes.com/forum/viewforum.php?f=1. I found some useful stuff on shimming the gear sets on my ‘72 H2. The bent rod is probably a victim of a hydraulic lock as the petcocks and oil line Check valves can fail on these things.

Gearbox shimming - Technical : The complex stuff - exciting but heavy reading, take your time. - guzzitech.dk archive - courtesy of Jens Lyck

concours · Jan 10, 2023

Big_Jim59 · Jan 10, 2023

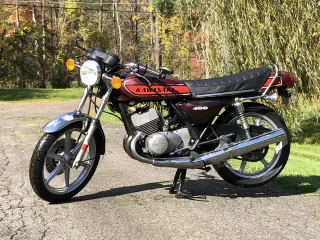

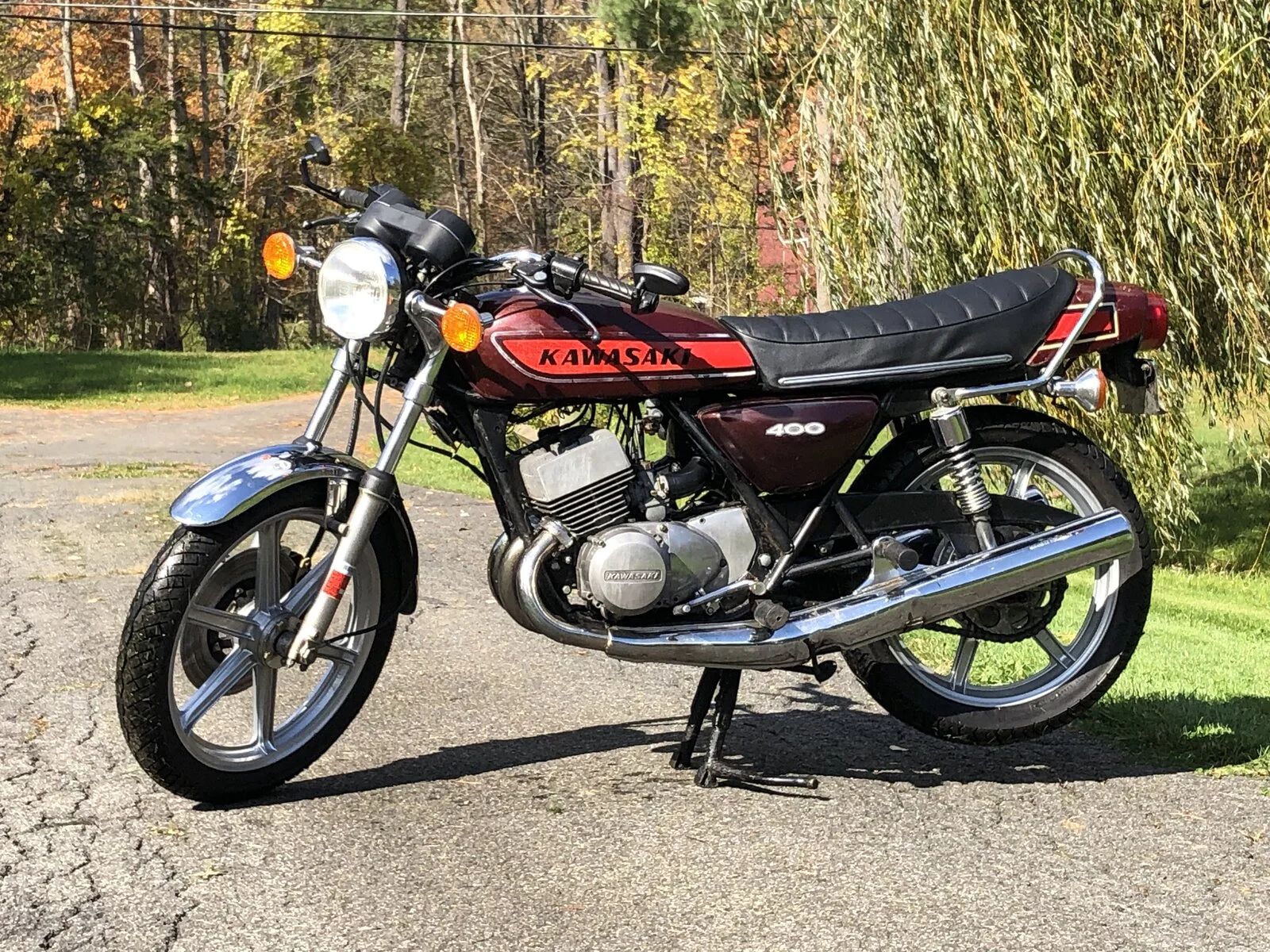

Back in the 70s I bought the 400cc version from a dealer. It was cheep. It was locked up from sitting. The shop guys put it in gear and broke it loose. A little fresh gas and a check of the oil tank and I was away. It rode it for a while, sold it on and made a little money. I never touched it other wise.

KiwiShane · Jan 10, 2023

concours said:

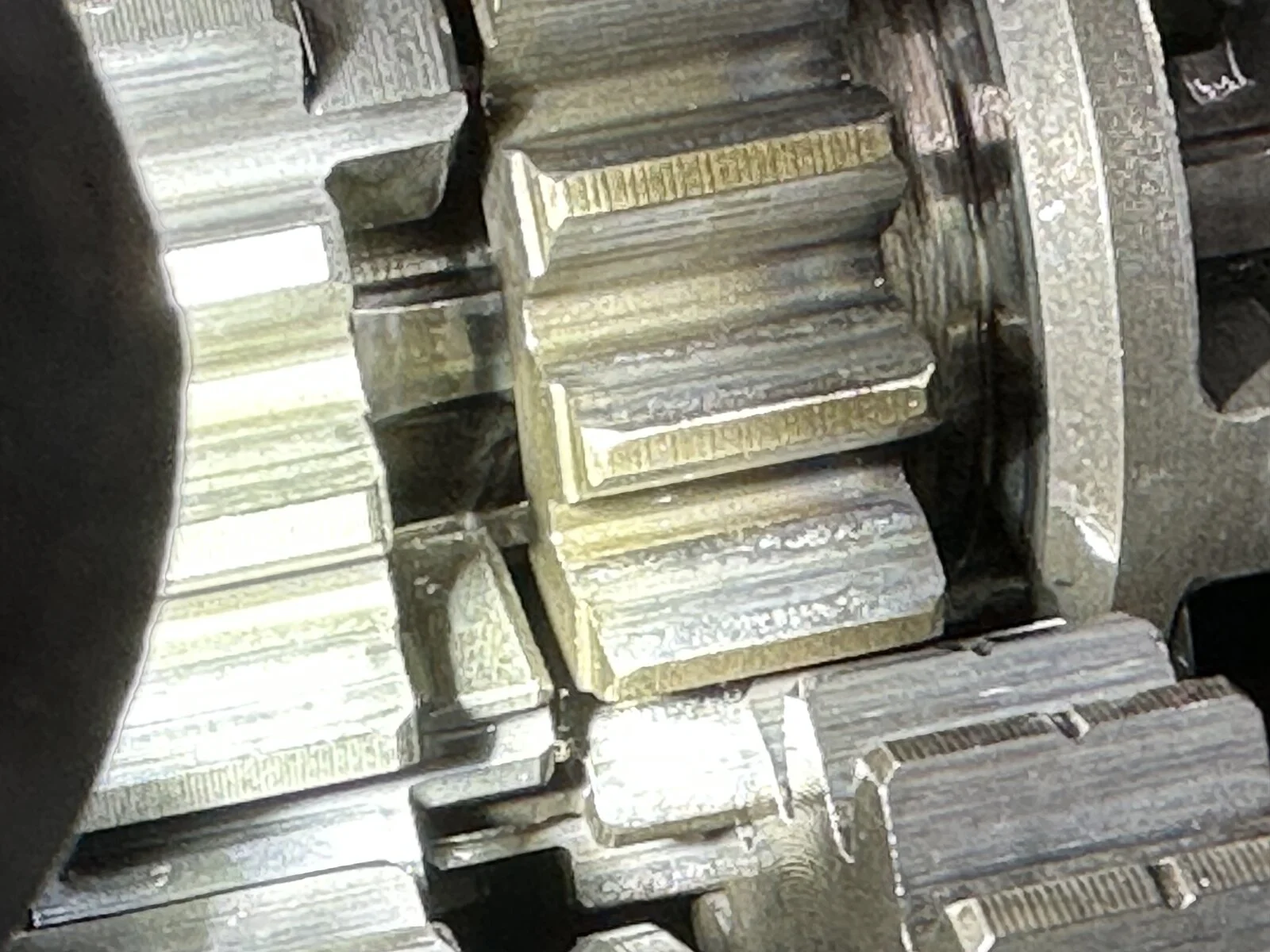

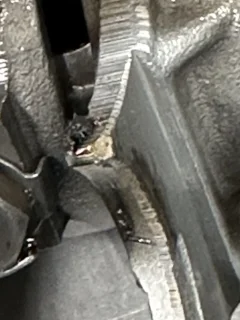

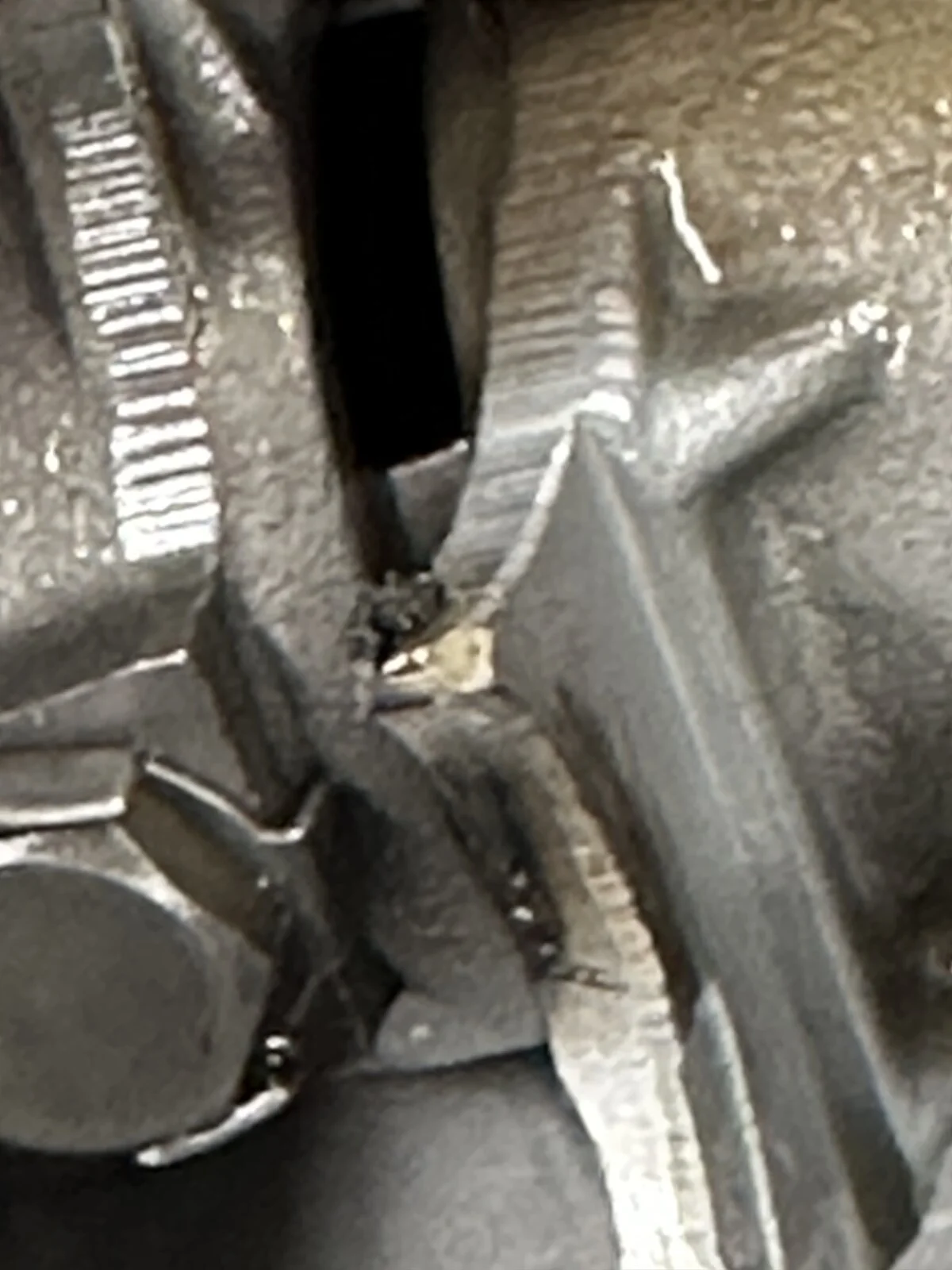

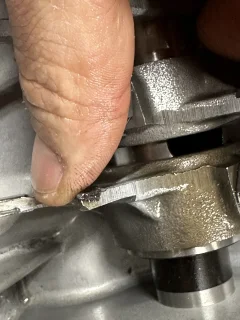

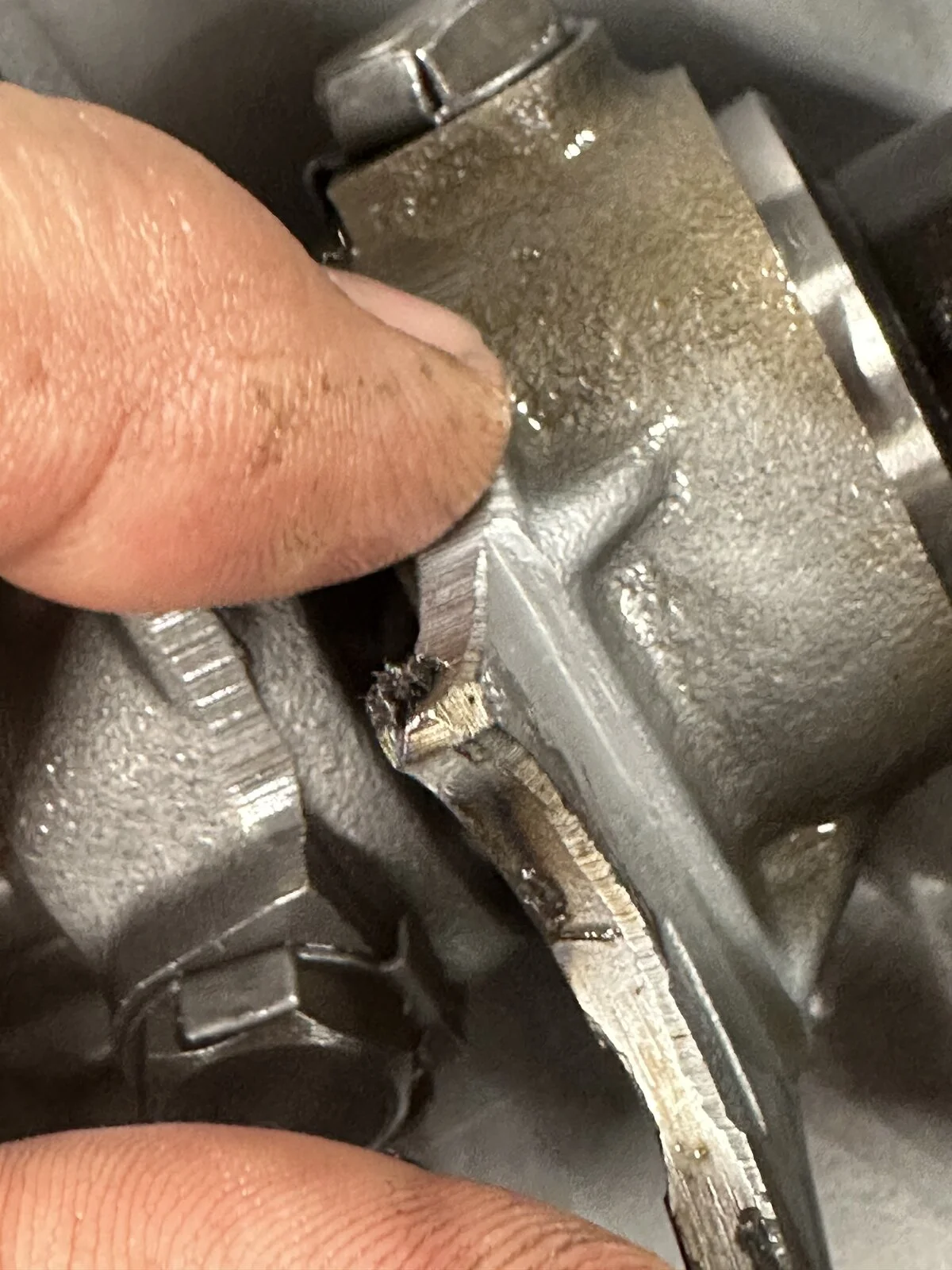

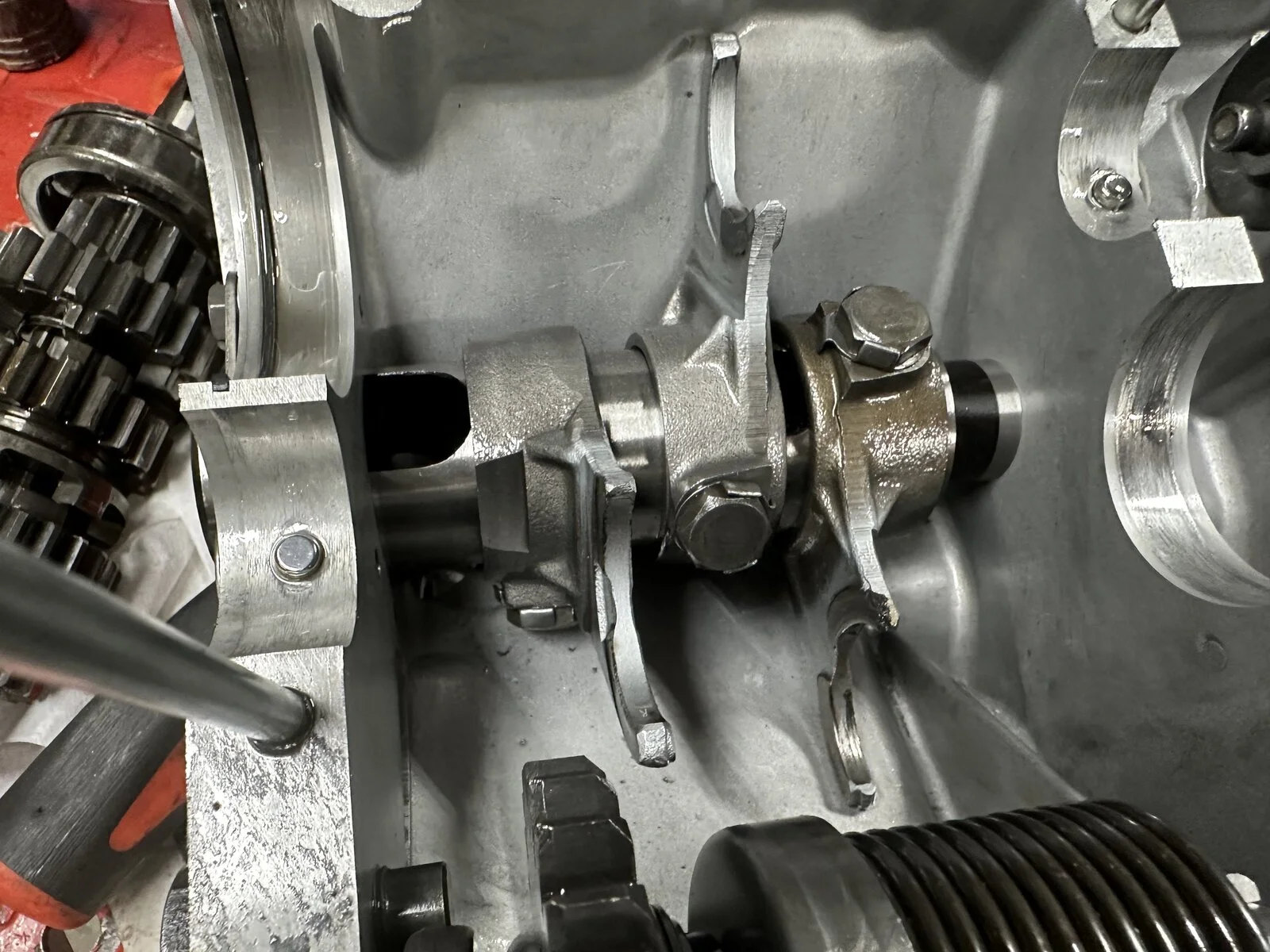

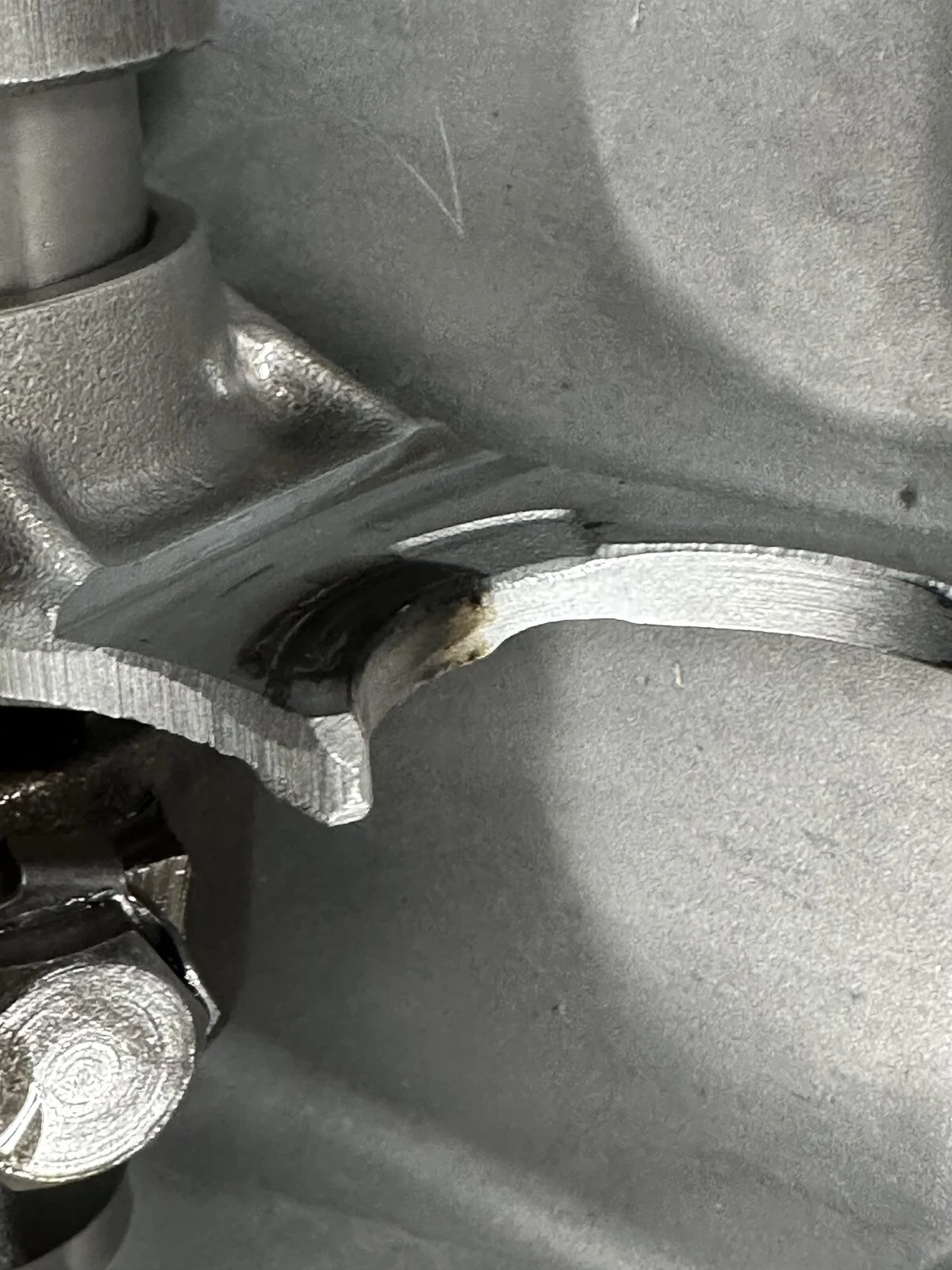

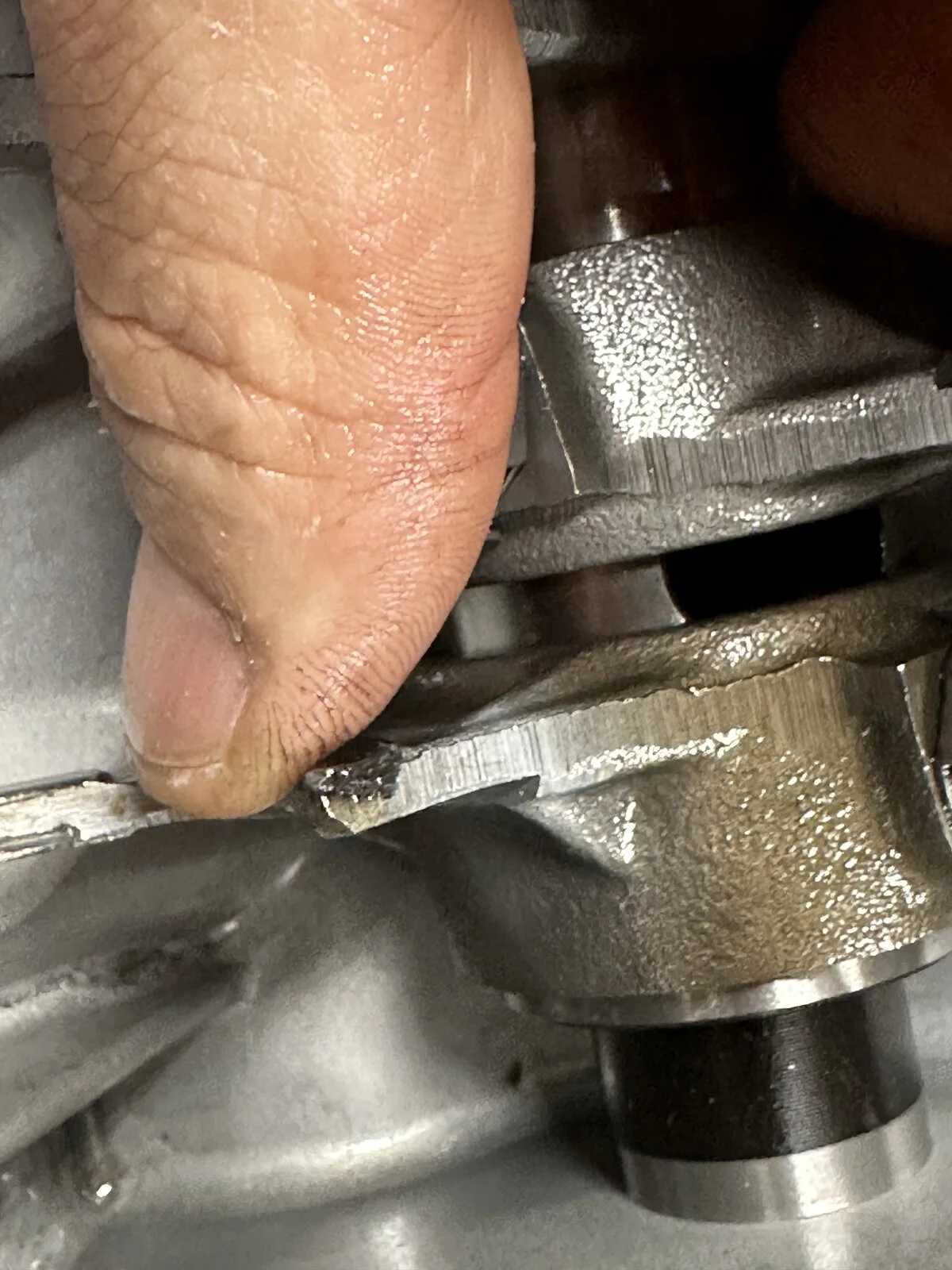

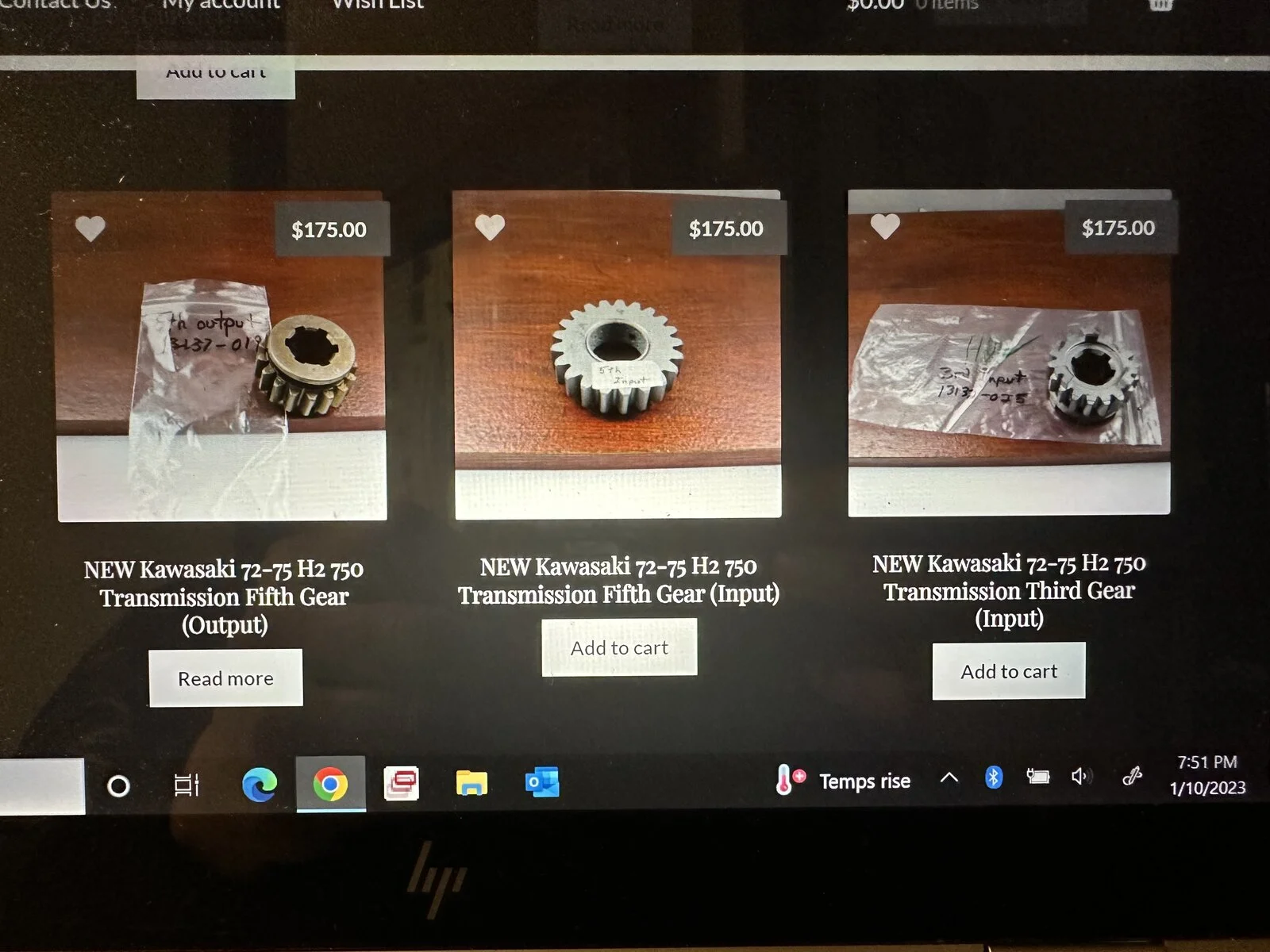

View attachment 102730 View attachment 102733 View attachment 102734 View attachment 102735 View attachment 102737 View attachment 102736 View attachment 102736

Oh fork !!

concours · Jan 11, 2023

KiwiShane said:
Oh fork !!

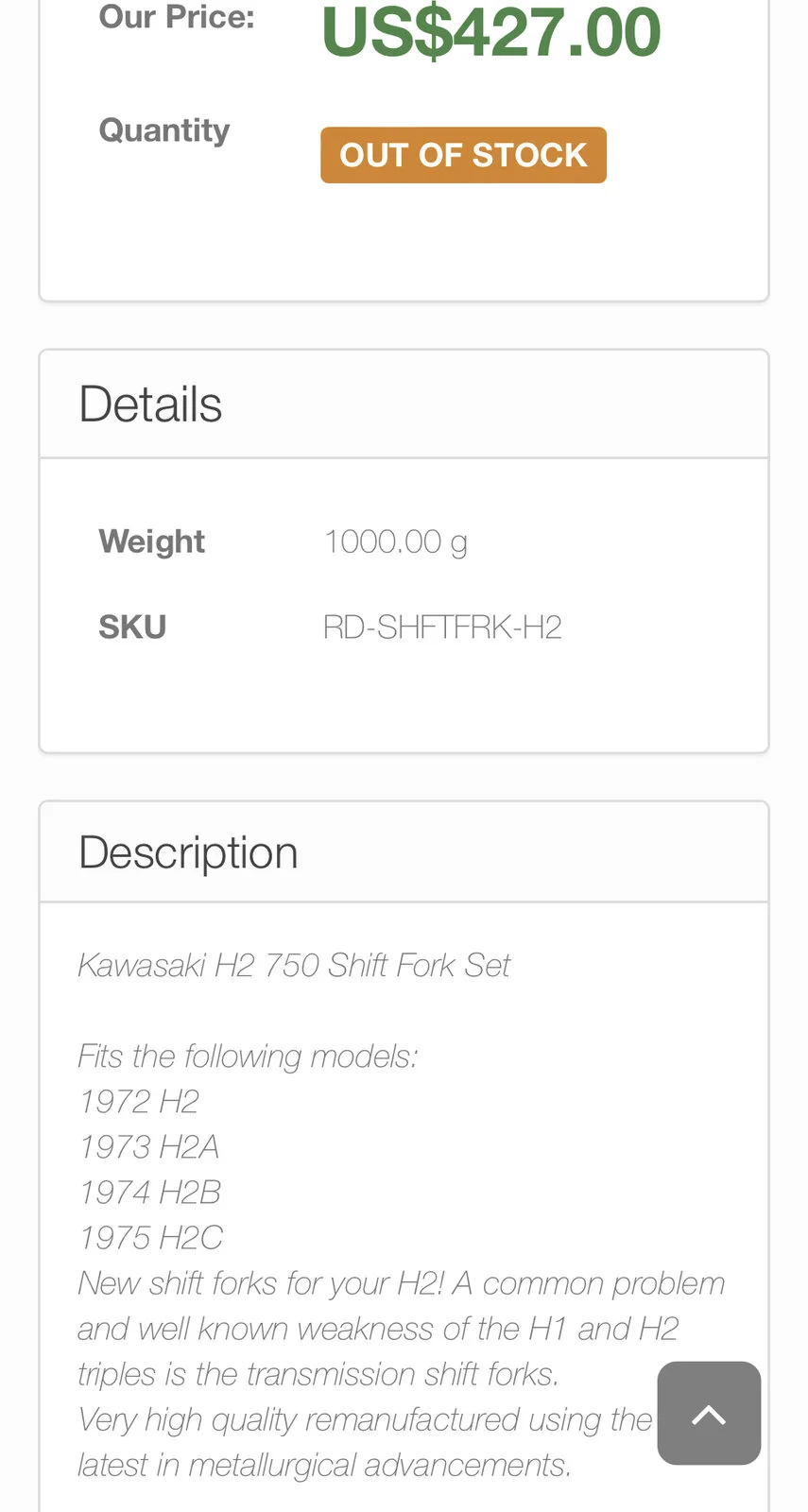

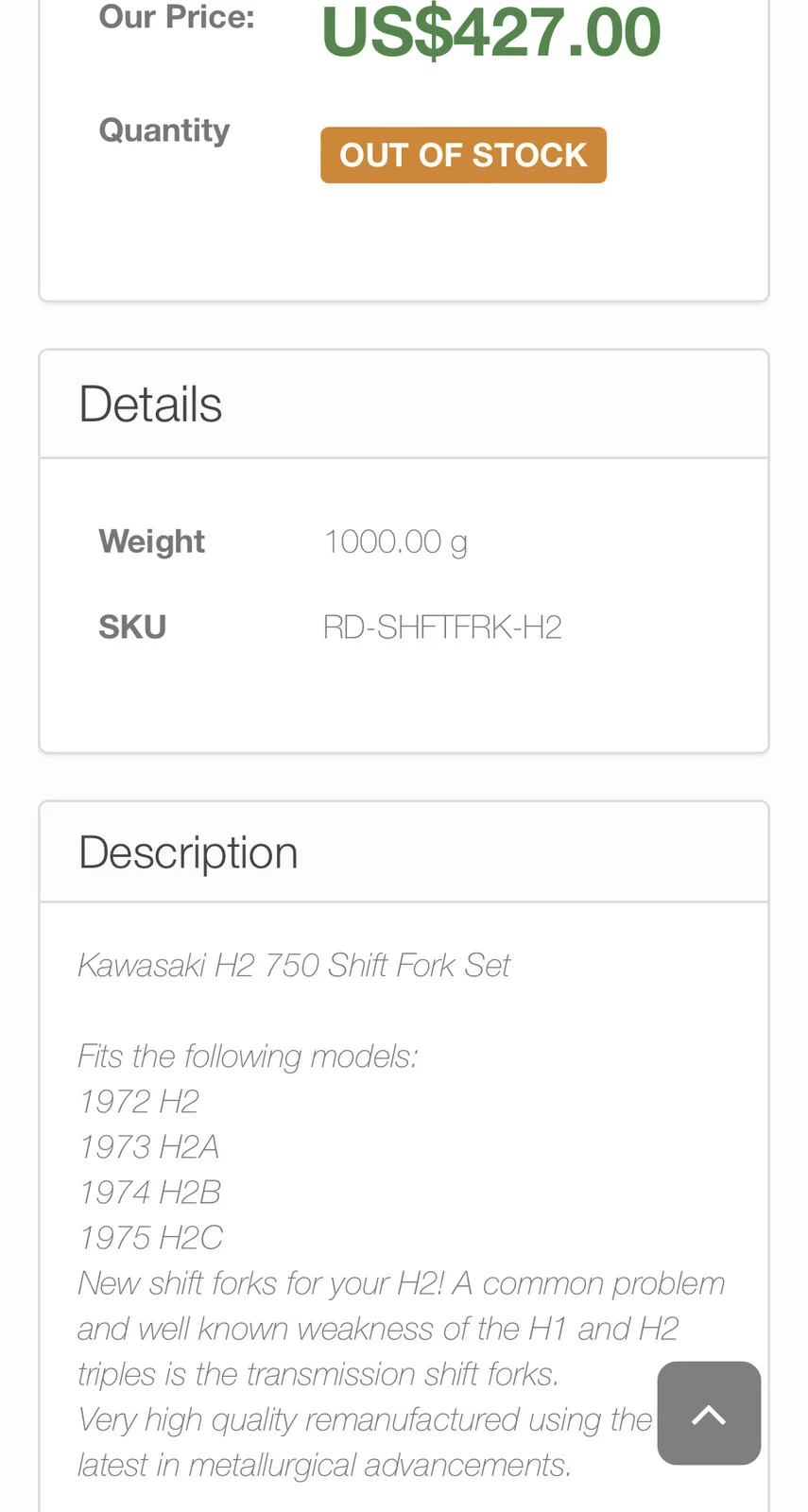

Ad says : "well known weakness"
Wasn't Kawalski an AIRCRAFT company?!
Nothing that lots of digital currency won't fix, lol

baz · Jan 11, 2023

concours said:
Ad says : "well known weakness"
Wasn't Kawalski an AIRCRAFT company?!
Nothing that lots of digital currency won't fix, lol

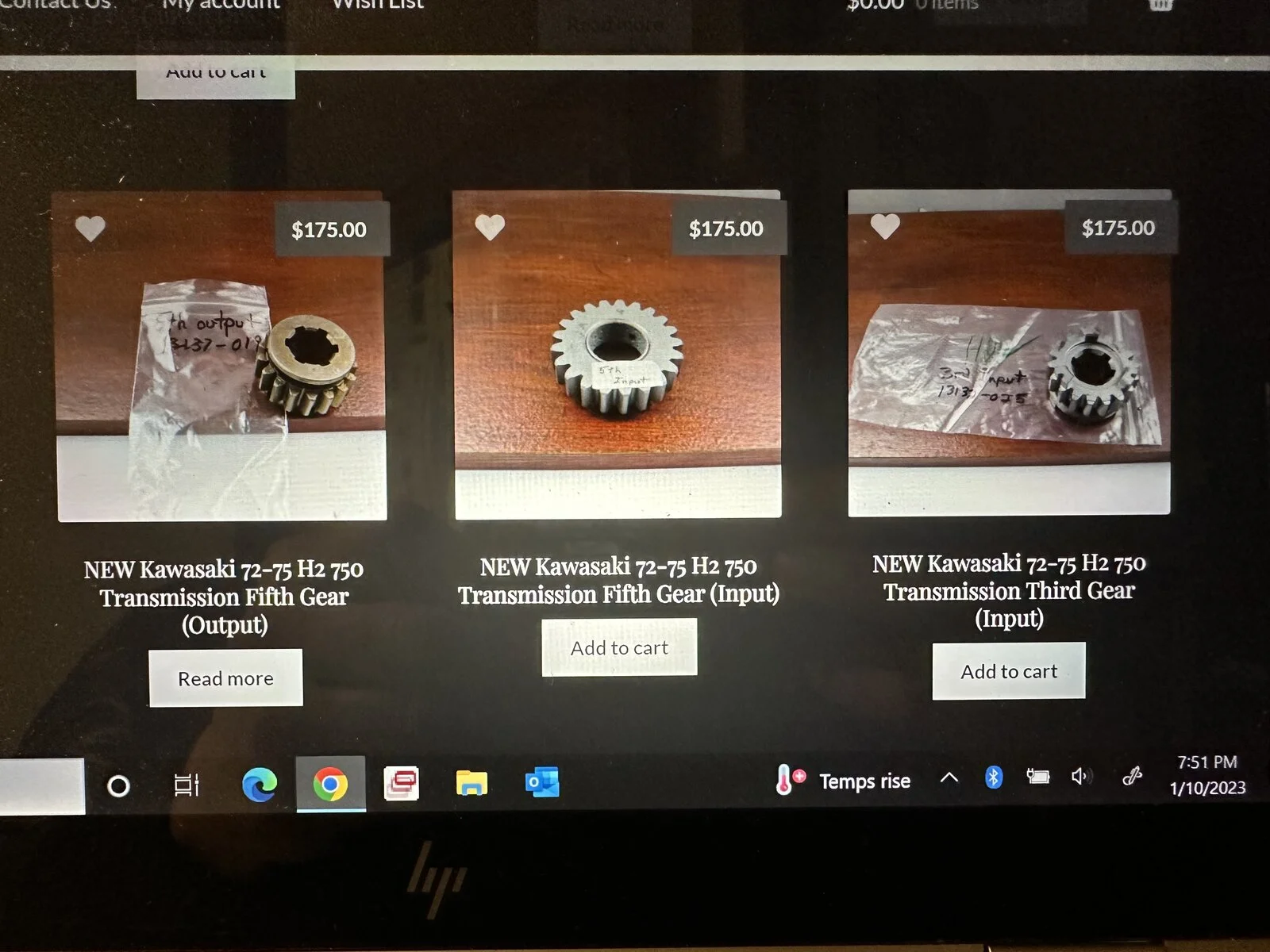

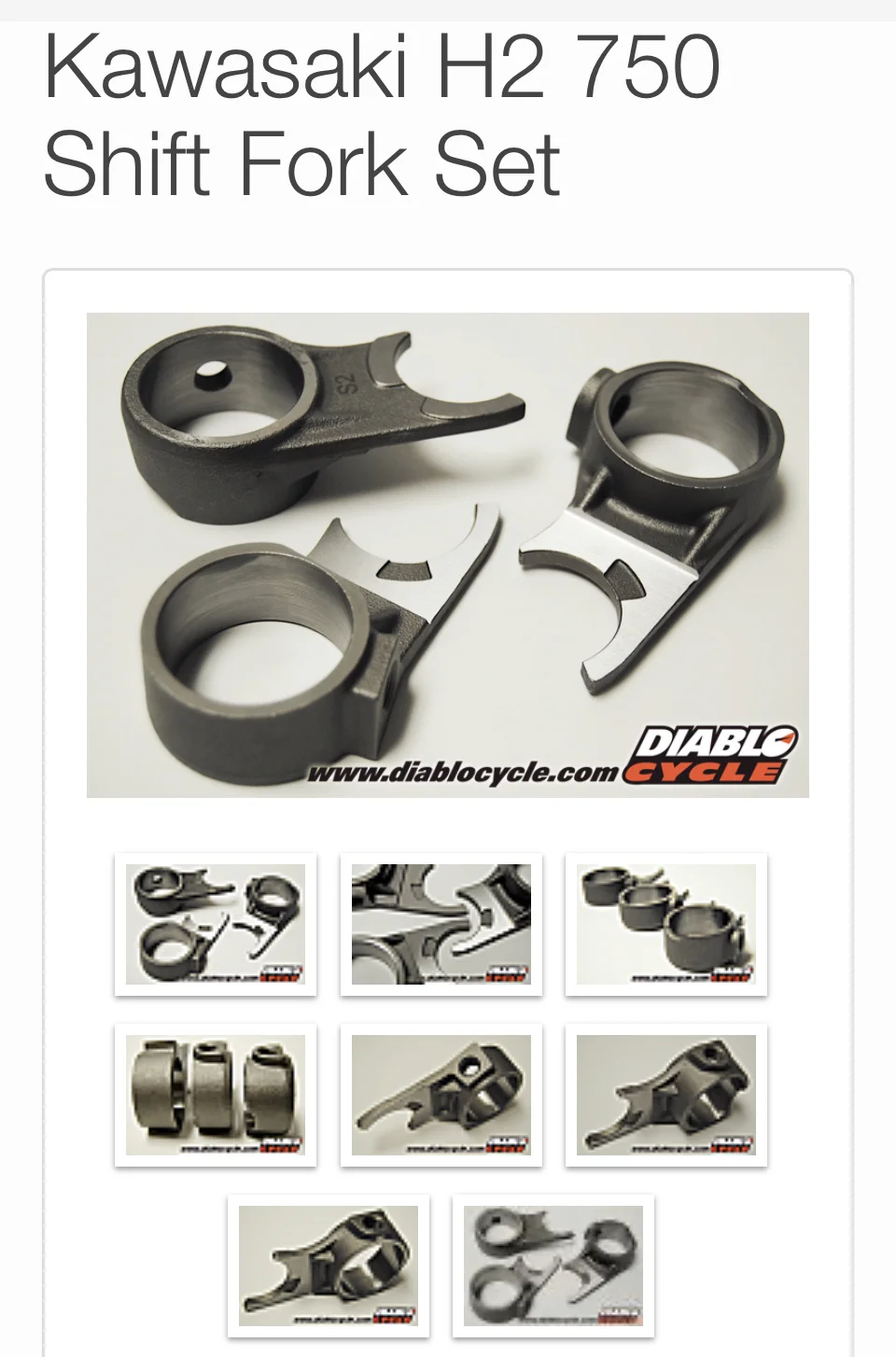

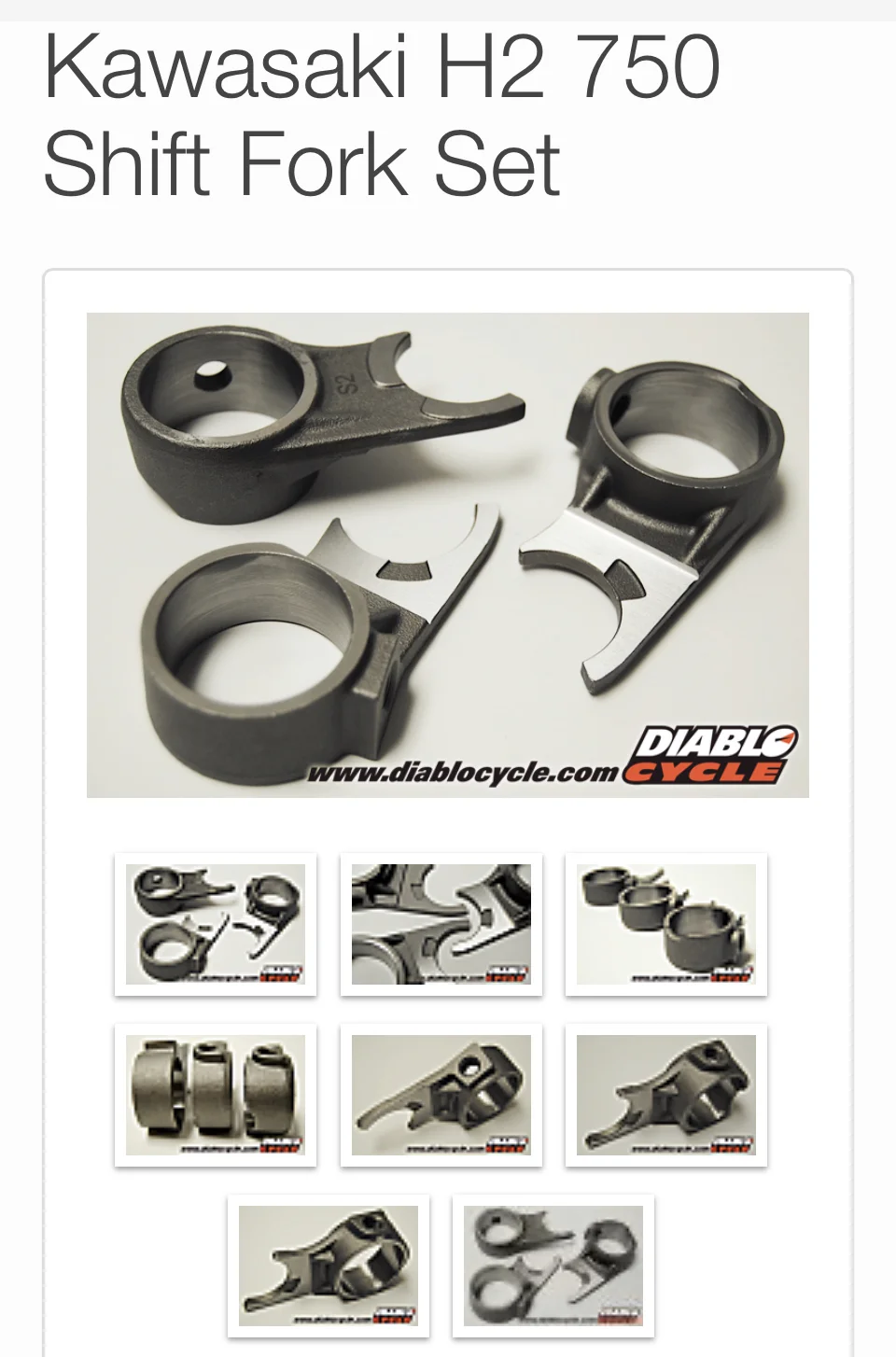

View attachment 102740 View attachment 102741 View attachment 102742

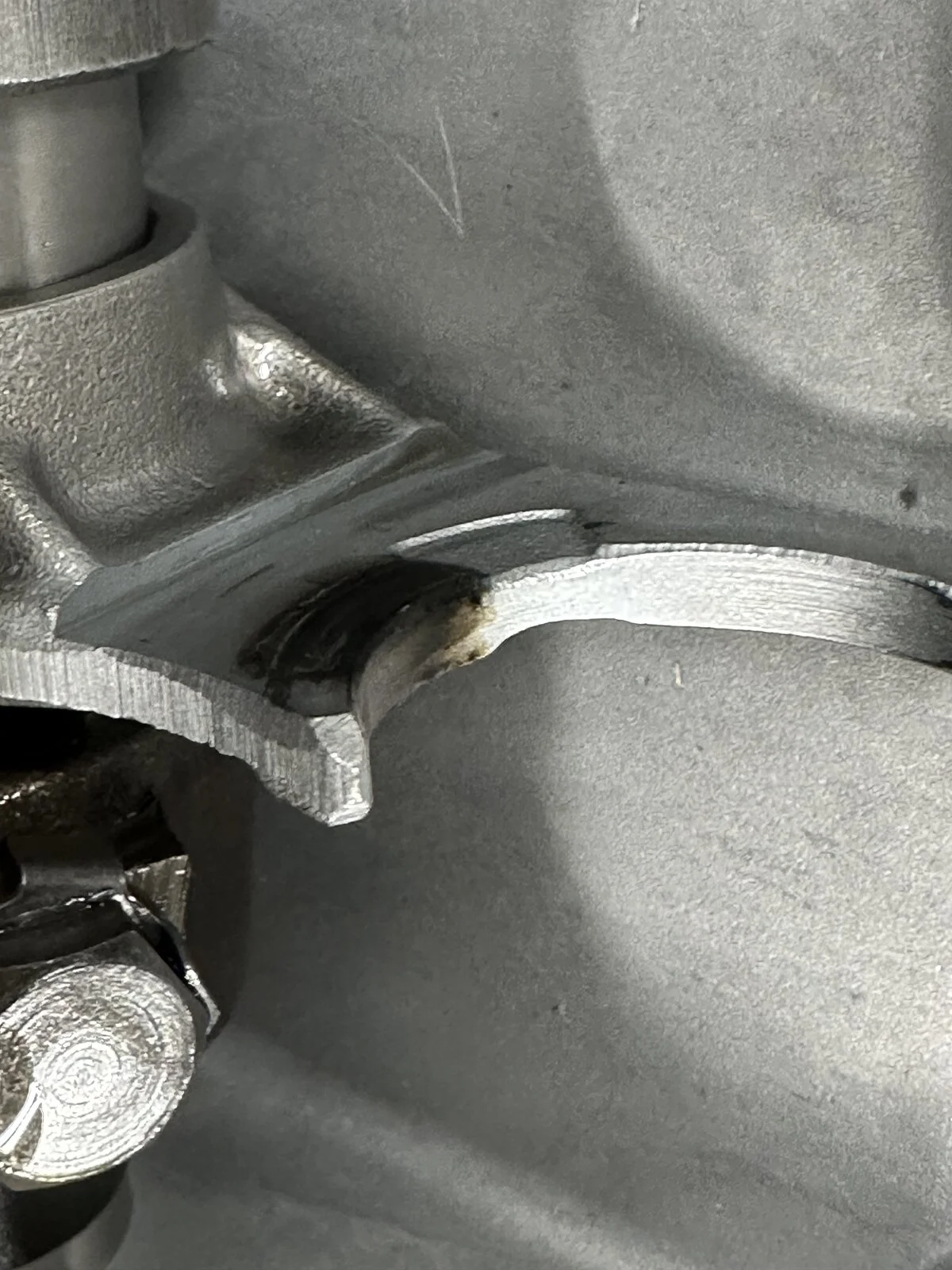

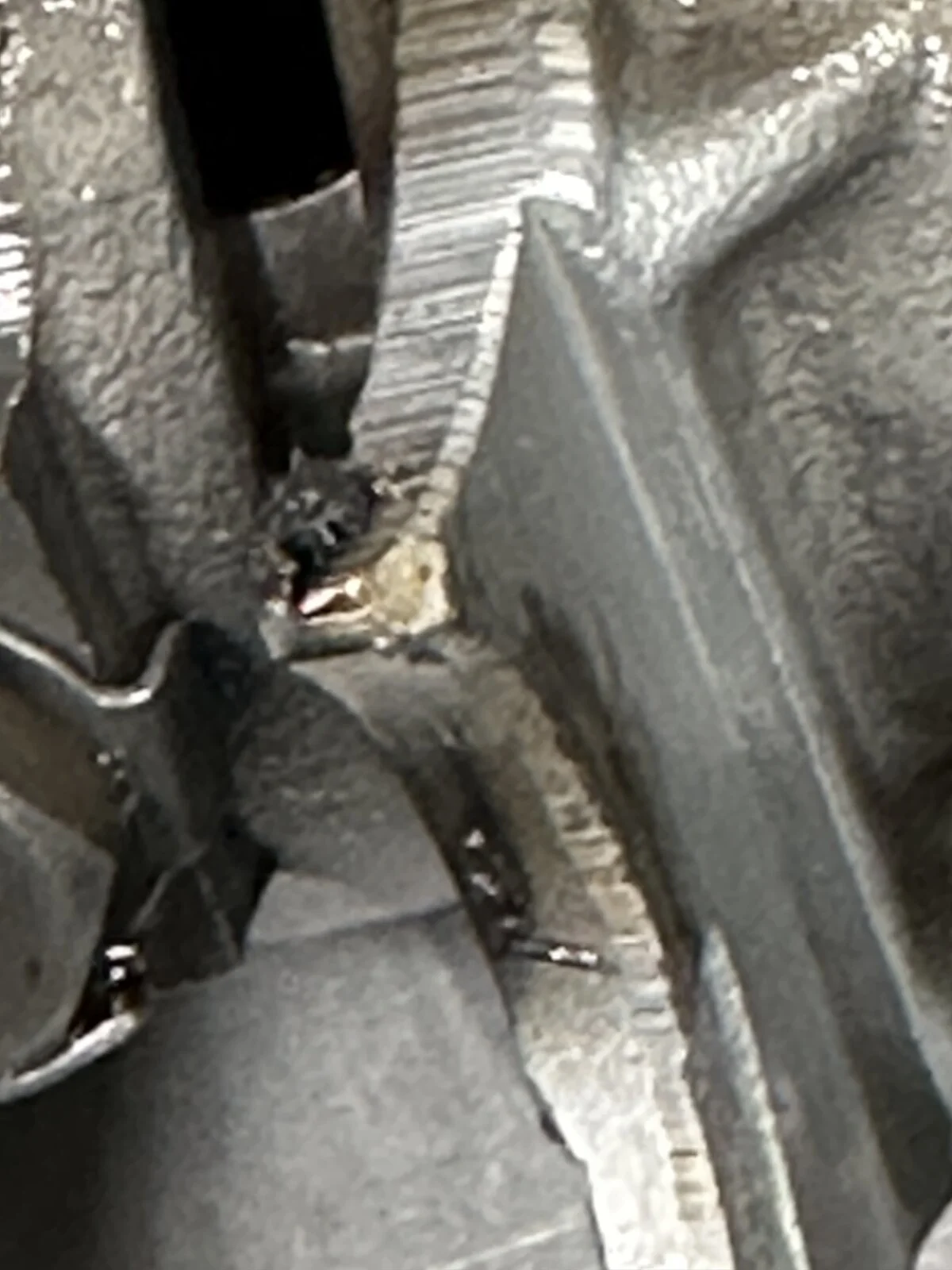

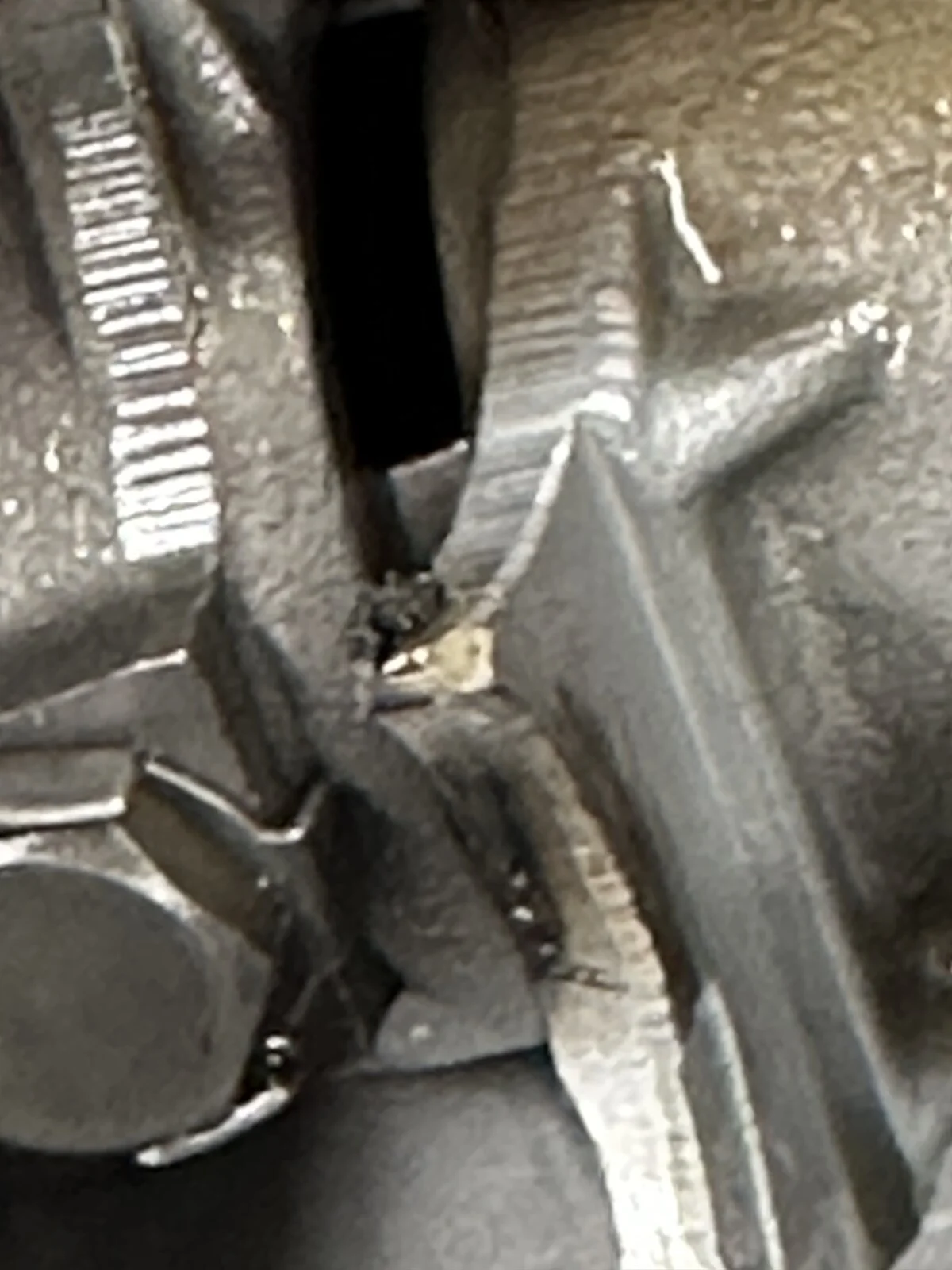

Can your existing selectors be hard faced?

concours · Jan 11, 2023

baz said:
Can your existing selectors be hard faced?

No doubt, I have sone Stellite TIG wire on hand. But then milling them to the correct offset, perpindicularity, to the shaft surface finish (ground) would be a lot of effort/time.

baz · Jan 11, 2023

concours said:
No doubt, I have sone Stellite TIG wire on hand. But then milling them to the correct offset, perpindicularity, to the shaft surface finish (ground) would be a lot of effort/time.

Yep I agree
I have done it in the past on a lathe gearbox
I guess you are lucky that parts are available
I'm wondering if there's better gearbox oil available now than when these bikes were built?

concours · Jan 11, 2023

I see a marginal design gearbox, designed for the H1 500cc engine, now behind a 750cc engine, and then an easy 8-10 extra ponies from expansion chambers takes it over the TOP, when ridden like a bank robber.

Trailer/Garage Queens ridden occasionally, and then only at parade speeds, no problems.

The gears that are bushed to spin on the splined shaft are wobbly, thereby causing extreme kickout loads & failed shift forks.

JMWO

concours · Jan 11, 2023

baz said:
Yep I agree
I have done it in the past on a lathe gearbox
I guess you are lucky that parts are available
I'm wondering if there's better gearbox oil available now than when these bikes were built?

Sliding gears on a lathe have no dynamic thrust, like constant mesh/dog engagement

concours · Jan 20, 2023

Jackman · Jan 22, 2023

concours said:
The two forums I've managed to find are very lacking in solid technical information, lots of bling only.
(Makes me thankful all over again about the shared knowledge here! 🍻 )
Any suggestions?

KTOG aka Kawasaki Triples Owners Group and the mraxle data site has all the answers for a Triple , I’ve got two Triples an H1E and an S3A
