I am an addict. There, I said it. H2

MichaelB said:
Glad someone stepped up, cause I got nothing..
Carry on...
Click to expand...
🤣🍻

I did the shift shaft today too.
I am an addict. There, I said it. H2


Again, don't anyone do what I do. 😜

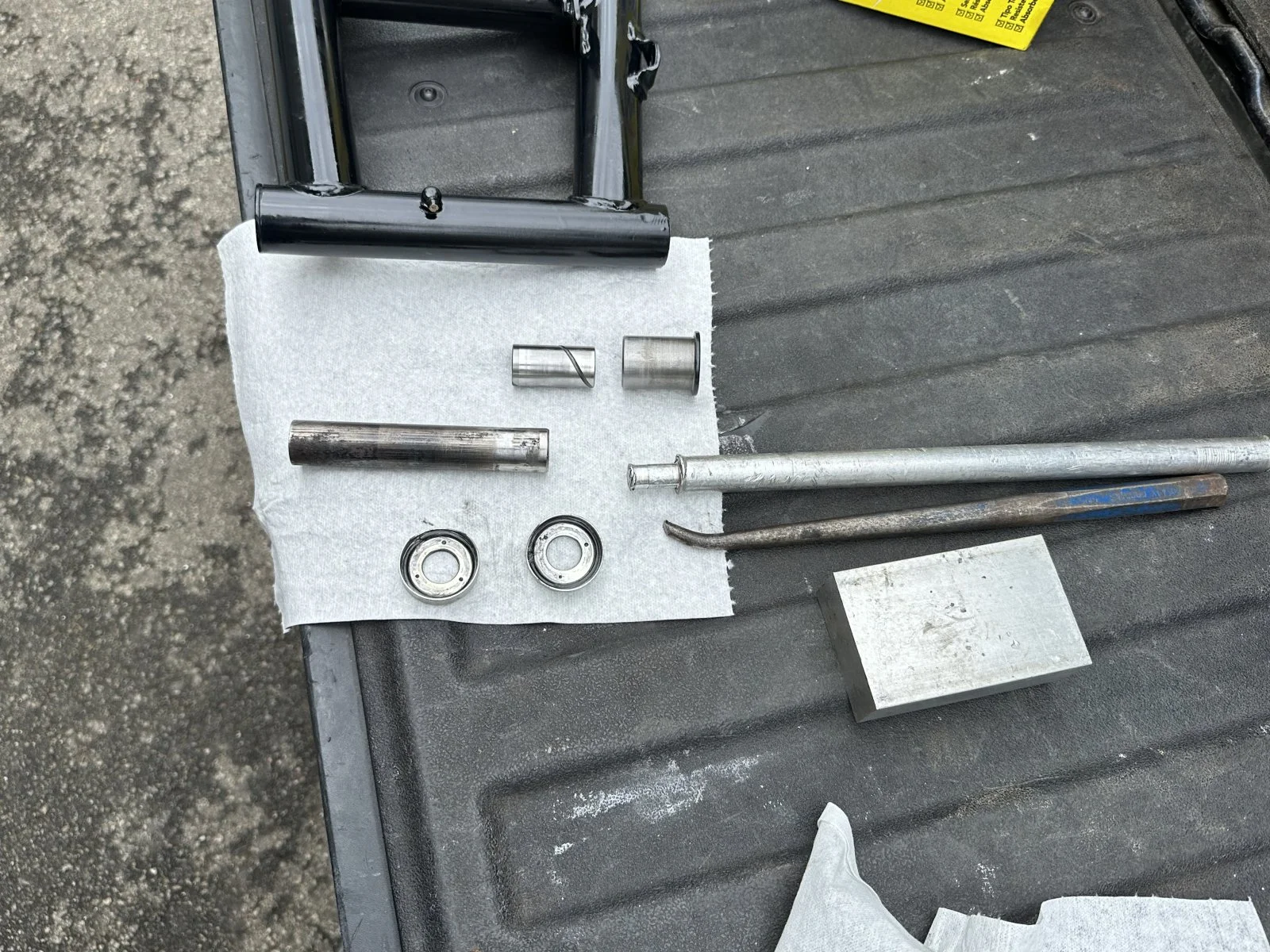

The swing arm pivot spacer had been mangled by a DPO, (hammered using the wrong technique) about .050" too short.


When assembled & tightened up, the movement siezed.

A replacement spacer was not readily available, but I got ahold of one from a Z-1, calculated what the length SHOULD be and using the lathe to cut it down to the length I needed.

Moves freely now, as designed. I gave it .010" lateral clearance.

Just to reiterate, the design is VERY GOOD. Rock solid.

Last edited:
Phreakin' Fantabulas !! thank for posting all of the photos and progress updates....It's zero three forty eight here in Japan and I can't sleep for some reason tonight,,,,sooooo this was great to see. thx again, Cj

cjandme said:
Phreakin' Fantabulas !! thank for posting all of the photos and progress updates....It's zero three forty eight here in Japan and I can't sleep for some reason tonight,,,,sooooo this was great to see. thx again, Cj
Click to expand...
@cjandme can you help with translation?

Last edited:


More poor quality parts, not fit for purpose.

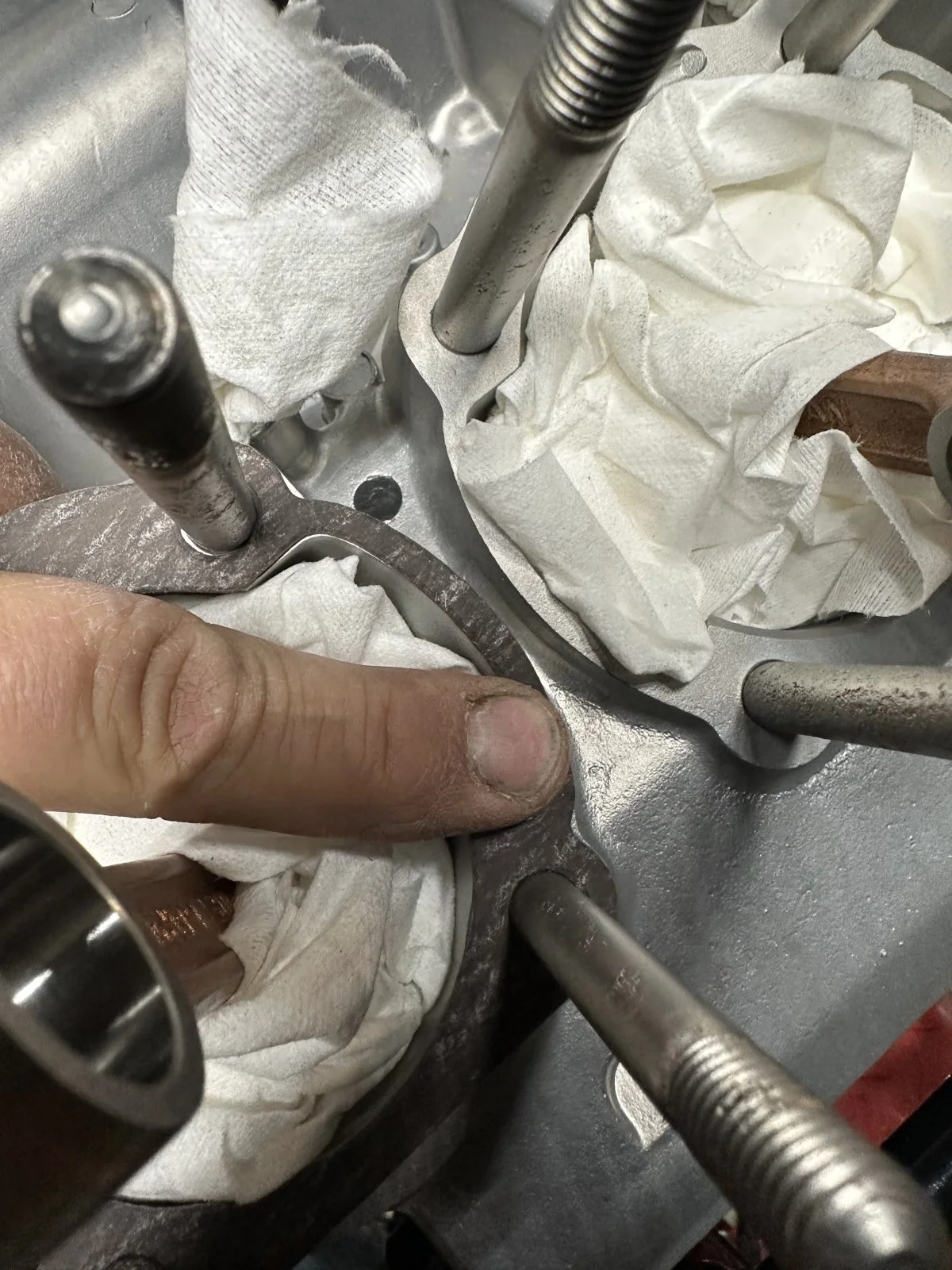

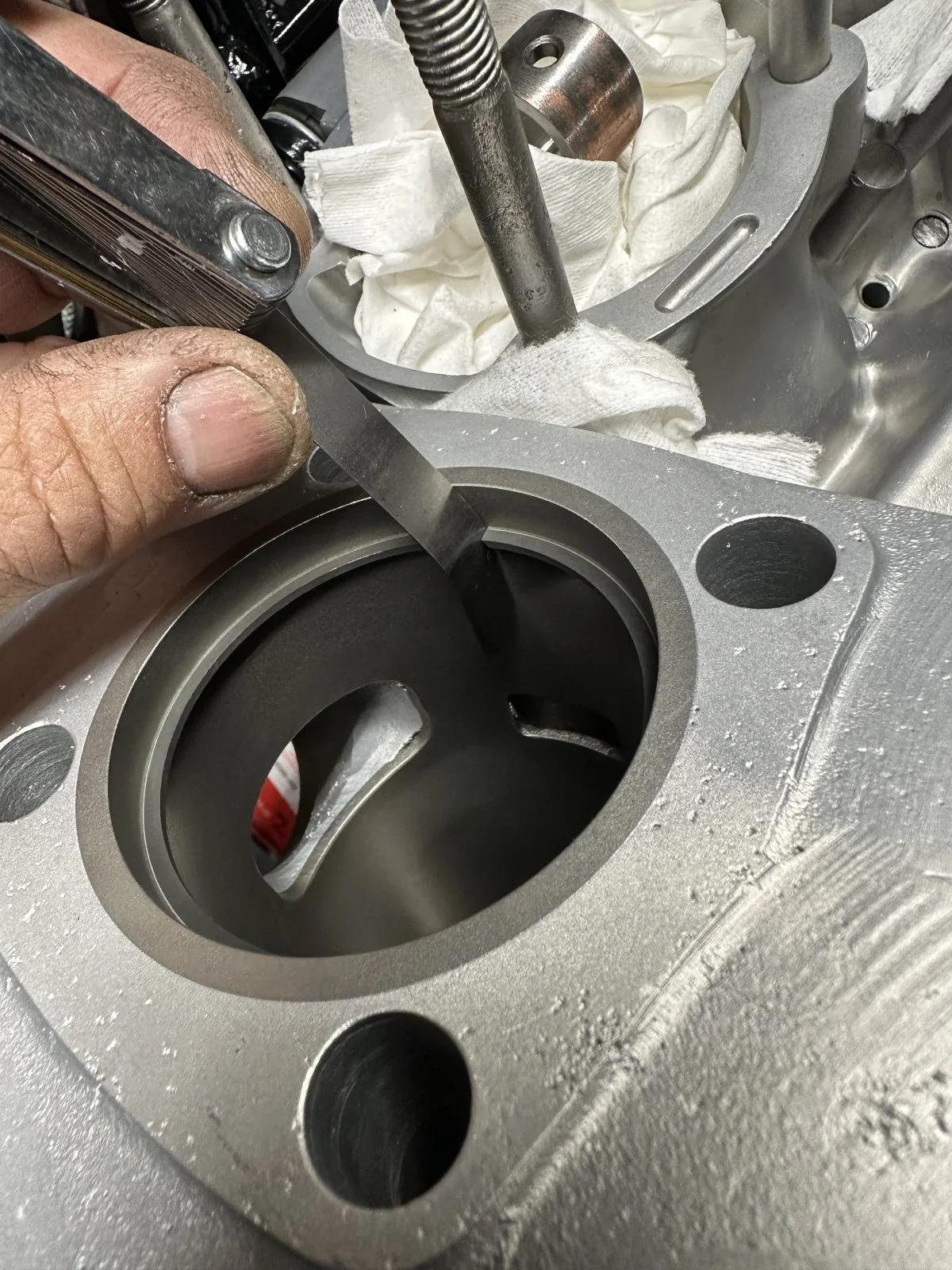

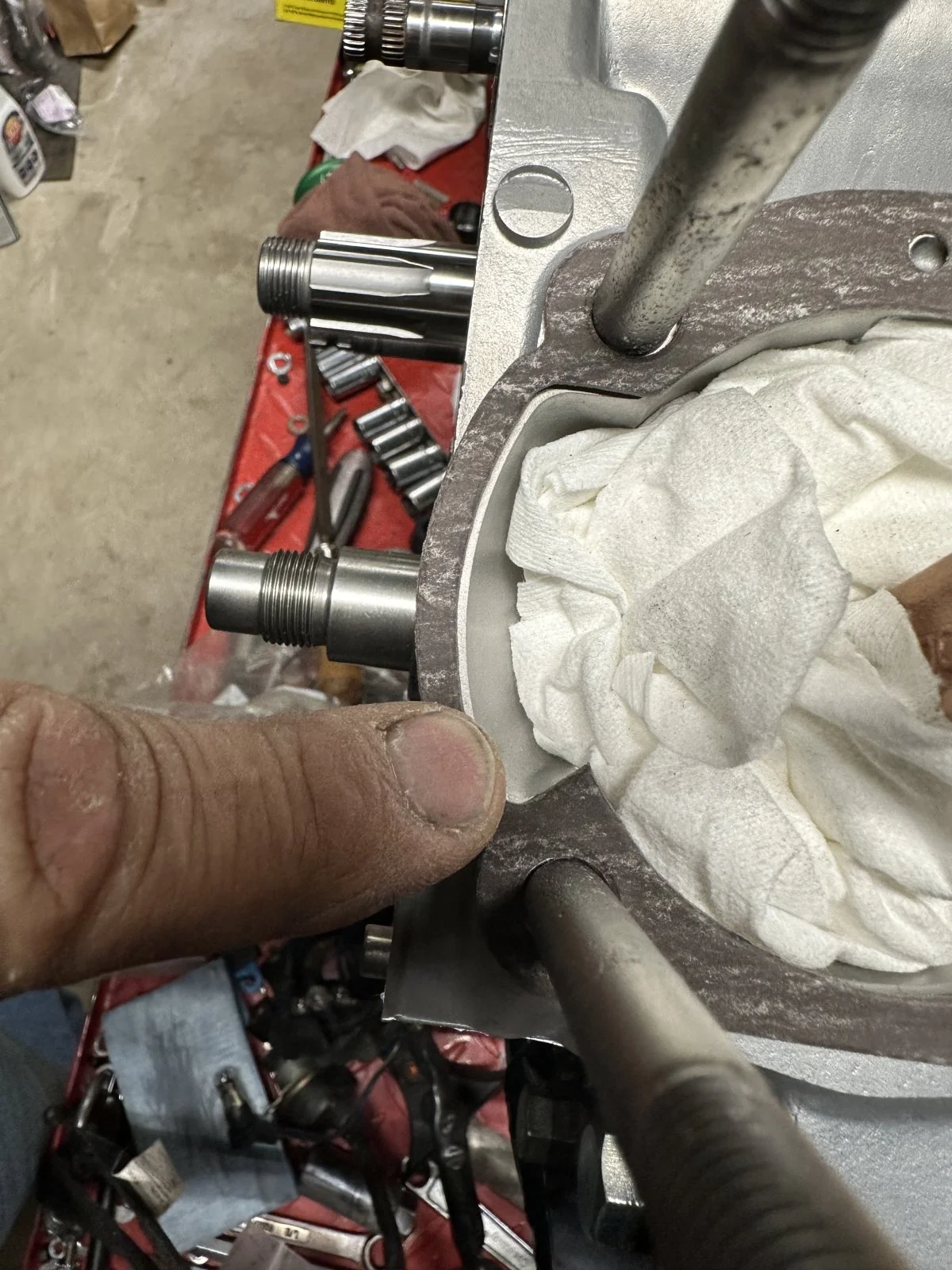

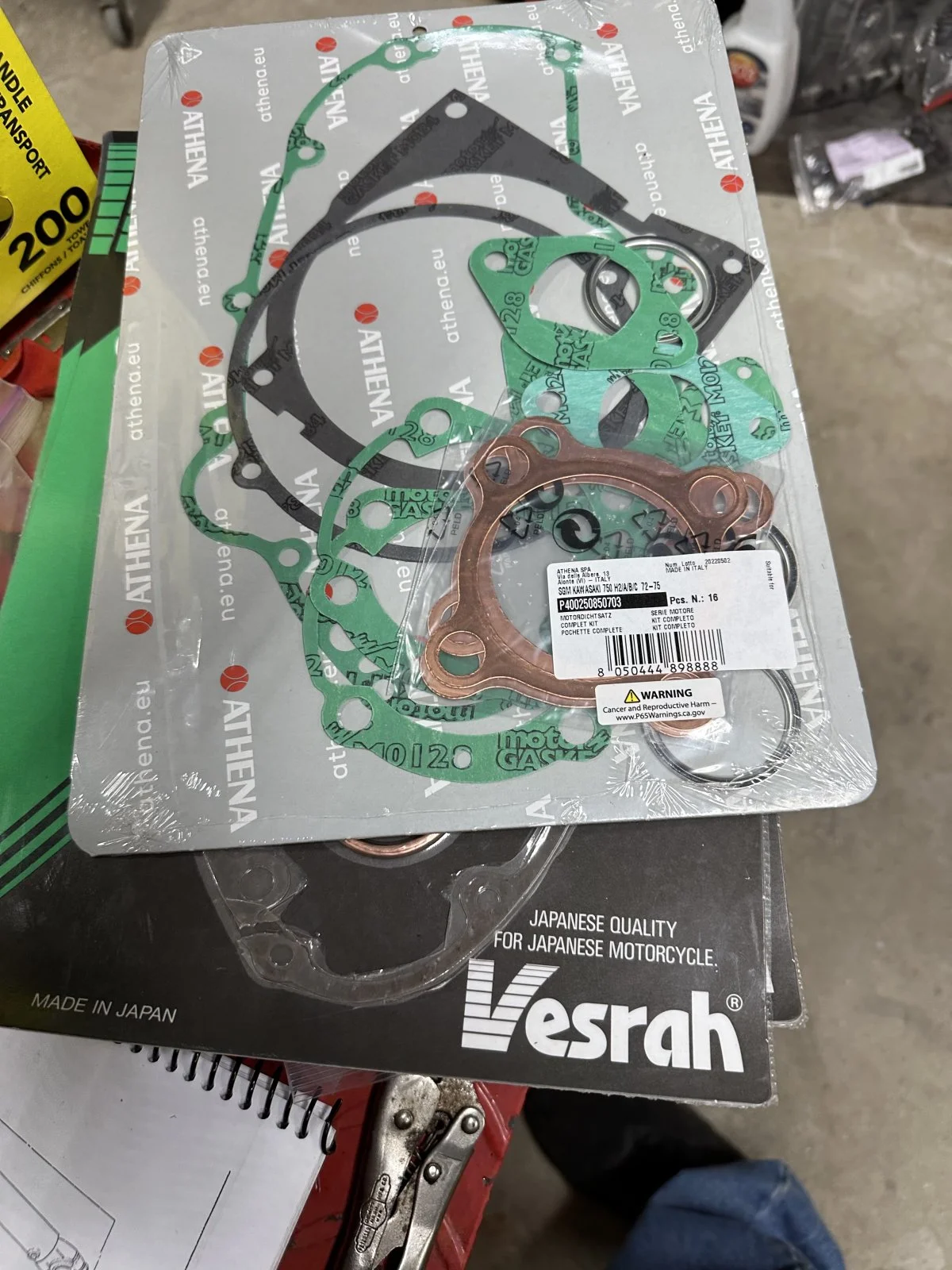

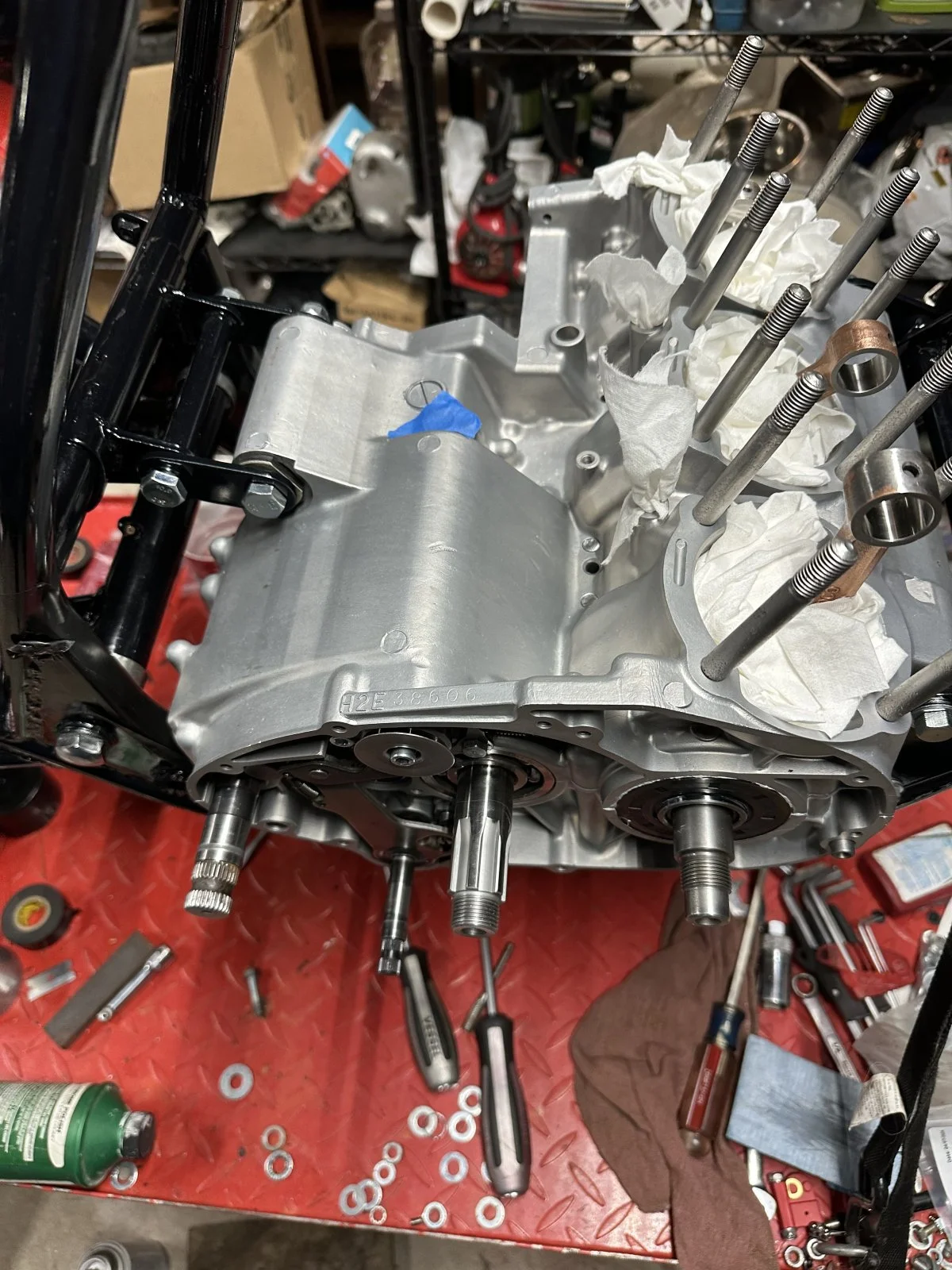

Only 5mm gasket surface near the transfer ports. Grey gasket is half off.
I am an addict. There, I said it. H2


Attachments

  • I am an addict. There, I said it. H2
    319.2 KB · Views: 12
