How I spent my summer vacation....

Status
Not open for further replies.

Ron L

VIP MEMBER
Joined
Feb 27, 2004
Messages
3,137
Country flag

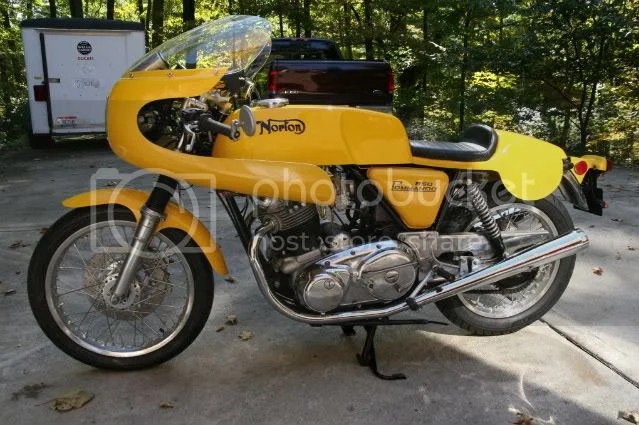

Well, not exactly, but I did get to spend 4 or 5 days straight in the shop this summer. Anyway here's my '75 850 cafe racer as it has looked since I built it about 15years ago.

How I spent my summer vacation....

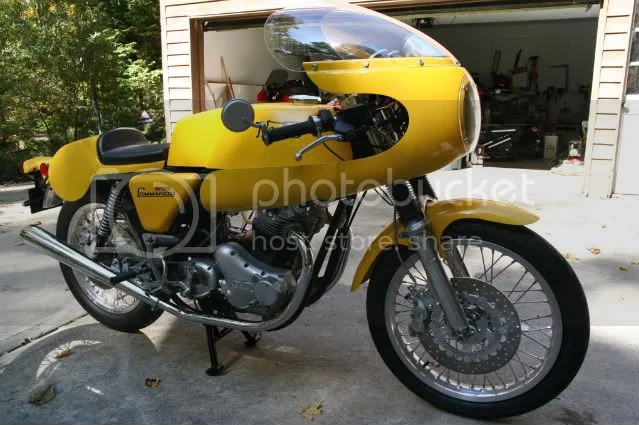

It needed some upgrades and wasn't getting used much, so it went on the work table late last winter. I'm nearly ready to take it out for a shake down (waiting on a couple minor items) but had to take it off the lift to helicoil a fender stud hole in the front fork. So I rolled it out and took a couple shots.
How I spent my summer vacation....


How I spent my summer vacation....


How I spent my summer vacation....


It's certainly not the aggressive refurb that Grand Paul is attempting with the monoshock, but it got new brakes, switchgear, wiring harness, bodywork, oil tank, front end with brace and RaceTech emulators, lace a new front wheel, handlebars, etc. One of those projects that was going to be a simple tank and seat change but just kept going.

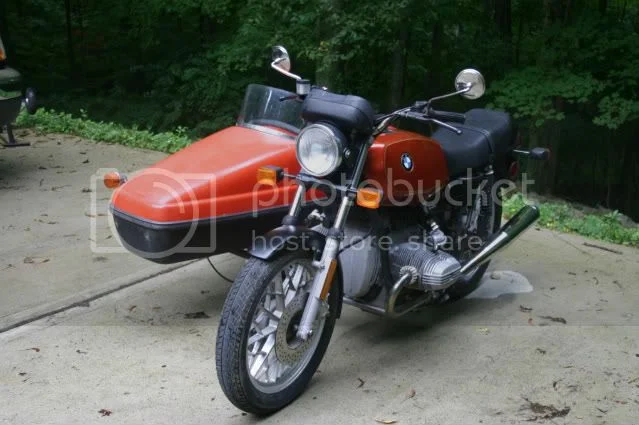

In defense, this was not the only project this summer. Although it's not a Norton, I had to upgrade the grandkids ride from this..

How I spent my summer vacation....

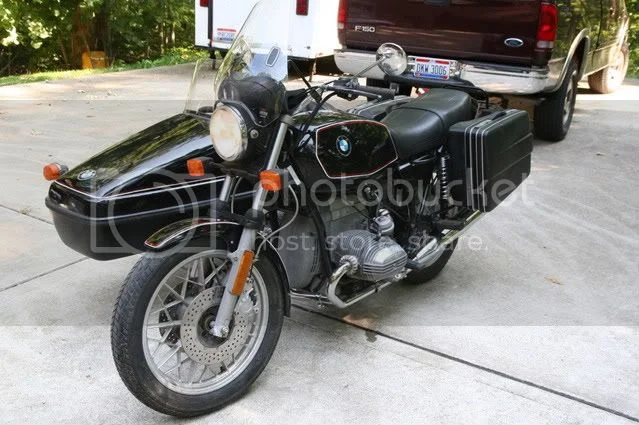

to this...
How I spent my summer vacation....

Joined
Nov 20, 2008
Messages
1,362
Country flag
Wow! Nice work! Your original white Norton looked really nice so I'd have to say the biggest improvement in looks alone is the beemer. That's not to say the yellow isn't nice though, it looks great. My next one will be yellow too.

Did you say "how I spent my summer vacation" Or "how I spent my summer vacation money"

Joined
Apr 7, 2004
Messages
1,691
Ron , No hiding from the cops now aye. All white gets you disappearing out of the minds eye and harder to describe. This work took some guts. Your safer in one way being seen, hard to say "I didn't see him" . What # do you have in mind?


Ron L

VIP MEMBER
Joined
Feb 27, 2004
Messages
3,137
Country flag
Your original white Norton looked really nice

Well thanks, but that picture is from several years ago. When I rolled it on the lift, the paint was chipped in places and the chrome on the Bub Conti-replicas was very dull. Plus I wanted to try to improve the front end. I had to get rid of those cheesy Dunstall brakes. The motor is plenty potent, but between feeling like I was sitting 6 inches above the bike and the brakes, fast cornering was not at all comfortable. I dropped the tire sizes from 100/90-19 Dunlop 591 at the front to 90/90-19 AM26 and from 120/80-18 rear to a 110/90-19 AM26. I'm anxious to see if I improved it or not.

The sale of the Dunstall front end and wheel financed the entire re-furb. Got to use creative financing in this economy.

Does anyone know of a shop that will/can rechrome the Bub mufflers? I really liked the simple lines and the tone. The chrome just wasn't very good. Too bad they don't make them any more.


grandpaul

VIP MEMBER
Joined
Jan 15, 2008
Messages
12,613
Country flag
Ron, great work!

You know I get all gooey when I see Dunstall cafe bikes; I've always liked "school bus yellow" since my oldest brother painted his '68 Yahamama Big Bear 250 scrambler way back in '70 (he had crashed it on a hairy wheelie gone over the top, and so repainted it on the rebuild)

Very classy bikes. is that a Velorex hack?


Ron L

VIP MEMBER
Joined
Feb 27, 2004
Messages
3,137
Country flag
is that a Velorex hack?

Yes, it's a 562 and its light weight matches the little R65 nicely. And "hack" described this one! I don't know the age of the rig, but it's pre-'80. The PO had cobbled the mounts and it was impossible to set the toe-in. Luckily parts are available from Velorex USA and a new front mount got it sorted.

I remember an INOA rally at Dick Klamfoth's (Honda Hills) where there was a fellow from Colorado ripping about with a car on his Commando. It inspired a buddy of mine to mount a Spirit (California Side Car Co.) on his '71 for a while. After working with this one on the R65, I would not recommend it. I think they were both lucky the lightweight frame tubes didn't bend or break.

The late Bob Schanz (DomiRacer) used to have a G12 Matchless with a car that he rode for a number of years.

Joined
Jan 22, 2008
Messages
2,585
Country flag

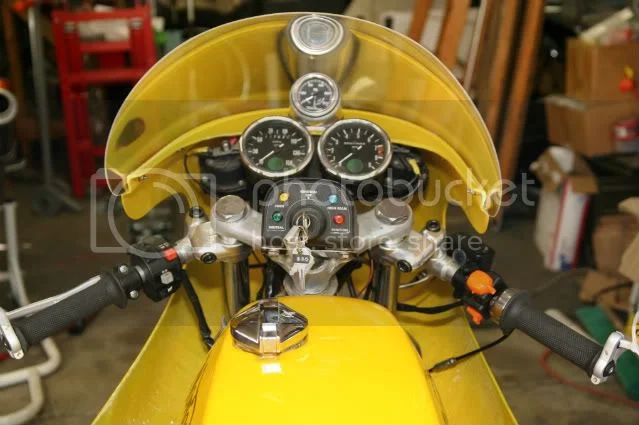

Stunning! I like the tight instrument grouping and those look like good switches. Nicely hidden blinkers. Where did you get the mirrors from? Is that tank fiberglass and what did you coat it with if you did? You did the right thing with that big front disk.

Jean


Ron L

VIP MEMBER
Joined
Feb 27, 2004
Messages
3,137
Country flag
Thanks, Jean.
The switchgear is Ducati. The mirrors are the cheapies being sold on eBay. I am surprised at how well finished they seem to be. They have a ball mount that is clamped by a set screw. Time will tell as to how well they work.
The tank is a fiberglass one I picked up a couple years ago and was unused. It was yellow gelcoat so I matched the paint to that and only clearcoated the tank I coated it inside with Caswell epoxy.
I'm running the same front and rear disc setup as my Interstate. This one uses a QTMI/Brembo (CNW type) disc, but the one on the Interstate is a similar Brembo without the chrome center. They work quite well . I have a 13 mm Magura master cylinder on this one.


Ron L

VIP MEMBER
Joined
Feb 27, 2004
Messages
3,137
Country flag
Did you have to beef up the BMW frame?

There is a small subframe that bolts to both left and right frame tubes at the motor mount bolts. This holds the lower mount. It was on the rig when I got it. Most sidecar gurus do not recommend mounting a car to a /6 or later BMW without a subframe.

Joined
Oct 5, 2008
Messages
1,693
Yeah,

That acually was why I bought the Chang. I figuered I'd get the sturdy frame and when the engine finally toasted I'd install a BMW. A couple of my friends are running BMWs with subframes with no problems at all.
At this point it looks like this Chang engine may still be running when I retire to New Zealand, if they are still easy to come by I may have new bike built with a left hand sidecar and a BMW engine with electric starter.
Unless I am too shot to start it I'd like to ship my current Norton over, and maybe one of my Goldwings.

Joined
Oct 7, 2005
Messages
1,170
Ron L:

When the Commando was introduced and people found out "no more Featherbeds", you could probably have heard the howls from the sidecar community this side of the Atlantic. The Atlas was a real favorite of theirs. Norton specifically said in their sales materials that "attaching a sidecar to a Commando would almost certailny result in a frame failure and also voided the warranty".

I hadn't been at N-V very long when we got a letter from an Atlas owner complaining bitterly about the rotten gas mileage and top speed of his bike - "nothing near what they get in the magazine test rides!" It was so bad, he was invited to visit the factory so they could figure out what the problems were. When he showed up, he was pulling a double-adult sidecar with a small third seat in back for a child!


MichaelB

"Sons of Arthritus"
VIP MEMBER
Joined
Jan 14, 2004
Messages
1,965
Country flag
Very nice Ron.


frankdamp said:
...- "nothing near what they get in the magazine test rides!" It was so bad, he was invited to visit the factory so they could figure out what the problems were. When he showed up, he was pulling a double-adult sidecar with a small third seat in back for a child!

:lol: :lol: :lol: :roll:
