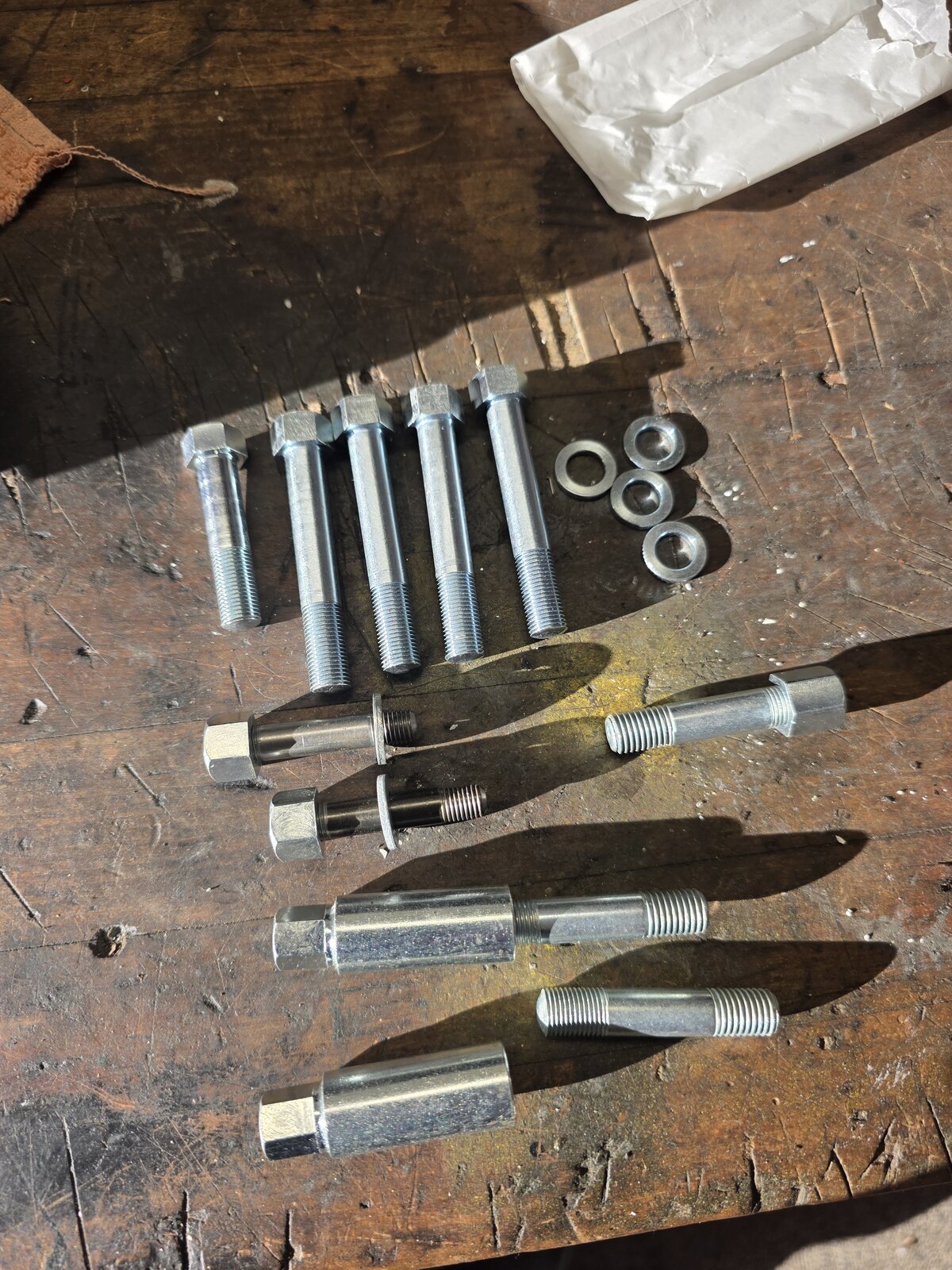

Head bolt washers
- Thread starter MikeG
- Start date
- Joined
- Nov 20, 2004
- Messages
- 21,145
Cap screw?
There's no washer under the #2 nut (49) and the washers under the sleeve nuts were later deleted although they are still available #50 so you appear to have one washer missing.
There's no washer under the #2 nut (49) and the washers under the sleeve nuts were later deleted although they are still available #50 so you appear to have one washer missing.
Andover Norton Parts Drawings - Andover Norton Factory Parts - Commando Parts
Andover Norton Parts are the only Norton spare parts in the market manufactured to original drawings, within the factory-approved tolerances, from the correct materials, and with the correct finish.
andover-norton.co.uk
Andover Norton - CYLINDER HEAD FASTENINGS KIT 750 & 850 (FROM ENGINE 122436) - 06.7097
CYLINDER HEAD FASTENINGS KIT 750 & 850 (FROM ENGINE 122436)
andover-norton.co.uk
Ive never liked the std small diameter washers on the head bolts. They deform the counterbore and squeeze metal into the bolt hole
I touch a counterboring tool into the bolthole just to clean up the seat, making it flat, and then turn up some thicker stainless washers that are a neat fit in the counterbore.
One of the bolts in the photo has been waisted to make it into a stretch bolt
I touch a counterboring tool into the bolthole just to clean up the seat, making it flat, and then turn up some thicker stainless washers that are a neat fit in the counterbore.
One of the bolts in the photo has been waisted to make it into a stretch bolt
