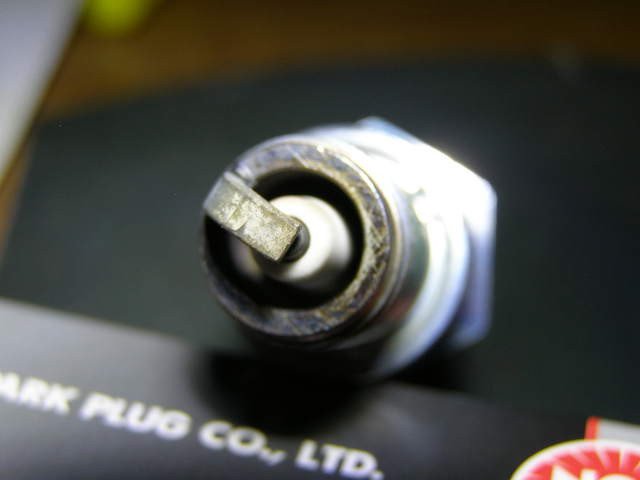

Could someone post a photo of a spark plug with color for ideal mixture strength

I a tally have one! That could help me see how the two cylinders vary. I will install the new choke plunger before doing anything more.
Might be 2 weeks to arrive.

DennisMo said:
Many thanks.

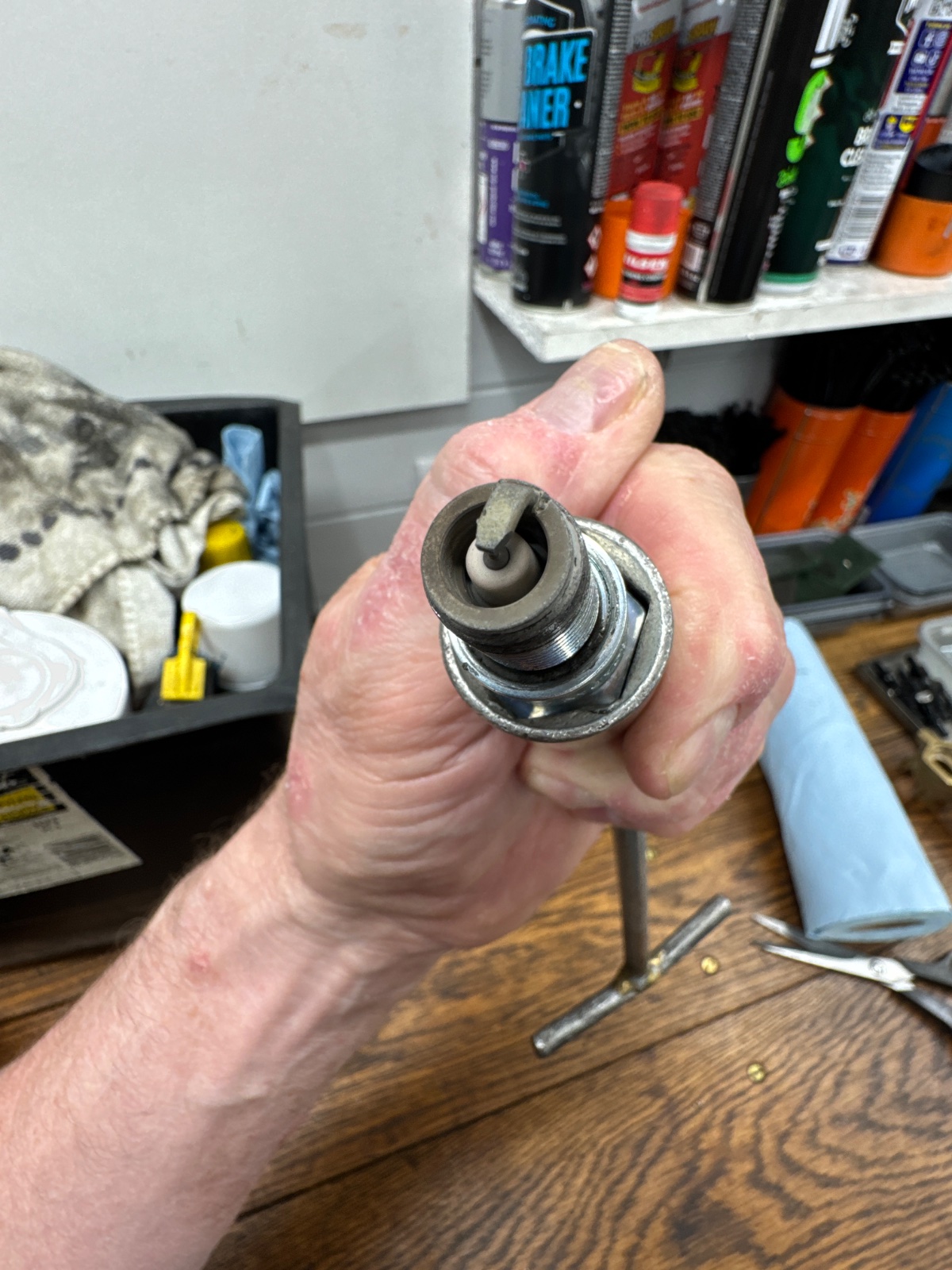

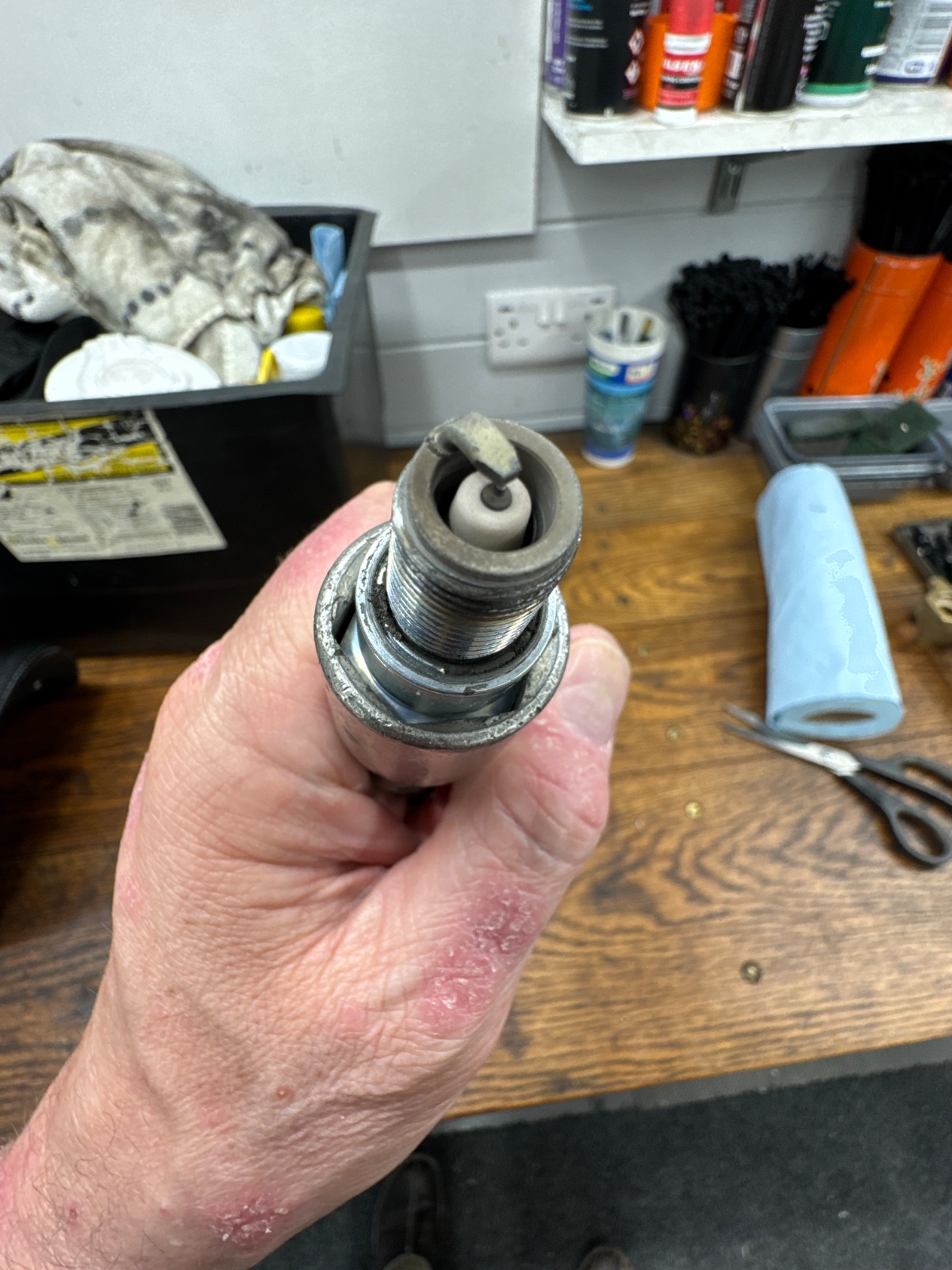

With my Mikuni I am running to rich at low rpm and have sooty plugs.
If I lean out the low speed circuit to get rid of the sootiness, I get lots of exhaust pops on
overrun and when bike first started from cold.
The idle air screw is about 1 1/4 turns out from its seat to stop the popping.
So I thin this tells me it is time to go for a larger size idle jet
I am going to change the idle jet to next size up before reporting back
Thanks again
Dennis
Click to expand...
Make sure the idle air jet is no bigger than a #1.1. If your kit came from Sudco (now defunct) they had #2 in them which would soot the plugs at low RPMs and throttle openings.
