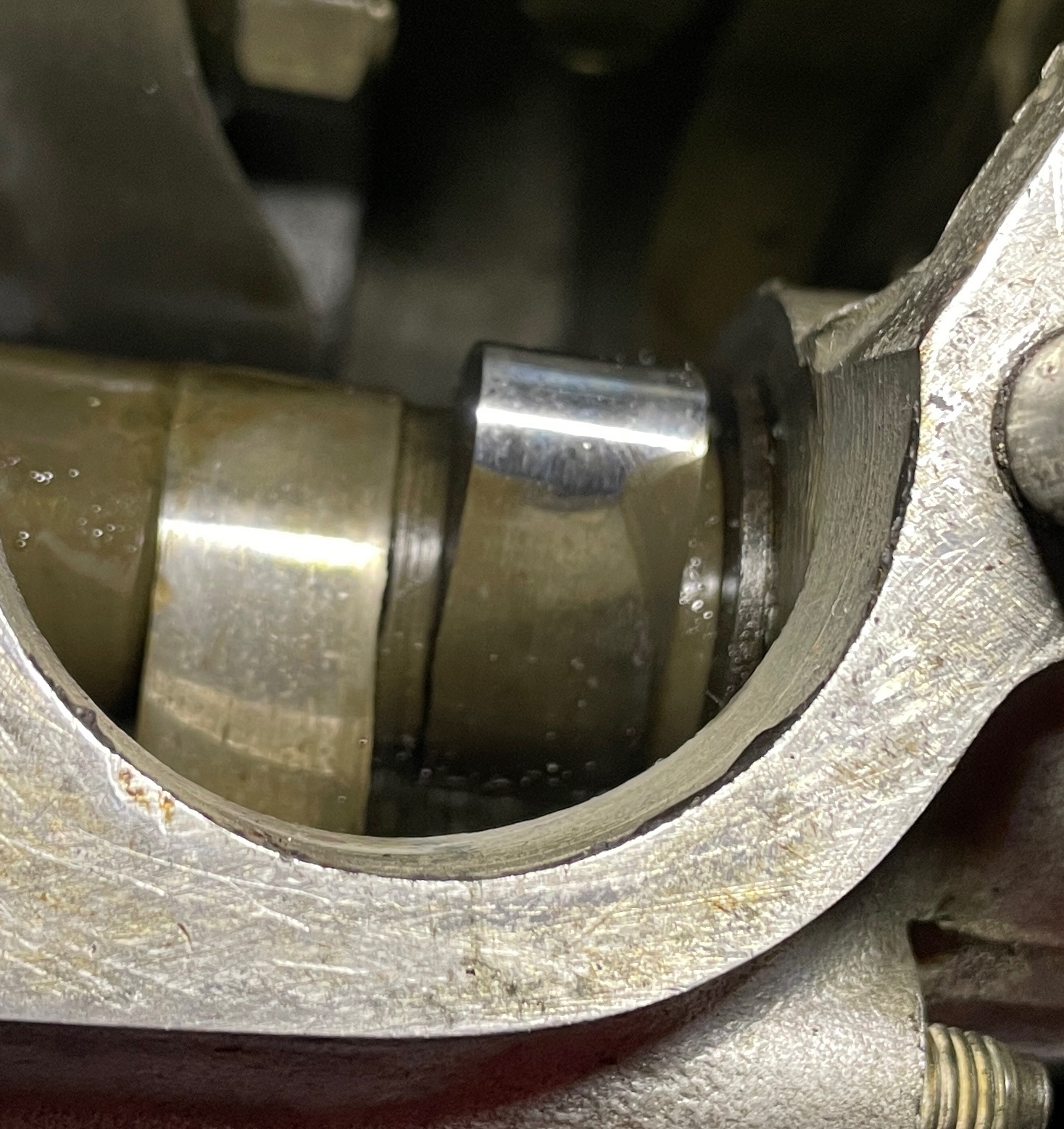

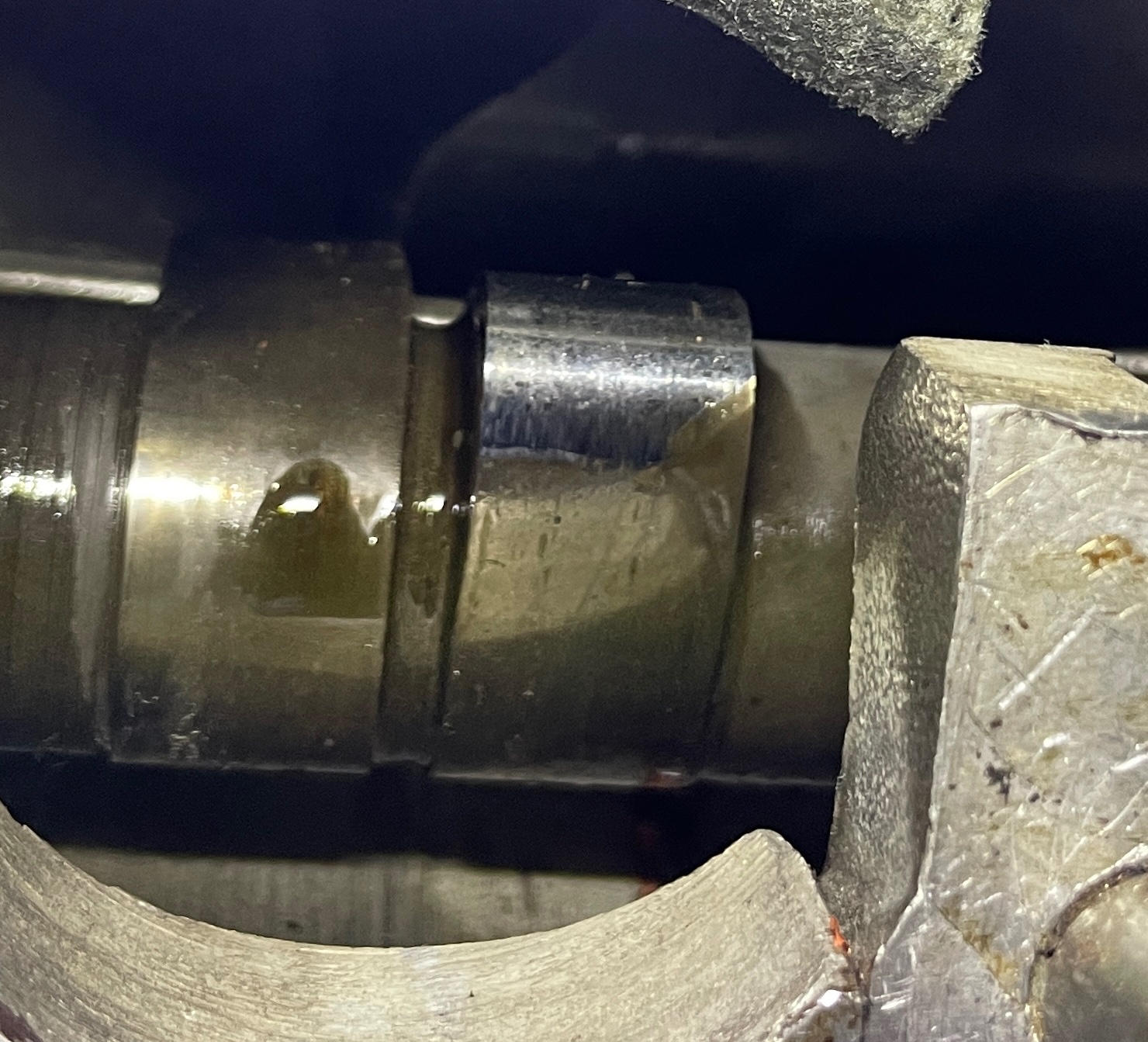

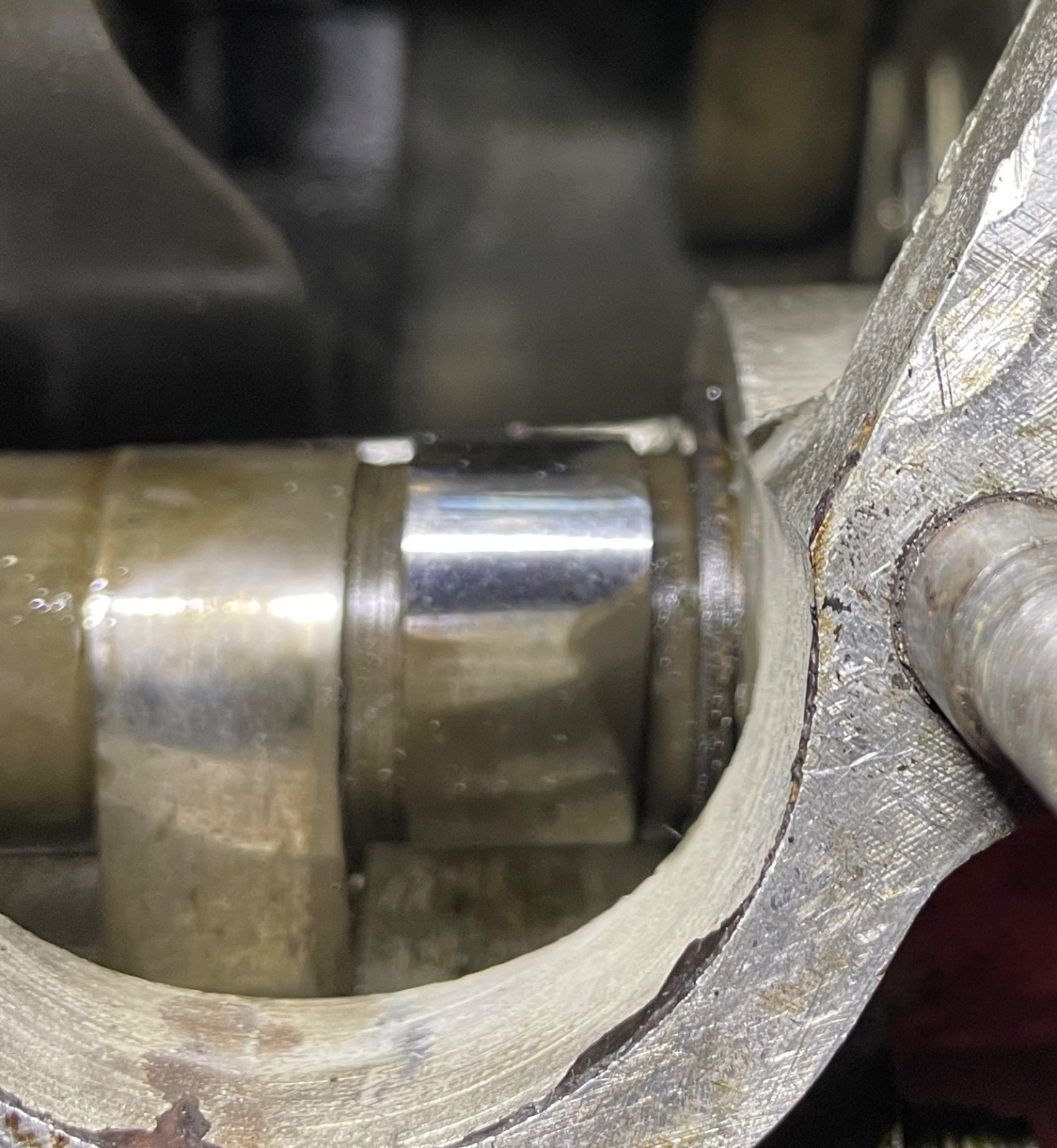

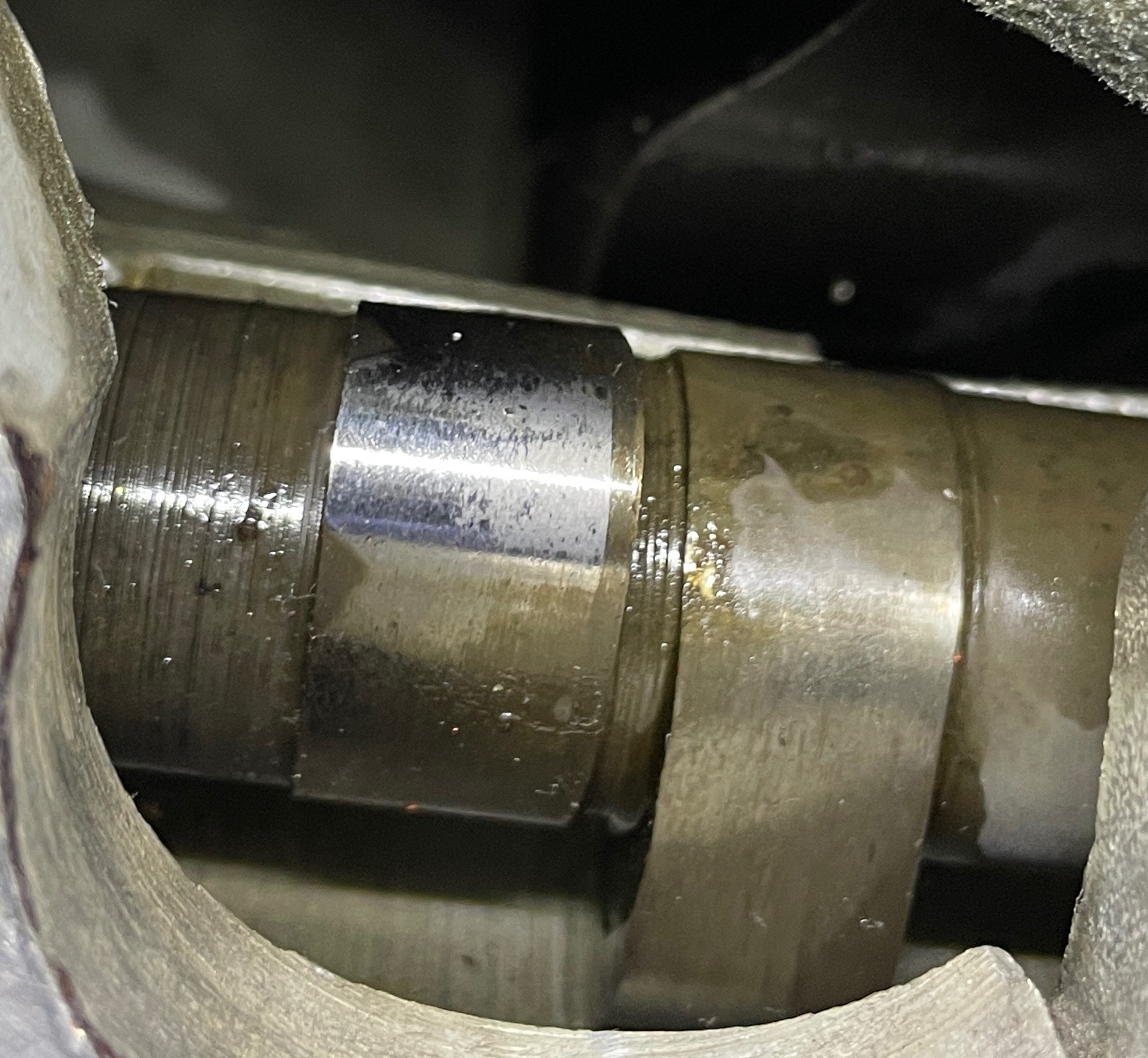

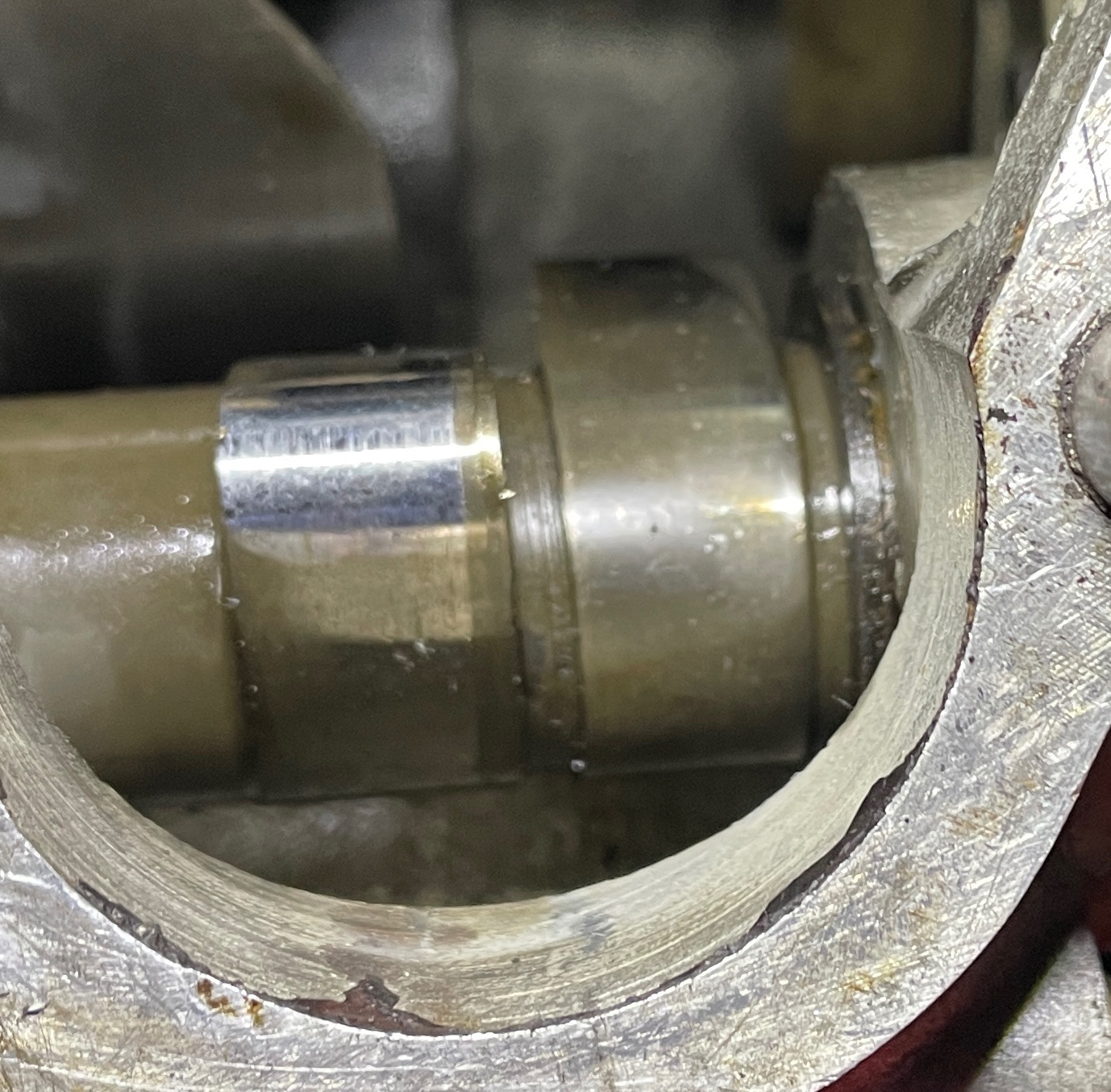

Can you look at photos of my cam lobes and tell me if they are ok? Thanks

DennisMo

VIP MEMBER
Joined
Jun 6, 2023
Messages
447
Country flag
Can you look at photos of my cam lobes and tell me if they are ok? Thanks
Can you look at photos of my cam lobes and tell me if they are ok? Thanks
Can you look at photos of my cam lobes and tell me if they are ok? Thanks
Can you look at photos of my cam lobes and tell me if they are ok? Thanks
Can you look at photos of my cam lobes and tell me if they are ok? Thanks
Can you look at photos of my cam lobes and tell me if they are ok? Thanks

They are showing signs of wear but not too much, I have no problems still using that cam, maybe use better oil or a mixture of STP with your oil, but if you are going to tear into your bottom end then I would get it reground but only if you doing the bottom end as well.

If the cam was removed from the engine (I see it is not), then it would be prudent to measure the lobe heights.
Yesterday I measured the cam lobes on a TR6 engine and though the lobe surfaces look decent, there was a significant amount of wear, such that the lobe lift differed by about .025 from one lobe to another.

With the cam in the engine, if you have access to a dial indicator, a depth micrometer, or a vernier caliper, it is possible to measure lobe lift wear. Keep in mind you can't just compare overall height of the lobe: you need to measure the difference between base circle (the bottom side of the lobe) and the nose of the lobe.

Both exhaust lobes and intake lobes could be worn, so the comparison could be meaningless.
But if you note a significant difference between one exhaust (or intake lobe) to the other, you need a new cam.
Regardless of the condition of the lobe itself.

Difficult to be sure from your pictures, but that cam looks unserviceable to me.

Wipe the lobes thoroughly with tissue paper and try and get better focused close up pics.
