Billet timing case being machined!!

Keith1069 · Nov 12, 2010

Someone else making cases (in NZ) or just a one-off I guess..........
http://www.youtube.com/watch?v=WlRAM9Ziysk

pelican · Nov 12, 2010

yeah man, I saw that last night. Hopefully they'll put up a vid of the bike when it's done.

you guys think it will be a race bike or a show bike?

ntst8 · Nov 14, 2010

I know of one local race bike builder who was having cases CNC machined, after even a Maney case had cracked.
http://www.flickr.com/photos/53591907@N00/4357462239/
Very sadly the regular rider of the bike, Paul Dobbs, died at the IOM TT this year, haven't heard what the plans are for the bike for the coming season.

sbr norton · Jul 6, 2011

I own the Commando race bike Paul Dobbs used to ride before he was killed. I have had two sets of crank cases made from billett and are in the 2nd season of testing them in the bike. There is currently a batch of five complete sets as per Mark 3 being machined from 6061.

AussieCombat · Jul 6, 2011

sbr... ? very familiar in V8 Super Cars. Would you be one of the same.

sbr norton · Jul 6, 2011

sbr norton...is Stanwell Buckman Racing NZ

lynxnsu · Jul 7, 2011

over here in belgium Frank Jordens had a drive side crank case machined from solid
he uses it in his racing outfit for the last 5 years with no apparant problems
He just did it to see if he could do it

jseng1 · Jul 7, 2011

The Isle of man takes too many riders.

Sorry to hear about Paul Dobbs - may he rest in peace.

Can anyone (SBR) tell us more about the Norton twin that Paul used to race.

Jim

Doug MacRae · Jul 7, 2011

Herb machined crankcases from billet for a short stroke 750 race bike complete with centre main bearing support and crank with two small flywheels on each side of bearing. Worked well, made good HP but suffered from oiling issues to the centre bearing.

Chris · Jul 8, 2011

Hi Jim

Never saw Paul on a Commando in the UK but he was awsome on a Scott in vintage racing.
Historic Motorcycle Racing Club. Great bloke who could ride! Loved the Island.
Look out for the film in 3 D as his wife spoke about Paul in a way that touched my heart. Accepting that racing was Paul & a big part of what he lived for.

The owner of the Scott, Roger Moss is in his 70's he is traveling to the Beezumph rally in Wales (as it may be the last one)
to do the 6 sessions Race license class,on the Friday. Then packing up & traveling to Lydden in Kent for the race meeting over the weekend. Bikes the reason for us all to push ourselves.

Chris

sbr norton · Jul 8, 2011

Interesting to see that others have also seen the need to make cases from billet .A sign of the modern times we live in mabey.The sbr norton is an 80.4 stroke ,750 commando based engine, racer ,using our own cases.Running a stock head with good valves and springs and on methanol fuel the bike is making 80 rear wheel hp.We use a kiwi made tt industries 6 speed magnesium gearbox.This bike has been developed slowly over the last 8 years and currently ridden by top nz Bears rider Steve Bridge #294 of F1E motorcycle works.Both Steve and the late Dobsy #198 ,have had many wins on this bike in N.Z.C.M.R.R and Bears events in NZ and Barry Sheene Festival of Speed events in Australia.We are currently developing a cylinder head to compliment the rest of the engine package.

jseng1 · Jul 9, 2011

What about the frame?

swooshdave · Jul 9, 2011

jseng1 said:
What about the frame?

I don't think they will make that from billet.

:mrgreen:

Flo · Jul 9, 2011

Always makes me wonder, if someone could make the crankcases to make a Vee four, or even a square four - or even a straight four!
What a bike that would be. What a sound.

lcrken · Jul 9, 2011

Flo said:
Always makes me wonder, if someone could make the crankcases to make a Vee four, or even a square four - or even a straight four!
What a bike that would be. What a sound.

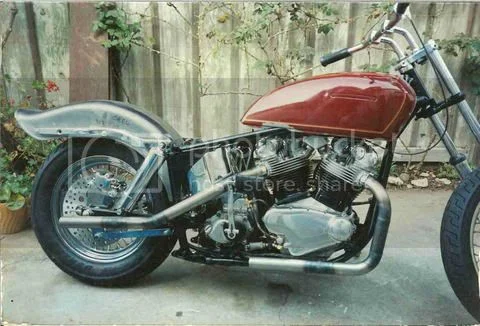

You mean like this?

Ken

Flo · Jul 9, 2011

Does it go?
I want to hear it.

lcrken · Jul 9, 2011

Flo said:
Does it go?
I want to hear it.

It was running, but the owner parked it a few years ago to make some changes, and hasn't got back to it. I previously posted more info on it somewhere on the forum, but I don't have the link. You can probably find it by searching for V4 or V-4 Norton.

Ken

lcrken · Jul 9, 2011

I can't seem to find my post about the V4. Maybe my memory is misleading me. I'll start a new post with all the info I have.

Ken

willh · Nov 24, 2011

lcrken said:
I can't seem to find my post about the V4. Maybe my memory is misleading me. I'll start a new post with all the info I have.

Ken

Link please.

Hobot · Nov 24, 2011

http://www.asphaltandrubber.com/racing/ ... or-motogp/
