1962 Model 50/ES2 petrol taps
- Thread starter fireflake
- Start date
- Joined
- Nov 29, 2013
- Messages
- 613
Possibly a ewarts as fitted to the Dommies ,not easily found . The main problem is you need a single tap with a reserve function and a decent standpipe in the tank . The Ewarts type were marked to explain the action . pull for on, then turn and pull again for reserve.
Interbak
VIP MEMBER
- Joined
- Jan 21, 2015
- Messages
- 213

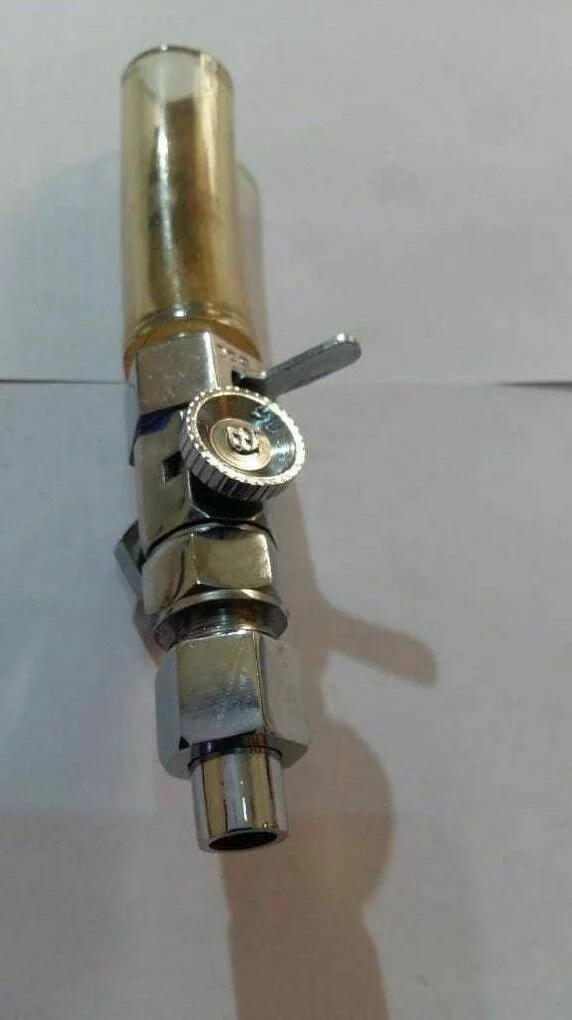

I’ve got this style, advertised as correct for Atlas, ES2 etc. the Indian copies are crap. I got a much better Brit made one from Hitchcock’s, but the stand pipe was still too short and I had to make a sleeve to extend it. They don’t show it on their website anymore. I think the Edwarts type would be much better, if you can find one!
texasSlick
VIP MEMBER
- Joined
- Jan 2, 2013
- Messages
- 4,258
This is the style used for Atlas, at least early,1962 to perhaps 1964, and perhaps beyond.
The one shown above may work for an ES2, or Model 99, but IMO has insufficient flow rate for a 650 Dommie or 750 Atlas.

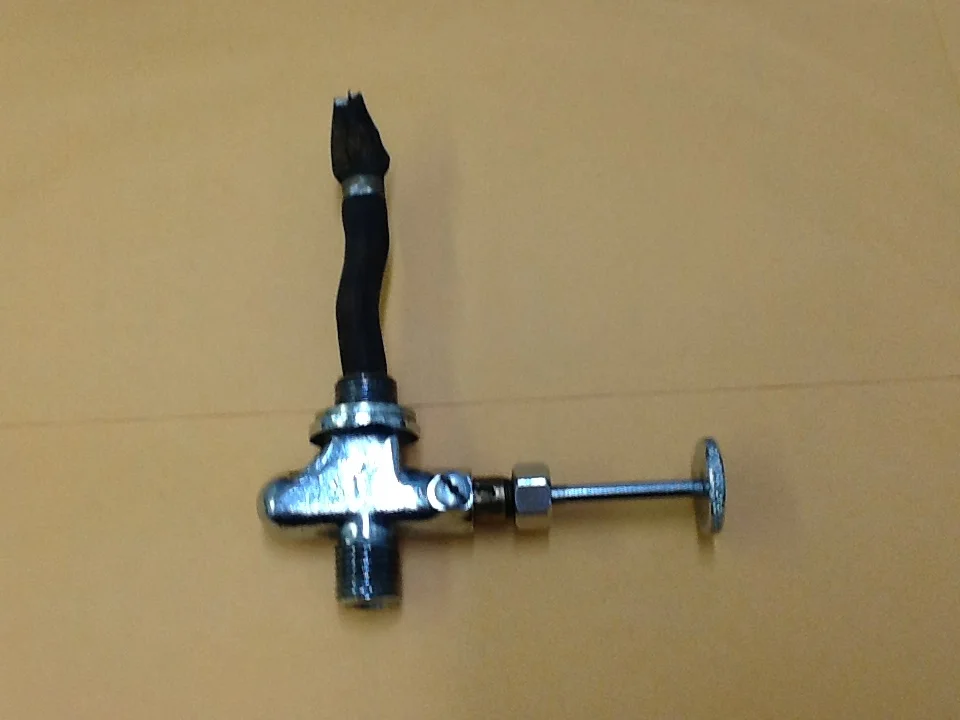

This is an Ewarts, Pull On Main; twist 90 degree, Pull for Reserve. Actually, the second pull merely locks the tap in the Reserve position.
More info for this tap may be found at:
www.accessnorton.com
Slick
The one shown above may work for an ES2, or Model 99, but IMO has insufficient flow rate for a 650 Dommie or 750 Atlas.
This is an Ewarts, Pull On Main; twist 90 degree, Pull for Reserve. Actually, the second pull merely locks the tap in the Reserve position.
More info for this tap may be found at:
Flow Measurements on Ewarts Fuel Tap
A thread on the Commando Forum piqued my interest to make some flow measurements on an Ewarts fuel tap as used on the Atlas. The tap is pull for Main, and twist 90 deg. for Reserve. I measured the fuel delivery to the float chamber of the Monobloc carburetor, which included flow resistance...
www.accessnorton.com
Slick
