primary chain hydraulic tensioner assembly doesnt make sense

Joined
Jun 9, 2008
Messages
1,532
Country flag
Great, the same as the the one I just removed from the sample bike, and the purchasing records going back to when Renolds could no longer supply the kits.


guest76

Guest
Joined
Nov 5, 2012
Messages
1,034
@Madnorton - Ashley, could you pull a couple from stock and see if the dimensions of the components are as far removed from the originals as reported?

It would be interesting to find out of the reported incident is a one off.

Thanks!

Joined
Jun 9, 2008
Messages
1,532
Country flag

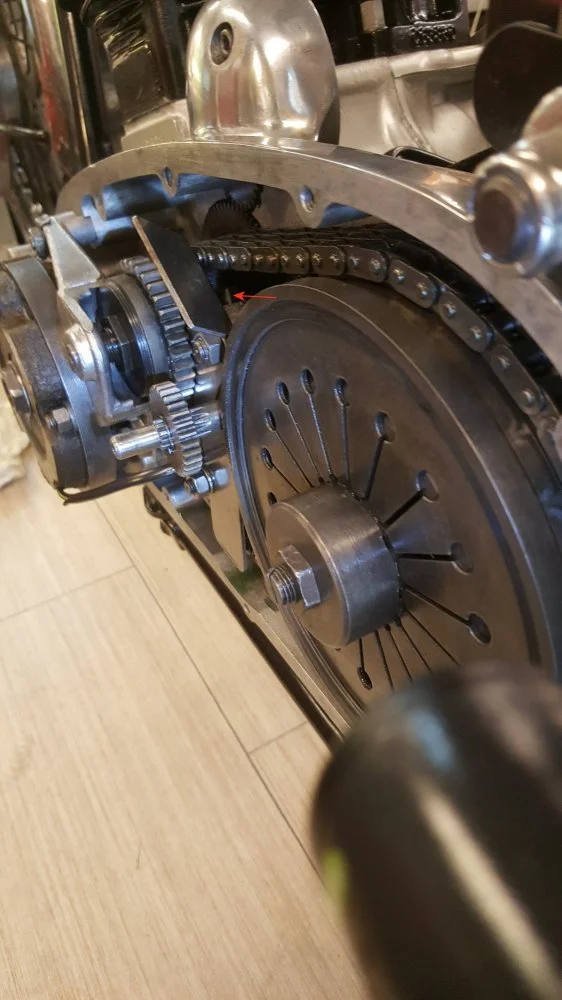

They sure are, 3.2'' I also have a tensioner kicking around at home from the project bike, will climb into the loft and check it tonight. Being a MK3 owner myself I have an interest in this one.


p400

VIP MEMBER
Joined
Jul 14, 2014
Messages
1,198
Country flag
i dont see the starting spring length as the issue here, but the coil count is important. 26 vs 29

The part creating the issue is the new replacement plunger with a "shortened" bore depth.....unable to accommodate the white plastic piston at the correct depth and unable to accept the 29 coil count spring.

This shortened bore depth places the white plastic piston at the wrong relationship to the small hole in the plunger tube.


guest76

Guest
Joined
Nov 5, 2012
Messages
1,034

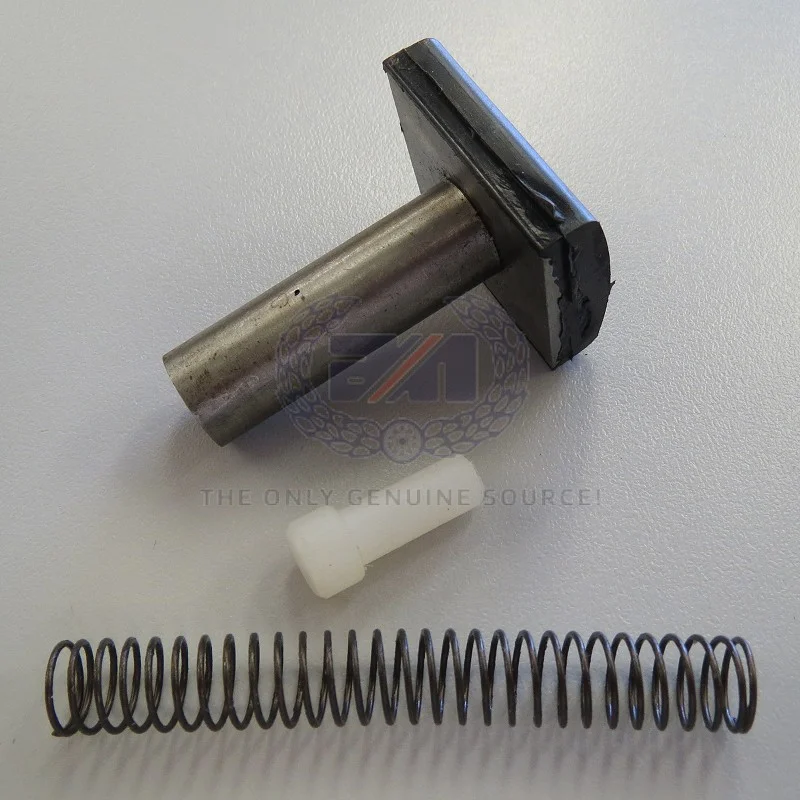

@p400 your white plastic piece and spring both look different to the ones in the Andover kit 06.5341 https://andover-norton.co.uk/en/shop-details/16496/p-chain-tensioner-plunger-69-0622-2-per-bike-


The coil count on the Andover spring is indeed 29, but the coils look closer together than on your spring.

The thick ‘head’ part of the white plastic piece also looks thicker on the Andover picture compared to yours.


jimbo

VIP MEMBER
Joined
Sep 25, 2004
Messages
1,752
Country flag
FYI,installed the original plastic pieces with their heads toward the springs as determined to be correct. When riding the bike I cannot feel or notice any difference compared to when I had the plastic piece the wrong way. It might take a while for the plungers to pump up, but there is still some slap at certain times .


p400

VIP MEMBER
Joined
Jul 14, 2014
Messages
1,198
Country flag

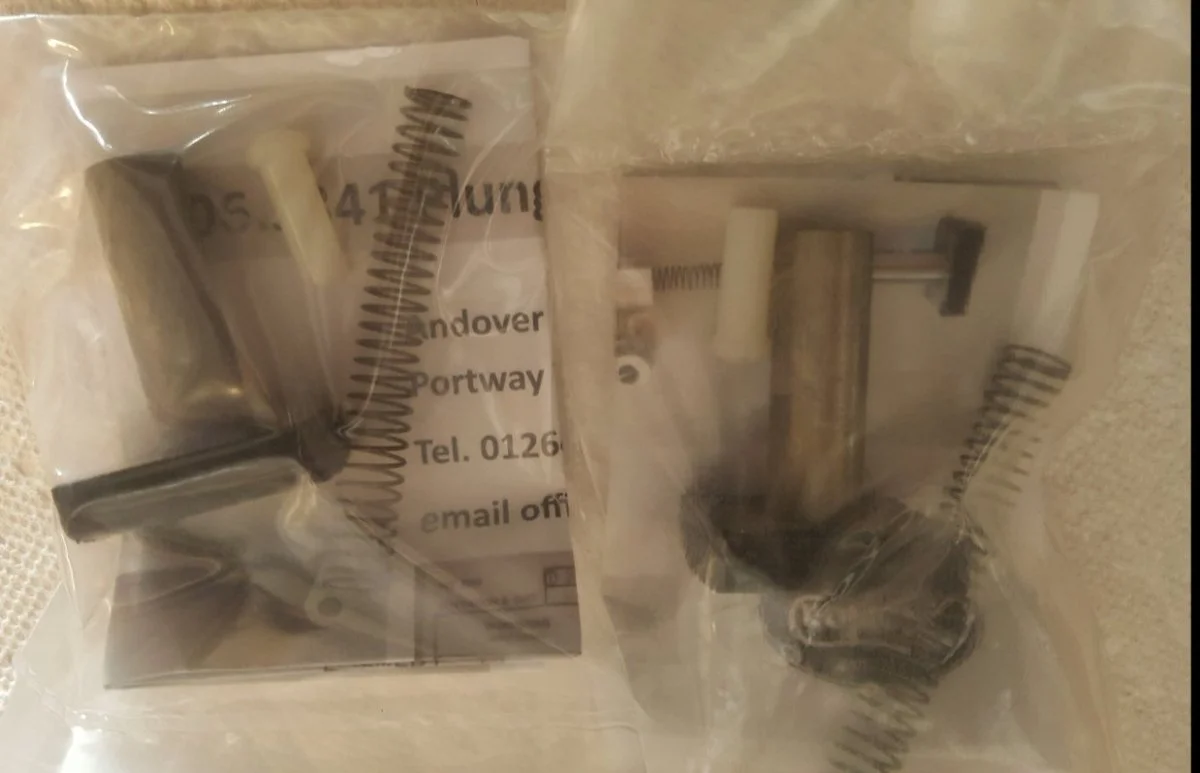

Just received two new tensioner kits 06.5341

It is supplied with a white plastic pistons as shown (not as pictured on web site)
29 coil spring , length 3.2"

The problem is still the bore length in the new plunger at 1.745"
instead of the required 1.895" to match original configuration.

I am also not seeing any discussion , on this forum/thread, around the ball check in the alloy body.



p400

VIP MEMBER
Joined
Jul 14, 2014
Messages
1,198
Country flag
What are the service implications of this Primary chain tensioner ball check?

Needs no service ever?

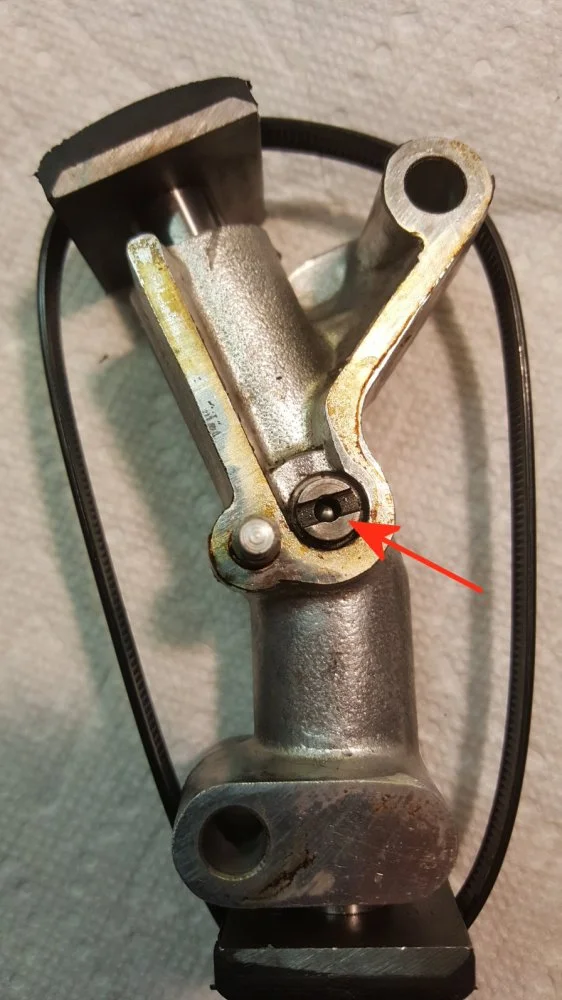

The ball check shown below is free to roll about. Should it be spring loaded?




p400

VIP MEMBER
Joined
Jul 14, 2014
Messages
1,198
Country flag
My issue is the ability to install the new Andover pieces and have a functioning primary chain tensioner.

The Andover supplied plunger is too short internally and this creates two problems
1. the white plastic piston does not relate to the plunger bleed hole as OEM.
2. when Andover white plastic piston and 29 coil count spring installed as the blueprint shows, the tensioner cannot fully retract on either end as OEM.
3. This inability for the plunger to retract, at least on the top run of primary chain, forces the top run of chain upward.....and this means the plunger foot is going to be "chainsawed" into rubber bit failure.

This issue does not occur with OEM pieces/dimensions.

What are Norton Mk3 owners doing?



MichaelB

"Sons of Arthritus"
VIP MEMBER
Joined
Jan 14, 2004
Messages
1,572
Country flag
With the longer spring and shorter depth, will it work with the white piece reversed?
If not, A/N has a real pile here.


p400

VIP MEMBER
Joined
Jul 14, 2014
Messages
1,198
Country flag
I am not worried about my Mk3, but this maintenance is not my Mk3.
This particular Mk3 had the white plastic piston installed backwards which allowed the plungers to retract.

I was hoping some owner/engineer had resolved how to make this Mk3 tensioner work with whatever new parts were offered.
Maybe cut off the white plastic piston, small end, until it matched the OEM relationship with the bleed hole.
1.895 - 1.745 = 0.150"
Then cut off 3 coils off a 29 coil spring to match coil bound length of OEM.

Or does someone supply correct pieces?

And what about the ball check?

Maybe when all the new Andover pieces are put together it all works (retracts)?
(This would mean the white plastic piston position and tiny bleed hole were not important?)

Last edited:

jimbo

VIP MEMBER
Joined
Sep 25, 2004
Messages
1,752
Country flag

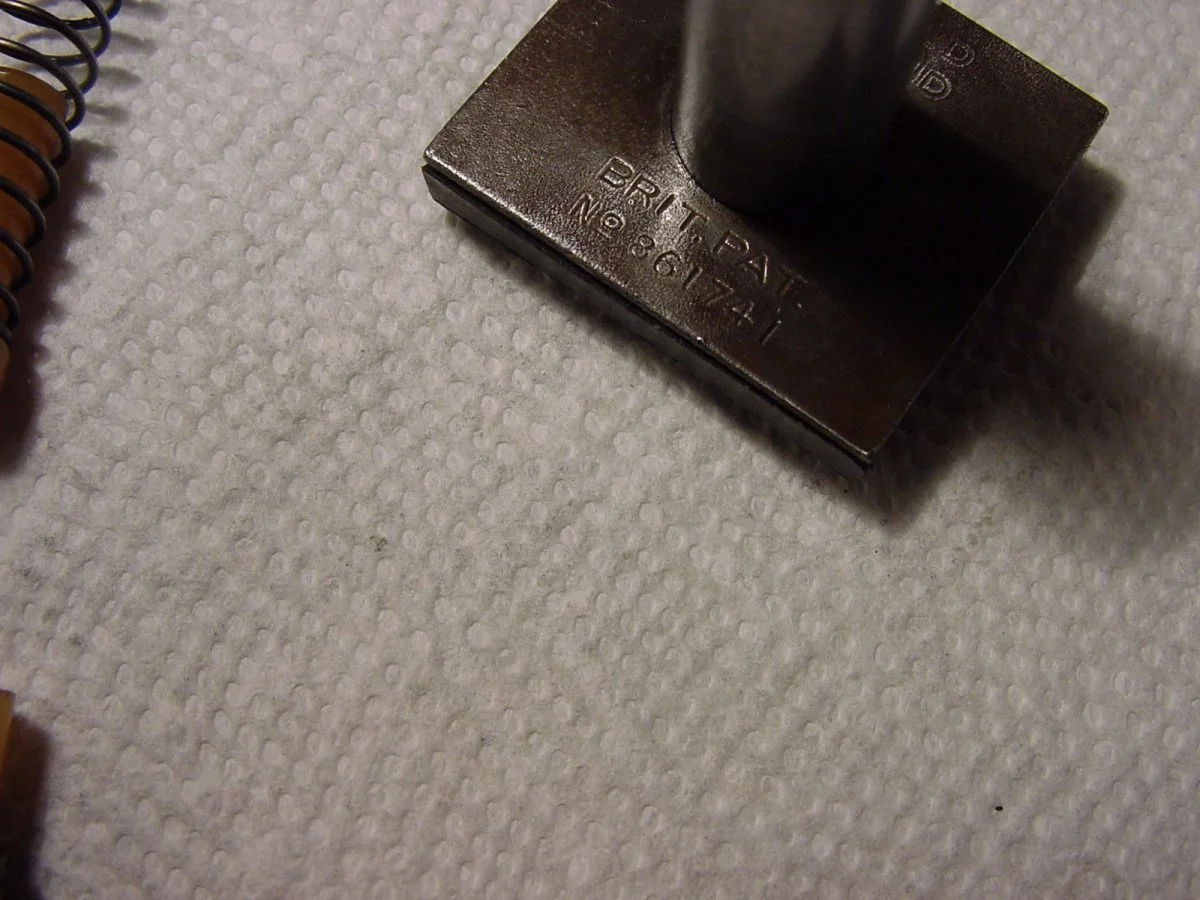

If the patent has listed names( you can look it up), try to contact those persons. I did that with John Favill the co-inventor of the "Bean Can" mufflers and had a very nice correspondence with him. Other wise you will need to reverse engineer the assembly.


Joined
Jan 1, 2005
Messages
183
Country flag
Precisely, so you've replaced incorrectly dimensioned parts with more of the same, but you bought an original plunger kit so why not use it on the top run?



This particular Mk3 owner is still happily using original parts.

This Original MKIII owner is still running OEM parts @ 74k miles.
Ride On
Dave

Joined
May 28, 2003
Messages
2,603
Country flag
I found one set of my tensioner components. lengths, wire size and 26 coils all same as LAB.
Any reason not to shorten the nylon spacers by the .150 difference in depth of the short bore?
Air purge and bore oiler bleed hole will then align roughly to the top of the nylon spacer.
Then shorten the nylon piston another .116" so the 29 coil long spring will not get coil bound.
All in all, mainly a slightly stiffer pair of springs against the pistons/chain.
Top tensioner is the quick reacting piston and the bottom one get slowly filled from the top tensioner and is only slowly allowed to bleed off through the air/oiler holes. Hope the tiny fill hole never gets a bit of grit or black sludge/residue from a fiber friction plate.
Started to formulate a theory on the detrimental effect of the black sludge on the sprag performance.


jimbo

VIP MEMBER
Joined
Sep 25, 2004
Messages
1,752
Country flag
Other wise you will need to reverse engineer the assembly.
I found one set of my tensioner components. lengths, wire size and 26 coils all same as LAB.
Any reason not to shorten the nylon spacers by the .150 difference in depth of the short bore?
Air purge and bore oiler bleed hole will then align roughly to the top of the nylon spacer.
Then shorten the nylon piston another .116" so the 29 coil long spring will not get coil bound.
All in all, mainly a slightly stiffer pair of springs against the pistons/chain.
Top tensioner is the quick reacting piston and the bottom one get slowly filled from the top tensioner and is only slowly allowed to bleed off through the air/oiler holes. Hope the tiny fill hole never gets a bit of grit or black sludge/residue from a fiber friction plate.
Started to formulate a theory on the detrimental effect of the black sludge on the sprag performance.

Joined
Jan 31, 2010
Messages
2,458
Country flag
Frankly, at least 50% of the replacement parts I have purchased need some sort of fettling to fit - this has even included such mundane items as fasteners whereas all original parts, whether NOS or used, interchange with no issue at all. ;)

One example - I received a new air filter back plate for my '73 Commando with the tabs for the bolts in the wrong location. They would not align with the filter/front plate in position.I had to cut the tabs off and tack weld them in the correct location.

Last edited:

p400

VIP MEMBER
Joined
Jul 14, 2014
Messages
1,198
Country flag
It is becoming obvious when disassembling other Mk3 primary chain tensioners............and finding the plastic piece the wrong way and the spring stretched out to a new, longer free length...........and finding that this "wrong" orientation has worked seemingly okay for thousands of miles.....that the "wrong" way works reasonably well.

Why does the Andover included drawing show a configuration that does not work in practice?


L.A.B.

Moderator
VIP MEMBER
Joined
Nov 20, 2004
Messages
16,621
Country flag
Why does the Andover included drawing show a configuration that does not work in practice?

You'd really have to ask Andover Norton as they are (or at least were) unaware their tensioner parts aren't made to the original dimensions.
