P11 Lucas headlamp

elefantrider · Dec 12, 2016

Is this called a Lucas 700? What other bikes did they come on? Need to find one, my glass is now broken.

BillT · Dec 14, 2016

Yeah, they should all be the same lucas reflector - 700ss?

Careful if you get one of the Indian ones on ebay with the bulbs - they may be 6V. Still worth the price, though.

elefantrider · Dec 16, 2016

Thanks Bill, I cannot put an India headlight on this bike so will need to wait until an original one comes up on eBay.

elefantrider · Jan 11, 2017

Are the originals sealed or can you just replace the glass lens?

BillT · Jan 11, 2017

It's a lens with integral reflector. Two holes in the reflector - one for the main bulb with a metal trim to hold the bulb socket, one for the pilot light with a rubber grommet to hold the bulb.

CanukNortonNut · Jan 11, 2017

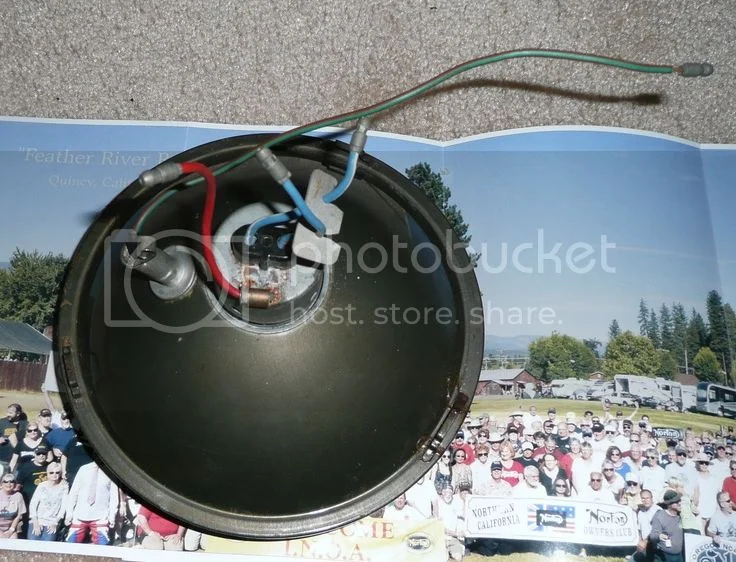

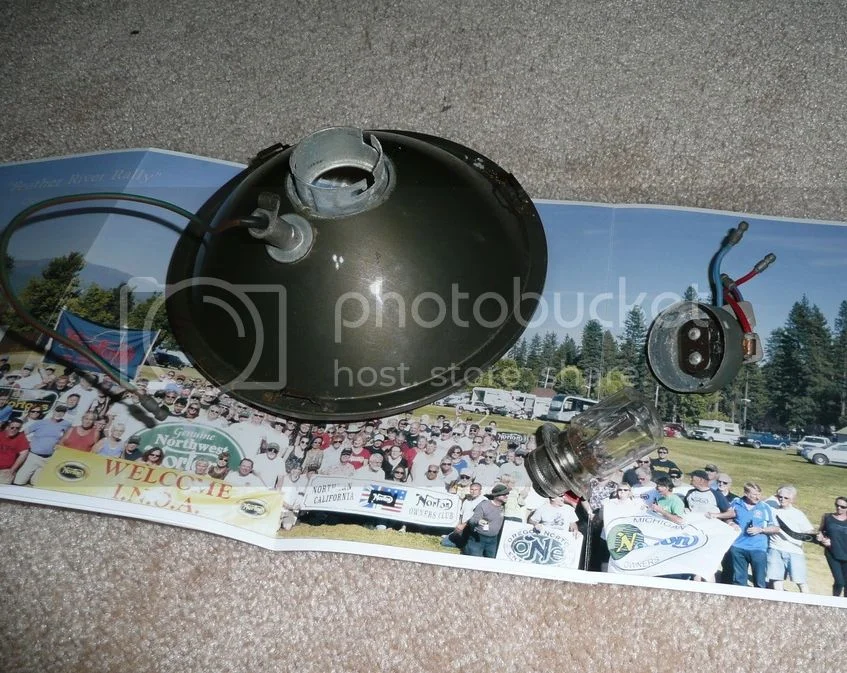

Kind of like one of these:

Hi/Lo is 45/40 watt and a 5 watt pilot bulb for park or daytime running.

Cheers,
Thomas

elefantrider · Jan 12, 2017

Many thanks. I am away from my bike so could not determine for myself.

I need to buy one since my bike fell while on the side stand and shattered it.
If anyone has a spare they can sell, please contact me via PM.

Ron L · Jan 12, 2017

The reflector should be the same as Commando, Triumph, BSA, etc. as long as it is 7 inch and not 5 3/4 as used on Hi-Rider and some Triumph and BSA. These are also available in Bosch, WiPac and others to accept a halogen bulb if you are not after the Lucas logo. You would need to also install a standard bulb connector for the halogen type.

CanukNortonNut · Jan 13, 2017

elefantrider said:
Many thanks. I am away from my bike so could not determine for myself.

I need to buy one since my bike fell while on the side stand and shattered it.
If anyone has a spare they can sell, please contact me via PM.

elefantrider,
I don't want to part with mine but....
Try asking in the Wanted section in the forum. :idea: You might get more bites.
Cheers,
Thomas

elefantrider · Jan 24, 2017

Is the one in the above photos correct and original to 67-68? Is there supposed to be a date code molded in the front glass?

elefantrider · Nov 30, 2017

Anyone know if Lucas headlamp PNs 553753 and 516798 are interchangeable?
