oil dripping out of top of primary

Sorry Head ment to say ATF brand F the old brain not thinking to good today ( auto transmission fluid brand F)

kommando said:
Any Ford dealer with have the Ford compatible ATF, Vauxhall/Opal will have the GM version which is slightly better.
Click to expand...
Polaris used Type F in the front wheel sprag drives in ATV's.
(US availability)


Ford transitioned from Type F to MERCON/DEXRON about 1977. Kinda hard to find in stock in the US.

I have used synthetic DEXRON (Mobil 1, and Amsoil) 35,000 miles in the Commando, Barnett plates.

No slippage.
Ever.

JMWO

ashman said:
Sorry Head ment to say ATF brand F the old brain not thinking to good today ( auto transmission fluid brand F)
Click to expand...
i got ya bud, going to see can i get it local, im going to replace the oring seal anyways so will drain all the 20?50 out of it

Any automotive supply store should carry ATF type F (not a brand). Very common.
Regarding possible damage from crankseal failure, immediate issue will be primary filling with engine oil while riding, to the point where it comes out the felt seal and all over back of bike, onto rear tire etc. If not noticed, you could have a crash.

Happened to my bike after starting with a wet sump condition. Blew the crankseal in to two pieces and had an oil soaked tire after 30 min ride.

Head said:
Folks how do I load same videos and pics
Click to expand...

You need to be a VIP member to upload pictures.
Non-VIP members must use a picture-hosting website.
You need to upload videos to youtube or another video hosting site.

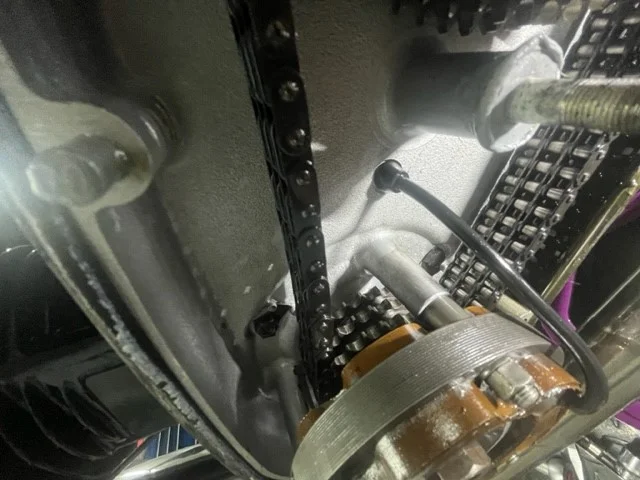

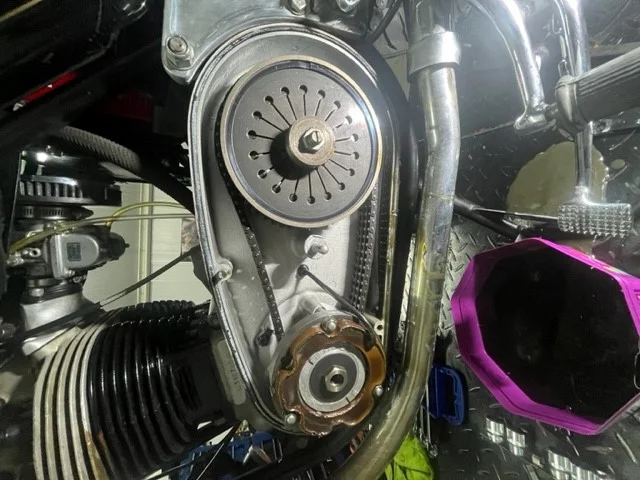

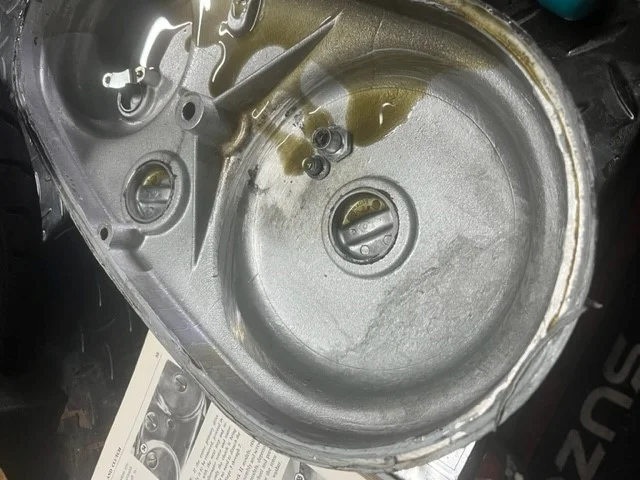

few pics folks


Attachments

  • oil dripping out of top of primary
    94 KB · Views: 82
  • oil dripping out of top of primary
    78.9 KB · Views: 81
  • oil dripping out of top of primary
    84.3 KB · Views: 85
Can't see much as they are not big enough to see detail, but the use of sealant and marks on the joint surfaces show you need a new seal and the surfaces need attention. High spots are much more likely to cause a leak than low spots, so dress the mating surfaces to remove any high spots, a flat file will remove the high spots and leave a flat surface as long as it always touches both sides to keep it level.

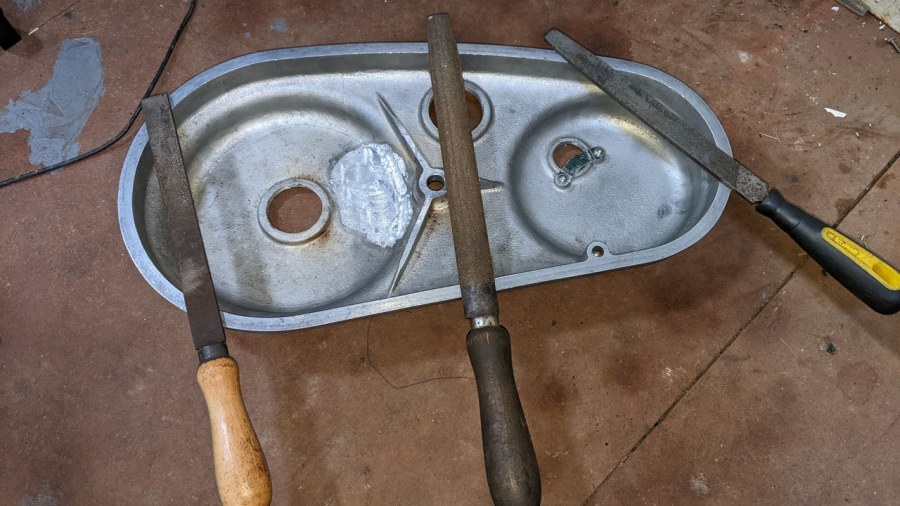

Correct way to use a file, note each file touches the cover in 2 places.

oil dripping out of top of primary

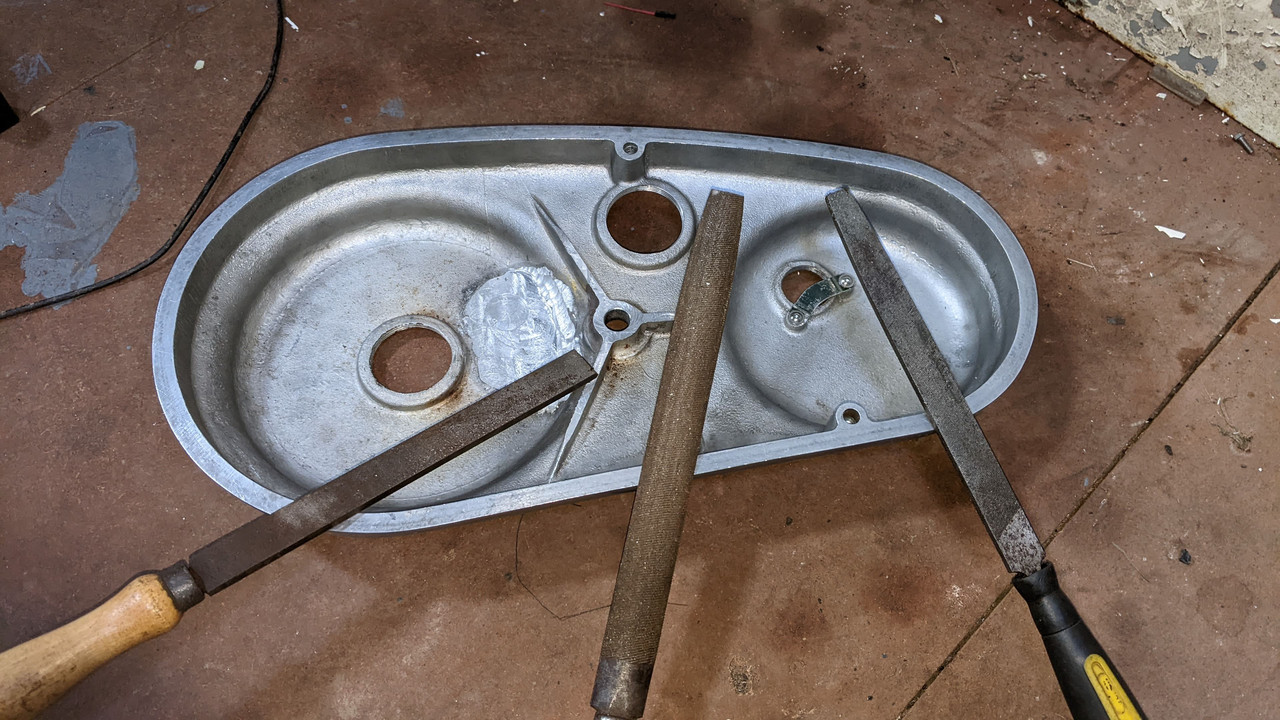

Wrong way and could scrap a casting

oil dripping out of top of primary

Last edited:
That oil container full of oil is that what came out of the primary case, if so way too much oil or did you do a oil change from your motor.
As I said should be no more than 7floz.

When you put a new sealing rubber in do not and I mean do not over tighten that centre bolt nut, over tightening it will warp the outer cover and you will get leaks, just tight enough for the seal to do its job, so many over tighten the nut thinking the tighter the better but it's not.

ashman said:
That oil container full of oil is that what came out of the primary case, if so way too much oil or did you do a oil change from your motor.
As I said should be no more than 7floz.
Click to expand...
no thats old oil i used there was feck all came from primary

ashman said:
When you put a new sealing rubber in do not and I mean do not over tighten that centre bolt nut, over tightening it will warp the outer cover and you will get leaks, just tight enough for the seal to do its job, so many over tighten the nut thinking the tighter the better but it's not.
Click to expand...
That bolt joint is designed to shoulder up. That is, when properly shimmed, the shoulder nut pulls the cover snug enough to compress the gasket, and then hits the shoulder.
A well engineered setup that is not sensitive to over torquing.

kommando said:
Can't see much as they are not big enough to see detail, but the use of sealant and marks on the joint surfaces show you need a new seal and the surfaces need attention. High spots are much more likely to cause a leak than low spots, so dress the mating surfaces to remove any high spots, a flat file will remove the high spots and leave a flat surface as long as it always touches both sides to keep it level.
Click to expand...
thanks buddy

concours said:
That bolt joint is designed to shoulder up. That is, when properly shimmed, the shoulder nut pulls the cover snug enough to compress the gasket, and then hits the shoulder.
A well engineered setup that is not sensitive to over torquing.
Click to expand...
thanks buddy, it was not that tight and like i said earlier it only leaked in one area at the top, new seal ordered
