Damaged center bolt hole on cylinder barrel

Daytonachuff · 2026-07-02T21:34:50-0600

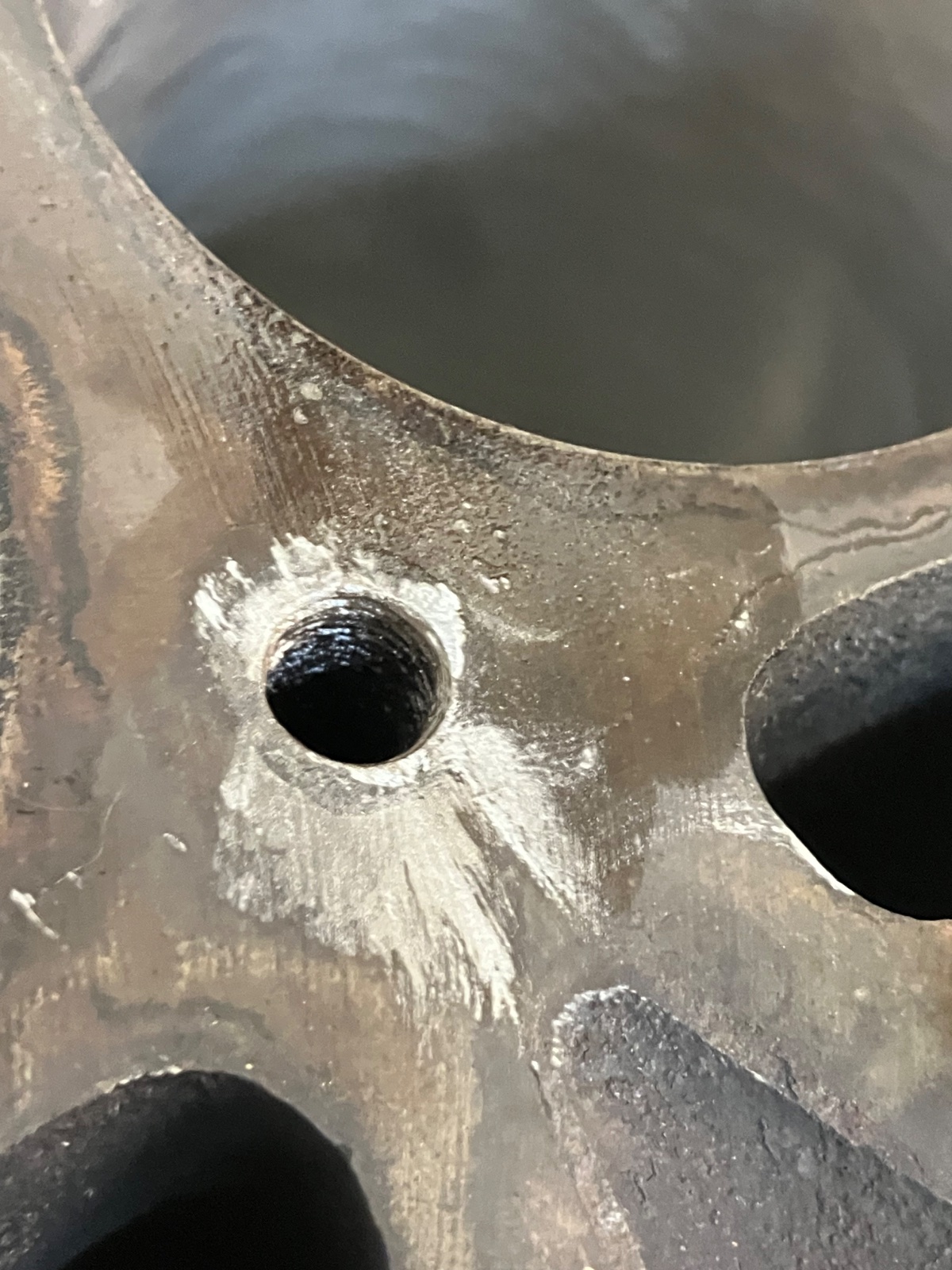

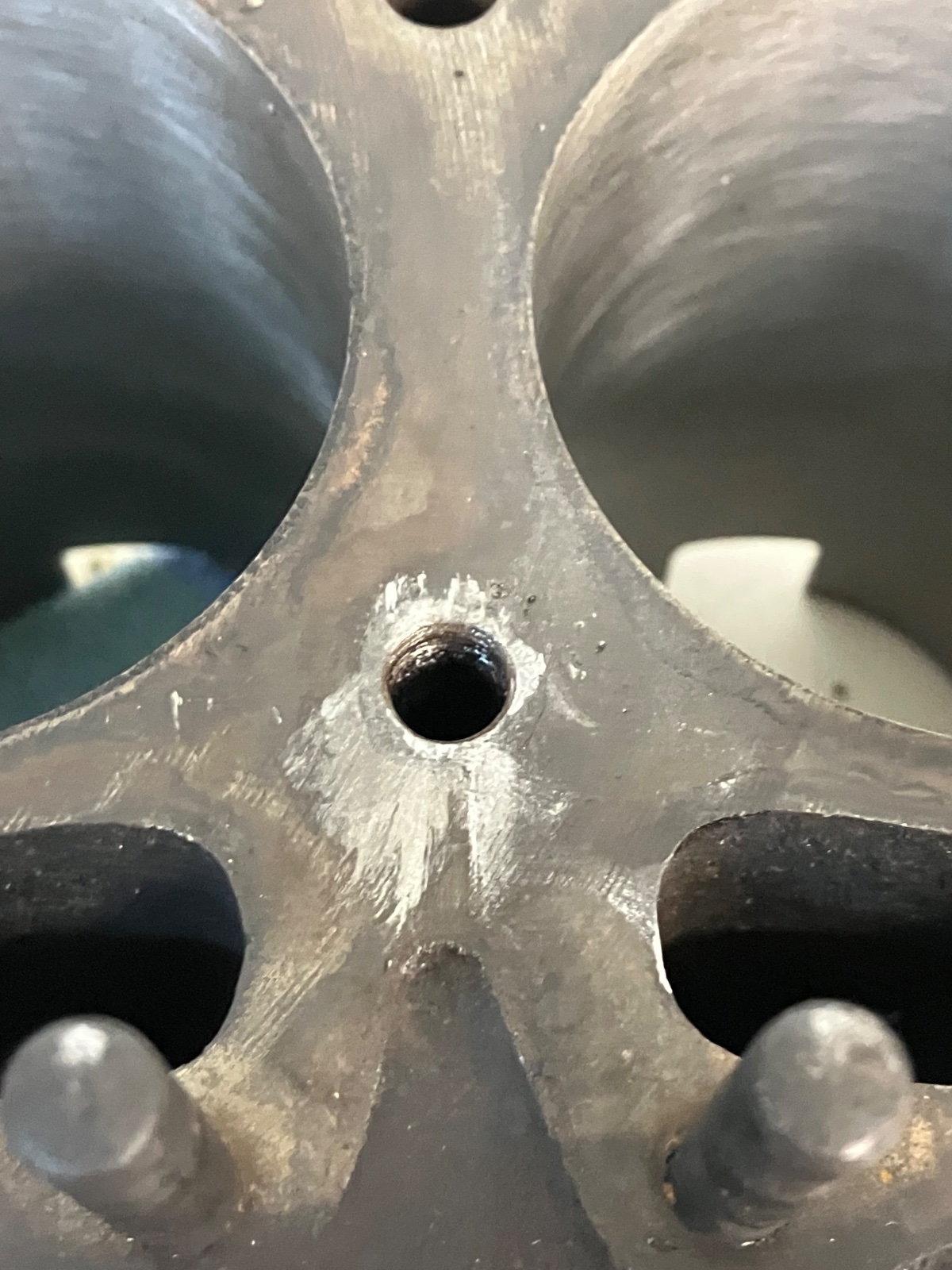

I removed the head off a 72 Commando. Whoever assembled it last did not install the center bolt on the head . The threads on the cylinder barrel look ok but distorted a bit from corrosion/heat. Was considering a Tap to try to clean it up except I’m trying to figure out the size to use. Has anyone done this ?

Torontonian · 2026-07-02T22:17:47-0600

The center bolt is the most important one . Also the most difficult one to access , a 6 " extender to a whitworth socket .

dobba99 · 2026-07-03T00:02:14-0600

Daytonachuff said:
I removed the head off a 72 Commando. Whoever assembled it last did not install the center bolt on the head . The threads on the cylinder barrel look ok but distorted a bit from corrosion/heat. Was considering a Tap to try to clean it up except I’m trying to figure out the size to use. Has anyone done this ?

3/8" x 26TPI

ludwig · 2026-07-03T02:34:26-0600

About that bolt: you would do well to replace it with the same as the outer 4 bolts, and an alu spacer to compensate for the difference in length. ( = 5 identical head bolts)
