Cush drive buffer question

Skyguyz · Nov 28, 2011

Getting ready to assemble my rear 74 mk2 hub. The "Cush drive buffer" parts come in two sizes, thick or thin. Having never delt with this type drive system, which three should I get? (I know, noob question. Thanks in advance!)

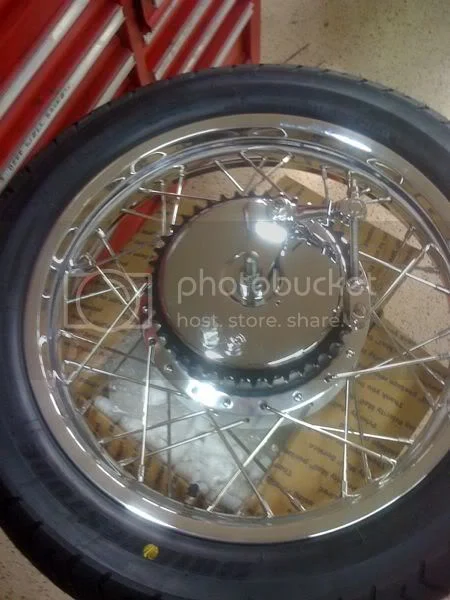

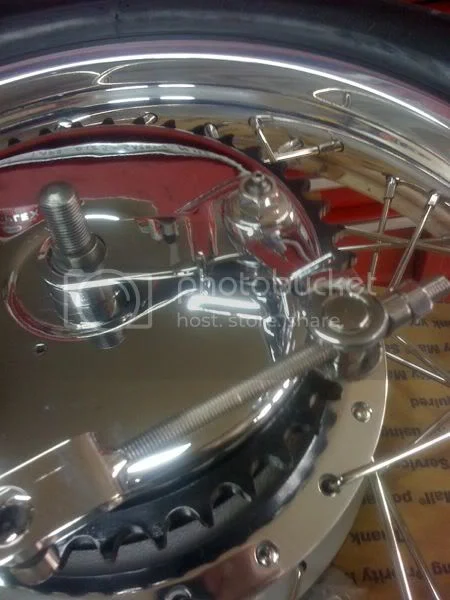

Rear chrome brake plate, CNW style. Alloy rim SS Buchanans spokes and associated zinc plate parts on new milled sealed bearing 520 X ring hub. BLING!

Nortarly · Nov 28, 2011

Skyguys,
You need all 6 three thin and three thick and the thin ones to the drive side of the paddles.
Update I got it backwards Bill's right Thick to the drive side!

bill · Nov 28, 2011

it takes both to make a complete set. three thick on the drive side and thin on the coast side. the drive side is if you are looking at the wheel with one of the hole's they fit in on top the drive is on the left.

Skyguyz · Nov 28, 2011

Thanks guys. I realized that after I found a schematic I could discern, (Old britts) vs my Norton Villers manual.
