Can't break loose a fork drain screw :(

MexicoMike said:
Yeah - I don't have an impact driver here in Mexico. :( I do in Texas!

I'll try heating again - I didn't get it all that hot; I could still touch it with my finger tip.

I thought the 180cc was for forks that had been disassembled and that 150 was for draining/refilling. Do I have that wrong?
Click to expand...
Can you get some small visegrips on the outside of it, I've had great success on rusty brake line fittings etc if you can get the right part if the jaw on the part your unscrewing.

marshg246 said:
On the fork oil I had the same question. I've been using 180cc for clean and dry forks and 150cc for changes. I like the AN tutorials but often come away with "what about" questions.

For future reference:

You need a hammer impact screwdriver, not a powered screwdriver of any type for this. Just an example - lots to choose from: https://a.co/d/3noMx2i

Mine is at least 40 years old and I lost the bit set to I bought this set: https://a.co/d/7qWac8M

It/they have never failed - oil pump screws, sprocket screw, fork drain screws, Norton tach drive screws, Triumph "trap door" screws, and others.

IMHO, you're lucky the powered screwdriver didn't make things worse by destroying the slot or breaking the head off the screw.
Click to expand...
I think the first Motorcycle tool I bought over 50 years ago was a Hand Hammered Impact.
Still have it, been through multiple tips.
Great for removing stubborn screws on old crusty hinges.
The young-uns are usually impressed and ask, what is that thing? ;)

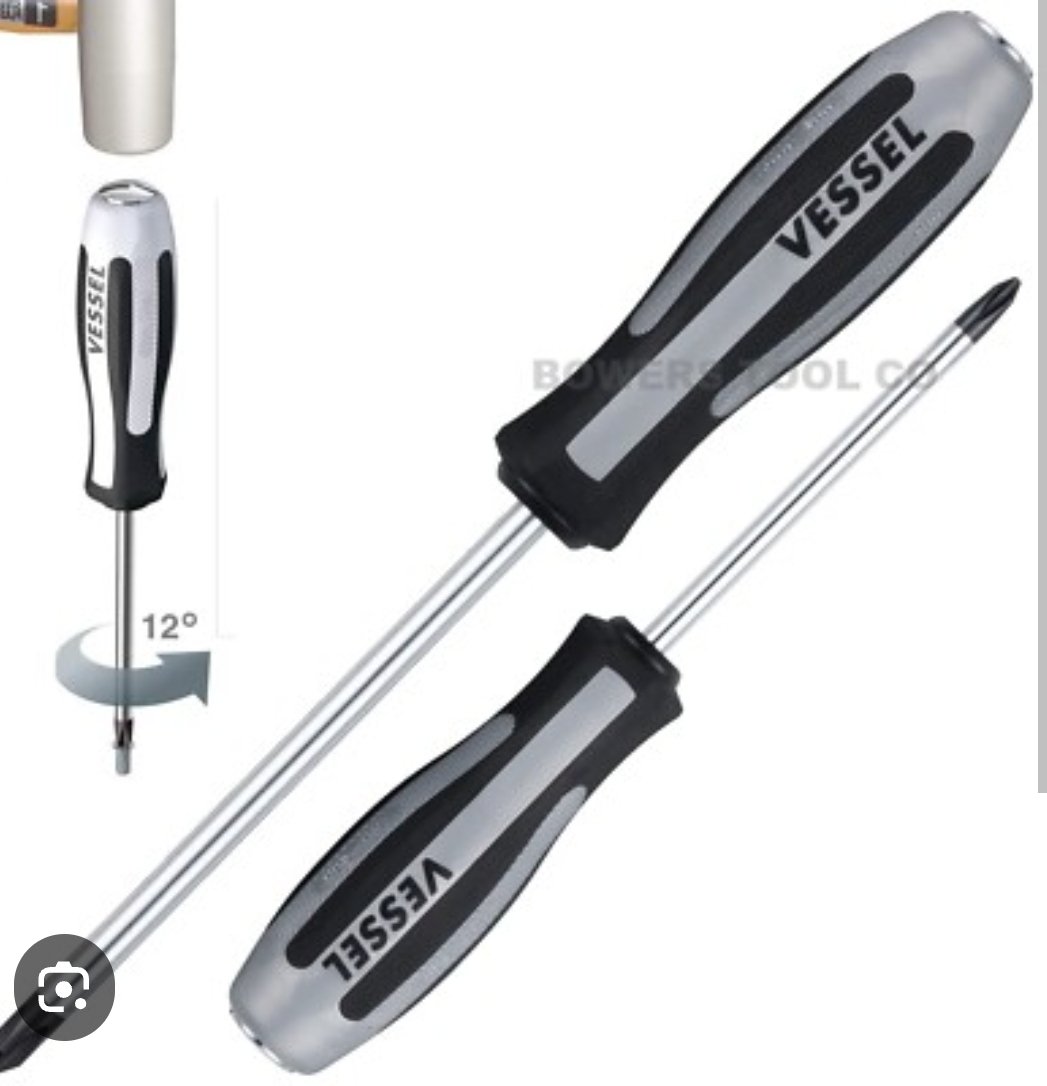

FYI, these are the bees knees...impact type screw driver Vessel:


Can't break loose a fork drain screw :(


As an aside , you can screw in a longer screw to stop the damper from moving during a rebuild . Afterwards , unscrew it and fit the proper one .

marshg246 said:
Sounds good, but those are special screws with short 1/4" UNC threads and a big head. If I remember right, there are only three threads on each. Where to you find Allen screws to replace them and what do you use for the washers then?
Click to expand...

I got the Allen head fork drain bolts from Matt......Pretty and functional.........

MexicoMike said:
Yeah - I don't have an impact driver here in Mexico. :( I do in Texas!

I'll try heating again - I didn't get it all that hot; I could still touch it with my finger tip.

I thought the 180cc was for forks that had been disassembled and that 150 was for draining/refilling. Do I have that wrong?
Click to expand...
You can kinda recreate the effect, ghetto style, by tapping on the handle of a screwdriver with a hammer while turning the handle with the other hand. By NO means a perfect substitute, but you works with what you gots.
