Any TSS owners ?

Discussion in 'Triumph (Classic)' started by Fast Eddie, Sep 19, 2018.

  1. Robert Bays

    Robert Bays

    Joined:
    Dec 14, 2018
  2. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013

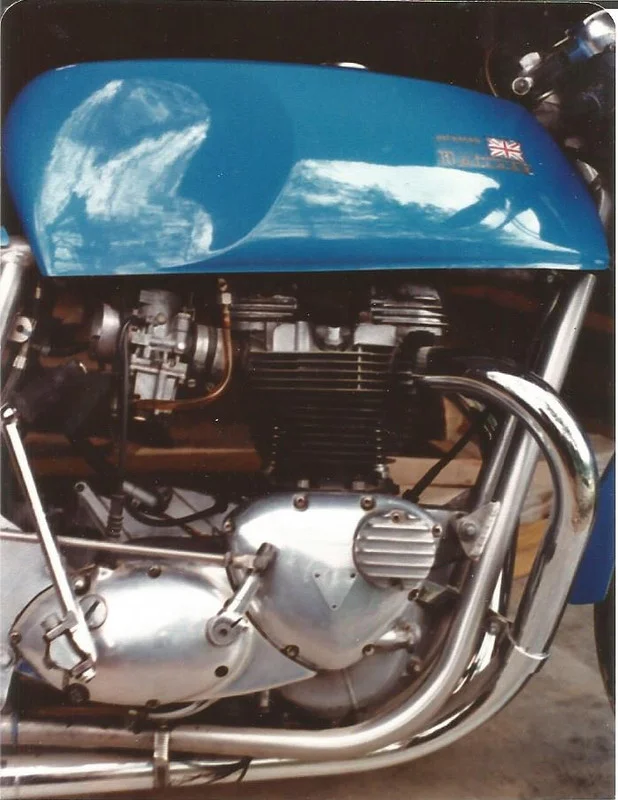

    Very nice looking Rickman.

    Your TSS will eat it for breakfast though !

  3. Robert Bays

    Robert Bays

    Joined:
    Dec 14, 2018
    I actually thought at one point of dropping the TSS motor in the Rickman frame. I even had the TSS head polished out by Big D Cycles in Dallas and bought a 900cc kit from them, but work, kids, life...just never got around to do it. Now I think I'll be content to keep both bikes as they are.

  4. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    I built a 906cc 8 valve Triumph race motor, it was awesome.

    My current Cdo is pretty hopped up and is quick on the road, it’s got 65rwhp. The 906 8 valve produced 84rwhp on the same dyno.

    It would be interesting to see what the Big D kit consists of...

  5. Robert Bays

    Robert Bays

    Joined:
    Dec 14, 2018
    We're headed out for the evening, or I'd take it out of storage and send a pic. It's basically just an overbored block with pressed in liners, overlength stainless steel studs (you have to weld/build up the cases to allow for boring/retapping the longer threaded stud ends) and crank assy balance instructions. I haven't looked at in years...that's all I remember.

  6. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    Leave it in storage Robert, or put it on eBay, that’s my advice. You’ll create a seemingly ever ended list of knock-on jobs if you were tempted to use them!

  7. Hillbilly Bike

    Hillbilly Bike

    Joined:
    Oct 18, 2018
    What's a "Cdo?

  8. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    Commando.

  9. Hillbilly Bike

    Hillbilly Bike

    Joined:
    Oct 18, 2018
    Oh.....Duh.....How do you get 908 cc's from a Triumph? Do you have dyno readouts? I'm interested in that sort of thing..Tim Joyce,a past leading AHRMA Triumph rider was getting about 70-75 RWHP from two valve Triumph 750's with extensively modified heads

  10. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    I also got just shy of 75rwhp from a 2 valve Triumph, but it was 840cc and had squished heads and etc.

    The 906cc wasn’t really a Triumph per se, it was a Nourish in Triumph unIt cases, albeit extensively welded and strengthened, 80.5mm bore and 89mm stroke, 180 degree crank, Dresda cam timing (based on Z cams but with more duration), 38mm carbs and ports, 11.5:1 CR, blah, blah. A very quick bike.

    Actually, IIRC, although it did produce 84bhp on the dyno, that’s not how I raced it. For some reason that I don’t understand, with 1000 series mk1 carbs it produced a much fatter torque and power curve than it did with smoothbores. Whilst the 1000 series carbs produced less peak power, the overall power and torque characteristic were better. I think in this set up it produced 79bhp and that’s how I raced it.

    Last edited: Dec 23, 2018
  11. Hillbilly Bike

    Hillbilly Bike

    Joined:
    Oct 18, 2018
    Have you thought about flat slides? Mikuni TM's are inexpensive and from my experience, easy to tune with great throttle response.

  12. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    I don’t have the bike any more Hillbilly. If I did I would definitely try other carbs. CRs if I was still racing (due to rules) or FCRs if not.

    It would be very interesting to see what kinda difference they made.

  13. Hillbilly Bike

    Hillbilly Bike

    Joined:
    Oct 18, 2018
    Anyone have a stock TSS on a chassis dyno?
