72 Interstate Silencer Brackets

Cuppy

Cuppy

VIP MEMBER
Joined
May 27, 2022
Messages
110
Country flag
Getting near completing a '72, 750 Interstate project but somewhat confused as to fitting of the silencer/foot peg brackets. Bike came with non-stock mufflers and pipes and I just received a proper set from AN.

Wondering if anyone would be willing to post a few pics of a similar bike I could use for reference?

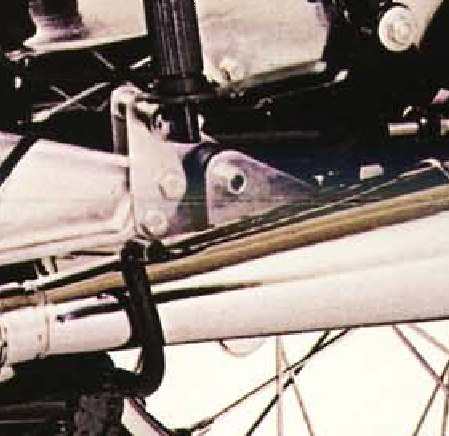

There's only one way the three brackets can be assembled (two onto the Z-plate and triangular plate to the silencer) except for the RH silencer bracket that is fitted with the cranked section inwards (for increased kickstart lever clearance).
andover-norton.co.uk

Motorcycle parts and spares for Norton motorbikes - Genuine Andover Norton Spare Parts - Andover Norton Motorcycles Parts - Original Andover Norton Parts

Motorcycle parts and spares for Andover Norton motorbikes: Andover Norton manufactures and supplies all Genuine Factory Spare Parts for Norton motorcycles built before 2002.
andover-norton.co.uk

72 Interstate Silencer Brackets

74 Commando Interstate muffler brackets

I am finally at the point of installing the exhaust system on My 74 Commando 850 Interstate I seem to be baffled as to how the hanger brackets got together with the isolastics and foot pegs . Can anyone give me some guidance and or a picture of what the mounting brackets look like together I...
www.accessnorton.com www.accessnorton.com

Thanks L.A.B.

So the spacer is between the two on the Z-plate I assume.

Very helpful as it also shows how the silencer just clears the center stand tab.
