Tire Rims for an Atlas

jms · Nov 17, 2023

Anybody ever hear of lacing an Akront shouldered 1.60 (WM1) x 19 rim to an Atlas from hub and an Akront shouldered 1.85 (WM2) to the rear?

3.25 x 19 Roadrider on both or maybe 3.60 x 19 K81's?

elefantrider · Nov 17, 2023

No on WM1, that is too narrow. Tire will not lay right.

jms · Nov 18, 2023

Yea I agree. Not sure why the previous Owner would have done that. Anybody know of the best place to find a WM2 40 hole x 19 shouldered alum rim?

elefantrider · Nov 19, 2023

Ebay, and a lot of patience for a NOS 19" Akront undrilled.
Buying a drilled rim by itself is risky.
The drill pattern is the same for front and rear Norton drums.

kommando · Nov 19, 2023

Atlas would have had an 18" rim on the rear, so the spoke hole angles are slightly different from the 19" front.

Ron L · Nov 20, 2023

WM2-19 shouldered alloy available from Steadfast cycles, Bonneville shop, Ron Fraturelli. WM3-19 from ValterMotoUSA (eBay). All drilled for full width drum brake Norton hub.

jms · Nov 22, 2023

Ron L said:
WM2-19 shouldered alloy available from Steadfast cycles, Bonneville shop, Ron Fraturelli. WM3-19 from ValterMotoUSA (eBay). All drilled for full width drum brake Norton hub.

Thanks

madass140 · Dec 12, 2023

madass140 · Dec 12, 2023

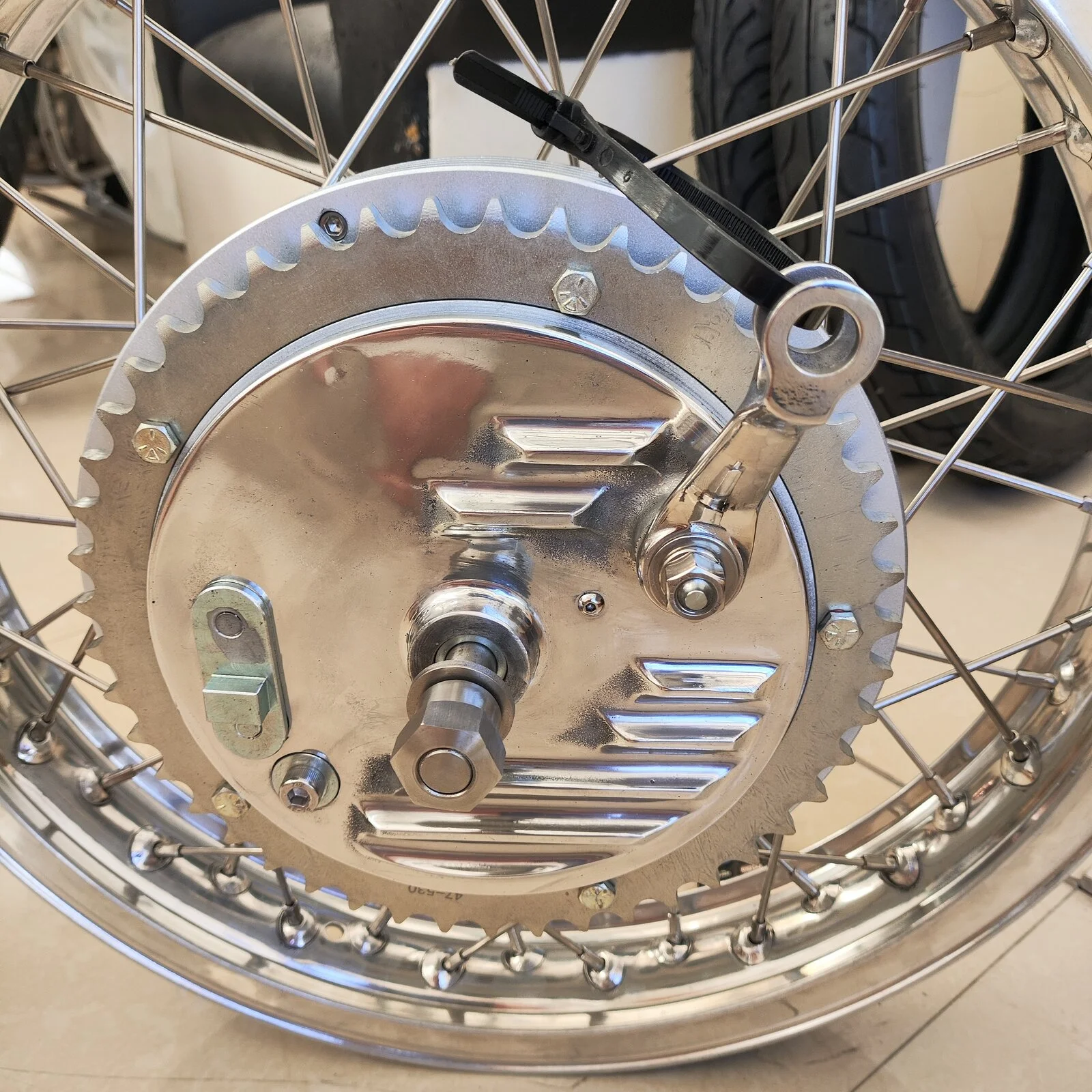

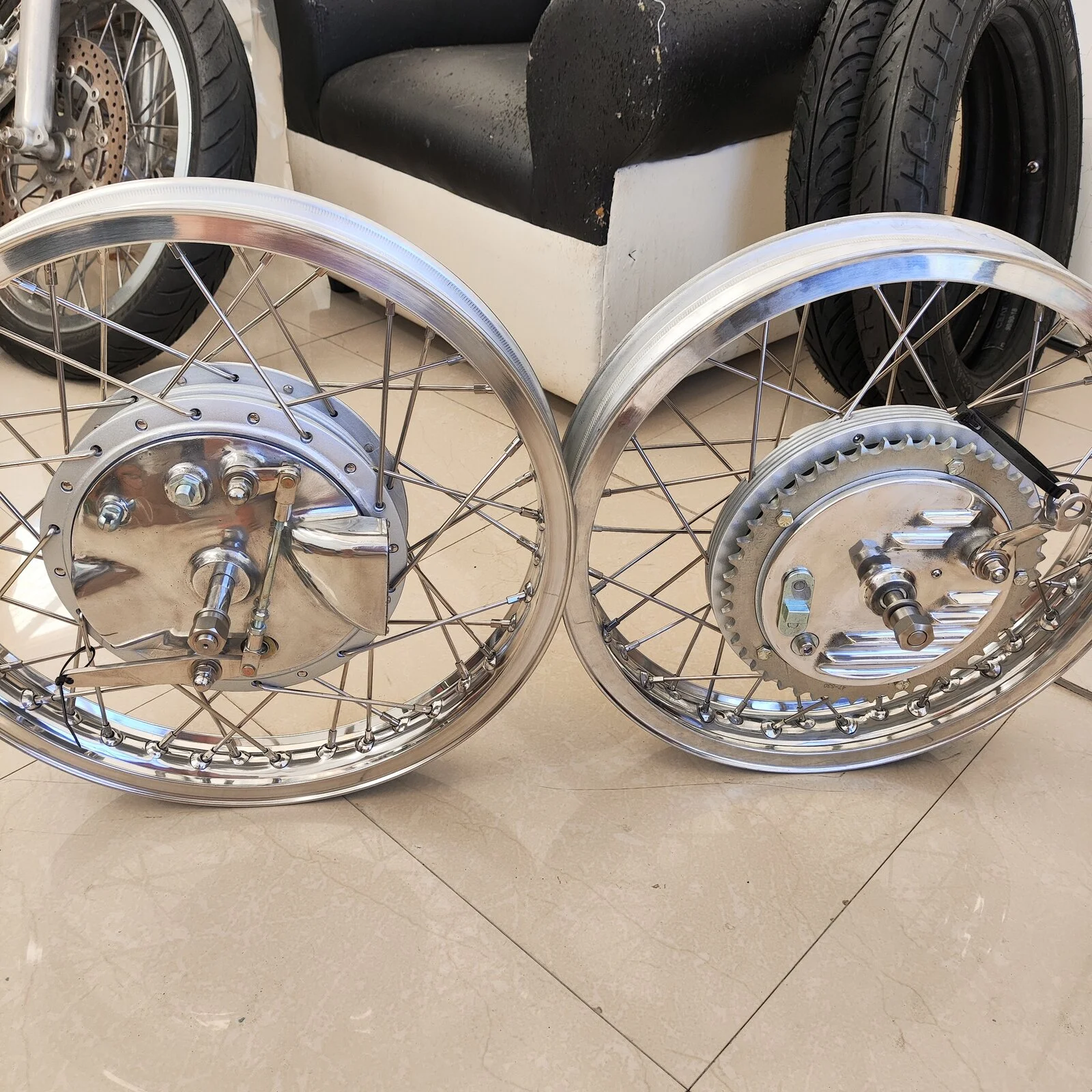

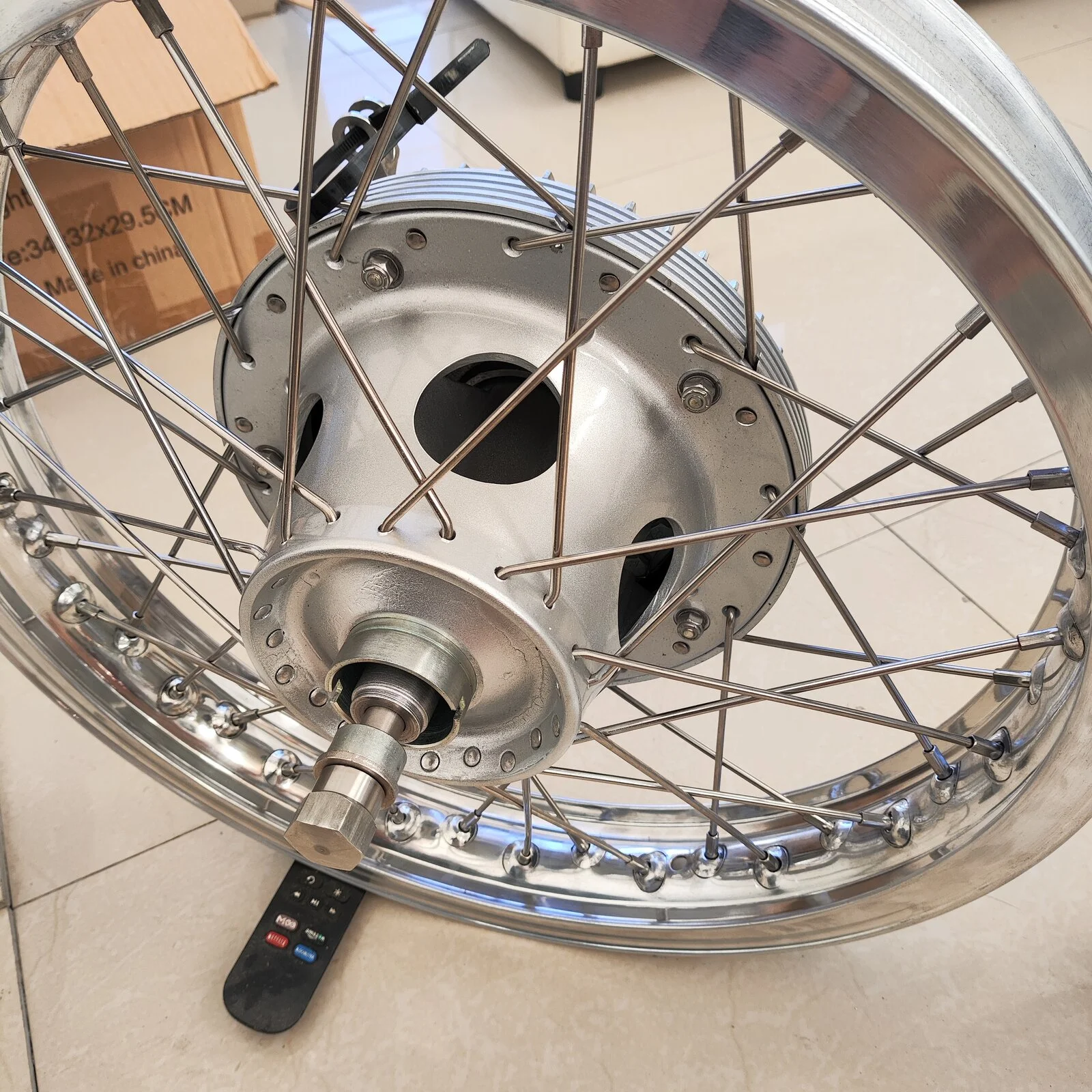

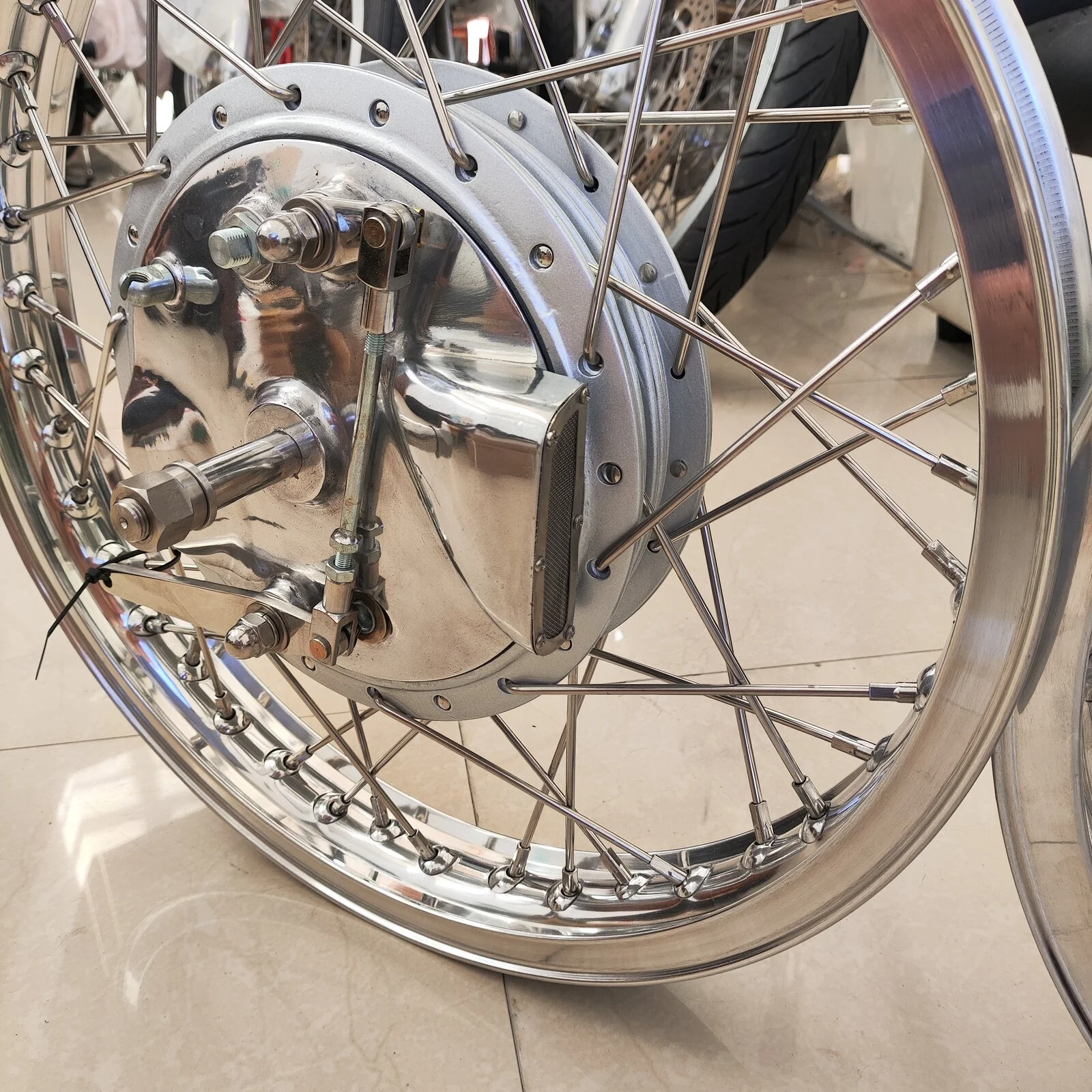

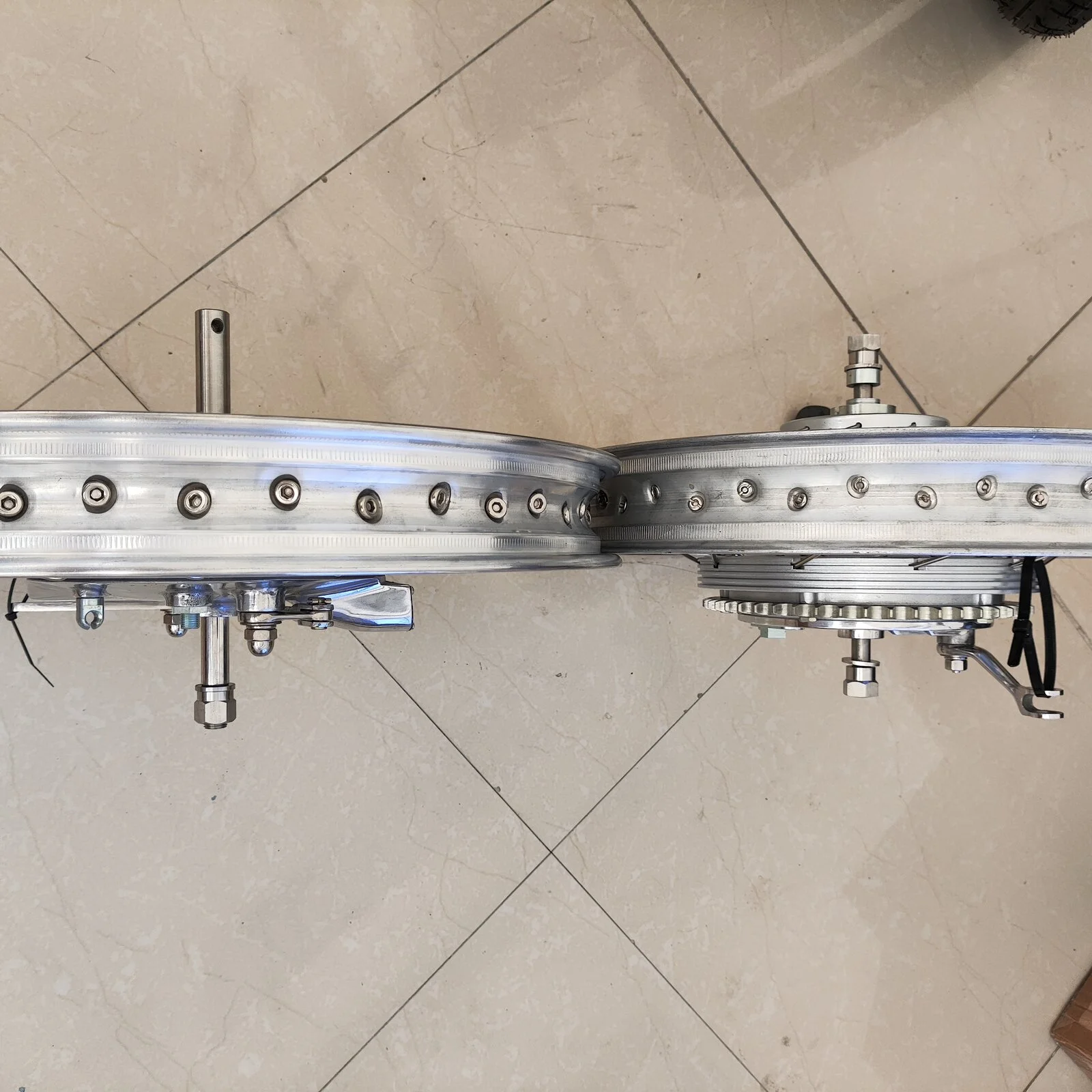

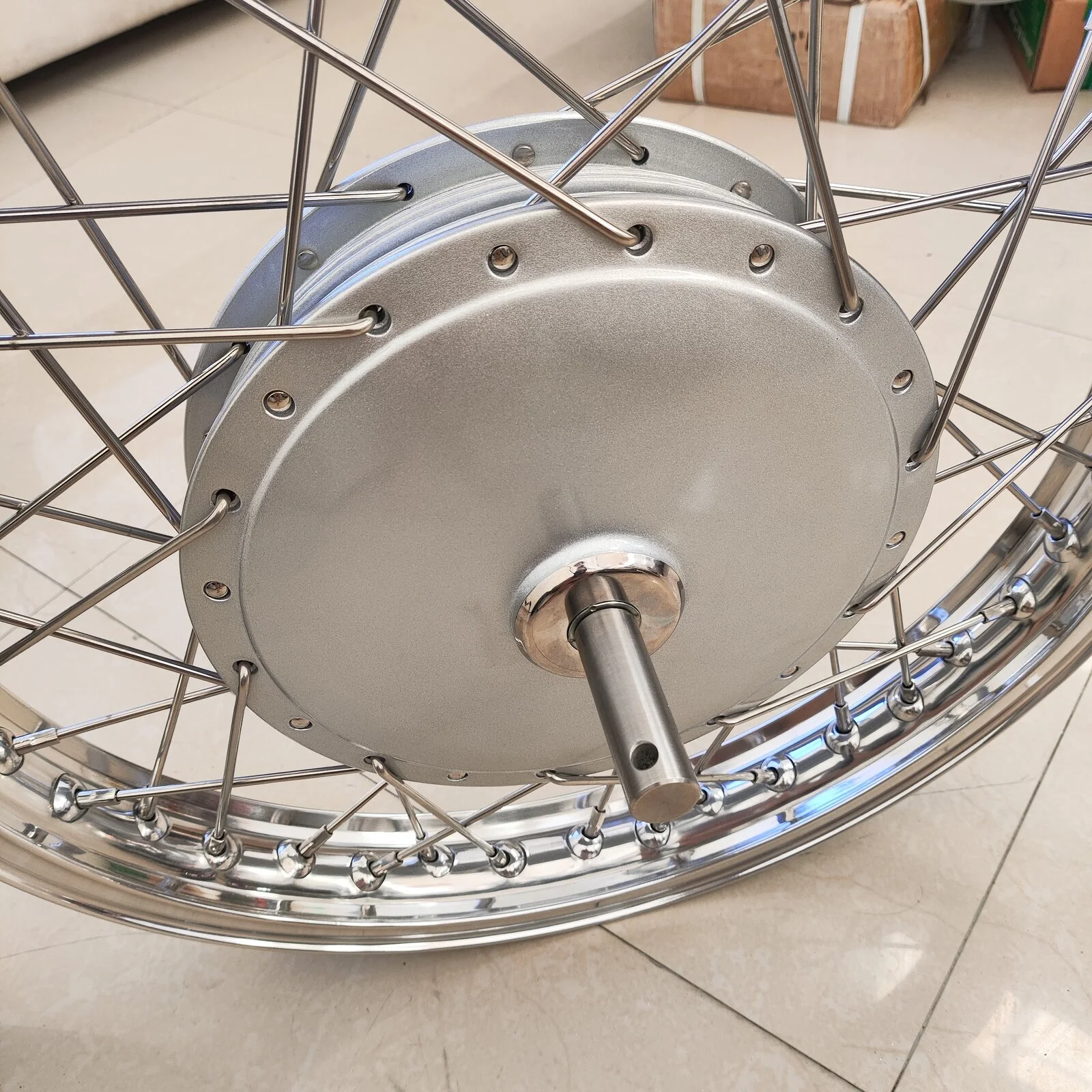

Here is a pair of Atlas configured wheels 18" rear, 19" front. My own brakes etc, US$1250 + shipping if interested, they bolt directly into your Atlas forks and swingarm
