Thread pitch for exaust rubber mountings.

[The yaki]

Just tried to fit a peashooter , new from norton classifieds, however the mounting threads are M8 ??? Inserts required then. 5/16 unf ? Thanks in anticipation ! Roy.



[kommando]

Standard rubber mounts are 5/16 unf, if the silencer holes are M8 then you need M8 rubber mounts so look on ebay.

https://www.ebay.co.uk/itm/353534023512?_skw=m8+rubber+mounts&itmmeta=01K2Z6P66S7GVQ7MF9MSC38VFF&hash=item5250451758:g:-ycAAOSwsgVjIz8Y&itmprp=enc%3AAQAKAAAA0FkggFvd1GGDu0w3yXCmi1dkIuqoNxnTwio3Ng9mhEsBlnm--Ir6iTne6TD9%2B2KB8eQU%2F4AA1LVoYjm1Hg9LU%2Blby1yl7uSotNOot1OhSyvZ6iuDLrGQGN3bYplEoHHUqqylQVhvCQvJJrRjt9k5pL2BUgNd3VZHWaXspk8wAza2CuBEplJNqLqZQQprxtotmVht%2FrJ3muFe9a6c74Rliox8IEt4rq58LLFkOfIR7QY2lRh44ElQcuNiB%2FQrX%2FqEiVCQ81x8KuV6dn9xuj%2BHSwE%3D%7Ctkp%3ABlBMUNLj2OaXZg



[Andy Higham]

Just use M8 bolts between the plates and silencers. The rubber mounts fit between the inner and outer plates



[The yaki]

Thanks for that. Will invest in some m8 mounts ! Who makes straight through peashooters with M8's ? Grief !! Roy.



[L.A.B.]

Will invest in some m8 mounts !

Why, as Andy Higham said, the rubber mounts don't fit to the silencers, they fit between the plates and are fixed with nuts.



[robs ss]

Just tried to fit a peashooter , new from norton classifieds, however the mounting threads are M8 ??? Inserts required then. 5/16 unf ? Thanks in anticipation ! Roy.

My peashooters, like all the others I have seen, have no threads, just holes (5/16 or M8 - same) in the plates - so you can choose the rubber mount you want.
...or am I missing something?



[The yaki]

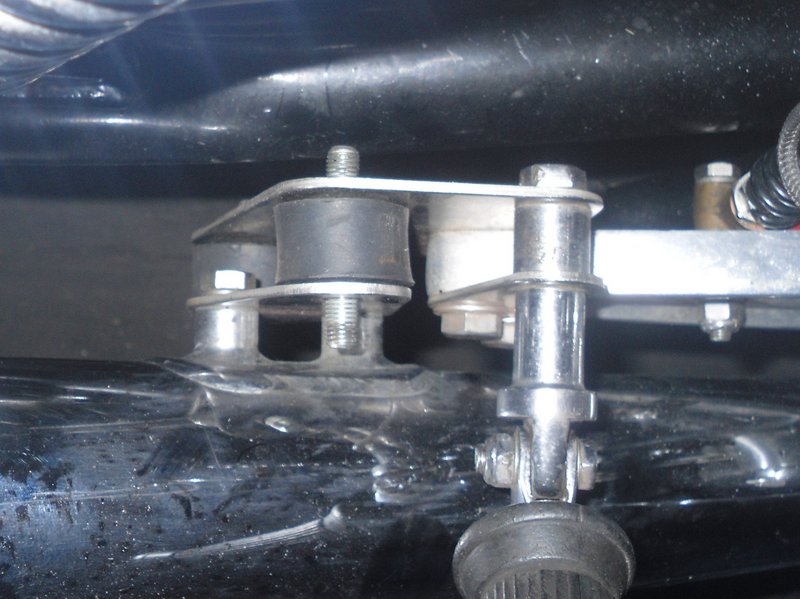

Looks like I've got a non standard set up for mounting. Fits/works perfectly but off which other model ?? Not the first thing that has been found ! It's certainly not on andovers drawings. Mine is a mk3, Cheers Roy.



[L.A.B.]

What you appear to have there is (at least) two made-up brackets.
What you should have is this set although personally I prefer the RGM stainless kit.

Andover Norton - SILENCER MOUNTING BRACKET SET COMMANDO REVERSE CONE 6 ITEMS CHROME PLATED - 13.1747

SILENCER MOUNTING BRACKET SET COMMANDO REVERSE CONE 6 ITEMS CHROME PLATED

andover-norton.co.uk

As it's a Mk3 then it would have had mounting brackets for black caps originally.



[L.A.B.]

The inner bracket could be a modified black cap bracket although I'm not sure.

https://andover-norton.co.uk/en/shop-details-2/16273/silencer-mount-bracket



[The yaki]

I'll get an rgm kit methinks. Keep it for upcoming Scottish autumnal crap ! Stuck in 5/16th unf inserts to take stock bobbin and bolt. I had the same professional fitment of earlier sidepanels emerge ! The plates have the same chamfer all round and are fully well chromed. Why ? I'll never know. I'll put them on until dark arrives after September. Thanks for your info. Appreciated, Roy.



[Andy Higham]

Nice stainless set from RGM

STAINLESS /STEEL REVERSE CONE MOUNTING PLATE SET (6) (BRUSHED FINISH)

050520 REVERSE CONE MOUNTING PLATES BRUSHED FINISH

www.rgmnorton.co.uk



[The yaki]

Yep, ordered. Thanks, Roy.
