Wiring diagrams.

cliffa · May 30, 2024

Hi all,

I see we have the Euro4 wiring diagram in the resources section, but does anybody have the earlier versions we could add?

Thanks in advance.

Stu Bodycote · May 30, 2024

Here's one to get you started. I'd have to check against my hard copies to confirm which euro 3 it is though.

texasSlick · May 30, 2024

@Stu Bodycote

Why not create a Resource with your pdf? It will eventually become lost in this thread unless a future someone makes a diligent search.

Slick

cliffa · May 30, 2024

texasSlick said:
@Stu Bodycote

Why not create a Resource with your pdf? It will eventually become lost in this thread unless a future someone makes a diligent search.

Slick

Already done Slick. Just waiting for Jerry to approve it.

cliffa · May 30, 2024

Stu Bodycote said:
Here's one to get you started. I'd have to check against my hard copies to confirm which euro 3 it is though.

Thanks Stu, that’s great!
Now added to the resources page ( just waiting for approval)

speirmoor · May 30, 2024

Heres the only one I have (Euro 4)

speirmoor · May 30, 2024

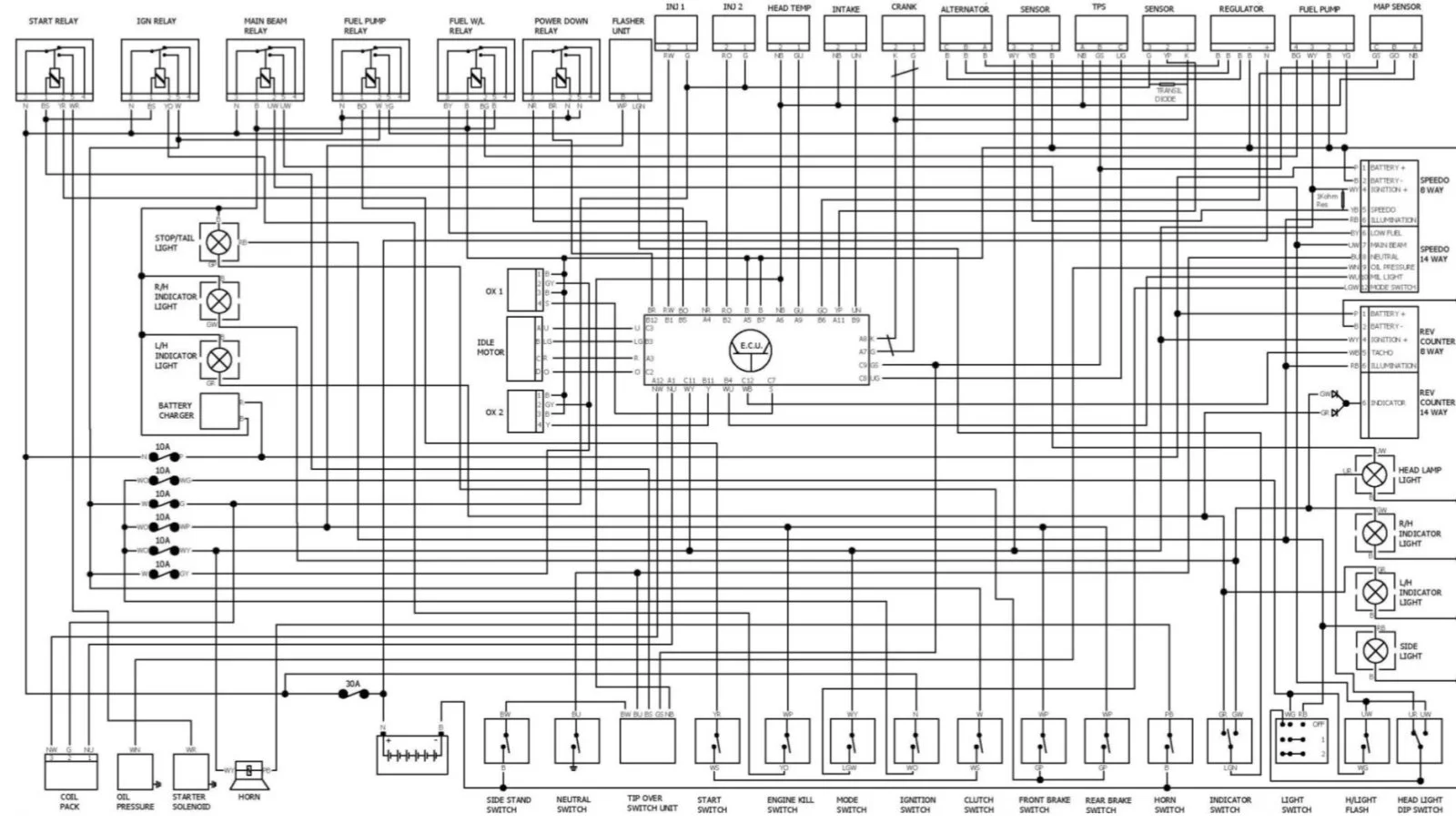

And an update to Euro 4 that came in the manual

cliffa · May 30, 2024

speirmoor said:
speirmoor said:

Heres the only one I have (Euro 4)

Click to expand...

Many thanks.

cliffa · May 30, 2024

speirmoor said:
And an update to Euro 4 that came in the manual

Thanks speirmoor. That’s interesting, on the update the tilt switch is no longer showing but the tilt controller (with 5 wires) is there. Is that how your bike is?

speirmoor · May 30, 2024

My Bike has both the switch and the controller Cliffa
