Did the bikes originally come with plastic cable ties to secure cables and wires? I ask because recently my headlight/pilot wire (the section from the control switch to the headlamp bulb, on the bars) had broken behind the cable tie and the 2nd wire (kill switch?) also had scuff Mark's there. My frame also shows signs of the paint being damaged by various cable ties. On the bars, for the time being, I added some extra sleeving over the wiring, just where the cable tie is.

In some places my Enfield 500 uses rubber or neoprene straps, which seems much kinder on the wires and frames.

There is an "original' style rubber strap for wiring management on the AN site.
On handlebars, there is a stainless clip that fits over the grey sheathed cable and around the bars.
You could try some velcro straps for under tank, less visible area. I've also got a few rubber adjustable/removable (" ball and socket" type) zip-tie alternatives which seem to work ok in some places.

Mart UK said:
Did the bikes originally come with plastic cable ties to secure cables and wires?
Click to expand...

850 Mk3, Group 24:
andover-norton.co.uk

Andover Norton Parts Drawings - Genuine Andover Norton Factory Parts - Commando Parts

Andover Norton Parts are the only Norton spare parts in the market manufactured to original drawings, within the factory-approved tolerances, from the correct materials, and with the correct finish.
andover-norton.co.uk
andover-norton.co.uk

Motorcycle parts and spares for Norton motorbikes - Genuine Andover Norton Spare Parts - Andover Norton Motorcycles Parts - Original Andover Norton Parts

Motorcycle parts and spares for Andover Norton motorbikes: Andover Norton manufactures and supplies all Genuine Factory Spare Parts for Norton motorcycles built before 2002.
andover-norton.co.uk
andover-norton.co.uk

Motorcycle parts and spares for Norton motorbikes - Genuine Andover Norton Spare Parts - Andover Norton Motorcycles Parts - Original Andover Norton Parts

Motorcycle parts and spares for Andover Norton motorbikes: Andover Norton manufactures and supplies all Genuine Factory Spare Parts for Norton motorcycles built before 2002.
andover-norton.co.uk
andover-norton.co.uk

Motorcycle parts and spares for Norton motorbikes - Genuine Andover Norton Spare Parts - Andover Norton Motorcycles Parts - Original Andover Norton Parts

Motorcycle parts and spares for Andover Norton motorbikes: Andover Norton manufactures and supplies all Genuine Factory Spare Parts for Norton motorcycles built before 2002.
andover-norton.co.uk

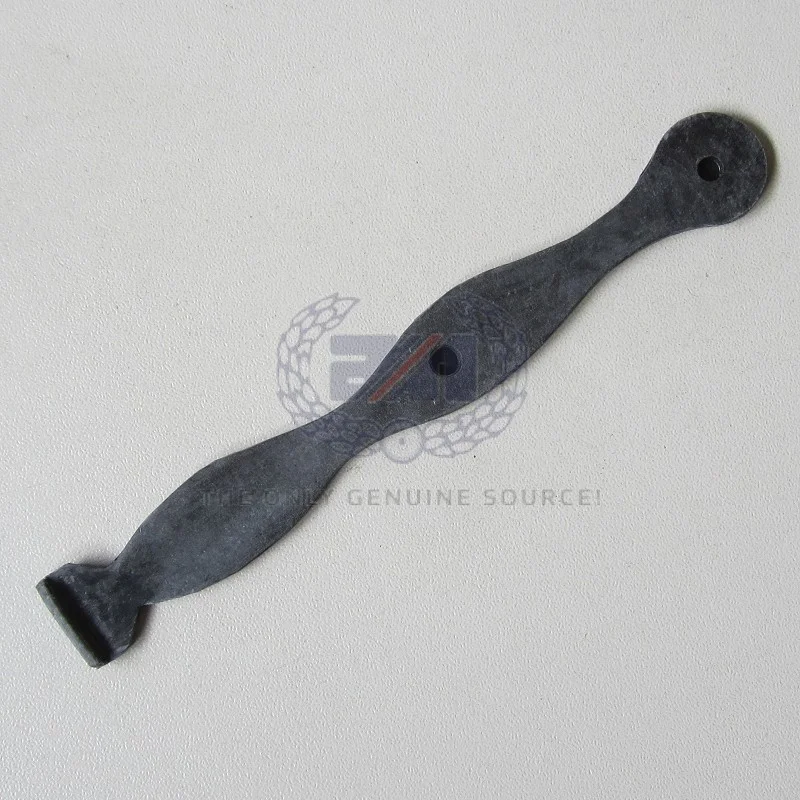

Here's the rubber tie from AN I've seen before:

andover-norton.co.uk

Andover Norton - Rubber tie (60.0978) (60.0373/7) (60.4258) - 02.6880

Rubber tie (60.0978) (60.0373/7) (60.4258)
andover-norton.co.uk

Wiring and Cable Attachment to Frame / Handlebars

Yes, that was the sort of thing. But it looks like cable ties were generally used. Maybe the wiring is getting more delicate with age? I'm going to the classic bike show in Stafford next weekend. I'll have a look for something in a range of sizes, that's in keeping.

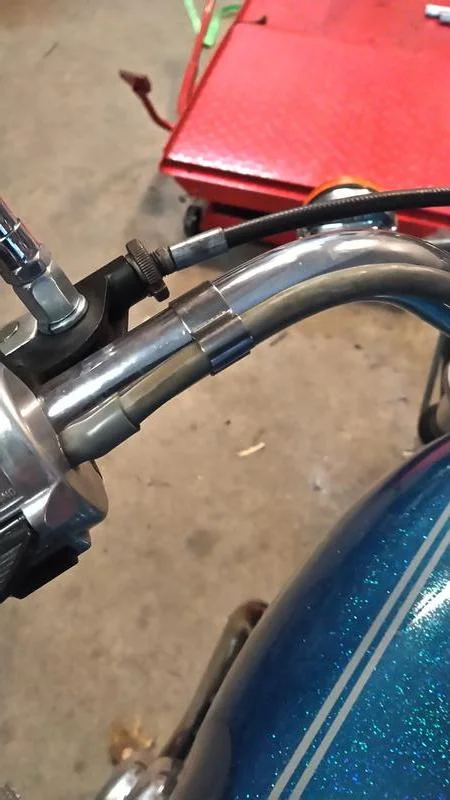

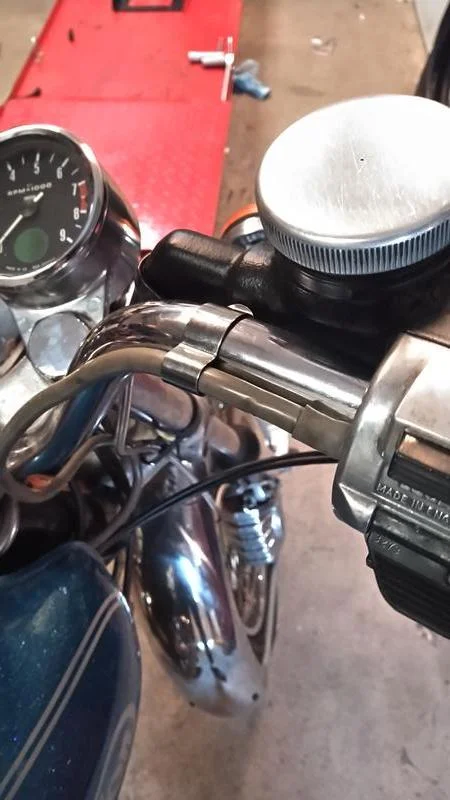

I'm not sure where these came from but they were on my MK II when I bought it.

Wiring and Cable Attachment to Frame / Handlebars


Wiring and Cable Attachment to Frame / Handlebars

L.A.B. said:
They're Triumph parts (97-4112).
andover-norton.co.uk

Motorcycle parts and spares for Norton motorbikes - Genuine Andover Norton Spare Parts - Andover Norton Motorcycles Parts - Original Andover Norton Parts

Motorcycle parts and spares for Andover Norton motorbikes: Andover Norton manufactures and supplies all Genuine Factory Spare Parts for Norton motorcycles built before 2002.
andover-norton.co.uk
Click to expand...
Thanks, I'll probably order two more. One on each bar is not enough to keep the cable tidy.

They are very nice and the sort of thing I'd go for, but the mk3 has two cables on the bars. Not sure that would take them both.

I had these ordered from my local Norton parts supplier. Thought they were listed on AN's Norton parts diagrams somewhere, otherwise I would not have thought to order them.

Tornado said:
I had these ordered from my local Norton parts supplier. Thought they were listed on AN's Norton parts diagrams somewhere, otherwise I would not have thought to order them.
Click to expand...

Yes, in the Triumph section as AN also stocks Triumph parts.
andover-norton.co.uk

Andover Norton Spare Parts Drawings - Genuine Andover Norton Factory Parts - Commando Parts

Genuine Andover Norton Parts created from the original drawings.
andover-norton.co.uk
andover-norton.co.uk

Andover Norton Parts Drawings - Genuine Andover Norton Factory Parts - Commando Parts

Andover Norton Parts are the only Norton spare parts in the market manufactured to original drawings, within the factory-approved tolerances, from the correct materials, and with the correct finish.
andover-norton.co.uk

(Should be x4 clips though, not x2)
Wiring and Cable Attachment to Frame / Handlebars

L.A.B. said:
Yes, in the Triumph section as AN also stocks Triumph parts.
andover-norton.co.uk

Andover Norton Spare Parts Drawings - Genuine Andover Norton Factory Parts - Commando Parts

Genuine Andover Norton Parts created from the original drawings.
andover-norton.co.uk
andover-norton.co.uk

Andover Norton Parts Drawings - Genuine Andover Norton Factory Parts - Commando Parts

Andover Norton Parts are the only Norton spare parts in the market manufactured to original drawings, within the factory-approved tolerances, from the correct materials, and with the correct finish.
andover-norton.co.uk
Click to expand...
But that's just it, I would not/have not browsed through the Triumph parts there. I nearly always only browse the Norton MK2 drawings but did not see these there recently. Same true for the "John Bull" rubber straps, which I know i've seen in the Norton areas in past.

Oh well, good to know where to find them.

Tornado said:
But that's just it, I would not/have not browsed through the Triumph parts there. I nearly always only browse the Norton MK2 drawings but did not see these there recently.
Click to expand...

Those clips were not used on Commandos and don't appear in any Commando parts list as far as I'm aware.

Tornado said:
Same true for the "John Bull" rubber straps, which I know i've seen in the Norton areas in past.
Click to expand...

Yes, as they were used on Commandos and are listed in parts books but not as late as the 850 Mk3.

Edit: The 850 Mk1 parts drawing shows plastic ties.

Norton Parts Drawings - Genuine Norton Factory Parts - Commando Parts -

Andover Norton Parts are the only Norton spare parts in the market manufactured to original drawings, within the factory-approved tolerances, from the correct materials, and with the correct finish.
andover-norton.co.uk

Last edited:
Ok, I solve my mystrey, both the straps and clips are found on Eurojambalya's Norton Chassis lists and that's where I got them a few yrs back:

www.eurojamb.com

Triumph Norton BSA Handlebar Clip 97-4112 650 750 850

NOT stainless, but chrome plated as original, suitable for 7/8" bars. The finest cable clip of its kind out there... Used on the handlebars of various British machines of the '60s and '70s, to guide the switch wire harnesses.
www.eurojamb.com www.eurojamb.com

His parts are not strictly curated per bike make nor models, so easy to mix and match parts from different eras, makes.

Very happy with the clips, keep the switch cables nicely positioned and clips look discreet vs tie wraps.

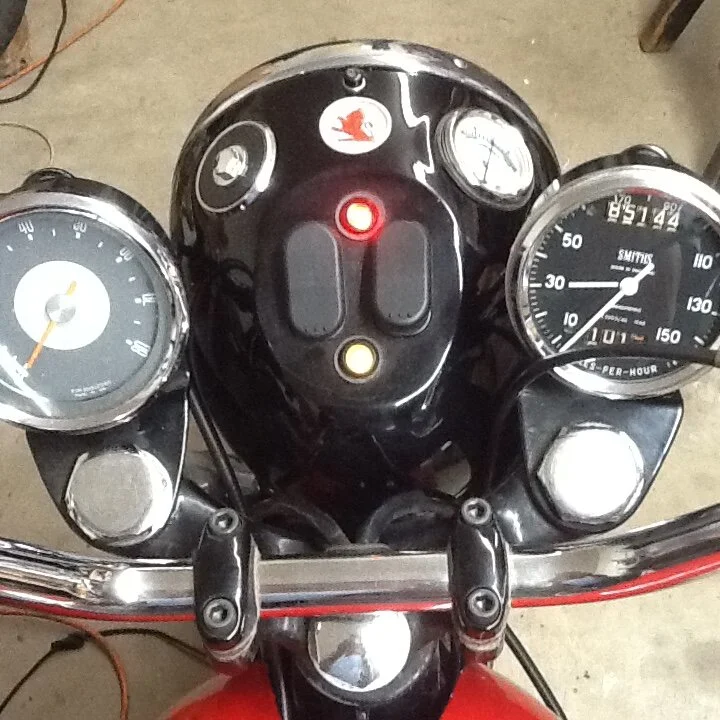

I put my handle bar wiring inside the bars. A bit of tedious work, but cannot get any tidier. The cable entry into the bars can be seen below.

Wiring and Cable Attachment to Frame / Handlebars



Slick

That's very neat. On a mk3 there's double the cables, so it would be a lot of holes!

I've ordered some chrome clips, to see if they work for the bars and some John Bull rubber ties for the frame.

Thanks for the suggestions.

My '74 has the metal clips. I've drawn blood probably a couple dozen times while cleaning the bike. JMWO
