Weighing in

Discussion in 'Motorcycle Related Discussions' started by Peavey Jeltz, May 9, 2019.

  1. Peavey Jeltz

    Peavey Jeltz

    Joined:
    Jan 12, 2019
    Almost 80F today. Commando weighs in at 400lb or 181kg. Let's see what you got.[​IMG]

  2. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    Mines 387lbs. Or it was. Hoping it’ll be closer to 370lbs when nailed back together this time.

  3. lcrken

    lcrken VIP MEMBER

    Joined:
    Mar 15, 2009

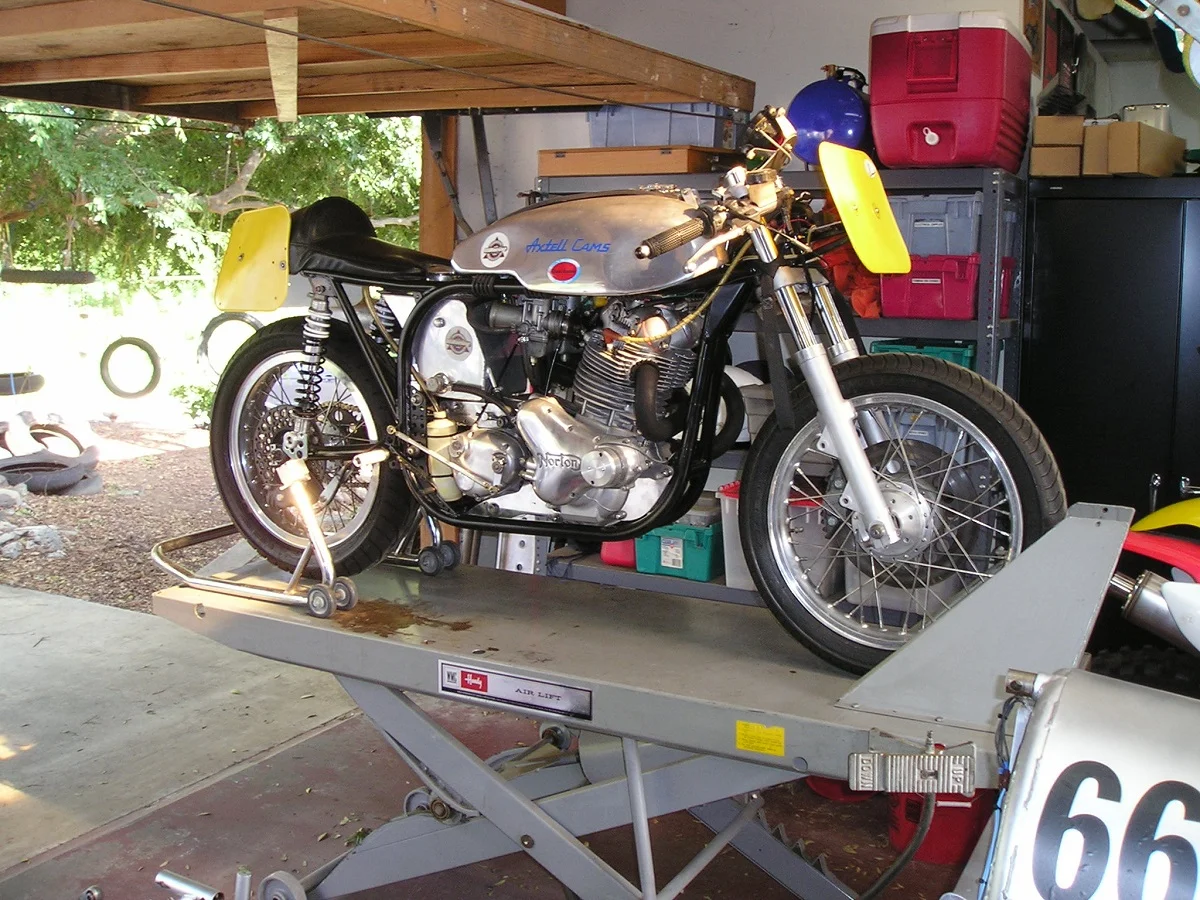

    In road race configuration, shown here, my featherbed/Commando race bike was (after a lot of work:)) exactly at 300 lbs dry.

    WL on Lift RS 1200.jpg

    Ken

    Jerry Doe and speirmoor like this.
  4. ashman

    ashman

    Joined:
    Jul 11, 2010
    My Featherbed/Commando be around the 300lb weight or really close to it, one day I will get it fully weight and be sure of the real weight with full oil and 1/2 a tank of fuel.
    Since building the Featherbed it has lost a lot of weight over 38 years since I convered it.

    Ashley

  5. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    Weigh it Ash and let us know. It takes a lot of work to get ‘em down to 300lbs...

  6. worntorn

    worntorn

    Joined:
    Dec 22, 2006
    Without using an alloy barrel, I think 300 is pretty difficult to achieve with a roadgoer, featherbed or Commando framed.

    Even Ludwig with all of his other clever and labour intense weight savings tricks just made 302 lbs dry ( chime in if I'm wrong Ludwig) with Alloy barrel.

    I have one of Ken's alloy 850 barrels here.
    It is 8.5 lbs vs 23 for the stock barrel.
    It's a huge weight reduction.

    Glen

  7. lcrken

    lcrken VIP MEMBER

    Joined:
    Mar 15, 2009
    True. Besides that, I have replaced a lot of steel with titanium or aluminum to get down to that number. Also, it has belt drive and no alternator, both large weight reductions.

    Ken

  8. lcrken

    lcrken VIP MEMBER

    Joined:
    Mar 15, 2009

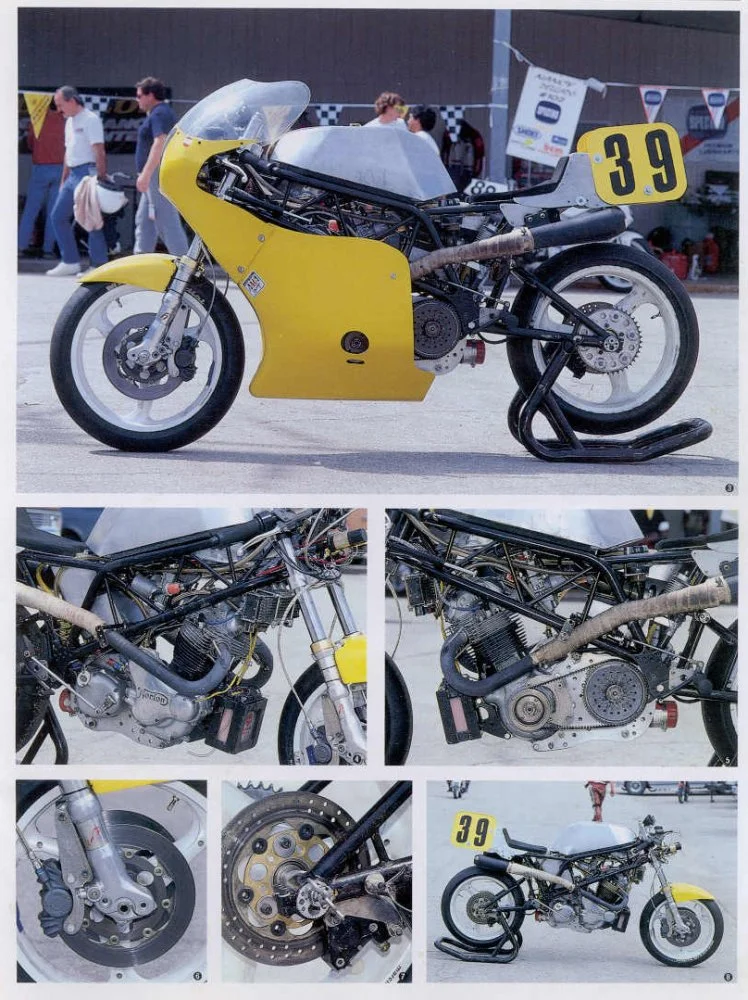

    And this one, the ex-Jim Schmidt bike with a 920 Commando iron cylinder engine tipped the scales at 330 lbs ready-to-race. A the 1990 AMA National at Willow Springs we had to clamp a 25 lb. lead brick to the bottom of the front down tubes to make the AMA 350 lb. minimum for the class. Actually, it helped a lot in reducing the front end chatter:).

    Norton 920 Monoshock.jpg

    Ken

  9. worntorn

    worntorn

    Joined:
    Dec 22, 2006
    Near stock 650ss with wheels in the air , 408 lbs.
    The fuel tank is half full, plus there is the weight of the oil, so book weight of 395 dry is honest.
    It has a Newby belt drive which knocks off a bit, but also has an oversized battery at the moment, so it should be about stock weight.

  10. ashman

    ashman

    Joined:
    Jul 11, 2010
    Yes it does and I have been shaving weight off it for over 38 years since building it but I be happy if its close to 300lbs, we can all dream lol, but I am not going to drill holes everywhere to make it even lighter, but at the moment I am happy with its weight.

    Ashley

  11. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    A belt drive, especially one using alloy pulleys and alloy friction plates (Barnet style) saves an indecent amount of weight!

    Maney barrels are 11lbs lighter than stock according to my scales, crank is 7lbs lighter, hence my target to be at around 370lbs this time with my 920 build.

    I’ve also got lighter yokes, clip ons and mudguards, but slightly heavier shocks (Maxton vs Falcon), gearbox (TTI) and crank cases (Maney). So we’ll see how it all pans out.

    FWIW, my 387lbs is a full wet weight (full Roadster tank and oils etc). Not sure what the estimated dry weight would be.

  12. worntorn

    worntorn

    Joined:
    Dec 22, 2006
    The lightest belt drive has to be the Newby Racing unit.
    Aside from having all lightweight components, it does away with the heavy Commando clutch centre.

    I have to check my scales.
    I just weighed myself on an expensive, but not necessarily accurate bathroom scale -220 lbs

    -Cheaper bathroom scale 230 lbs.

    - the hanging scale used to weigh the 650s- 238 pounds.

    It's a bit like dynos, find the dyno which gives the biggest number and the scale that gives the lowest number, then the male mind will be happy!

    Nigel, your bike at 387 wet is approximately 48 lbs lighter than the book weight ( 415 dry, 435+- wet)
    You must have removed quite a lot of gear from it, the belt drive with Commando type clutch is probably good for 7 or 8 pounds, alloy rims about 1 pound each, not sure on the fork differences. It still has the heavy iron barrel at the 387 number , correct?




    Glen

    Last edited: May 13, 2019
  13. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    Glen,
    The saving you quote is very close to what I’d estimated as I totted up the weight of stuff being thrown away!

    Off the top of my head, the savings are due to:
    Alloy rims
    Alloy rear sets
    Maney style pipe (less than half weight of stock set up)
    No Z plates and associated detritus (stock z plates and footrests inc all fasteners are very heavy).
    Lighter front brake and mudguard
    Not stock air filter
    Removed stock coils and brackets
    No centre stand
    Sounds daft but: custom wire harness and Tri Spark removes a surprising amount of weight
    No ign key lock
    No indicators
    Lighter switchgear
    Belt drive and Barnet plates
    Lighter headlamp brackets
    And, of course... a Shorai battery !!

    Yes, still have heavy stock barrels and crank, hence am looking forward to the 18lbs saving there!

    Plus since the weigh in I’ve added:
    Alloy yokes
    Alloy clip ons
    Carbon front mudgaurd
    Even lighter rear sets
    Removed clock pods

    Currently looking at options to replace the heavy primary case, but not decided on that yet.

    As we both know, I’m only playing at it. For real inspiration look to Ludwig’s work.

  14. worntorn

    worntorn

    Joined:
    Dec 22, 2006
    Thats a lot of weight removed alright.
    Do you recall the centre stand weight?

    Glen

    Last edited: May 13, 2019
  15. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    4lbs 12oz.

    With spring, bushes and bolts, call it 5lbs.

    Of course, as the stand is under the engine, the weight saving is counter productive regard low C of G !

    I know it’s obvious, but the thing with weight saving is it’s too easy to look at each saving and think ‘yeah but that’s not gonna make any difference’ but if you say that every time you don’t save any weight!

    Building a meaningfully lighter bike ain’t easy. I’ll be glad if I can break the 370lbs barrier, but doubt I’ll improve much on that. From then the only chance is lightening the area above the seat...!

  16. worntorn

    worntorn

    Joined:
    Dec 22, 2006
    The scales are sorted and the hanging scale is right on, the cheap bathroom scale is close and the expensive German bathroom scale reads low by about 5%. Germans eat a lot of meat and they might prefer a scale that reads about 5% low :).

    I used 44 pound bags of feed to check all of the scales. Feed companies do not want to be accused of cheating the buyer but they don't want to give anything away either.
    So they fill exactly what is marked on the sack.
    The hanging scale has them right at 44.7 pounds, the .7 being the weight of the plastic sack. Adding bags gave consistent readings of 44.7 lbs per bag added, right up to ten bags at 447 lbs.
    The earlier wonky 238 lb for my weight was caused by me jostling around on platform while weighing myself. A more stable platform gave a reading 231, almost the same as the cheap bathroom scale, which is quite accurate. I'm now satisfied that this hanging scale is accurate +- 1 pound.
    This is good as I like to weigh things and the transfer station scale charges $15 a pop, plus I don't really know if their expensive scale is as accurate as they claim it is on small weights.

    Here is a 1949 Vincent twin, wheels in air. 463.5 lbs with about 1 gallon of gas in the tank.
    Vincent advertised the weight of their new twin as "450 lbs dry , a 1000 V twin at the weight of a 500"
    Remove the gallon of gas and 5 litres of oil and the 450 figure is good.
    450 dry is a pretty decent number for a current model 1000 sport bike. Not bad for a fully suspended 1949 machine built for comfortable touring.
    This one has Buchanan Sun alloys, very nice wheels but no lighter than stock.

    Glen

    Last edited: May 14, 2019
  17. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    Interesting to see how accurate the original claim by Vincent was!

    Godet claimed his EVG’s to be 180kg (396lbs) or 168kg (369.6lbs) when fitted with his magnesium crank cases.

    That’s quite good considering they are electric start and fitted with a huge Harley Davidson battery etc!

  18. worntorn

    worntorn

    Joined:
    Dec 22, 2006
    Thruxton R with wheels in air, full tank, fairing and pannier racks, 479 lb.
    Triumphs claim of 448 lbs dry also looks right.
    My plans for this bike are to remove the cat (-7lbs), remove tubes ( -4 lbs) and perhaps find some lighter silencers. Although I like the look and sound ( straight thru) of these stockers, at 6.3 lb each they are a bit heavy.
    It could also use a Shorai battery to shed a few lbs as the charging system produces over 13.1 v at idle.
    There's not a huge saving there as Triumph has used an auto decompressor type cam, tiny starter and small conventional battery to get this 1200 running. Could possibly drop 3 lbs with the Li battery, but then I have to put up with sluggish starting at cool temps and other weird Li battery idiosyncrasies.



    Last edited: May 14, 2019
  19. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    Glen, those pipes will sound VERY different just by removing the cat. Cats take out a lot of noise. The standard, road legal silencers on my R9T were straight through cos the cat stopped most of the noise !

  20. worntorn

    worntorn

    Joined:
    Dec 22, 2006
    I'm a bit concerned that it will be too loud.
    With the high speed miles I tend to log on this thing, the relative quietude is nice.
    Loud bikes are really tiring on a longhaul.
    I can always put it back to stock if it's too loud
    Claimed Power gains with the x pipe are in the 4 HP range and fall firmly in the camp of " maybe"
    Already more than enough power with the cat in place.
    Peer pressure made me buy the x pipe!

    Glen
