Wanted, dimensions for this tool

Status
Not open for further replies.
Flatspot

Flatspot

VIP MEMBER
Joined
Jan 30, 2020
Messages
1,207
Country flag
I have decided I’d like to make a facsimile of the original Commando points tool.

can someone please supply me with the dimensions - even just the overall length will do as I can scale it from that

Wanted, dimensions for this tool

Ooh, good find! I don’t like the price though. I think I’d still like to make one. I’ll ask a question on the ‘bay

Here you go ...

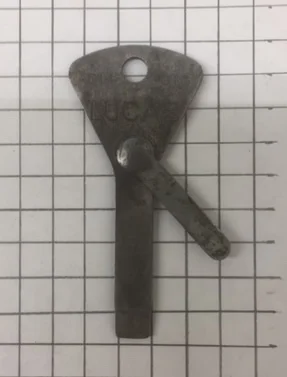

Lucas Points Tool.jpg


The grid is 1/4 inch.

Width of thickness gauge - 0.185
Length of thickness gauge from center of rivet - 1.0
Overall length 2.188
Width of head - 0.993
Thickness of stock - 0.062
Hole dia. 0.188
Width of screwdriver tab - 2.62 at tip; 2.78 along shank

Slick

Slick - you’re a star! Many thanks, now I can go and play at building it.

BTW, Landspeedracer, the specimen shown is not a re-pop. Genuine article from my original Atlas tool kit.

Slick

I found a scrap piece of old metal out in the garage, I gave that seeing to with a hacksaw and files, and added a piece of 15 thou feeler gauge. It works, it also doesn’t look mass produced. Good enough for me. It looks as though you need to click on the link to see the pics.

https://postimg.cc/gallery/RBNX33Q
