Unknown Norton Parts

W

WZ507

VIP MEMBER

Joined

Dec 26, 2013

Messages

561

• Oct 26, 2018

• #1

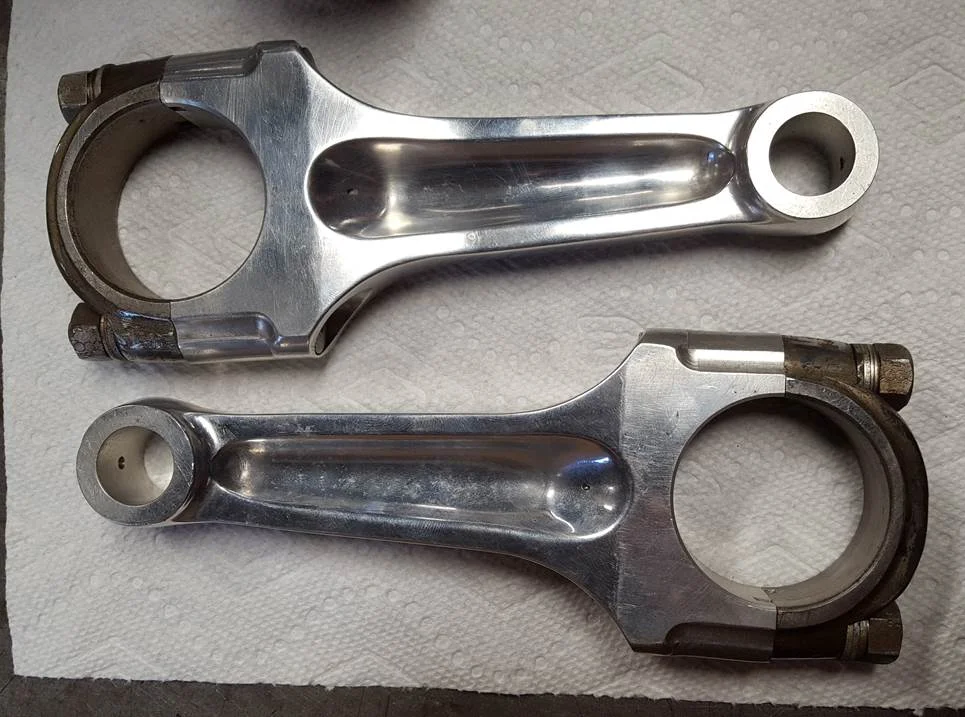

A friend recently obtained some Norton parts (connecting rods and cam), possibly something to do with a short stroke engine, but not sure. Anybody recognize these as something familiar? Thanks.



SteveA

VIP MEMBER

Joined

Dec 20, 2011

Messages

3,380

• Oct 27, 2018

• #2

Why possibly short stroke? Are they longer than standard Commando rods?

If standard length and used in a 750 short stroke somewhere there is an associated 77mm barrel with 8.6 to 10mm removed! Or a combination of raised pin pistons and a short barrel.

Would you run a rod bolt without a lock nut?



L.A.B.

Moderator

VIP MEMBER

Joined

Nov 20, 2004

Messages

20,423

• Oct 27, 2018

• #3

https://www.accessnorton.com/Norton...-stroke-on-ebay-2015.18528/page-3#post-357490

"The short stroke 750 cylinder is just a standard 850 cylinder. It does not have fewer fins. The short stroke motor has longer rods to accommodate the shorter stroke, not a shorter barrel."



L.A.B.

Moderator

VIP MEMBER

Joined

Nov 20, 2004

Messages

20,423

• Oct 27, 2018

• #4

https://www.accessnorton.com/NortonCommando/short-stroke-750-build.5160/page-2#post-54409

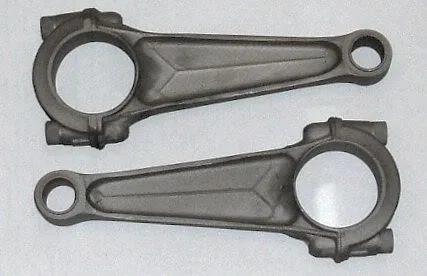

Factory short stroke rods.



grandpaul

VIP MEMBER

Joined

Jan 15, 2008

Messages

13,588

• Oct 27, 2018

• #5

"Decidedly Different"



acotrel

Joined

Jun 30, 2012

Messages

14,015

• Oct 27, 2018

• #6

What stroke is the factory short stroke 750 - was the crank one-piece ?



T

trident sam

VIP MEMBER

Joined

Oct 23, 2012

Messages

1,468

• Oct 27, 2018

• #7

Those rods look like Triumph rods to me.
sam



M

myjota

Joined

Mar 15, 2010

Messages

115

• Oct 27, 2018

• #8

Nourish rods maybe



lcrken

VIP MEMBER

Joined

Mar 15, 2009

Messages

5,035

• Oct 27, 2018

• #9

acotrel said:

What stroke is the factory short stroke 750 - was the crank one-piece ?

Click to expand...

80.4 mm stroke, 77 mm bore. Crank was standard Commando 3-piece, but ground for the shorter stroke.

Ken



lcrken

VIP MEMBER

Joined

Mar 15, 2009

Messages

5,035

• Oct 27, 2018

• #10

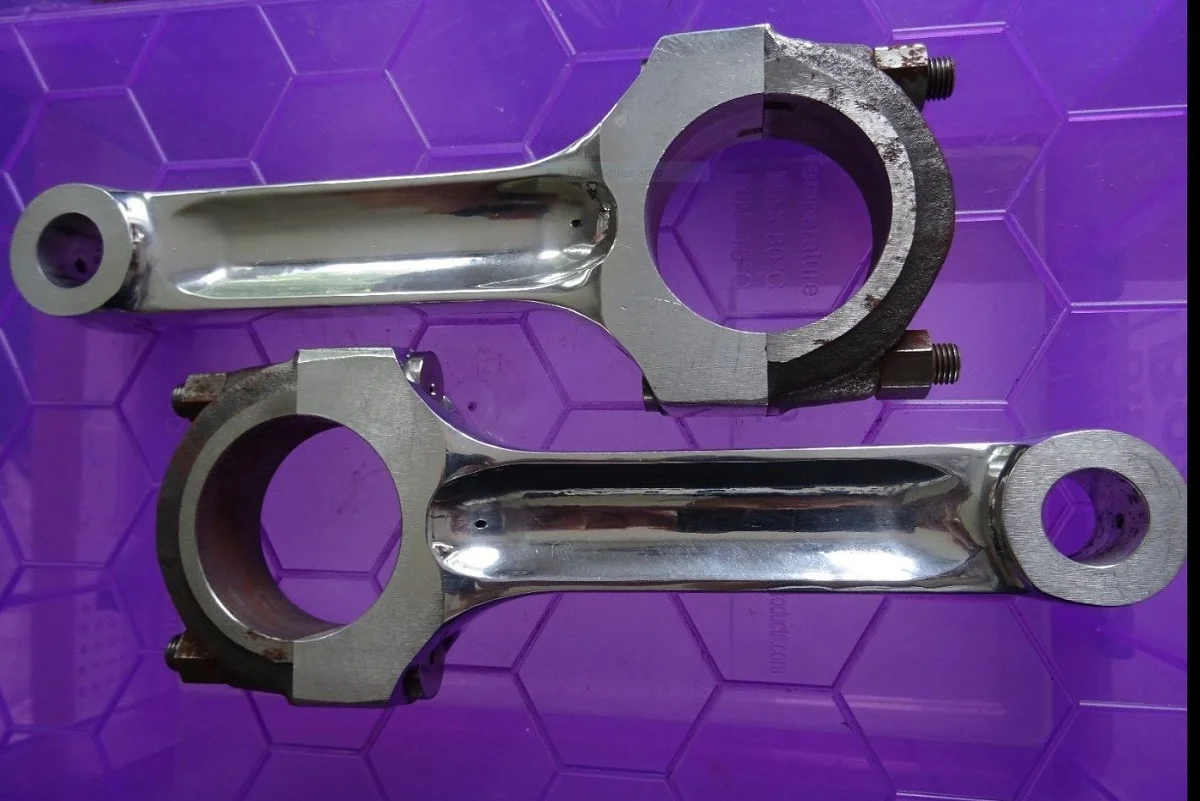

At one time Norvil sold a similar aluminum rod, with steel cap, that they advertised as for a short stroke 750, but it did not have the same contours as the ones posted above.

https://www.ebay.co.uk/itm/5020-2-X...ONNECTING-RODS-FOR-SHORT-STROKE-/352309325350

Ken



lcrken

VIP MEMBER

Joined

Mar 15, 2009

Messages

5,035

• Oct 27, 2018

• #11

Just discovered this post from the past. Looks like they are Nourish rods.

https://www.accessnorton.com/NortonCommando/rod-half-life-shorter-by-rpm-or-torque.10990/

Ken
