Trans Cradle Differences

Discussion in 'Norton Commando Motorcycles (Classic)' started by Norcoastal, Nov 30, 2019.

  1. Norcoastal

    Norcoastal

    Joined:
    Aug 21, 2016
    As some of you know, I’m at the beginning of my journey. I’m at the researching and gathering parts stage.

    I wonder if someone can answer this for me, pictures will help.

    I understand that they’re differences with the trans cradle pre 1973 and 1973 on. From what I’m reading, the center stand attaches to the cradle on the 73 and beyond while the center stand attaches to the frame on pre ‘73.

    I’m getting a ‘73 frame and I want to make sure that I have the correct cradle.

    Can someone help me to understand the visual differences so when I’m shopping for a cradle, I can tell which is which?

    Any help will be appreciated.


    Steve

  2. mikeinidaho

    mikeinidaho

    Joined:
    Dec 10, 2011
    My '72 has a cradle-mounted centerstand.

  3. Norcoastal

    Norcoastal

    Joined:
    Aug 21, 2016
    Like I said, it is my understanding which may be incorrect.

  4. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004
    1971-on, including the 850 Mk3 although the Mk3 cradle has certain differences.



    Pre-71.

  5. Norcoastal

    Norcoastal

    Joined:
    Aug 21, 2016
    Can anyone show me how I can tell by looking at cradles on eBay which is which?

  6. maylar

    maylar VIP MEMBER

    Joined:
    May 13, 2007
    Early cradles will have 1 hole at the bottom for the gearbox lower mount. Later versions will have an additional 2 holes for the center stand and spring.

  7. seattle##gs

    seattle##gs

    Joined:
    Oct 28, 2014
    for the MK3 the big difference is in the axle slot. The MK3 slots are closed off and the others are open all because of the axle adjusters. The 1969 has a strange center stand, far different from all the others. I have one if anybody needs one.

  8. Norcoastal

    Norcoastal

    Joined:
    Aug 21, 2016

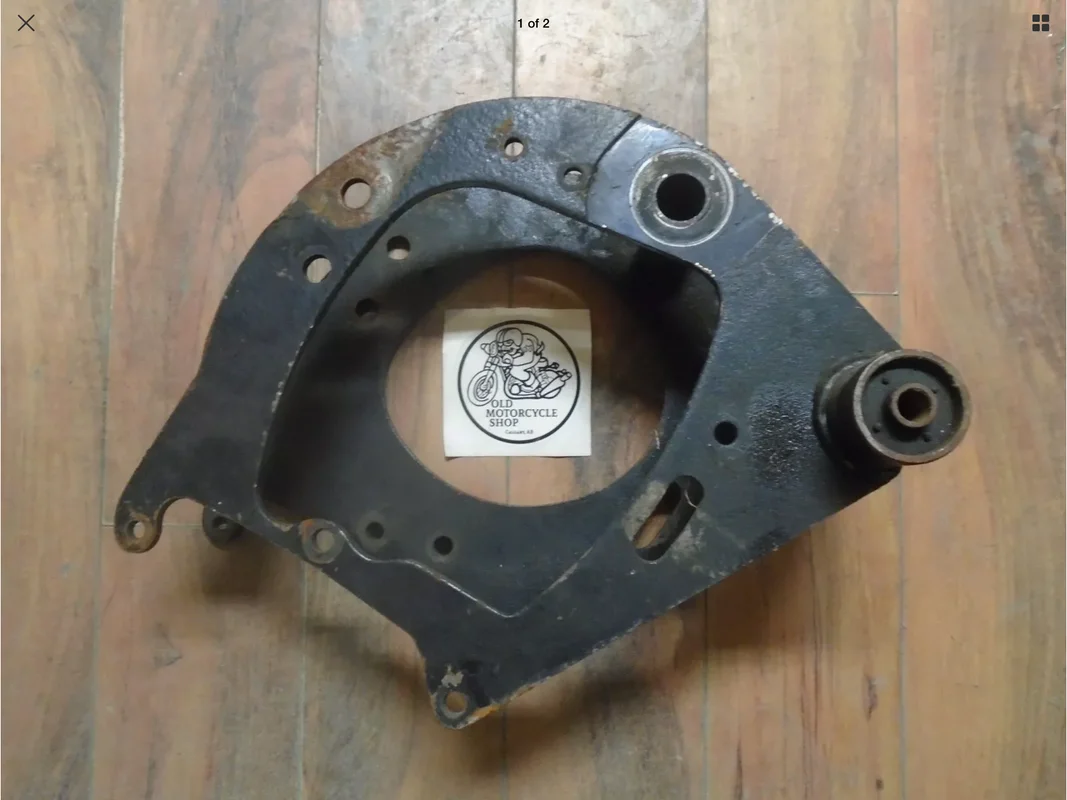

    What would these be and what holes are you referring to?

    These may be the same, but I’m trying to identify the differences.

    [​IMG]

    [​IMG]

  9. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004
  10. htown16

    htown16

    Joined:
    Apr 29, 2009
    The later ones also have holes for the oil filter base on the right hand side, which both of those have. I would say they are both later.

  11. Norcoastal

    Norcoastal

    Joined:
    Aug 21, 2016
    Ok so the 2 little holes at the top of the picture were for an oil filter?

    That will help me identify the cradle?

  12. htown16

    htown16

    Joined:
    Apr 29, 2009
  13. Norcoastal

    Norcoastal

    Joined:
    Aug 21, 2016
    Thank you

  14. Ron L

    Ron L VIP MEMBER

    Joined:
    Feb 27, 2004
    OIl filter fitted from 1972 so 1971 cradle does not have the drillings, but does have drillings for centerstand. Mk3 cradle has no slot for upper gearbox mount, just a drilling, but it has two tubes on the swingarm spindle tube to receive the spindle locking cotters. 1968-1970 has no drilling for centerstand mount or oil filter mount. (These can easily be added.)

  15. Norcoastal

    Norcoastal

    Joined:
    Aug 21, 2016
    Does anyone have a picture of a ‘73 cradle?

    A picture is a lot easier to understand than a description.

  16. Norcoastal

    Norcoastal

    Joined:
    Aug 21, 2016

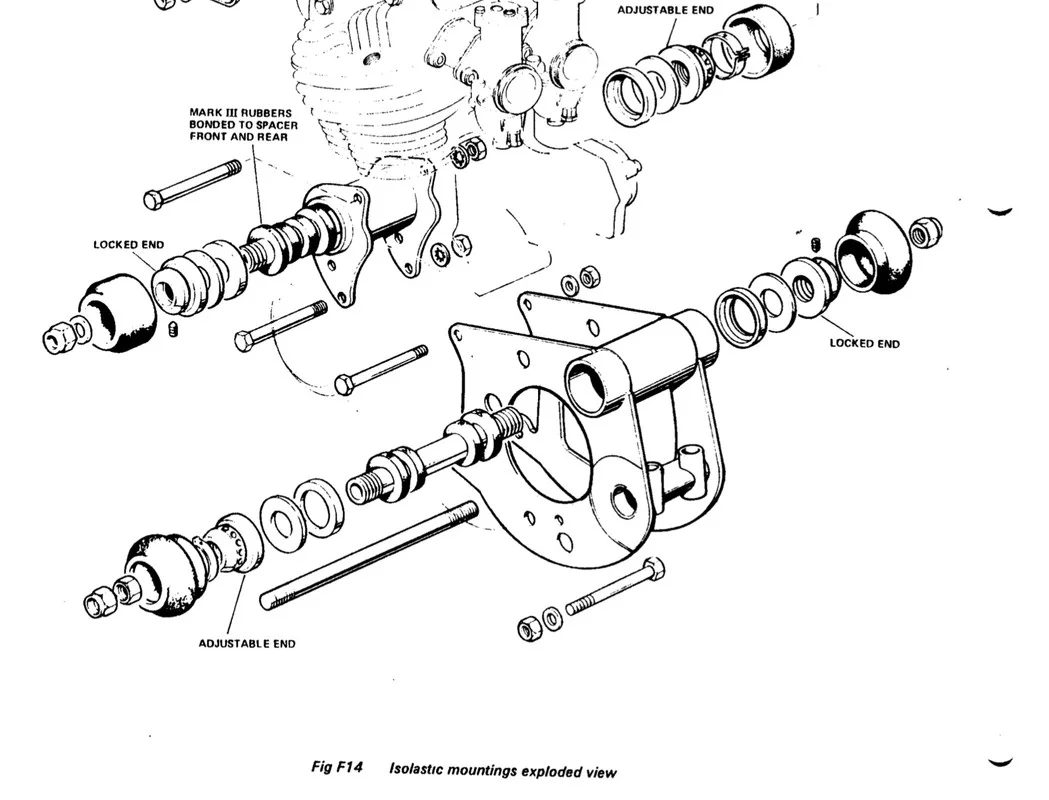

    This is from the service manual for the 850.

    Can anyone specifically show me the difference between this and the pre ‘72 cradle?

    [​IMG]

  17. grandpaul

    grandpaul VIP MEMBER

    Joined:
    Jan 15, 2008
    It doesn't help that the photos are two opposite sides, and one is shown upside down! But, they are the same.

  18. Norcoastal

    Norcoastal

    Joined:
    Aug 21, 2016

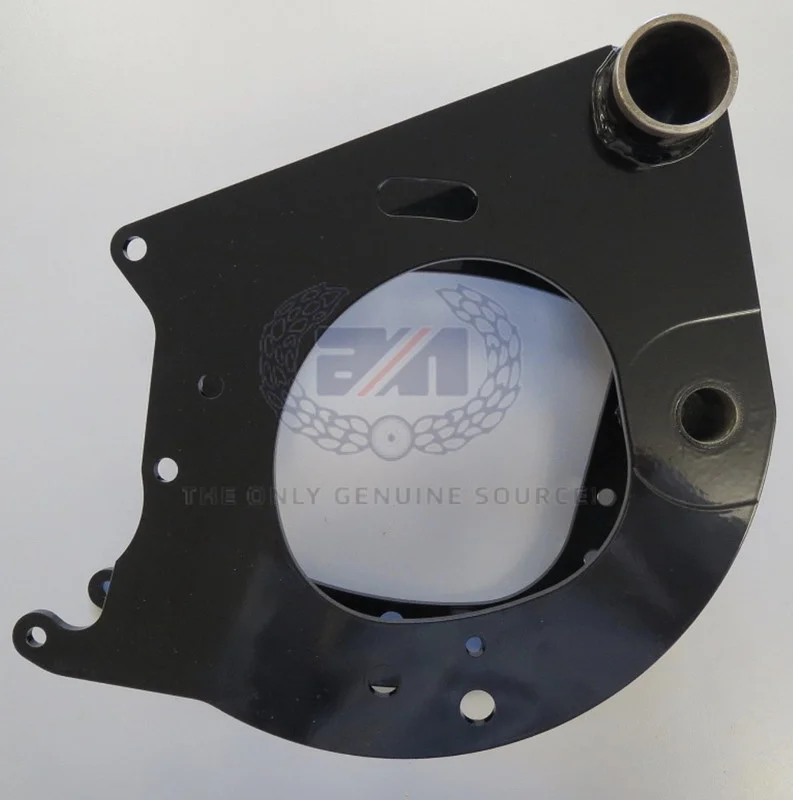

    I think I got it. This first picture has the two little holes and the second picture does not. So I assume it’s the little holes that determine the two.

    [​IMG]


    [​IMG]

  19. MichaelB

    MichaelB VIP MEMBER

    Joined:
    Jan 14, 2004
    I think GP is referring to the cradles in post #8.
    The bottom cradle on the wood table is a correct cradle.

  20. Norcoastal

    Norcoastal

    Joined:
    Aug 21, 2016
    Fair point!
