Top Yoke Removal

Discussion in 'Norton Motorcycles (Modern)' started by glb, Mar 15, 2020.

  1. glb

    glb VIP MEMBER

    Joined:
    Sep 21, 2015
    I have read previous posts but I am trying to remove the top yoke nut on a 2015 Dominator. It will not budge and the nut underneath appears to be also turning. There is no way to get a spanner in there. Anyone done this before and could explain to an idiot please.

  2. Voodooo

    Voodooo VIP MEMBER

    Joined:
    Aug 10, 2016
    By top nut are you meaning the acorn nut?

  3. Voodooo

    Voodooo VIP MEMBER

    Joined:
    Aug 10, 2016
    F681E33A-D42F-4B6D-B196-2032D92689B3.jpeg D21E5CDB-8EC2-42F9-997C-4C8A577765B3.jpeg

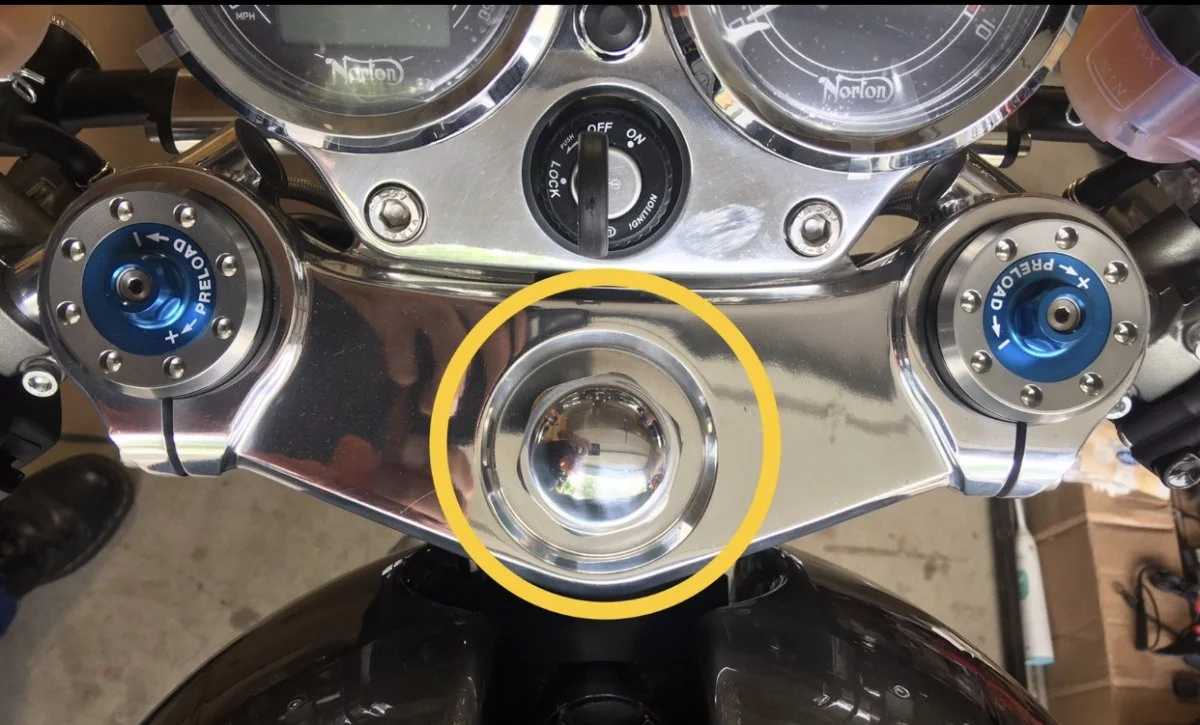

    I used a socket to remove the top acorn nut.
    Then once the top yolk was removed I used a socket to remove the top stem jamb nut while using a thin spanner to hold the lower nut.

    I had to make thin spanner wrenches, I have some thin snap on wrenches but they were still thicker than the yolk nuts.

    glb likes this.
  4. TonyA

    TonyA

    Joined:
    Jan 16, 2015
    Hello GLB , I have heard of this problem before . The problem you have is that the entire shaft is spinning. This is what I would try next : Verify from underneath the lower yolk , that the center shaft is spinning when you turn the nut on top . On my bike this is where the horn is bolted on. Once verified the entire shaft is spinning , clear the area of other parts such as horn , cables , brackets to get a clean grasp of it . Then you must get a good vice-grip pliers with clean sharp teeth so you can get a substantial grip on it . This is important , you must get a firm grip on the head of the steering stem while you loosen the top nut. Get a second person to help if necessary , you don't want to slip off. If you are inclined , this shaft can have flats cut into it so this will never be a problem to you again !

    glb likes this.
  5. TonyA

    TonyA

    Joined:
    Jan 16, 2015
    Hello GLB , I have heard of this problem before . The problem you have is that the entire shaft is spinning. This is what I would try next : Verify from underneath the lower yolk , that the center shaft is spinning when you turn the nut on top . On my bike this is where the horn is bolted on. Once verified the entire shaft is spinning , clear the area of other parts such as horn , cables , brackets to get a clean grasp of it . Then you must get a good vice-grip pliers with clean sharp teeth so you can get a substantial grip on it . This is important , you must get a firm grip on the head of the steering stem while you loosen the top nut. Get a second person to help if necessary , you don't want to slip off. If you are inclined , this shaft head can have flats cut into it so this will never be a problem to you again !

    Last edited: Mar 15, 2020
    glb likes this.
  6. Canyon Motorcycles

    Canyon Motorcycles

    Joined:
    Feb 10, 2020
    The 2 head bearing adjuster nuts are Triumph parts, All the T3 bikes, 955I and modern classics, Triumph sell the 2 flat spanners as a special tool you can get from any Triumph dealers, makes it easy to get the feel of when setting the head bearings up.

    glb, Britfan60 and Voodooo like this.
  7. Voodooo

    Voodooo VIP MEMBER

    Joined:
    Aug 10, 2016

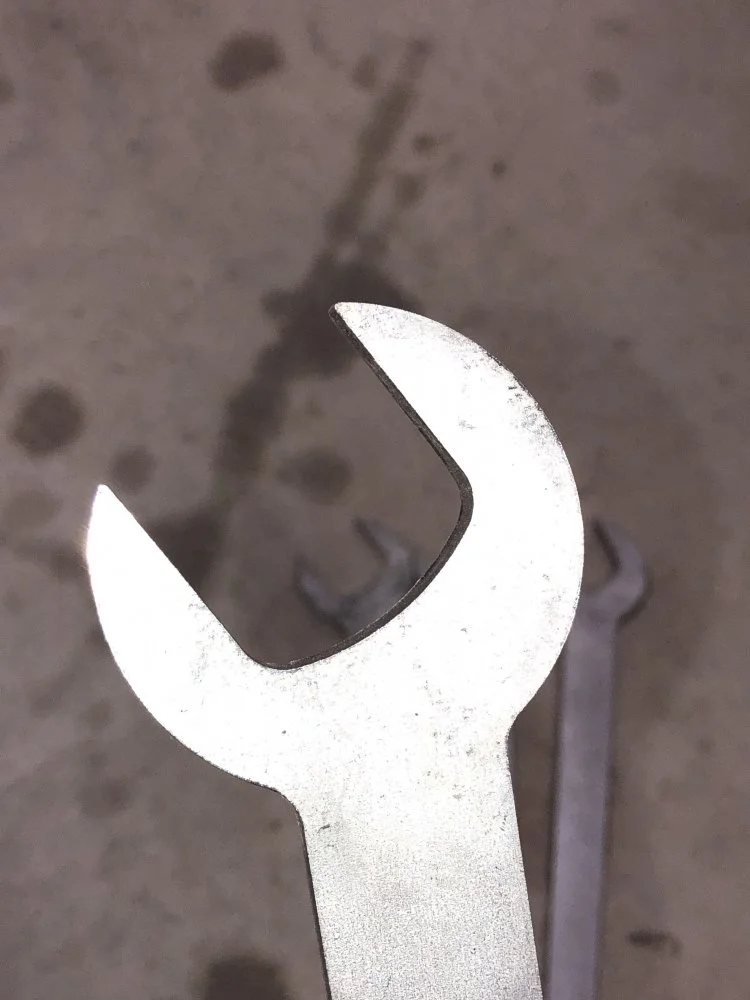

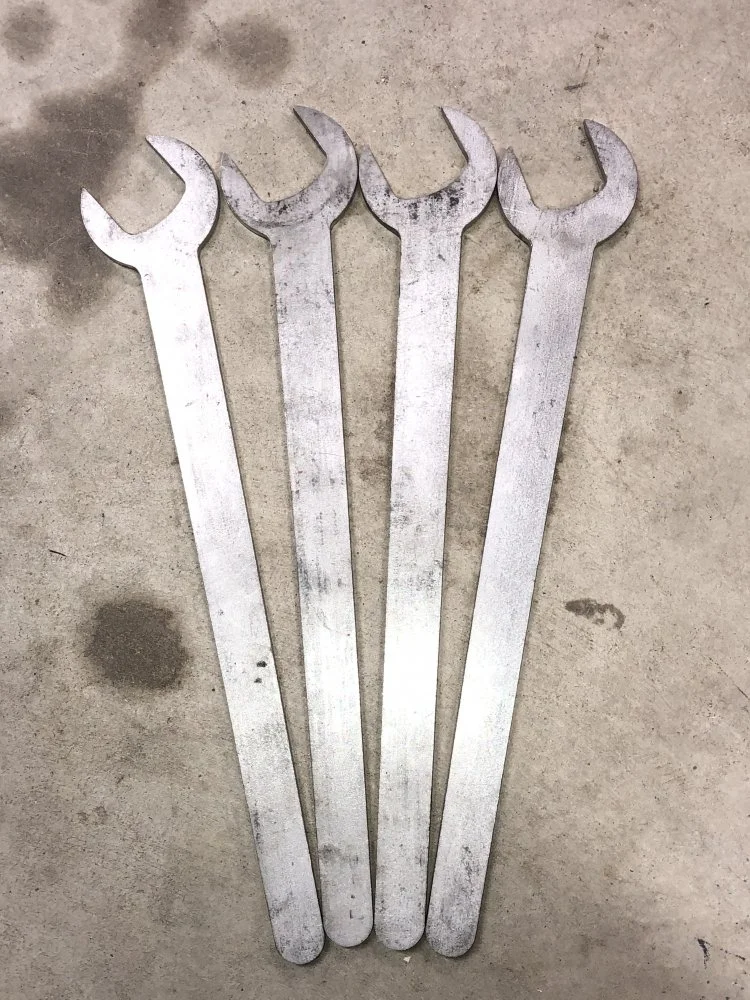

    I made these from 304 stainless steel. 34mm. 35mm. 36mm and 37mm.

    I couldn’t find a tool brand that made them slim enough.
    01556CAF-1BCC-45D8-9C23-D47CC01BD9C4.jpeg 7615ABEF-4F1D-444A-A5E7-D846A293F45F.jpeg 6361F076-FAD7-42AC-96DB-587C64ABF642.jpeg

    Canyon Motorcycles likes this.
  8. Voodooo

    Voodooo VIP MEMBER

    Joined:
    Aug 10, 2016
    you could use an internal pipe wrench. The stem is hollow and once the horn is removed the internal pipe wrench would fit inside the stem.
    https://www.amazon.com/General-Tools-139-Construction-Government-Compliant/dp/B00004T82B

    glb likes this.
  9. Canyon Motorcycles

    Canyon Motorcycles

    Joined:
    Feb 10, 2020
    Never seen those before, look like a great tool!

  10. Voodooo

    Voodooo VIP MEMBER

    Joined:
    Aug 10, 2016
    Plumbers tool.

    glb likes this.
  11. TonyA

    TonyA

    Joined:
    Jan 16, 2015
    That may be the perfect tool to do this job ! Good Find.

    glb and Voodooo like this.
  12. glb

    glb VIP MEMBER

    Joined:
    Sep 21, 2015
    Hi Thanks for all the replies and advice. Sorry I am bit late in replying As diagnosed the entire shaft was spinning internally. I did not have a set of very thin spanners and on a Sunday here little chance of getting any. So I improvised by inserting a conical piece of metal (after removing the horn) in the bottom of the shaft and gently tapping it in. This gave just enough pressure for me using a long bar on the nut to break the loctite. I have not heard of it being called an acorn nut but seems like an apt description. Many thank to all that took the time to reply. I will now try to source some of the Triumph spanners.

    Last edited: Mar 17, 2020
    Voodooo likes this.
