this damn swing arm spindle

Commando74 · Mar 3, 2009

so the spindle seems locked in on the swing arm....we haven't used an extractor yet. The spindle spins on the bushes so it looks like it's locked up on the cradle....any ideas?
thanks, Eric

'74 Commando

JimC · Mar 3, 2009

Have you removed the locating bolt on the cradle?

grandpaul · Mar 3, 2009

Employ larger hammer.

If that fails, apply a blue-tipped smoke wrench.

mikie3117 · Mar 3, 2009

Hi. The right side is threaded and you can insert a bolt to wiggle it and then pull it out. I forget which size bolt but I am sure that someone will add that info.
Mike

2ndchildhood · Mar 3, 2009

mikie3117 said:
Hi. The right side is threaded and you can insert a bolt to wiggle it and then pull it out. I forget which size bolt but I am sure that someone will add that info.
Mike

It's 1/2-20.

See this article about pulling the swingarm spindle.

Sawsall · Mar 3, 2009

1/2-20 bolt. make sure the small locating bolt is out or the top/middle of the craddle. Put a washer on the 1/2-20 bolt and use a pry bar or hook bar to pry it out. if you need to, you can use a slide hammer. last ditch, warm it up with the the torch.

Commando74 · Mar 3, 2009

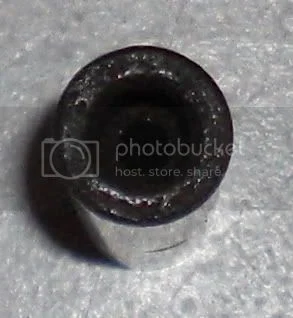

gents.....I was being way too timid to knock it out...some penetrating thread spray.......a little warm and a bigger hammer......took a bit but worked....see below the spindle...how's it look? no corrosion per say but the play looked to be in the bushes when the end caps were off.
thanks for all the help.
Eric
pictures are from four sides and each end

TOP

TOWARDS REAR OF BIKE

BOTTOM

TOWARDS FRONT OF BIKE

RIGHT END (a bit corroded)

LEFT END (kind of hammered a bit)

BrianK · Mar 3, 2009

Ludwig, do you think that spindle's no good? It looked okay to me.

I'm sure new bushings are needed, and now's a great time for the Heinz Kegler mod while you're in there....

PS, when I did bushings recently, I had to use the spindle and some valve grinding compound to loosen up the fit before installation. Thanks to Dave M for that tip.

Actually, I got a lot of good advice on various aspects of the job - see this thread to avail yourself of it:

http://accessnorton.com/norton_commando ... highlight=

Commando74 · Mar 3, 2009

ain't putting that spindle anywhere but on the garbage bin.

too late for reinstall.
Eric

dave M · Mar 3, 2009

My tip only works well if you thoroughly clean the grinding paste out of the bushes afterwards, the bronze bushes will otherwise retain the paste in the pores and cause subsequent wear.

BrianK · Mar 3, 2009

Hi Dave. Yes, you pointed that out and you may be assured I was pretty anal about the cleanup. But worth pointing out for anyone who may be about to try.
