Taps for Commando

Hi,
lost my baggage with tools that i need to buy again.
Please, what are the measures of the taps for:
-cylinder head bolt (3/8 ???);
-ROCKER END PLATE SCREW;
-EX VALVE COVER STUD;
-OIL FEED BANJO BOLT;
-BOLT - OIL JUNCTION BLOCK;
-CHAINCASE FIXING SCREW (1/4" ???).
Thanks in advance.
Piero

Most of these bolts are Whitworth sizes. If this is for a tool bag when out riding, I like to carry adjustable cresent wrenches (one small, one larger) to handle most bolt sizes at the side of the road.

pierodn said:

Hi,
lost my baggage with tools that i need to buy again.
Please, what are the measures of the taps for:
-cylinder head bolt (3/8 ???);
-ROCKER END PLATE SCREW;
-EX VALVE COVER STUD;
-OIL FEED BANJO BOLT;
-BOLT - OIL JUNCTION BLOCK;
-CHAINCASE FIXING SCREW (1/4" ???).
Thanks in advance.
Piero

Click to expand...

I assume you mean the head/wrench sizes for the nuts/bolts, and not the tap sizes to create/chase the threads?

ROCKER END PLATE SCREW - 7/16 wrench, 1/4-20 tap
-EX VALVE COVER STUD; 7/16 or 1/4 WW wrench
-OIL FEED BANJO BOLT; 5/16 WW wrench, I THINK this is 17 TPI, but I don't have a 17 TPI thread guage and neither my 16 or 18 fit.
-BOLT - OIL JUNCTION BLOCK; 3/8 WW wrench, 20TPI
-CHAINCASE FIXING SCREW - if you mean behind the crank sprocket then 7/16 wrench, 1/4-20 tap

Should be lotsa info in the Norton Andover parts manual that anyone can easily look up.

gortnipper said:

OIL FEED BANJO BOLT; 5/16 WW wrench, I THINK this is 17 TPI, but I don't have a 17 TPI thread guage and neither my 16 or 18 fit.

Click to expand...

The oil feed banjo bolt (06-7696) is 5/16" - 22 BSF.

L.A.B. said:

The oil feed banjo bolt (06-7696) is 5/16" - 22 BSF.

Rocker oil feed lines

Hi Gents Can someone advise me please what the oil feed banjo bolt (oil feed to rockers) size is and the thread please. Thanks

www.accessnorton.com

Click to expand...

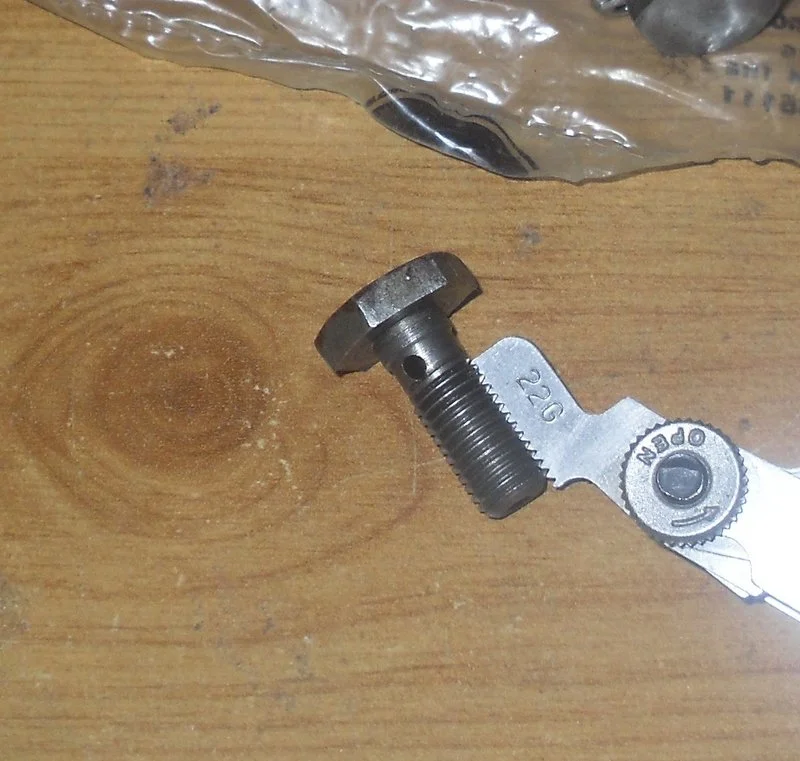

No wonder they didn't fit. I thought I tried 22, must not have
